Instrument panel speaker
Components Inspection Removal / installation
AUDIO SYSTEM / VISUAL SYSTEM
INSTRUMENT PANEL SPEAKER

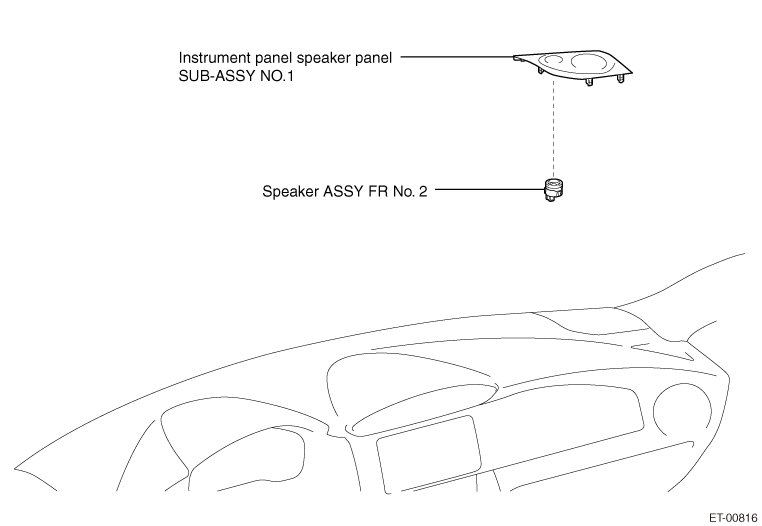

EXPLODED VIEW
REMOVAL
NOTE:
The following procedure is for LH side. This same LH side procedure can also be used for the RH side.
1. Removal of the instrument panel speaker panel SUB-ASSY No.1 (Refer to
)
)
2. Removal of the speaker ASSY FR No.2

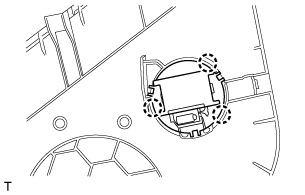

(1) Unhook the three tabs and remove the speaker ASSY FR No.2 from the instrument panel speaker panel SUB-ASSY No.1.
INSTALLATION
NOTE:
The following procedure is for LH side. This same LH side procedure can also be used for the RH side.
1. Installation of the speaker ASSY FR No.2
(1) Engage the three tabs and install the speaker ASSY FR No.2 onto the instrument panel speaker panel SUB-ASSY No.1.
2. Installation of the instrument panel speaker panel SUB-ASSY No.1 (Refer to )
)UNIT INSPECTION
1. Inspection of the speaker ASSY FR No.2
(1) When installing the speaker, always confirm that there are no abnormalities such as looseness or excessive play.
(2) Check that no foreign objects have entered into the speaker, and that there are no abnormalities such cone paper tearing.
