Noise filter
Components Inspection Removal / installation
AUDIO SYSTEM / VISUAL SYSTEM
NOISE FILTER

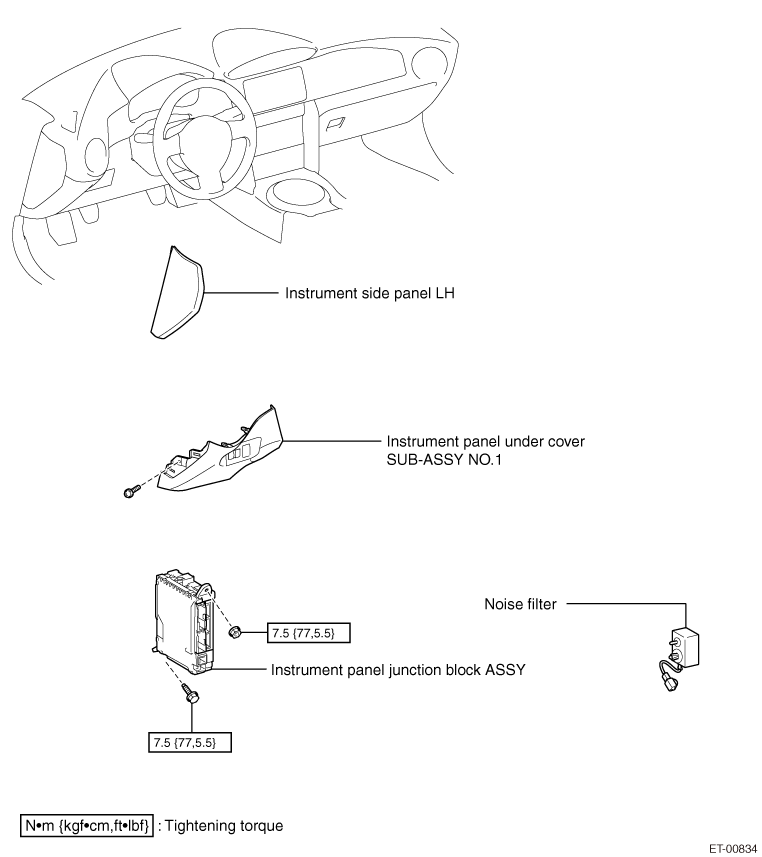

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)2. Removal of the instrument side panel LH (Refer to )
)3. Removal of the instrument panel under cover SUB-ASSY No. 1 (Refer to )
)4. Removal of the instrument panel junction block ASSY (Refer to )
)5. Removal of the noise filter

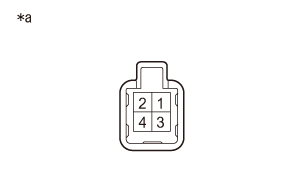

(1) Disconnect the connector.

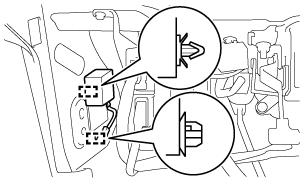

(2) Release the two clamps.

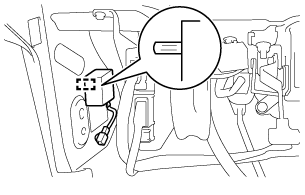

(3) Release the guide and remove the noise filter.
INSTALLATION
1. Installation of the noise filter
(1) Press in the guide and install the noise filter.
(2) Fasten the two clamps.
(3) Connect the connector.
2. Installation of the instrument panel junction block ASSY (Refer to )
)3. Installation of the instrument panel under cover SUB-ASSY No. 1 (Refer to )
)4. Installation of the instrument side panel LH (Refer to )
)5. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4 ft·lbf}
6. Settings when connecting / disconnecting battery terminals (Refer to )
)
