Door control transmitter (without smart entry)
Components Removal / installation
DOOR LOCK
DOOR CONTROL TRANSMITTER (WITHOUT SMART ENTRY)

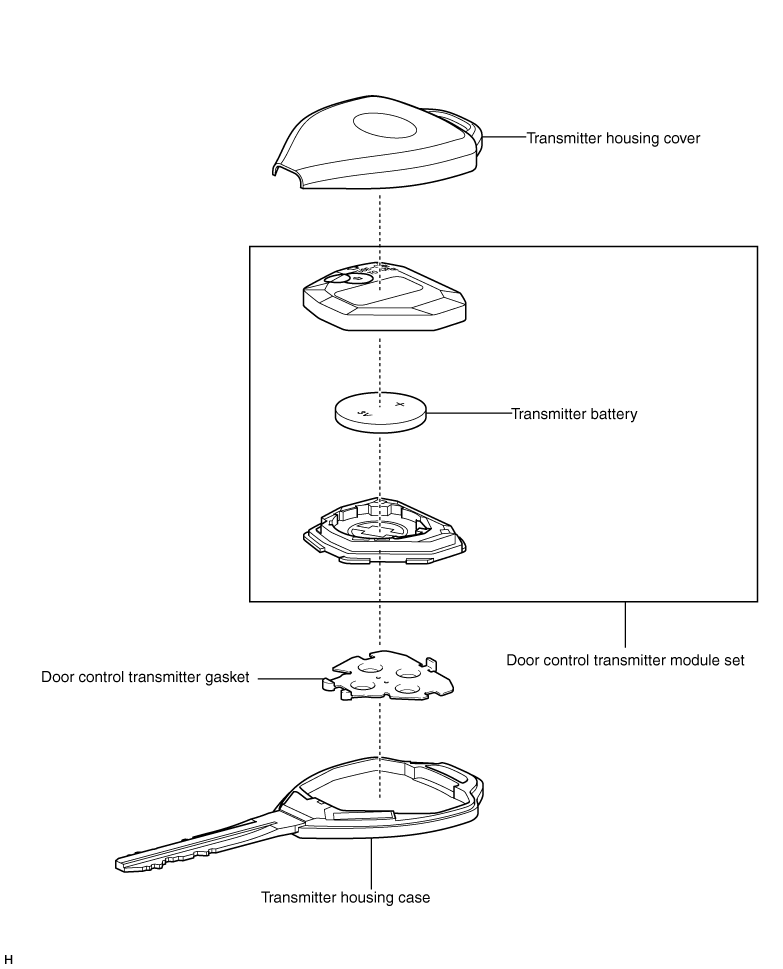

EXPLODED VIEW
REMOVAL

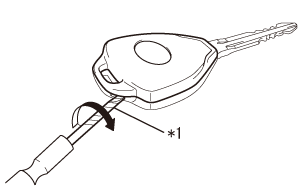

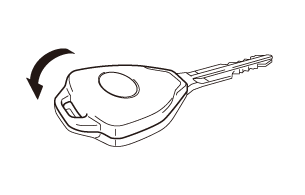

1. Removal of transmitter housing cover

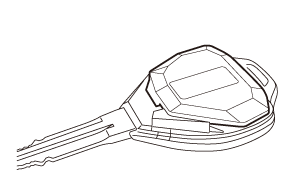

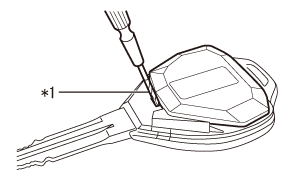

2. Removal of door control transmitter module set
3. Removal of door control transmitter gasket
(1) Remove the door control transmitter gasket
4. Removal of transmitter battery (Refer to
)
)INSTALLATION
1. Installation of transmitter battery (Refer to )
)2. Installation of door transmitter gasket
(1) Install the door control transmitter gasket.
3. Installation of door control transmitter module set
(1) Install the door control transmitter module set to the transmitter housing case.
4. Installation of transmitter housing cover
(1) Install the transmitter housing cover to the transmitter housing case.
(2) Check that the main body LED illuminates when any of the remote control switches is pressed.
REGISTRATION SETTINGS
1. Keyless ID registration
NOTE:
·The keyless ID additional registration is a mode to register a newly received keyless ID additionally while keeping existing registered codes. It is used to add a door control transmitter module set. If the number of registered codes exceeds 6, the first registered code is erased.
·The keyless ID rewrite is a mode to register only the newly received keyless ID after erasing all the existing registered codes. It is used to replace the door control transmitter module set.
·The readout the number of keyless ID registration is a mode to confirm how many keyless IDs are registered. It is used to check the number of registered codes before additional registration.
·The keyless ID rewrite is a mode to register only the newly received keyless ID after erasing all the existing registered codes. It is used to replace the door control transmitter module set.
·The readout the number of keyless ID registration is a mode to confirm how many keyless IDs are registered. It is used to check the number of registered codes before additional registration.
(1) Turn the ignition switch to ON.
(2) Following the instructions from SSM3, select a relevant mode.
(3) Transmitter registration
(a) After selecting the keyless ID addition registration or keyless ID renewal, press the lock and unlock switches of the door control transmitter module set simultaneously. (for 1 second)
(b) Again, press any of the transmitter switches within 3 seconds. (for 1 second)
NOTE:
Up to 6 keyless IDs can be registered.
(4) End of registration mode (The mode ends if any of the following is satisfied)
(a) Completion request is issued from SSM3.
(b) SSM3 connection is shut off.
(c) No code has been entered for 30 seconds or more in registration mode.
(5) After the registration operation, perform the following works:
(a) On-vehicle inspection of wireless door lock control system (without smart entry)
CAUTION:
If wireless operation does not work, repeat the keyless ID registration.
