Front door lock ASSY
Components Inspection Removal / installation
DOOR LOCK
FRONT DOOR LOCK ASSY

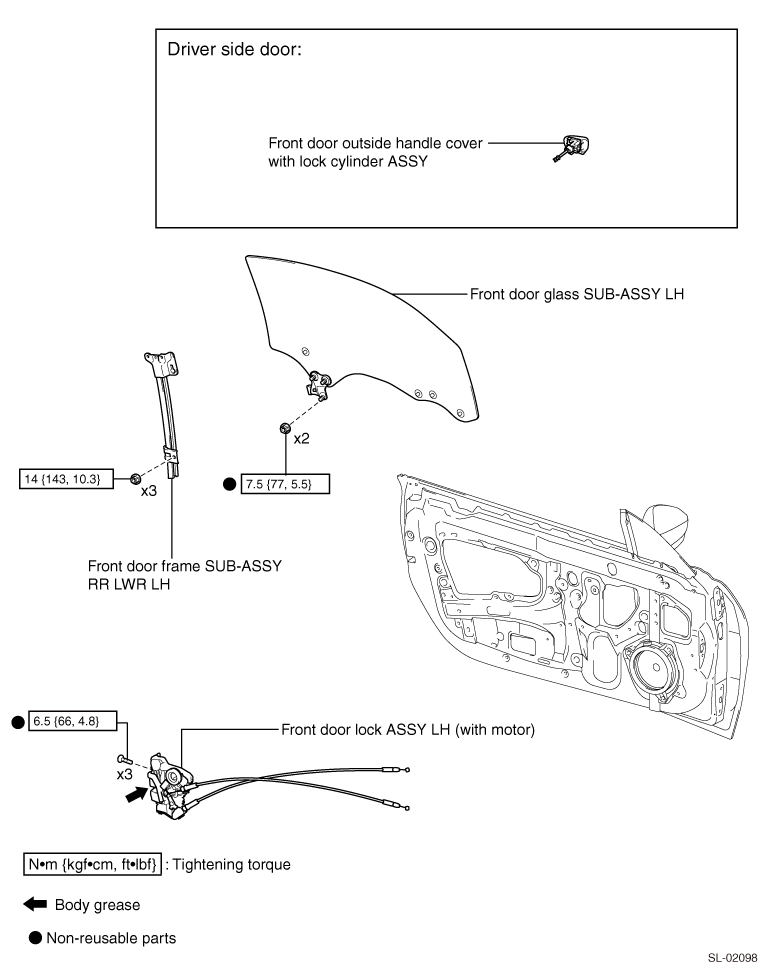

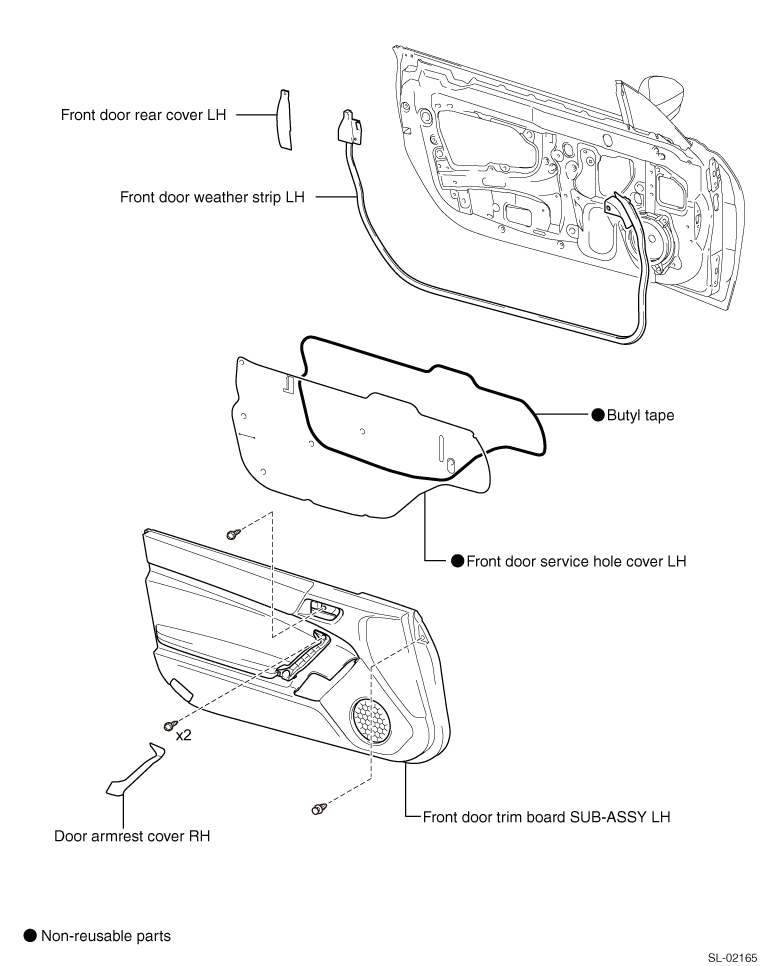

EXPLODED VIEW
REMOVAL
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH side.
1. Disconnection of the battery ground terminal (Refer to
)
)2. Removal of the door armrest cover LH (Refer to )
)3. Removal of the front door trim board SUB-ASSY LH (Refer to )
)4. Removal of the front door service hole cover LH (Refer to )
)5. Removal of the front door glass SUB-ASSY LH (Refer to )
)6. Removal of the front door frame SUB-ASSY RR LWR LH (Refer to )
)7. Removal of the front door outside handle cover W/ lock cylinder ASSY (driver’s door) (Refer to )
)
8. Removal of the front door lock ASSY LH (with motor)

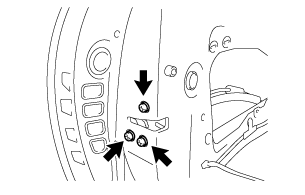

(1) Remove the 3 bolts.
(2) Slide down the front door lock ASSY LH (with motor) and remove the front door lock ASSY LH (with motor) from the front door lock open rod LH.
INSTALLATION
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH side.
1. Applying of body grease
(1) Apply body grease to the sliding surface of the front door lock ASSY LH (with motor).
2. Installation of the front door lock ASSY LH (with motor)
CAUTION:
Make sure that no grease or dust adheres to the door lock wire harness seal of the connector.
(1) Install the front door lock ASSY LH (with motor) using three new bolts.
Standard value:
Standard value:
Tightening torque=6.5N·m
{
66kgf·cm}
{4.8ft·lbf}
3. Installation of the front door outside handle cover W/ lock cylinder ASSY (driver’s door) (Refer to )
)4. Installation of the front door frame SUB-ASSY RR LWR LH (Refer to )
)5. Installation of the front door glass SUB-ASSY LH (Refer to )
)6. Adjustment of the front door glass SUB-ASSY LH (Refer to )
)7. Installation of the front door service hole cover LH (Refer to )
)8. Installation of the front door trim board SUB-ASSY LH (Refer to )
)9. Installation of the door armrest cover LH (Refer to )
)10. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
11. Settings when removing/installing battery terminals (Refer to )
)UNIT INSPECTION

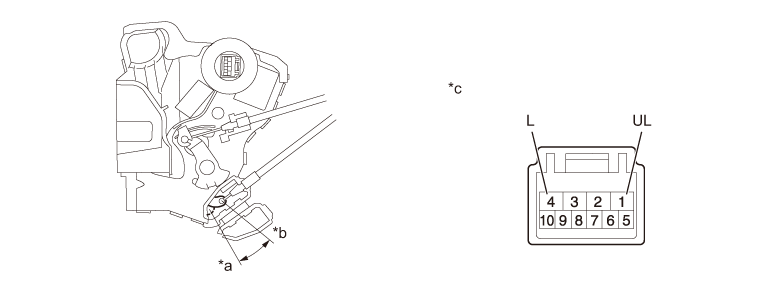

1. Inspection of front door lock ASSY LH (with motor)
(1) Operation check of door lock
(a) Check the door lock operation when battery voltage is applied to each terminal of the connector.
Criteria
| Battery connection |
Door lock operation |
|---|---|
| Battery positive → 4(L) Battery negative → 1(UL) |
LOCK |
| Battery positive → 1(UL) Battery negative → 4(L) |
UNLOCK |
Captions in illustration
| *a |
Lock |
| *b |
Unlock |
| *c |
Connector not connected (Front door lock ASSY LH (with motor)) |

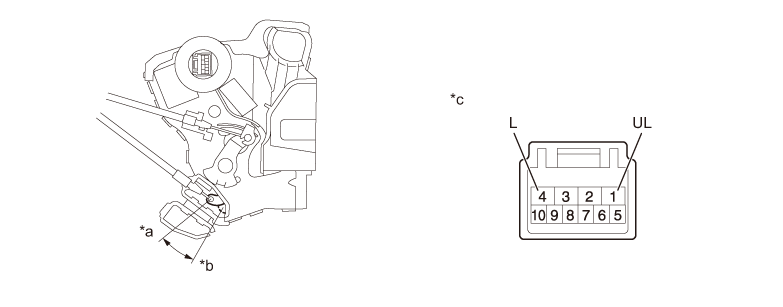

2. Inspection of front door lock ASSY RH (with motor)
(1) Operation check of door lock
(a) Check the door lock operation when battery voltage is applied to each terminal of the connector.
Criteria
| Battery connection |
Door lock operation |
|---|---|
| Battery positive → 4(L) Battery negative → 1(UL) |
LOCK |
| Battery positive → 1(UL) Battery negative → 4(L) |
UNLOCK |
Captions in illustration
| *a |
Lock |
| *b |
Unlock |
| *c |
Connector not connected (Front door lock ASSY RH (with motor)) |
