Trunk panel lock ASSY
Components Inspection Removal / installation
DOOR LOCK
TRUNK PANEL LOCK ASSY

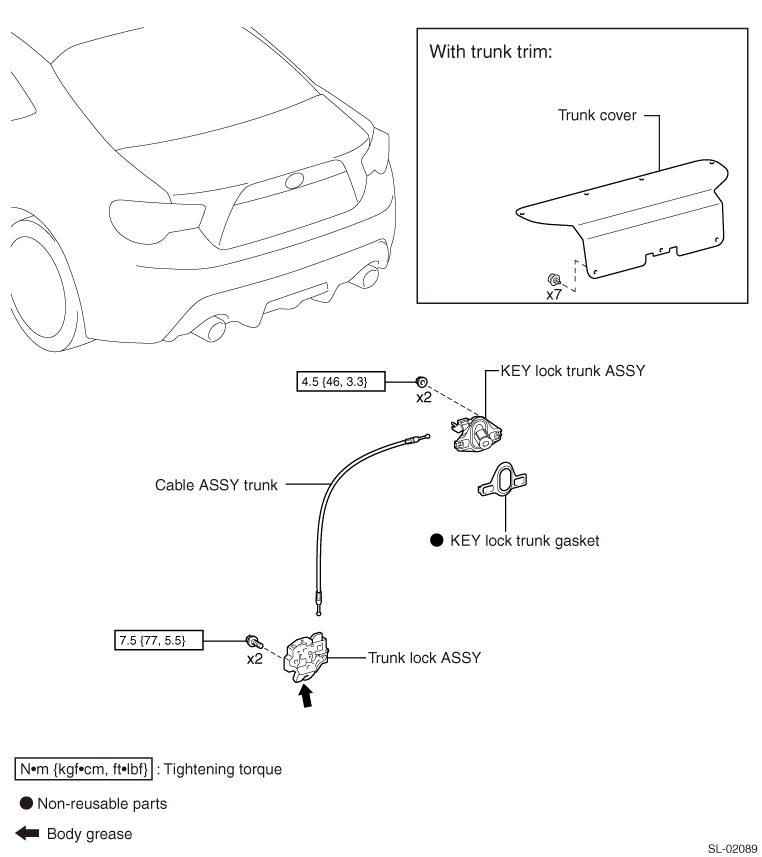

EXPLODED VIEW
REMOVAL
1. Removal of trunk cover (with trunk trim) (Refer to
)
)
2. Removal of trunk lock ASSY
3. Removal of KEY lock trunk
4. Removal of KEY lock trunk gasket

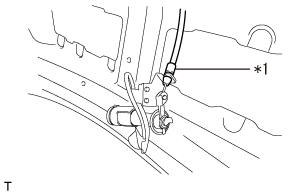

5. Removal of cable ASSY trunk

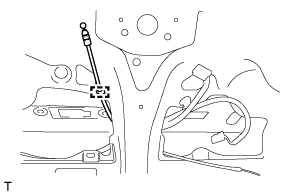

(1) Release the clamp and remove the cable ASSY trunk.
INSTALLATION
1. Installation of cable ASSY trunk
(1) Engage the clamp and install the cable ASSY trunk.
2. Installation of KEY lock trunk gasket

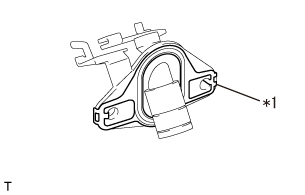

(1) Install a new KEY lock trunk gasket.
CAUTION:
To prevent water entry, replace the KEY lock trunk gasket with a new one once it is removed.
3. Applying of body grease
(1) Apply body grease to the sliding surface of the KEY lock trunk.
4. Installation of KEY lock trunk
(1) Connect the cable ASSY trunk.

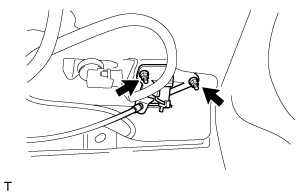

(2) Using 2 nuts, install the KEY lock trunk.
Standard value:
Standard value:
Tightening torque=4.5N·m
{
46kgf·cm}
{3.3ft·lbf}
5. Installation of trunk lock ASSY

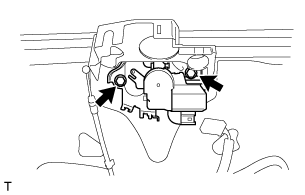

(1) Using two bolts, install the trunk lock ASSY to the trunk panel.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}

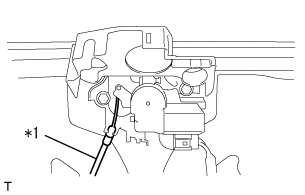

(2) Connect the cable ASSY trunk to the trunk lock ASSY.

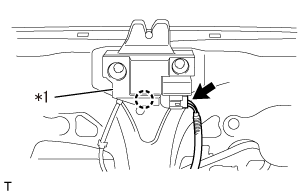

(3) Engage the claw and close the cover.
(4) Connect the connector.
6. Installation of trunk cover (with trunk trim) (Refer to )
)UNIT INSPECTION
1. Inspection of trunk lock ASSY
(1) Operation check of trunk lock ASSY

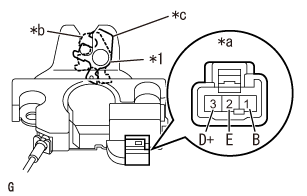

(a) Set the latch of the trunk lock ASSY to the lock position.
(2) Inspection of trunk lock ASSY courtesy switch
(a) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| Tester positive → 2(E) Tester negative → 3(D+) |
Locked |
10 kΩ or more |
| Open |
Less than 1 Ω |
Captions in illustration
| *1 |
Latch |
| *a |
Connector not connected (trunk lock ASSY) |
| *b |
Lock position |
| *c |
Open position |
