Door control receiver

Components Removal / installation

DOOR LOCK

DOOR CONTROL RECEIVER

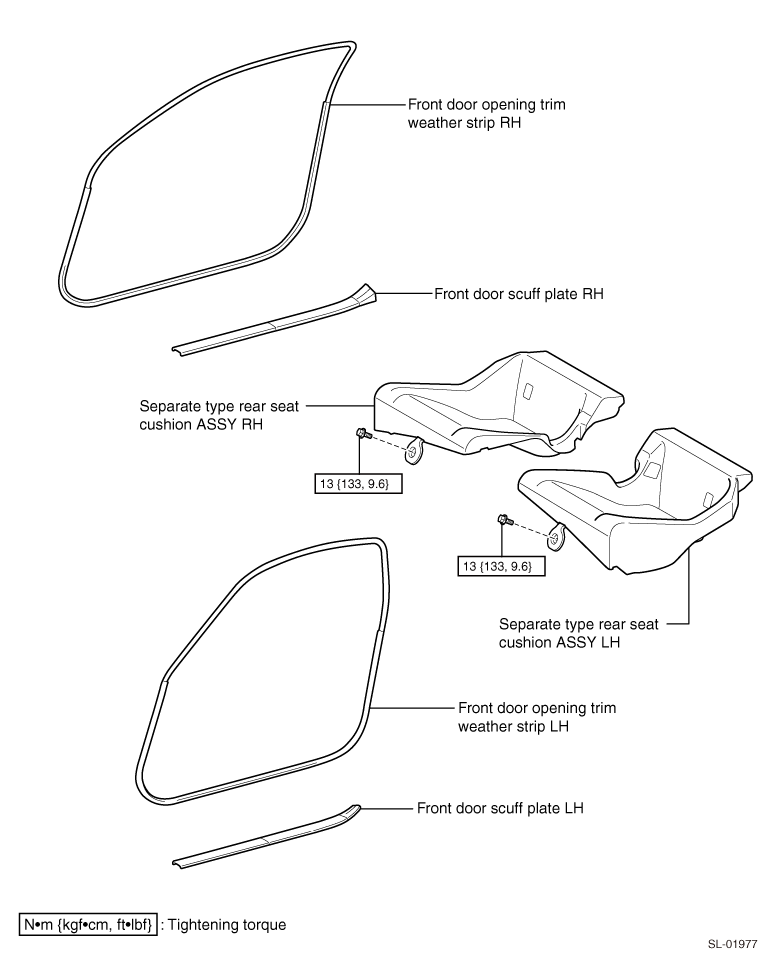

EXPLODED VIEW

REMOVAL

1. Removal of separate type rear seat cushion ASSY RH (Refer to

)

2. Removal of separate type rear seat cushion ASSY LH

NOTE:

Remove the part in the same manner as RH side.

3. Removal of front door scuff plate RH (Refer to

)

4. Removal of front door scuff plate LH

NOTE:

Remove the part in the same manner as RH side.

5. Removal of front door opening trim weather strip RH (Refer to

)

6. Removal of front door opening trim weather strip LH

NOTE:

Remove the part in the same manner as RH side.

7. Disconnection of trunk trim cover INN RH (Refer to

)

8. Disconnection of trunk trim cover INN LH

NOTE:

Disconnect in the same manner as RH side.

9. Removal of quarter lower trim RH (Refer to

)

10. Removal of quarter lower trim LH

NOTE:

Remove the part in the same manner as RH side.

11. Removal of quarter trim lid RH (Refer to

)

12. Removal of quarter trim lid SUB-ASSY LH

NOTE:

Remove the part in the same manner as RH side.

13. Removal of the rear window side garnish RH (Refer to

)

14. Removal of the rear window side garnish LH

NOTE:

Remove the part in the same manner as RH side.

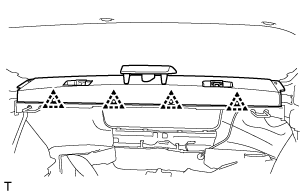

15. Removal of package tray trim panel ASSY

(1) Disconnect the connector.

(2) Remove the 4 clips.

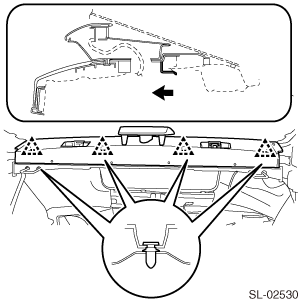

(3) Release the four clips and remove the package tray trim panel ASSY and center stop light ASSY as a single unit by pulling them toward you.

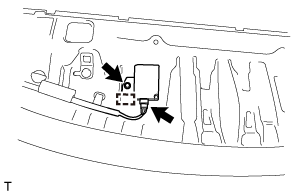

16. Removal of door control receiver

(1) Disconnect the connector.

(2) Remove the bolt.

(3) Remove the guide and remove the door control receiver.

CAUTION:

Do not drop or apply strong impact to the door control receiver.

INSTALLATION

1. Installation of door control receiver.

(1) Insert the guide.

(2) Install the door control receiver using bolts.

Standard value:

Tightening torque=13N·m { 133kgf·cm} {9.6ft·lbf}

(3) Connect the connector.

CAUTION:

·Do not use a door control receiver that has been dropped or exposed to strong impact.
·When a wiring harness comes close to the door control receiver, the wireless performance of smart entry & start system may decrease. So, when replacing or inspecting the door control receiver and the wiring harness, do not change the route and length of the wiring harness.

2. Installation of package tray trim panel ASSY

(1) Hook tabs to the panel and engage the four clips to install the package tray trim panel ASSY and center stop light ASSY as a single unit.

(2) Install the 4 clips.

(3) Connect the connector.

3. Installation of the rear window side garnish RH (Refer to

)

4. Installation of rear window side garnish LH

NOTE:
