Wireless door lock buzzer
Components Removal / installation
DOOR LOCK
WIRELESS DOOR LOCK BUZZER

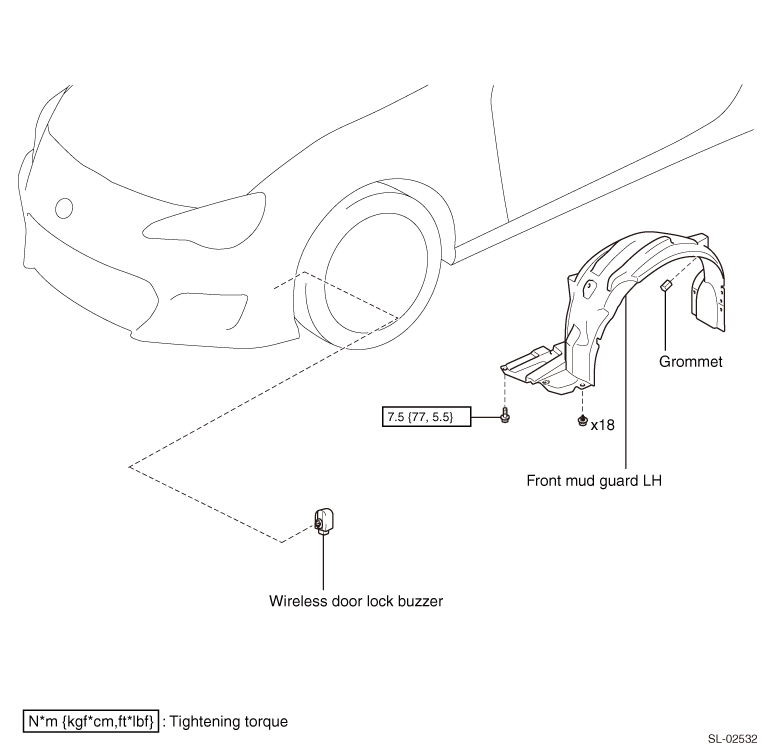

EXPLODED VIEW
REMOVAL
1. Removal of the front tire LH
2. Disconnection of front mud guard LH (Refer to
)
)
3. Removal of wireless door lock buzzer

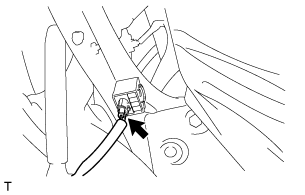

(1) Disconnect the connector.

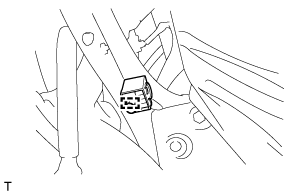

(2) Release the clamp and remove the wireless door lock buzzer.
INSTALLATION
1. Installation of wireless door lock buzzer
(1) Engage the clamp and install the wireless door lock buzzer.
(2) Connect the connector.
2. Installation of front mud guard LH (Refer to )
)3. Installation of the front tire LH
Standard value:
Standard value:
Tightening torque=120N·m
{
1224kgf·cm}
{88.5ft·lbf}
