Unlock warning switch ASSY
Components Inspection Removal / installation
DOOR LOCK
UNLOCK WARNING SWITCH ASSY

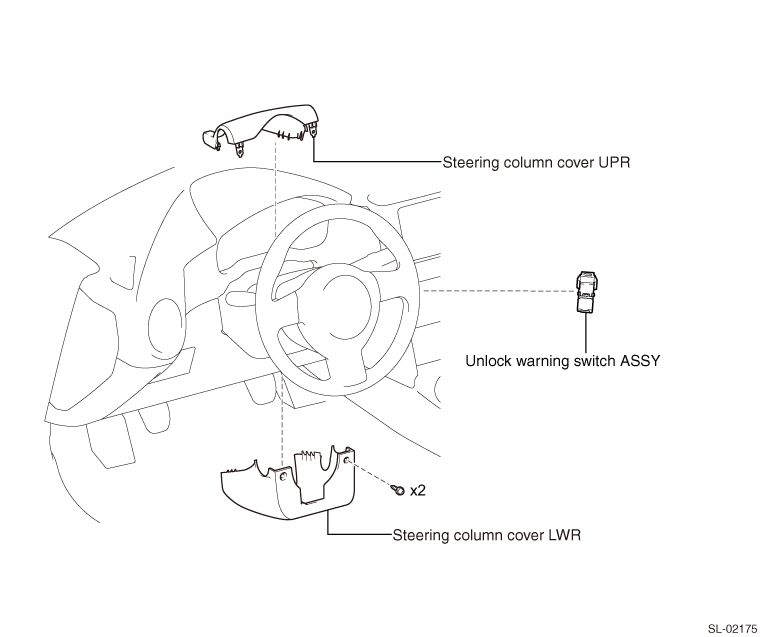

EXPLODED VIEW
REMOVAL
1. Removal of the steering column cover LWR (Refer to
)
)2. Removal of the steering column cover UPR (Refer to )
)
3. Removal of unlock warning switch ASSY
(1) Disconnect the connector.

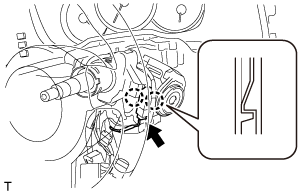

(2) Release the two claws and remove the unlock warning switch ASSY.
INSTALLATION
1. Installation of unlock warning switch ASSY
(1) Engage the two claws and install the unlock warning switch ASSY.
(2) Connect the connector.
2. Installation of the steering column cover UPR (Refer to )
)3. Installation of the steering column cover LWR (Refer to )
)UNIT INSPECTION
1. Inspection of unlock warning switch ASSY
(1) Resistance check
(a) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| 1(UN+) - 2(UN-) |
When pin is pressed in |
Less than 1 Ω |
| 1(UN+) - 2(UN-) |
When pin is not pressed in |
10 kΩ or more |

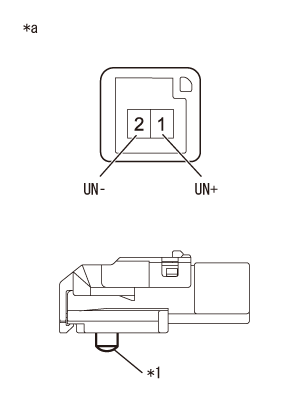

Captions in illustration
| *1 |
Pin |
| *a |
Connector not connected (Unlock warning switch ASSY) |
