Electrical oscillator key (for front floor)

Components Removal / installation

ANTI-THEFT SYSTEM / SMART ENTRY & START SYSTEM

ELECTRICAL OSCILLATOR KEY (FOR FRONT FLOOR)

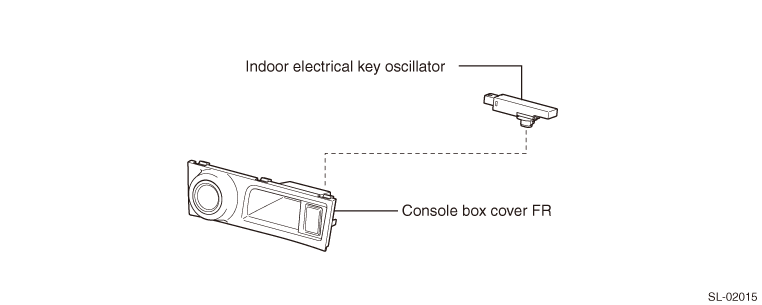

EXPLODED VIEW

REMOVAL

1. Removal of console box cover FR (Refer to )

2. Removal of indoor electrical key oscillator

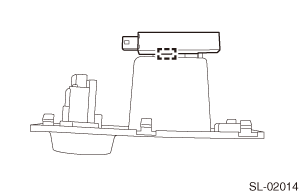

(1) Release the clamp and remove the indoor electrical key oscillator.

INSTALLATION

1. Installation of indoor electrical key oscillator

(1) Engage the clamp and install the indoor electrical key oscillator.

2. Installation of console cover FR (Refer to )
