Electrical oscillator key (for rear floor)
Components Removal / installation
ANTI-THEFT SYSTEM / SMART ENTRY & START SYSTEM
ELECTRICAL OSCILLATOR KEY (FOR REAR FLOOR)

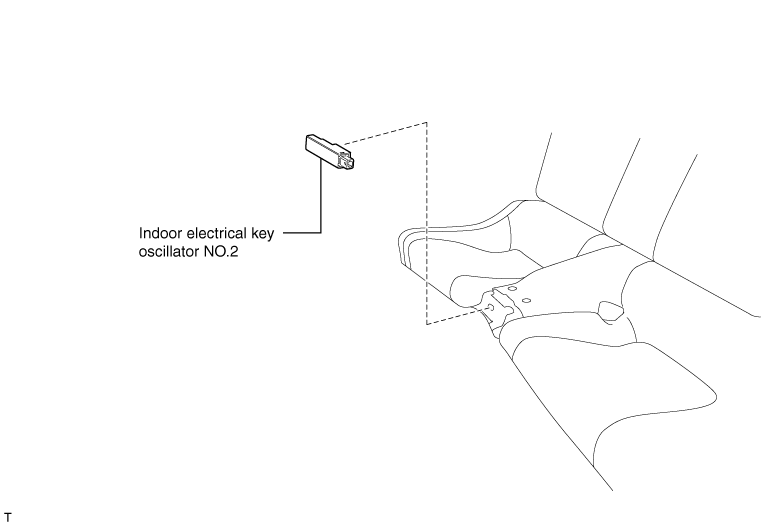

EXPLODED VIEW
REMOVAL
WARNING:
The following service operations include the works which may affect the SRS airbag system. Before starting work, always be sure to confirm the precautions related to the SRS airbag system. (Refer to
)
)1. Removal of the console box ASSY (Refer to )
)

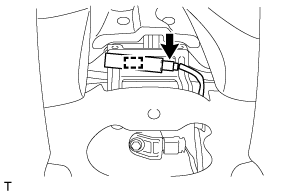

2. Removal of indoor electrical key oscillator No.2
(1) Disconnect the connector.
(2) Release the clamp and remove the indoor electrical key oscillator No.2.
INSTALLATION
1. Installation of indoor electrical key oscillator No.2
(1) Engage the clamp and install the indoor electrical key oscillator No.2.
(2) Connect the connector.
2. Installation of the console box ASSY (Refer to )
)
