Electrical oscillator key (for the trunk room)

Components Removal / installation

ANTI-THEFT SYSTEM / SMART ENTRY & START SYSTEM

ELECTRICAL OSCILLATOR KEY (FOR THE TRUNK ROOM)

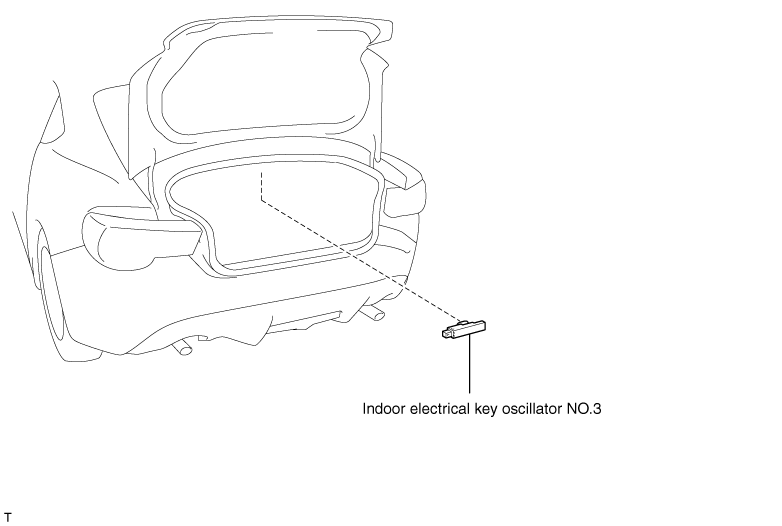

EXPLODED VIEW

REMOVAL

1. Removal of indoor electrical key oscillator No.3

(1) Disconnect the connector.

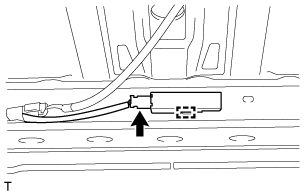

(2) Release the clamp and remove the indoor electrical key oscillator No.3.

INSTALLATION

1. Installation of indoor electrical key oscillator No.3

(1) Engage the clamp and install the indoor electrical key oscillator No.3.

(2) Connect the connector.
