Electrical oscillator key (for outside of the trunk room)

Components Removal / installation

ANTI-THEFT SYSTEM / SMART ENTRY & START SYSTEM

ELECTRICAL OSCILLATOR KEY (FOR OUTSIDE OF THE TRUNK ROOM)

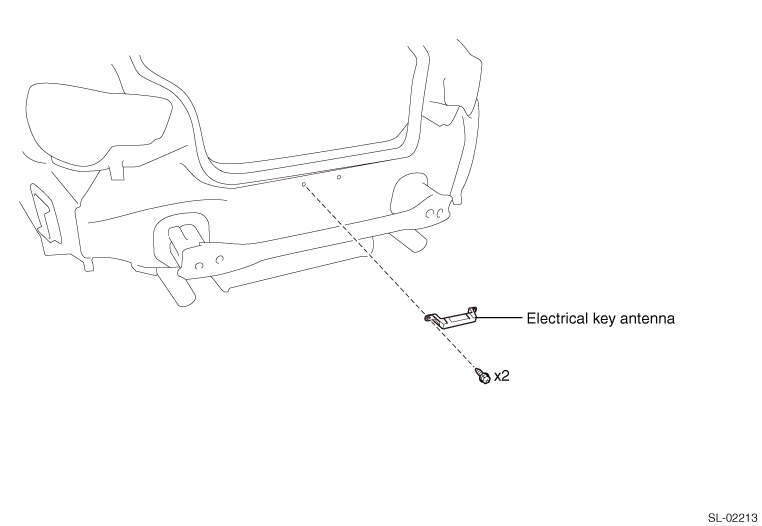

EXPLODED VIEW

REMOVAL

1. Removal of the rear bumper cover (Refer to )

2. Removal of electrical key antenna

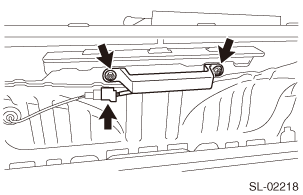

(1) Disconnect the connector.

(2) Remove the 2 screws and remove the electrical key antenna.

INSTALLATION

1. Installation of electrical key antenna

(1) Using 2 screws, install the electrical key antenna.

(2) Connect the connector.

2. Installation of rear bumper cover (Refer to )
