Vanity light

Components Inspection Removal / installation

LIGHTING (INTERIOR)
VANITY LIGHT

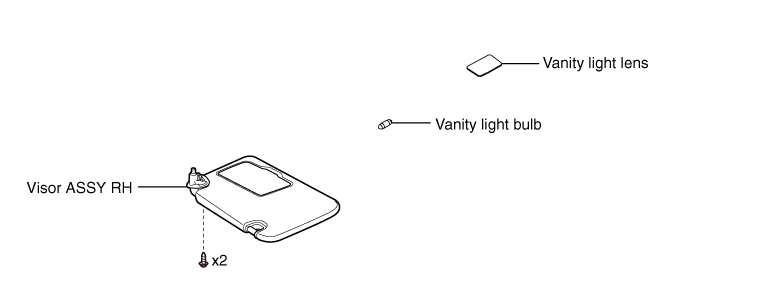

EXPLODED VIEW
REMOVAL
NOTE:
The procedures described below are for the RH side. Perform the same procedures for the LH side.
1. Removal of visor ASSY RH

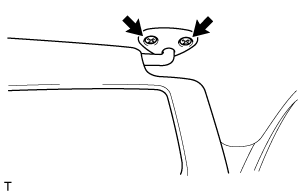

(1) Remove the 2 screws.

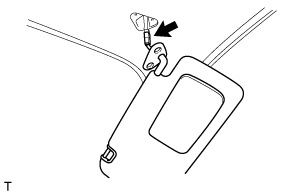

(2) Disconnect the visor ASSY RH from the hook.

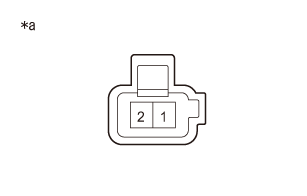

(3) Disconnect the connector and remove the visor ASSY RH.
2. Removal of the vanity light lens

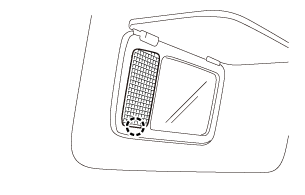

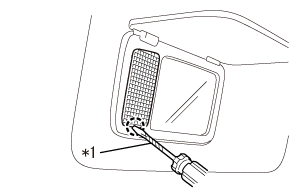

(1) Release the claws by using a flat tip screwdriver wrapped with protective tape, and remove the vanity light lens.
Captions in illustration
*1
 Protective tape
3. Removal of the vanity light bulb
(1) Remove the vanity light bulb from the visor ASSY RH.
INSTALLATION
NOTE:
The procedures described below are for the RH side. Perform the same procedures for the LH side.
1. Installation of the vanity light bulb
(1) Install the vanity light bulb to the visor ASSY RH.
2. Installation of the vanity light lens
(1) Engage the claws and install the vanity light lens.
3. Installation of visor ASSY RH
(1) Connect the connector.
(2) Place the visor ASSY RH on the hook.
(3) With the 2 screws, install the visor ASSY RH.
