Personal map light
Components Inspection Removal / installation
LIGHTING (INTERIOR)
PERSONAL MAP LIGHT

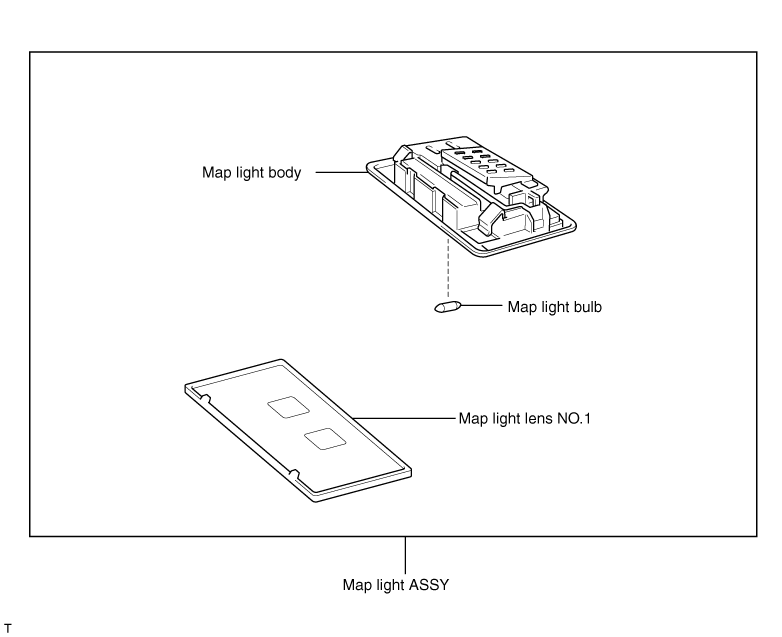

EXPLODED VIEW
REMOVAL
1. Removal of the map light ASSY

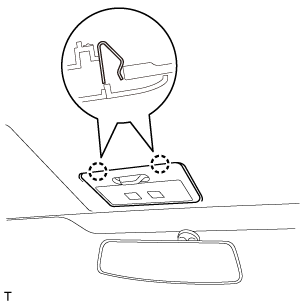

(1) Release the 2 tabs.

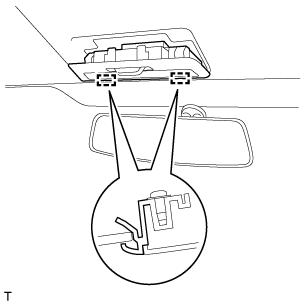

(2) Release two guides and disconnect the map light ASSY.

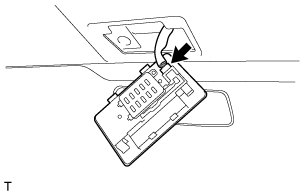

(3) Disconnect the connector and remove the map light ASSY.

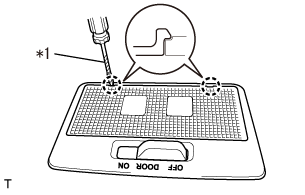

2. Removal of the map light lens NO.1
3. Removal of the map light bulb
(1) Remove the map light bulb.
INSTALLATION
1. Installation of the map light bulb
(1) Install the map light bulb.
2. Installation of the map light lens NO.1
(1) Engage two claws and install the map light lens NO.1.
3. Installation of the map light ASSY
(1) Connect the connector.
(2) Insert two guides.
(3) Engage two claws and install the map light ASSY.
UNIT INSPECTION
1. Inspection of the map light ASSY
(1) Illumination condition check for the map light
(a) Check the illumination condition of the map light when battery voltage is applied between the connector terminals.
Criteria
| Battery connection |
Inspection conditions |
Criteria |
|---|---|---|
| Battery positive terminal → 2(+B) Battery ground terminal → 1(GND) |
Map light switch ON |
The map light illuminates. |
| Battery positive terminal → 2(+B) Battery ground terminal → 3(DOOR SW) |
Map light switch DOOR |
The map light illuminates. |
Captions in illustration

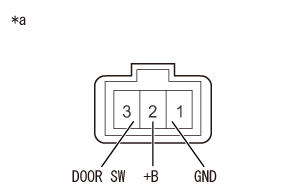

| *a |
Connector not connected (map light ASSY) |
