LIGHTING (INTERIOR)
TRUNK ROOM LIGHT

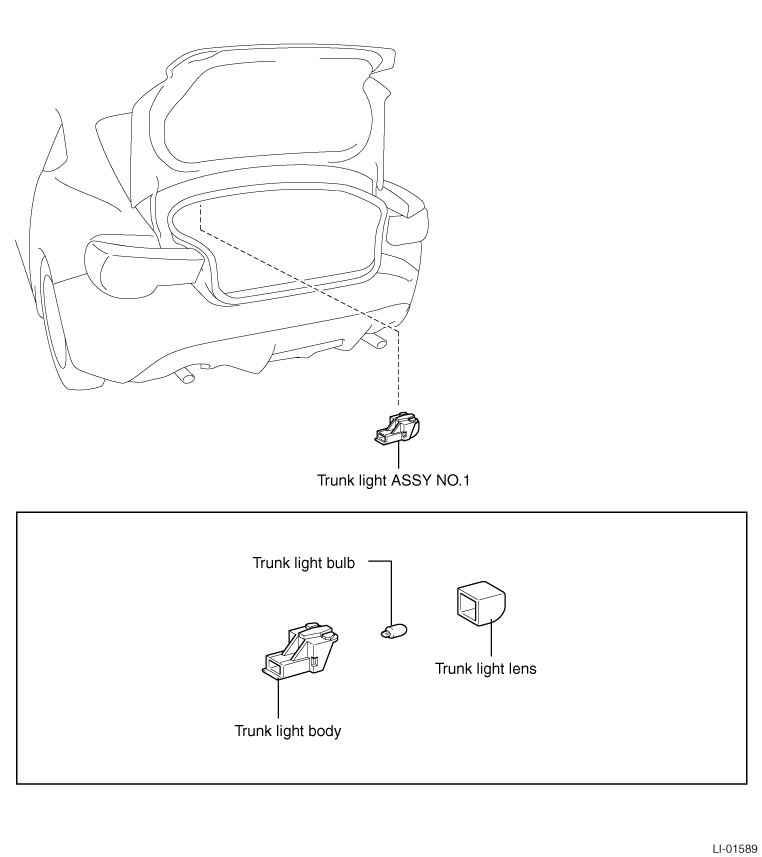

EXPLODED VIEW
REMOVAL
1. Removal of the trunk light ASSY NO.1

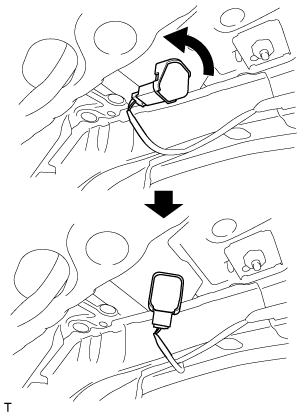

(1) Rotate the trunk light ASSY NO.1 as shown in the figure, and disconnect the trunk light ASSY NO.1 from the vehicle.

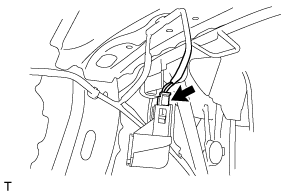

(2) Disconnect the connector and remove the trunk light ASSY NO.1.
2. Removal of the trunk light lens

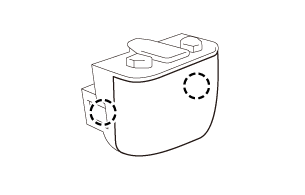

(1) Release two claws and remove the trunk light lens.
3. Removal of the trunk light bulb
(1) Remove the trunk light valve.
INSTALLATION

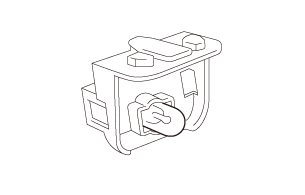

1. Installation of the trunk light bulb
(1) Install the trunk light valve.
2. Installation of the trunk light lens
(1) Engage two claws and install the trunk light lens.
3. Installation of the trunk light ASSY NO.1
(1) Connect the connector.

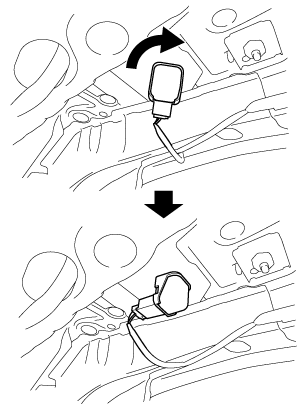

(2) Rotate the trunk light ASSY NO.1 as shown in the figure, and install the trunk light ASSY NO.1.
UNIT INSPECTION
1. Inspection of the trunk light ASSY NO.1
(1) Check the illumination condition when battery voltage is applied between the connector terminals.
Criteria
| Inspection terminals |
Inspection conditions |
Criteria |
|---|---|---|
| 1 - 2 |
Battery positive → 1 Battery ground → 2 |
Light turns on. |

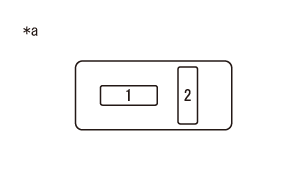

Captions in illustration
| *a |
Connector not connected (Trunk light ASSY NO.1) |
NOTE:
Perform the inspection using a properly functioning bulb.
