Door courtesy light (installed to the front side)
Components Inspection Removal / installation
LIGHTING (INTERIOR)
DOOR COURTESY LIGHT (INSTALLED TO THE FRONT SIDE)

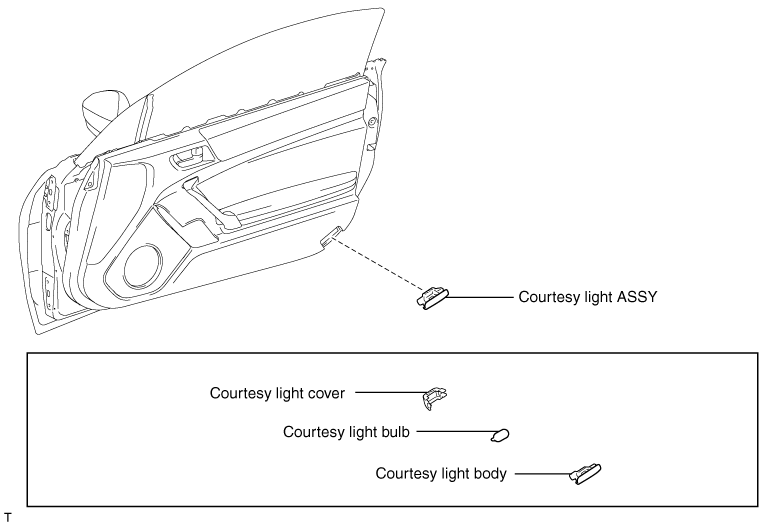

EXPLODED VIEW
REMOVAL
NOTE:
The procedures described below are for the RH side. Perform the same procedures for the LH side.

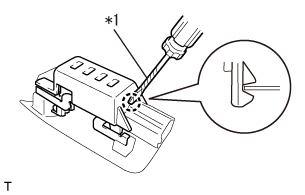

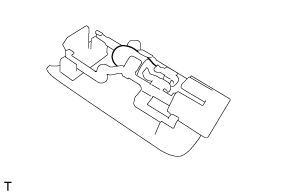

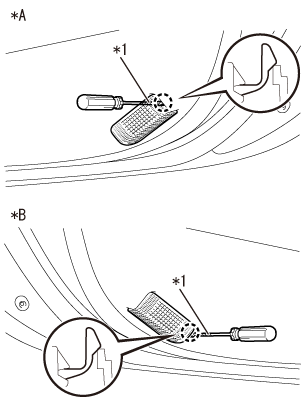

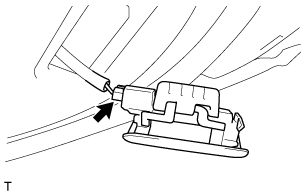

1. Removal of the courtesy light ASSY
INSTALLATION
NOTE:
The procedures described below are for the RH side. Perform the same procedures for the LH side.
1. Installation of the courtesy light bulb
(1) Install the courtesy light bulb.

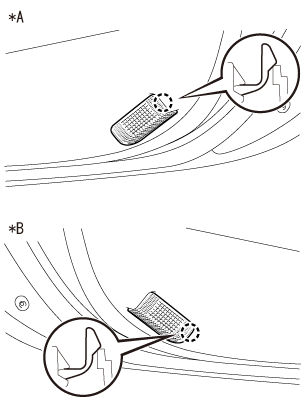

(2) Engage the claws and install the courtesy light cover.
UNIT INSPECTION
NOTE:
The procedures described below are for the RH side. Perform the same procedures for the LH side.
1. Inspection of the courtesy light ASSY

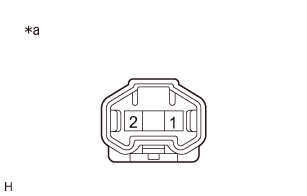

(1) Light inspection
