Front door courtesy switch
Components Inspection Removal / installation
LIGHTING (INTERIOR)
FRONT DOOR COURTESY SWITCH

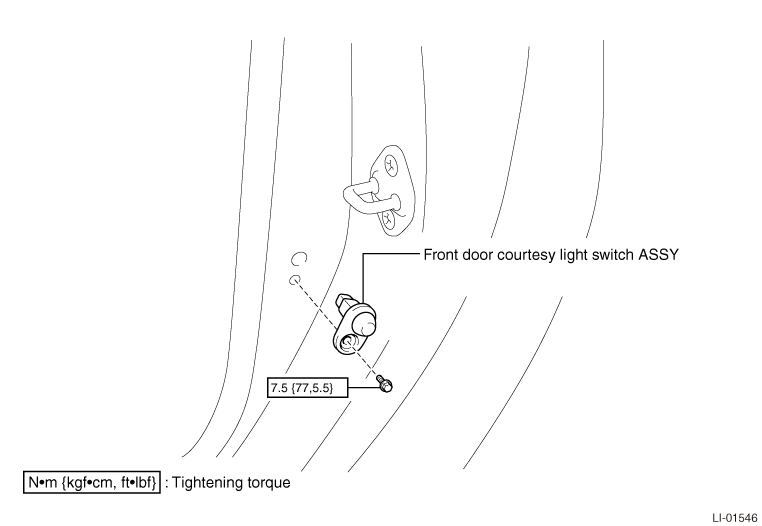

EXPLODED VIEW
REMOVAL
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH side.
1. Removal of the front door courtesy light switch ASSY

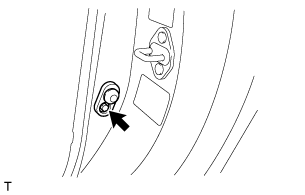

(1) Remove the bolt.

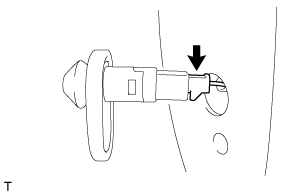

(2) Disconnect the connector and remove the front door courtesy light switch ASSY.
INSTALLATION
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH side.
1. Installation of the front door courtesy light switch ASSY
(1) Connect the connector.
(2) Install the front door courtesy light switch ASSY with the bolt.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
UNIT INSPECTION
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH side.
1. Inspection of the front door courtesy light switch ASSY
(1) Measure the resistance when the shaft of the front door courtesy light switch ASSY is operated.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| 1 - Chassis ground |
When the shaft is not pushed in |
Less than 1 Ω |
| 1 - Chassis ground |
When the shaft is pushed in |
10 kΩ or more |

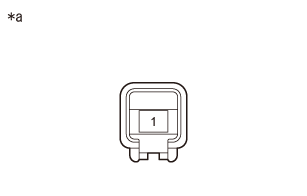

Captions in illustration
| *a |
Connector not connected (front door courtesy light switch ASSY) |
