Ignition key cylinder light

Components Inspection Removal / installation

LIGHTING (INTERIOR)

IGNITION KEY CYLINDER LIGHT

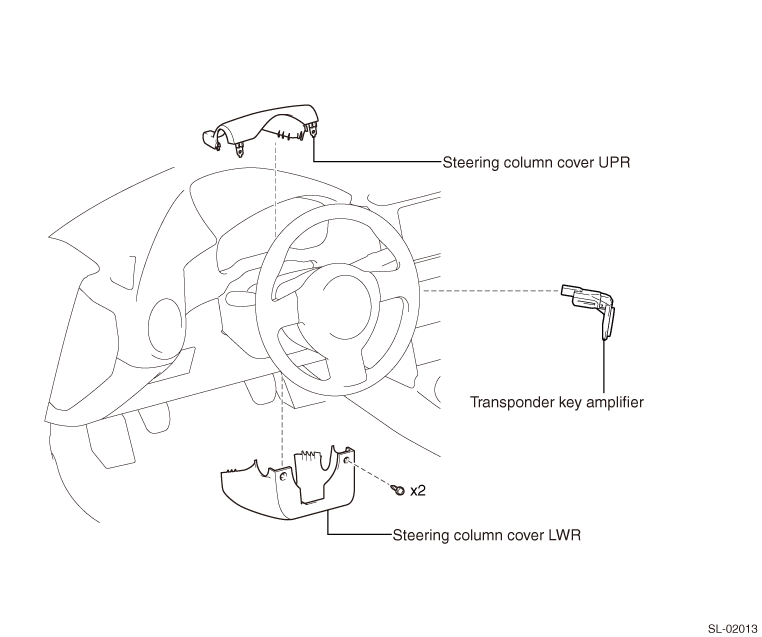

EXPLODED VIEW

REMOVAL

1. Removal of the steering column cover LWR (Refer to

)

2. Removal of the steering column cover UPR (Refer to

)

3. Removal of the transponder key amplifier

(1) Disconnect the connector.

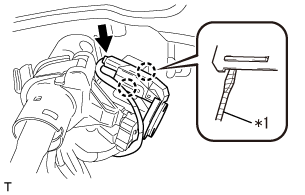

(2) Release the two claws by using a fine flat tip screwdriver wrapped with protective tape, and remove the transponder key amplifier.

*1	Protective tape

)

3. Installation of the steering column cover LWR (Refer to

)

UNIT INSPECTION

1. Inspection of the transponder key amplifier

(1) Light inspection

(a) Inspect if the light turns on when battery voltage is applied to each connector terminal.

Criteria

Battery connection	Criteria
Battery positive terminal → 2 (ILL+) Battery ground terminal → 6 (ILL-)	Light turns on.

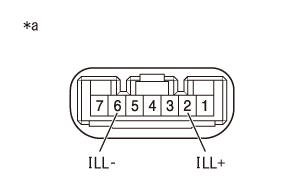

*a	Connector not connected (transponder key amplifier)
