Meter & gauge system
Parts location System information Troubleshooting Diagnostic trouble codes Circuit diagnosis Removal / installation Other
METER
METER & GAUGE SYSTEM
FUNCTION INSPECTION
1. LED check
(1) Inspection of LED light
(a) Check that the indicators and the warning lights turn on for the following periods of time when turning IG from OFF to ON.
Criteria
| Indicator/warning light |
Lighting specifications |
|---|---|
| A/T OIL TEMP*2, fuel |
Turns on for approximately 2 seconds upon IG OFF → ON |
| Auto leveling *1, driver’s seat belt, brake, TRC OFF, VSC OFF, VSC SPORT |
Turns on for approximately 3 seconds upon IG OFF → ON |
| Airbag |
Turns on for approximately 6 seconds upon IG OFF → ON |
| VSC, ABS, charge, oil pressure, check engine, P/S |
Turns on upon IG OFF → ON |
*1: Head light discharge type
*2: Automatic transmission system
*2: Automatic transmission system
NOTE:
·The lighting request is issued by the corresponding ECM.
·Check the brake warning light after releasing the parking brake.
·Check the brake warning light after releasing the parking brake.
(2) Inspection of seat belt warning indicator
(a) With IG ON, insert the tongue plate of the driver’s seat belt into the buckle, and check that the seat belt warning indicator turns from ON to OFF.
2. Speed meter check
(1) Operation inspection
(a) Using a speed meter tester, check the speed meter reading error and the odometer operation.
Standard value
Except for EK/KA model
| Standard speed reading by tester [km/h] |
Allowable range of meter reading [km/h] |
|---|---|
| 20 |
21.1 to 24.5 |
| 40 |
41.8 to 45.6 |
| 60 |
62.4 to 66.8 |
| 80 |
83.3 to 87.7 |
| 100 |
104.2 to 108.6 |
| 120 |
125.1 to 129.5 |
| 140 |
146.0 to 150.4 |
| 160 |
166.9 to 171.3 |
| 180 |
187.8 to 192.2 |
| 200 |
208.7 to 213.1 |
| 220 |
229.6 to 234.0 |
| 240 |
250.5 to 254.9 |
EK model
| Standard speed reading by tester [km/h] |
Allowable range of meter reading [MPH] |
|---|---|
| 20 |
20.8 to 23.2 |
| 40 |
41.6 to 44.2 |
| 60 |
62.5 to 65.1 |
| 80 |
83.4 to 86.0 |
| 100 |
104.3 to 106.9 |
| 120 |
125.2 to 127.8 |
| 140 |
146.1 to 148.7 |
KA model
| Standard speed reading by tester [km/h] |
Allowable range of meter reading [km/h] |
|---|---|
| 20 |
21.1 to 24.5 |
| 40 |
41.4 to 45.2 |
| 60 |
61.6 to 66.0 |
| 80 |
82.1 to 86.5 |
| 100 |
102.6 to 107.0 |
| 120 |
123.1 to 127.5 |
| 140 |
143.6 to 148.0 |
| 160 |
164.1 to 168.5 |
| 180 |
184.6 to 189.0 |
| 200 |
205.1 to 209.5 |
| 220 |
225.6 to 230.0 |
| 240 |
246.1 to 250.5 |
CAUTION:
Adjust the tire pressure in advance. Inappropriate tire pressure increases reading error.
(b) Check the fluctuation range of the pointer.
Standard value
: 0.3° or less
3. Tachometer check
(1) Operation inspection
(a) Start the engine.
(b) Use a revolution indicator to check the reading error of the tachometer.
Standard value
| Revolution indicator reading [r/min] |
Allowable range of meter reading [r/min] |
|---|---|
| 1000 |
933 to 1067 |
| 2000 |
1923 to 2077 |
| 3000 |
2913 to 3088 |
| 4000 |
3913 to 4088 |
| 5000 |
4913 to 5088 |
| 6000 |
5913 to 6088 |
| 7000 |
6913 to 7088 |
| 8000 |
7913 to 8088 |
CAUTION:
Do not increase the engine speed beyond the allowable limit. (Keep the engine speed below the red zone displayed on the meter.)
(c) Check the fluctuation range of the pointer.
Standard value
: 0.3° or less
4. Inspection of oil pressure warning
SST
09843-18040
(1) Operation inspection
(a) Disconnect the connector of the engine oil pressure switch ASSY.
(b) Start the engine.
(c) Using SST (diagnosis check wire No.2), check the state of the oil pressure warning indicator when the vehicle wiring harness connector terminal is short-circuited to the chassis ground.
Criteria
: Engine oil pressure warning indicator turns on.

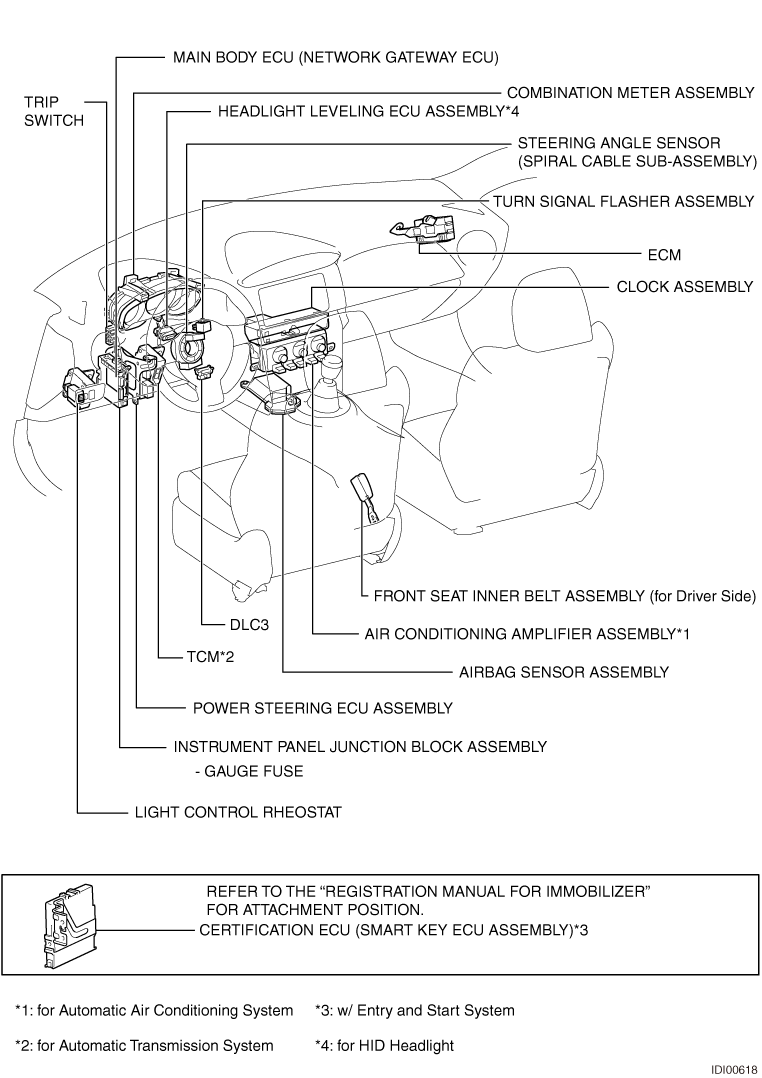

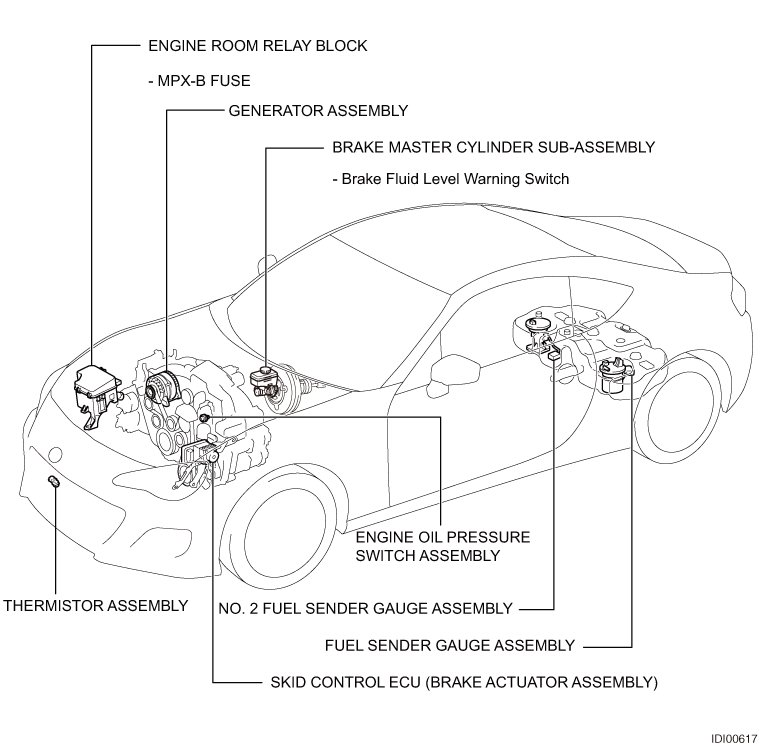

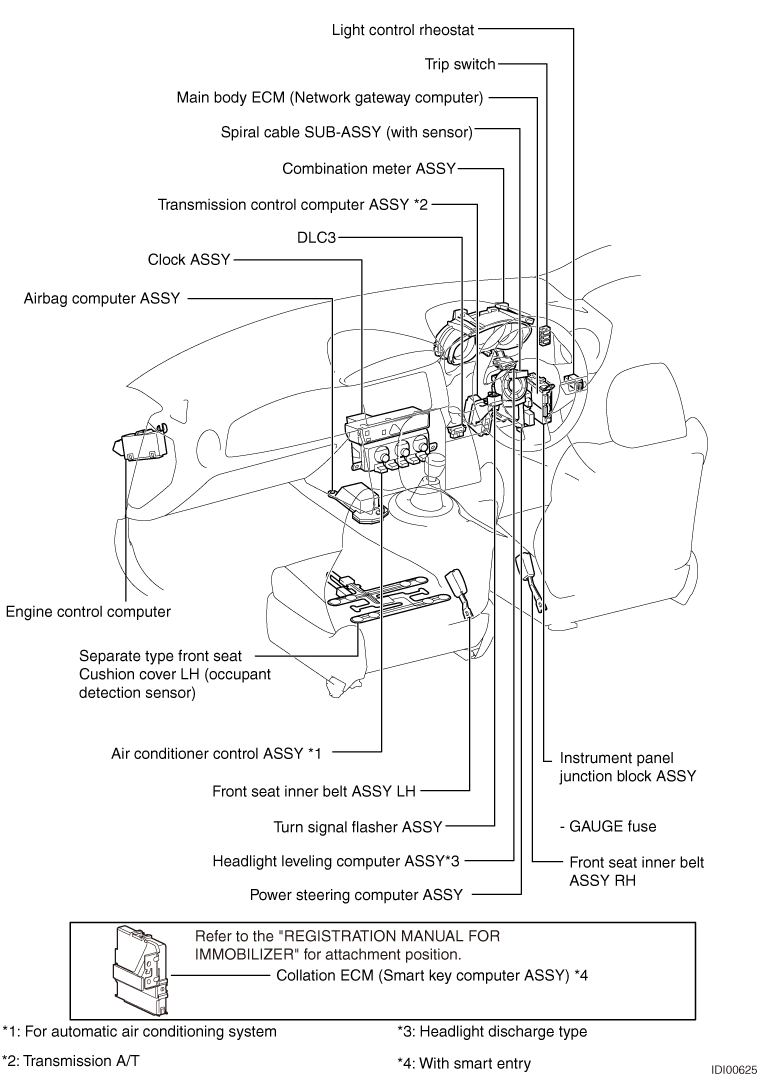

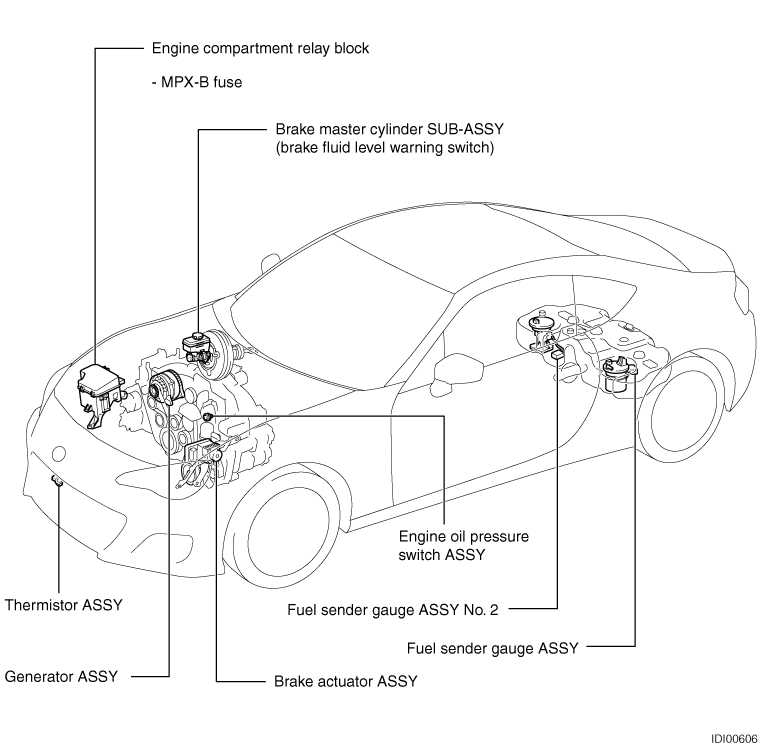

PARTS LOCATION
for LHD:
for RHD:
for LHD:
for RHD:
LIST OF DIAGNOSTIC CODES
| Diagnostic codes |
Diagnostic items |
Reference pages |
|---|---|---|
| B1500 |
[Fuel Sender Open Detected] |
 |
| B1509 |
[Ambient air temperature sensor open detection] |
|
| U0073 |
[CAN Communication Error] |
|
| U0100 |
[Lost Communication With EGI] |
|
| U0122 |
[Lost Communication with Brake System Control Module] |
|
| U0131 |
[Lost Communication With EPS] |
|
| U0140 |
[BIU ECU Communication Malfunction] |
|
| U0151 |
[Lost Communication With A/B] |
|
SYMPTOM TABLE
Meter/gauge
| Symptoms |
Inspection items |
Reference pages |
|---|---|---|
| Speed meter malfunction |
Refer to the troubleshooting flowchart “Speed meter malfunction” |
|
| Tachometer malfunction |
Refer to the troubleshooting flowchart “Tachometer malfunction” |
|
| Fuel receiver gauge malfunction |
Refer to the troubleshooting flowchart “Fuel receiver gauge malfunction” |
|
| Illumination level does not change when operating the light control rheostat |
Refer to the troubleshooting flowchart “Illumination level does not change when operating the light control rheostat” |
|
| Can not switch ODO/TRIP meter display, or can not reset TRIP meter |
Refer to the troubleshooting flowchart “Can not switch ODO/TRIP meter display, or can not reset TRIP meter” |
|
| Water temperature receiver gauge malfunction |
Refer to the troubleshooting flowchart “Water temperature receiver gauge malfunction” |
|
Indicator/warning light
| Symptoms |
Inspection items |
Reference pages |
|---|---|---|
| Front fog light indicator light malfunction*1 |
System operation check mode by SSM3 (front fog light indicator) |
|
| CAN communication system |
|
|
| Lighting (exterior) - lighting system |
|
|
| Replacement of combination meter ASSY |
|
|
| Turn indicator light malfunction |
Inspection of the turn signal flasher ASSY |
|
| Vehicle wiring harness and connector |
- |
|
| Replacement of combination meter ASSY |
|
|
| Rear fog light indicator light malfunction *2 |
System operation check mode by SSM3 (rear fog light indicator) |
|
| CAN communication system |
|
|
| Lighting (exterior) - lighting system |
|
|
| Replacement of combination meter ASSY |
|
|
| SET indicator light malfunction *3 |
Execution of system operation check mode (SET indicator) |
|
| CAN communication system |
- |
|
| Combination meter ASSY |
|
|
| CRUISE indicator malfunction (green) *3 |
Execution of system operation check mode (CRUISE indicator) |
|
| CAN communication system |
- |
|
| Combination meter ASSY |
|
|
| CRUISE indicator malfunction (yellow) *3 |
Execution of system operation check mode (CRUISE warning) |
|
| CAN communication system |
- |
|
| Combination meter ASSY |
|
|
| Door warning light malfunction |
System operation check mode by SSM3 (door (ALL) warning light) |
|
| CAN communication system |
|
|
| Lighting (interior) - lighting system |
|
|
| Replacement of combination meter ASSY |
|
|
| High beam indicator light malfunction (high beam head light operates normally) |
System operation check mode by SSM3 (high beam indicator) |
|
| CAN communication system |
|
|
| Replacement of combination meter ASSY |
|
|
| Auto leveling warning light malfunction *3 |
LED check |
|
| Vehicle wiring harness and connector |
- |
|
| Lighting (exterior) - lighting system |
|
|
| Replacement of combination meter ASSY |
|
|
| Security indicator light |
Refer to the troubleshooting flowchart “Security indicator light does not blink” *4 |
|
| Refer to the troubleshooting flowchart “Security indicator light does not blink” *5 |
|
|
| Smart indicator does not turn on *4 |
Execution of system operation check mode (smart indicator) |
|
| CAN communication system |
|
|
| Smart entry & start system (smart entry function) |
|
|
| Smart entry & start system (start function) |
|
|
| Replacement of the combination ASSY |
|
|
| Smart warning light malfunction *4 |
System operation check mode by SSM3 (smart indicator, smart warning) |
|
| CAN communication system |
|
|
| Smart entry & start system (smart entry function) |
|
|
| Smart entry & start system (start function) |
|
|
| Replacement of combination meter ASSY |
|
|
| REV indicator light malfunction *6 |
Description of functions (customize function) |
|
| Inspection of the trip switch |
|
|
| Vehicle wiring harness and connector |
- |
|
| Replacement of combination meter ASSY |
|
|
| Slip indicator light malfunction |
LED check |
|
| System operation check mode by SSM3 (SLIP warning light) |
|
|
| Refer to the troubleshooting flowchart “Slip indicator light system” |
|
|
| ABS warning light malfunction |
LED check |
|
| System operation check mode by SSM3 (ABS warning light) |
|
|
| Refer to the troubleshooting flowchart “ABS warning light remains ON” |
|
|
| Driver’s seat belt warning light malfunction |
System operation check mode by SSM3 (D seat seat-belt warning light) |
|
| Refer to the troubleshooting flowchart “Driver’s seat belt warning light does not operate” |
|
|
| Charge warning light malfunction |
LED check |
|
| Generator inspection |
|
|
| Vehicle wiring harness and connector |
- |
|
| Combination meter ASSY |
|
|
| Oil pressure warning light malfunction |
LED check |
|
| Inspection of oil pressure warning |
|
|
| Vehicle wiring harness and connector |
- |
|
| Replacement of combination meter ASSY |
|
|
| Check engine warning light malfunction |
LED check |
|
| System operation check mode by SSM3 (Check engine warning light) |
|
|
| Refer to the troubleshooting flowchart “Check engine warning light circuit” |
|
|
| SPORT indicator light malfunction *7 |
System operation check mode by SSM3 (SPORT indicator) |
|
| CAN communication system |
|
|
| Automatic transmission system |
|
|
| Replacement of combination meter ASSY |
|
|
| SNOW indicator light malfunction *7 |
System operation check mode by SSM3 (ECT SNOW indicator) |
|
| CAN communication system |
|
|
| Automatic transmission system |
|
|
| Replacement of combination meter ASSY |
|
|
| A/T OIL TEMP warning light malfunction *7 |
LED check |
|
| System operation check mode by SSM3 (AT oil temperature warning light) |
|
|
| Automatic transmission system |
|
|
| Replacement of combination meter ASSY |
|
|
| Brake warning light malfunction |
LED check |
|
| System operation check mode by SSM3 (brake warning light) |
|
|
| Refer to the troubleshooting flowchart “Brake warning light remains ON” |
|
|
| TRC OFF indicator light malfunction |
LED check |
|
| System operation check mode by SSM3 (TRC OFF indicator) |
|
|
| Refer to the troubleshooting flowchart “TRC OFF indicator light system” |
|
|
| VSC OFF indicator light malfunction |
LED check |
|
| System operation check mode by SSM3 (VSC OFF indicator) |
|
|
| Refer to the troubleshooting flowchart “VSC OFF indicator light system” |
|
|
| VSC SPORT indicator light malfunction |
LED check |
|
| Refer to the troubleshooting flowchart “VSC SPORT indicator light system” |
|
|
| SRS airbag warning light malfunction |
LED check |
|
| System operation check mode by SSM3 (Airbag warning light) |
|
|
| Refer to the troubleshooting flowchart “Warning light remains ON” |
|
|
| EPS warning light malfunction |
LED check |
|
| System operation check mode by SSM3 (Electric power steering warning light) |
|
|
| Refer to the troubleshooting flowchart “P / S warning light remains ON” |
|
|
| Fuel level warning light malfunction |
LED check |
|
| System operation check mode by SSM3 (fuel level warning light) |
|
|
| Inspection of the fuel sender gauge ASSY |
|
|
| Inspection of the fuel sender gauge ASSY NO.2 |
|
|
| Replacement of combination meter ASSY |
|
*1: With front fog lights
*2: With rear fog light
*3: Head light discharge type
*4: With smart entry
*5: Without smart entry
*6: With digital speed meter
*7: Automatic transmission
*2: With rear fog light
*3: Head light discharge type
*4: With smart entry
*5: Without smart entry
*6: With digital speed meter
*7: Automatic transmission
Buzzer function
| Symptoms |
Inspection items |
Reference pages |
|---|---|---|
| None of the buzzers operate |
Replacement of combination meter ASSY |
|
| A/T reverse buzzer malfunction (shift position R is normal) *1 |
Replacement of combination meter ASSY |
|
| Seat belt buzzer malfunction (seat belt warning light is normal) |
Replacement of combination meter ASSY |
|
| EPS buzzer malfunction (EPS warning light is normal) |
Replacement of combination meter ASSY |
|
| Smart key warning buzzer malfunction *2 |
Refer to the troubleshooting flowchart “Internal warning buzzer of the smart entry system does not sound” |
|
| Key reminder buzzer malfunction *3 |
Refer to the troubleshooting flowchart “Key reminder buzzer does not sound” |
|
| Immobilizer collation completion buzzer malfunction |
CAN communication system |
|
| Engine immobilizer system *2 |
|
|
| Engine immobilizer system *3 |
|
|
| Replacement of combination meter ASSY |
|
|
| SPORT shift reject buzzer malfunction (drive system operates normally) *1 |
Replacement of combination meter ASSY |
|
| REV buzzer malfunction (LEV indicator light is normal) *4 |
Description of functions (customize function) |
|
| Replacement of combination meter ASSY |
|
|
| Light reminder buzzer malfunction (lighting system is normal, door warning light turns on when door is opened) |
Replacement of combination meter ASSY |
|
*1: Automatic transmission
*2: With smart entry
*3: Without smart entry
*4: With digital speed meter
*2: With smart entry
*3: Without smart entry
*4: With digital speed meter
Drive monitor
| Symptoms |
Inspection items |
Reference pages |
|---|---|---|
| Can not switch ODO/TRIP meter display, or can not reset TRIP meter |
Inspection of the trip switch |
|
| Vehicle wiring harness and connector |
- |
|
| Replacement of combination meter ASSY |
|
|
| Display error (no display, value does not change) |
Replacement of combination meter ASSY |
|
| ODO/TRIP display error |
System operation check mode by SSM3 (display No. 1-6, 5, 4, 3, 2, 1, 0, all turn on) |
|
| System operation check mode by SSM3 (display No.2-9, 8, 7) |
|
|
| Replacement of combination meter ASSY |
|
|
| Shift position indicator light malfunction *1 |
System operation check mode by SSM3 (AT indicator No.1-L, 2, 3, 4, D, N, R, P) |
|
| System operation check mode by SSM3 (AT indicator No.2-8, 5, 6, 7, M, S) |
|
|
| System operation check mode by SSM3 (AT indicator No.3-D) |
|
|
| Replacement of combination meter ASSY |
|
|
| Shift position indicator light malfunction (display is normal after releasing clutch) *2 |
Description of functions (customize function) |
|
| Inspection of the trip switch |
|
|
| System operation check mode by SSM3 (AT indicator No.1-L, 2, 3, 4, D, N, R, P) |
|
|
| System operation check mode by SSM3 (AT indicator No.2-8, 5, 6, 7, M, S) |
|
|
| System operation check mode by SSM3 (AT indicator No.3-D) |
|
|
| Replacement of combination meter ASSY |
|
|
| Ambient temperature display error |
Inspection of the A/C thermistor (ambient temperature sensor) |
|
| Vehicle wiring harness and connector |
- |
|
| Replacement of combination meter ASSY |
|
|
| Significant display error of average fuel economy (speed meter and tachometer are normal) |
Replacement of combination meter ASSY |
|
| Significant display error of instantaneous fuel economy (speed meter and tachometer are normal) |
Replacement of combination meter ASSY |
|
| Display error of the digital speed meter (no display, value does not change) *3 |
Replacement of combination meter ASSY |
|
*1: Automatic transmission
*2: Transmission M/T
*3: With digital speed meter
*2: Transmission M/T
*3: With digital speed meter
DESCRIPTION OF FUNCTIONS
1. Multi display

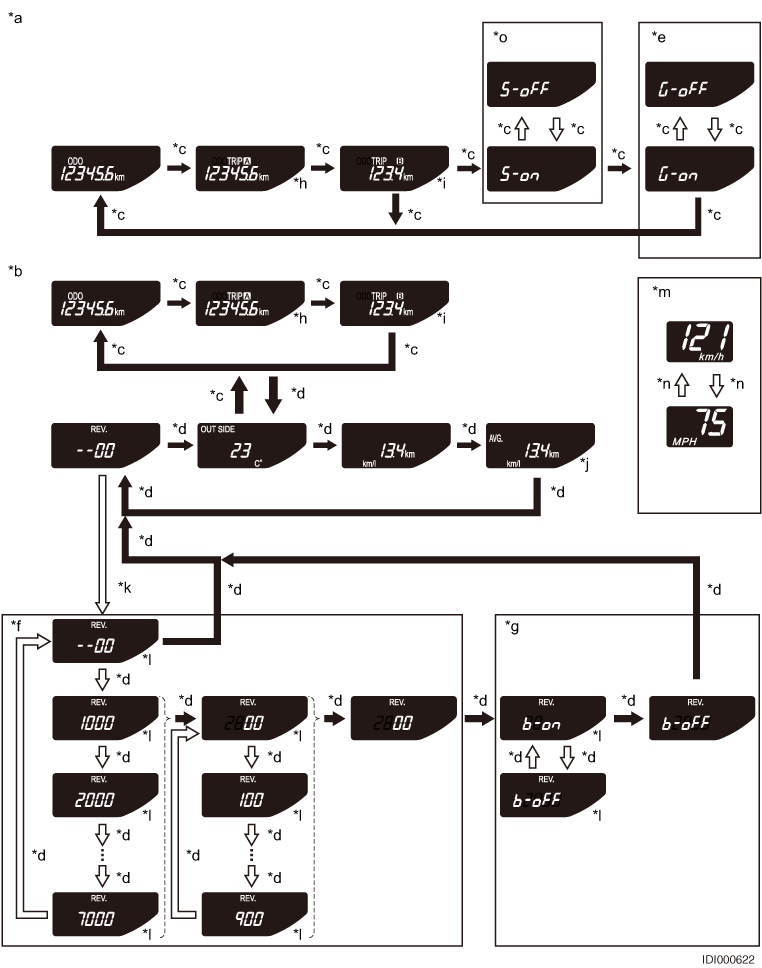

(1) Multi display flowchart
Captions in illustration
| *a |
Display transition during IG-OFF |
*b |
Display transition during IG-ON |
| *c |
“ODO/TRIP” switch |
*d |
“DISP” switch |
| *e |
MT shift display setting |
*f |
Engine speed setting |
| *g |
Buzzer sound ON/OFF setting |
*h |
Holding down the “ODO/TRIP” switch will reset the trip meter A to 0.0 |
| *i |
Holding down the “ODO/TRIP” switch will reset the trip meter B to 0.0 |
*j |
Holding down the “DISP” switch will reset the average fuel economy to 0.0 |
| *k |
“DISP” switch is operated when the vehicle speed is 0 km/h{0MPH} |
*l |
“REV.” blinking |
| *m |
Digital speed meter screen transition |
*n |
km/h / MPH switch (w / km/h / MPH switch) |
| *o |
Sweep ON/OFF setting |
 |
Press |
 |
Hold down |
- |
- |
2. Drive signal
(1) Various signals are input and output via CAN communication or direct wires in order to drive the indicator lights, warning lights, buzzers, and drive monitor in the combination meter ASSY.
Meter/gauge
| Meter/gauge name |
Behavior |
Input/Output |
Signal |
CAN/hard-wired |
Transmitting ECM |
|---|---|---|---|---|---|
| Speed meter |
Movement of indicator pointer |
Input |
Vehicle speed signal |
CAN |
Brake actuator ASSY |
| Tachometer |
Movement of indicator pointer |
Input |
Engine speed signal |
CAN |
Engine control computer |
| Fuel receiver gauge |
Movement of indicator pointer |
Input |
Fuel consumption |
CAN |
Engine control computer |
| Remaining fuel level |
Hard-wired |
Fuel sender gauge ASSY Fuel sender gauge ASSY NO.2 |
|||
| Vehicle speed signal |
CAN |
Brake actuator ASSY |
|||
| Shift position information signal |
Transmission control computer |
||||
| Parking brake information signal |
Main body ECM (Network gateway computer) |
||||
| Water temperature receiver gauge |
Movement of indicator pointer |
Input |
Coolant temperature signal |
CAN |
Engine control computer |
Indicator/warning light
| Light name |
Behavior |
Input/Output |
Signal |
CAN/hard-wired |
Transmitting ECM |
|---|---|---|---|---|---|
| Front fog indicator light *1 |
ON |
Input |
Front fog light lighting signal |
CAN |
Main body ECM (Network gateway computer) |
| Turn indicator light |
Blink |
Input |
Turn right/left blinking signal |
Hard-wired |
Turn signal flasher ASSY |
| Rear fog indicator light *2 |
ON |
Input |
Rear fog light lighting signal |
CAN |
Main body ECM (Network gateway computer) |
| Door warning light |
ON |
Input |
D seat courtesy SW signal P seat courtesy SW signal Luggage courtesy SW signal |
CAN |
Main body ECM (Network gateway computer) |
| BEAM indicator light |
ON |
Input |
Head light HI lighting signal |
CAN |
Main body ECM (Network gateway computer) |
| AUTO LEVELING warning light *3 |
ON |
Input |
Level error signal |
Hard-wired |
Head light leveling computer ASSY |
| Security indicator light |
Blink |
Input |
Armed state signal |
Hard-wired |
Main body ECM (Network gateway computer) |
| ON |
Armed state signal Alarm preparation state signal |
||||
| Smart key indicator light (green) *4 |
Blink |
Input |
|
CAN |
Collation ECM (Smart key computer ASSY) |
| ON |
Key collation complete (engine can be started) |
||||
| Smart key indicator light (yellow) *4 |
Blink |
Input |
Smart system alarm signal |
CAN |
Collation ECM (Smart key computer ASSY) |
| ON |
No key in vehicle alarm signal |
||||
| REV indicator light *5 |
ON |
Input |
Engine speed signal |
CAN |
Engine control computer |
| SLIP indicator light |
Blink |
Input |
SLIP indicator light blinking signal |
CAN |
Brake actuator ASSY |
| ON |
SLIP indicator light lighting signal |
||||
| ABS warning light |
Blink |
Input |
ABS warning light blinking signal |
CAN |
Brake actuator ASSY |
| ON |
ABS warning light lighting signal |
||||
| Driver’s seat belt warning light |
Blink |
Input |
D seat buckle SW signal |
Hard-wired |
Front seat inner belt ASSY RH |
| Charge warning light |
ON |
Input |
Generator L terminal |
Hard-wired |
Generator ASSY |
| Oil pressure warning light |
ON |
Input |
Engine oil pressure drop signal |
Hard-wired |
Engine oil pressure switch ASSY |
| Check engine warning light |
ON |
Input |
Check engine warning light lighting signal |
CAN |
Engine control computer |
| SPORT indicator light *6 |
ON |
Input |
Sport mode indicator lighting signal |
CAN |
Transmission control computer ASSY |
| SNOW indicator light *6 |
ON |
Input |
Snow mode indicator lighting signal |
CAN |
Transmission control computer ASSY |
| AT oil temperature warning light *6 |
ON |
Input |
AT oil temperature warning light lighting signal |
CAN |
Transmission control computer ASSY |
| Brake warning light |
ON |
Input |
Brake oil level warning signal |
Hard-wired |
Brake fluid level switch |
| Parking brake SW signal |
CAN |
Main body ECM |
|||
| EBD signal |
CAN |
Brake actuator ASSY |
|||
| TRC OFF indicator light |
ON |
Input |
TRC OFF indicator lighting signal |
CAN |
Brake actuator ASSY |
| VSC OFF indicator light |
ON |
Input |
VSC OFF indicator lighting signal |
CAN |
Brake actuator ASSY |
| VSC SPORT indicator light |
ON |
Input |
VSC SPORT indicator lighting signal |
CAN |
Brake actuator ASSY |
| Airbag warning light |
Blink |
Input |
Airbag warning light blinking signal |
CAN |
Airbag computer ASSY |
| ON |
Airbag warning light lighting signal |
||||
| - |
Diagnosis mode signal |
||||
| EPS warning light |
Blink |
Input |
EPS warning light blinking signal |
CAN |
Power steering computer ASSY |
| ON |
EPS warning light lighting signal |
||||
| Fuel level warning light |
ON |
Input |
Fuel level signal |
Hard-wired |
Fuel sender gauge ASSY Fuel sender gauge ASSY NO.2 |
*1: With front fog lights
*2: With rear fog light
*3: Head light discharge type
*4: With smart entry
*5: With digital speed meter
*6: Automatic transmission
*7: With cruise control system
*2: With rear fog light
*3: Head light discharge type
*4: With smart entry
*5: With digital speed meter
*6: Automatic transmission
*7: With cruise control system
Buzzer
| Buzzer |
Behavior |
Input/Output |
Signal |
CAN/hard-wired |
Transmitting ECM |
|---|---|---|---|---|---|
| Driver’s seat belt buzzer |
Intermittent beep |
Input |
Vehicle speed signal |
CAN |
Brake actuator ASSY |
| Shift position R signal |
Main body ECM |
||||
| D seat buckle SW signal |
Hard-wired |
Front seat inner belt ASSY RH |
|||
| EPS buzzer |
Single short beep |
Input |
EPS warning light signal |
CAN |
Power steering computer ASSY |
| Smart key buzzer *2 |
Single short beep |
Input |
Meter buzzer single short beep signal |
CAN |
Collation ECM (Smart key computer ASSY) |
| Intermittent beep |
Meter buzzer intermittent beep signal |
||||
| Continuous beep |
Meter buzzer continuous beep signal |
||||
| Key reminder *3 |
Intermittent beep |
Input |
Buzzer sound signal |
CAN |
Main body ECM (Network gateway computer) |
| Immobilizer key collation completion notification buzzer *2 |
Single short beep |
Input |
Immobilizer key collation completion notification signal |
CAN |
Collation ECM (Smart key computer ASSY) |
| Sport reject buzzer *1 |
Double short beeps |
Input |
Reject buzzer signal |
CAN |
Transmission control computer ASSY |
| REV buzzer *4 |
Single short beep |
Input |
Engine speed signal |
CAN |
Engine control computer |
| Light reminder |
Continuous beep |
Input |
IG signal |
Hard-wired |
IG2 relay |
| Buzzer sound signal |
CAN |
Main body ECM (Network gateway computer) |
*1: Automatic transmission
*2: With smart entry
*3: Without smart entry
*4: With digital speed meter
*2: With smart entry
*3: Without smart entry
*4: With digital speed meter
Multi display
| Monitor name |
Behavior |
Input/Output |
Signal |
CAN/hard-wired |
Transmitting ECM |
|---|---|---|---|---|---|
| Odo/trip meter |
Numeral value display |
Input |
Vehicle speed pulse signal integration value signal Vehicle speed signal |
CAN |
Brake actuator ASSY |
| Odo/trip SW signal |
Hard-wired |
Trip switch |
|||
| A/T shift position *1 |
Display |
Input |
Shift position P signal Shift position R signal Shift position N signal Shift position D signal Shift position number signal (1 to 6) Mode indicator signal |
CAN |
Transmission control computer ASSY |
| Shift (up) indicator *1 |
Display |
Input |
Gear position number signal |
CAN |
Transmission control computer ASSY |
| Shift (down) indicator *1 |
Display |
Input |
Gear position number signal |
CAN |
Transmission control computer ASSY |
| M/T shift position *2 |
Display |
Input |
Gear position number signal |
CAN |
Engine control computer |
| MT shift (upper) *2 |
Display |
Input |
Shift up signal |
CAN |
Engine control computer |
| Ambient temperature |
Display |
Input |
Vehicle speed signal |
CAN |
Brake actuator ASSY |
| Ambient temperature sensor input |
Hard-wired |
Thermistor ASSY |
|||
| Average fuel economy |
Display |
Input |

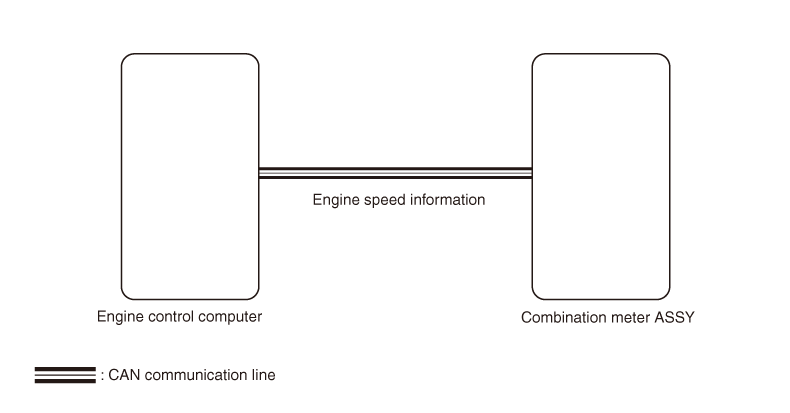

Engine speed signal Fuel injection quantity signal |
CAN |
Engine control computer |

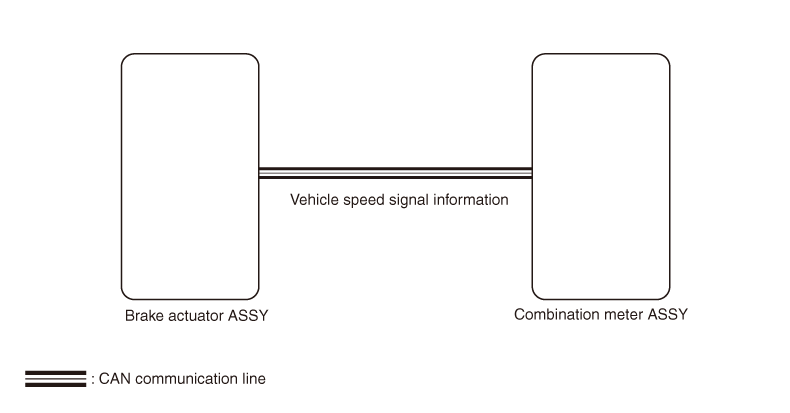

| Vehicle speed signal Vehicle speed pulse signal integration value signal |
CAN |
Brake actuator ASSY |
|||
| Instantaneous fuel economy |
Display |
Input |
Engine speed signal Fuel injection quantity signal |
CAN |
Engine control computer |
| Vehicle speed pulse signal integration value signal Vehicle speed signal |
Brake actuator ASSY |
||||
| Digital speed meter *3 |
Numeral value display |
Input |
Vehicle speed signal |
CAN |
Brake actuator ASSY |
*1: Automatic transmission
*2: Transmission M/T
*3: With digital speed meter
*2: Transmission M/T
*3: With digital speed meter
HOW TO TROUBLESHOOT
1.
Bring in the car
Next▼
2.
Interview and phenomenon check
NOTE:
Refer to .
.Result
| Result |
Go to |
|---|---|
| Phenomenon can be confirmed |
A |
| Phenomenon can not be confirmed |
B |
B
>To fault simulation (Refer to )
)A▼
3.
Communication function inspection of large-scale multiplex communication system for vehicle body [LIN]
NOTE:
Refer to .
.(1) Check CAN communication system.
Result
| Result |
Go to |
|---|---|
| Code is not output |
A |
| Code is output |
B |
B
>Go to “Large-scale multiplex communication system for vehicle body [LIN]” (For details, see )
)A▼
4.
Inspection of CAN communication system
NOTE:
Refer to .
.(1) Using SSM3, perform a function check of the CAN communication system to check that no abnormal condition is present in the communication system.
Result
| Result |
Go to |
|---|---|
| Functioning properly |
A |
| Not functioning properly |
B |
B
>To section for control system CAN communication system (Refer to )
)A▼
5.
Symptom table
NOTE:
Refer to .
.Result
| Result |
Go to |
|---|---|
| Not applicable to the symptom table. |
A |
| Applicable to the symptom table. |
B |
B
>Go to Step 7.
A▼
6.
Perform troubleshooting with the method below based on malfunctions.
(1) Function check (refer to )
)(2) ECM terminal matrix (Refer to )
)(3) Data monitor/system operation check mode (Refer to )
)(4) Unit inspection
Next▼
7.
Adjustment, repair, or replacement
Next▼
8.
Confirmation test
Next▼
Complete

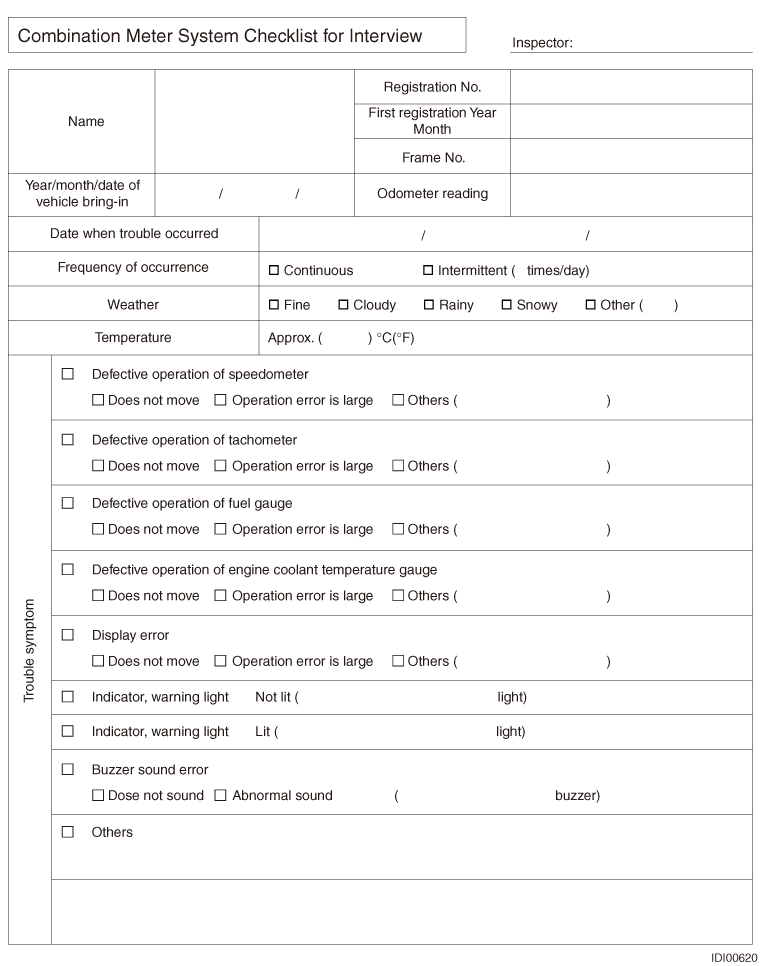

CHECK LIST FOR INTERVIEW
CHECKING / CLEARING DIAGNOSTIC CODES
1. Checking diagnostic code by SSM3
(1) Using SSM3, select [Each System Check] → [Combination meter] → [Diagnostic Code(s) Display] according to the screen instructions and check diagnostic code.
2. Clearing recorded diagnosis codes by SSM3
(1) Using SSM3, select [Each System Check] → [Combination meter] → [Clear Memory] according to the screen display and clear diagnostic code.
CUSTOMIZE FUNCTION
1. Customization of meter & gauge system
(1) Customize using the SSM3
(a) With IG OFF, connect SSM3 to DLC3.
(b) Turn IG to ON, and turn on the SSM3.
(c) From the SSM3 screen, select [Customize] → [Warning] and perform the customization settings.
| Display name |
Initial setting |
Contents |
Setting |
Controller ECM |
|---|---|---|---|---|
| [Key Remind Sound] |
1200 ms |
Setting of the warning cycle when the driver’s door is opened while IG OFF or ACC ON |
600 ms/900 ms/1200 ms |
Meter ECM |
| [Taillight warning buzzer] |
[ON] |
Setting of the function that sounds a buzzer when the driver’s door is opened while IG OFF and tail SW ON |
[ON]/[OFF] |
Meter ECM |
(d) From the SSM3 screen, select [Customize] → [Meter] and perform the customization settings.
| Display name |
Initial setting |
Contents |
Setting |
Controller ECM |
|---|---|---|---|---|
| [Outside temperature indication ] |
0°C |
Function of adjusting the difference from actual measurement by increasing/decreasing the displayed temperature (Temperature correction is only possible in increments of 1°C) |
+3°C/+2°C/+1°C/0°C/-1°C/-2°C/-3°C |
Meter ECM |

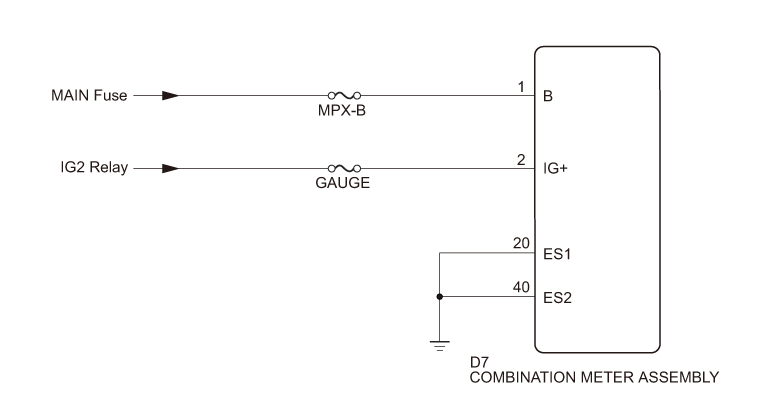

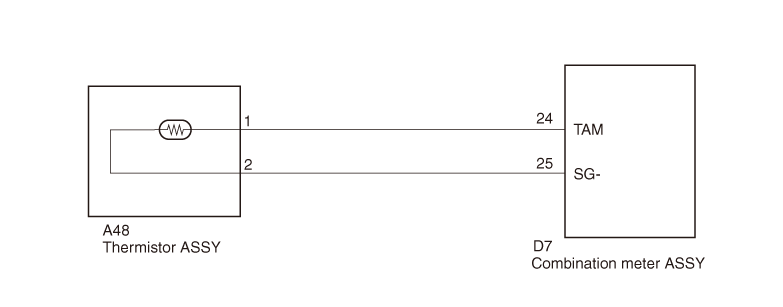

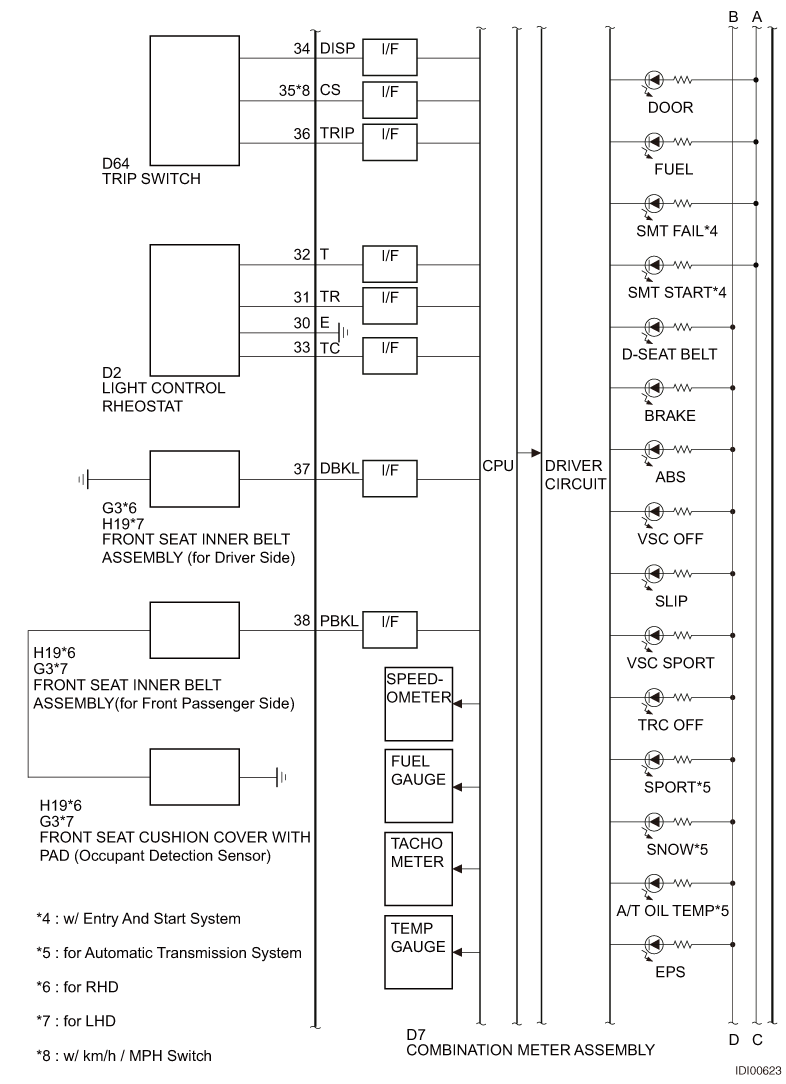

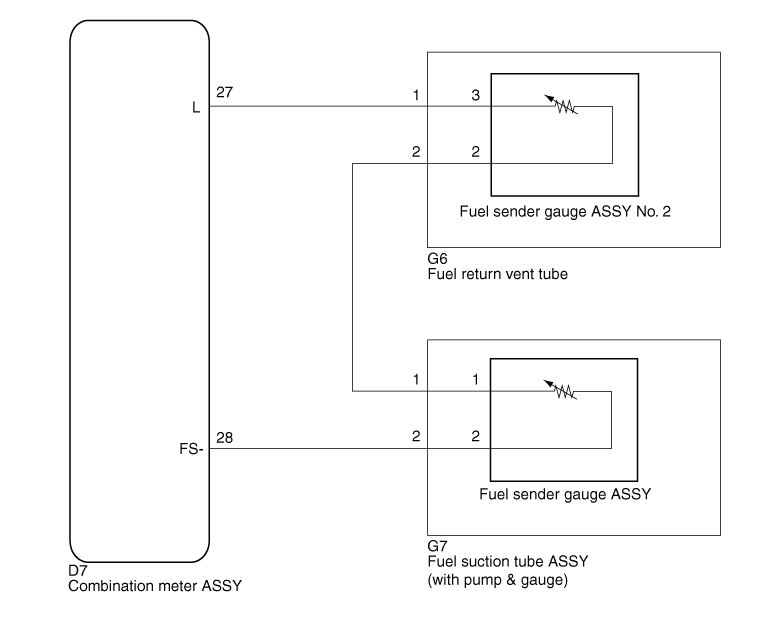

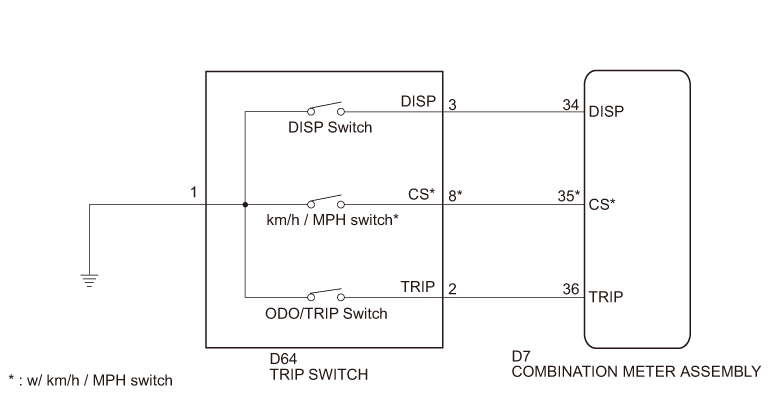

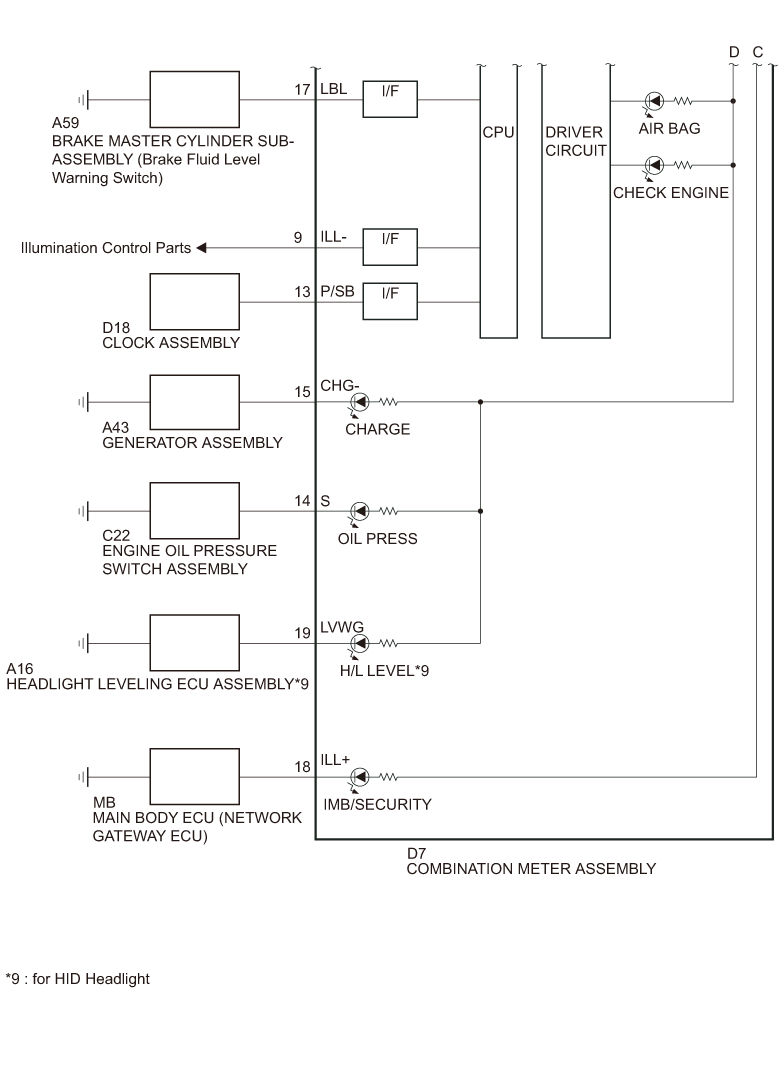

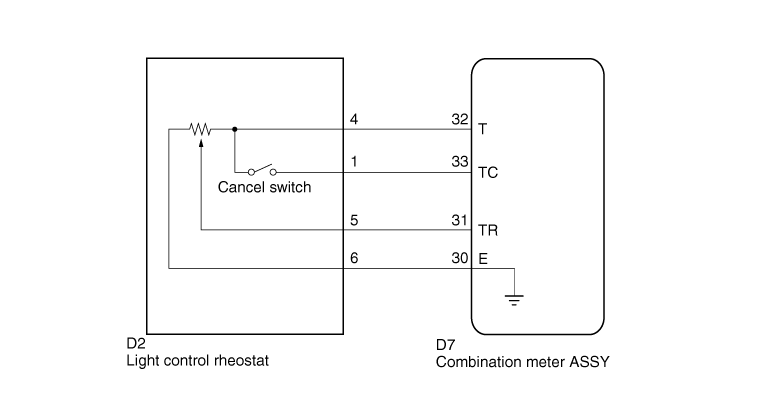

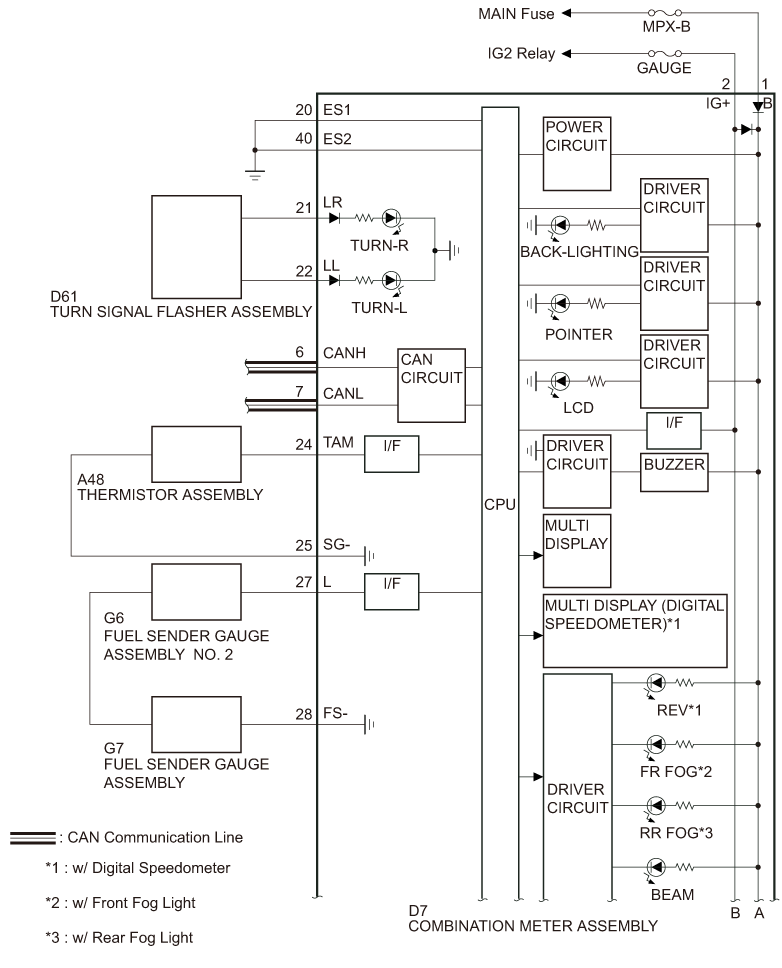

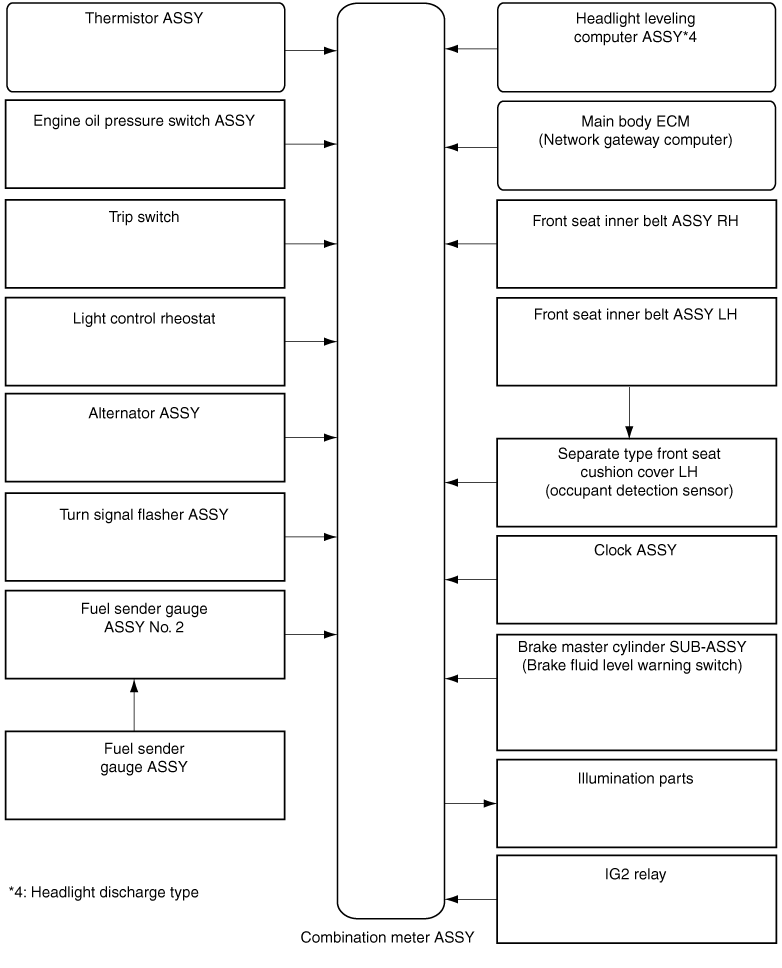

CIRCUIT FIGURE

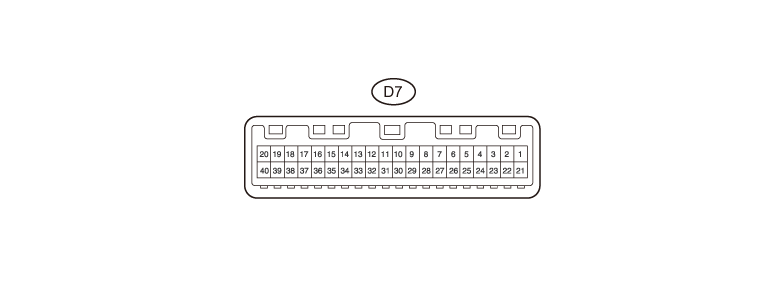

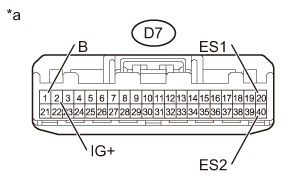

ECM TERMINAL ARRANGEMENT
1. Combination meter ASSY
(1) Input/output signal check
(a) With the connector connected, check each terminal by applying the tester probe from the back of the vehicle wiring harness connector.
Standard value
| Terminal No. (Terminal symbol) |
Input/Output |
Item |
Inspection conditions |
Standard value |
|---|---|---|---|---|
| D7-1 (B) ←→ Chassis ground |
Input |
Voltage |
Always |
10 to 14 V |
| D7-2 (IG+) ←→ Chassis ground |
Input |
Voltage |
IG OFF → ON |
1 V or less → 10 to 14 V |
| D7-6 (CANH) ←→ Chassis ground |
Input/Output |
Waveform |
Engine stop, IG ON |
Pulse generation |
| D7-7 (CANL) ←→ Chassis ground |
Input/Output |
Waveform |
Engine stop, IG ON |
Pulse generation |
| D7-9 (ILL-) ←→ Chassis ground |
Output |
Voltage |
IG ON, Light control rheostat OFF → ON |
1 V or less → 10 to 14 V |
| D7-13 (P/SB) ←→ Chassis ground |
Output |
Voltage |
IG ON, Passenger’s seat occupied and seat belt not buckled → buckled |
1 V or less → 10 to 14 V |
| D7-14 (S) ←→ Chassis ground |
Input |
Voltage |
IG ON, Engine pressure warning light ON → OFF |
1 V or less → 10 to 14 V |
| D7-15 (CHG-) ←→ Chassis ground |
Input |
Voltage |
Engine start, Charge warning light ON → OFF |
1 V or less → 10 to 14 V |
| D7-17 (LBL) ←→ Chassis ground |
Input |
Voltage |
IG ON, Brake fluid level warning light ON → OFF |
1 V or less → 10 to 14 V |
| D7-18 (ILL+) ←→ Chassis ground |
Input |
Voltage |
IG ON, Security indicator light Blinking → OFF |
1 V or less → 10 to 14 V |
| D7-19 (LVWG) ←→ Chassis ground* |
Input |
Voltage |
IG ON, Head light leveling warning light ON → OFF |
1 V or less → 10 to 14 V |
| D7-20 (ES1) ←→ Chassis ground |
- |
Resistance |
Always |
Less than 1 Ω |
| D7-21 (LR) ←→ Chassis ground |
Input |
Voltage |
IG ON, Turn signal light RH blinking → Turn signal light RH OFF |
1 V or less ←→ 10 to 14 V → 1 V or less |
| D7-22 (LL) ←→ Chassis ground |
Input |
Voltage |
IG ON, Turn signal light LH ON → Turn signal light LH OFF |
1 V or less ←→ 10 to 14 V → 1 V or less |
| D7-24 (TAM) ←→ D7-25 |
Input |
Voltage |
IG ON, Ambient temperature 25°C |
1.35 to 1.75 V |
| D7-27 (L) ←→ D7-28 |
Input |
Voltage |
Fuel F → E |
1 V or less → 4.5 to 9 V |
| D7-30 (E) ←→ Chassis ground |
- |
Resistance |
Always |
Less than 1 Ω |
| D7-31 (TR) ←→ Chassis ground |
- |
Resistance |
Light control rheostat upper fully open → Light control rheostat lower fully open |
510Ω → 100 Ω |
| D7-32 (T) ←→ Chassis ground |
- |
Voltage |
IG OFF → ON |
1 V or less → 10 to 14 V |
| D7-33 (TC) ←→ Chassis ground |
- |
Resistance |
Light control rheostat upper fully open → Light control rheostat lower fully open |
Less than 1 Ω → 10 kΩ or more |
| D7-34 (DISP) ←→ Chassis ground |
- |
Resistance |
DISP switch ON → OFF |
Less than 1 Ω → 10 kΩ or more |
| D7-35 (CS) ←→ Chassis ground |
Input |
Resistance |
Speed unit display changeover switch ON: km/h OFF: MPH |
Less than 1 Ω → 10 kΩ or more |
| D7-36 (TRIP) ←→ Chassis ground |
- |
Resistance |
ODO/TRIP switch ON → OFF |
Less than 1 Ω → 10 kΩ or more |
| D7-37 (DBKL) ←→ Chassis ground |
Input |
Voltage |
IG ON, driver’s seat belt not buckled → Buckled |
1 V or less → 10 to 14 V |
| D7-38 (PBKL) ←→ Chassis ground |
Input |
Voltage |
IG ON, passenger’s seat occupied, and seat belt not buckled → buckled |
1 V or less → 11 to 14 V |
| D7-40 (ES2) ←→ Chassis ground |
- |
Resistance |
Always |
Less than 1 Ω |
*: Headlight discharge type
CURRENT DATA DISPLAY & SAVE / SYSTEM OPERATION CHECK MODE
1. Inspection with SSM3
(1) Current Data Display & Save
(a) Using SSM3, display the [Current Data Display & Save] screen. Check the computer data.
SSM3 display: [Each System Check] → [Combination meter] → [Current Data Display & Save]
| Item Name [Symbol] |
Description/display range |
Normal value |
Remarks |
|---|---|---|---|
| [Auto/Trip selector SW status] |
ODO/TRIP Change SW state Display range: OFF/ON |
ON: When the switch is pressed OFF: When the switch is released |
If it is abnormal, the trip switch may be faulty |
| [Bright (tail cancel) SW status] |
Tail relay SW state Display range: OFF/ON |
ON: Light control switch TAIL OFF: Light control switch OFF |
If it is abnormal, the tail relay or wiring harness may be faulty |
| Passenger’s seat buckle SW [P-Belt SW] |
Passenger’s seat buckle SW state Display range: OFF/ON |
ON: Passenger’s seat buckle switch ON OFF: Passenger’s seat buckle switch OFF |
If it is abnormal, the passenger’s seat buckle switch or wiring harness may be faulty |
| [Display SW state] |
Display changeover SW state Display range: OFF/ON |
ON: When the switch is pressed OFF: When the switch is released |
If it is abnormal, the trip switch or wiring harness may be faulty |
| [+B volt] |
Input voltage Display range: 0 to 25.5V |
Input voltage is displayed 11 to 14 V |
- |
| [Vehicle speed input value] |
Vehicle speed input value Display range: 0 to 255[km/h] |
0 to 255[km/h] Roughly synchronized with actual vehicle speed |
Check the reading error of the speed meter |
| [Engine speed input value] |
Engine speed input Display range: 0 to 12750[r/min] |
Engine running state Roughly synchronized with engine speed |
Check the reading error of the tachometer |
| [Engine water temperature input value] |
Engine coolant temperature input Display range: 0 to 127.5°C |
Equivalent to ambient temperature: When engine is cold When engine is fully warmed up: 80 to 100°C {176 to 212°F} |
If it is abnormal, the coolant temperature signal system may be faulty |
| Fuel sender input value [Fuel Input] |
Input value of fuel sender Display range: 0 to 127.5[L] |
Fuel level is displayed 4.0 to 50[L] |
If it is abnormal, the fuel sender gauge or wiring harness may be faulty |
| Ambient temperature input value [Ambi Temp] |
Ambient temperature Display range: -40 to 87.5°C |
Almost equals to the ambient temperature |
- |
| [Illuminations control volume input value] |
Rheostat input status Display range: 0 to 100 % |
Volume value of the rheostat is displayed 0 to 100 % |
If it is abnormal, the light control rheostat or wiring harness may be faulty |
| External dimming output value [OUT LIGHT] |
External dimming output state Display range: 0 to 100 % |
External dimming volume value is displayed 0 to 100 % |
If it is abnormal, the light control rheostat or wiring harness may be faulty |
| [Key reminder buzzer sounding interval] |
Key reminder sound Display range: 600 ms, 900 ms, 1200 ms |
Buzzer sounding interval is displayed FAST, NORMAL, SLOW |
- |
| [Tail reminder buzzer] |
Tail reminder buzzer sound Display range: ON/OFF |
Tail reminder buzzer operation is displayed ON, OFF |
- |
| [Speed warning buzzer] |
Speed warning buzzer sound Display range: ON/OFF |
Speed warning buzzer operation is displayed ON, OFF |
- |
NOTE:
Items without settings are not displayed in the SSM3 or do not function.
(2) [System Operation Check Mode]
(a) Using SSM3, display the [System Operation Check Mode] screen according to the screen instructions and perform a check.
SSM3 display: [Each System Check] → [Combination meter] → [Work Support] → [System Operation Check Mode]
| Item Name |
Contents of testing |
Check item |
|---|---|---|
| [Speed Meter Operation] |
Movement of the speed meter pointer |
0, 40, 80, 120, 160, 200, 240 (km/h)*1 |
| [TachoMeter Operation] |
Movement of the tachometer pointer |
0, 1000, 2000, 3000, 4000, 5000, 6000, 7000 (r/min)*1 |
| [Fuel Meter Operation] |
Movement of the fuel meter pointer (Refer to fuel receiver gauge [Display 1]) |
·Sender E point [Display A] ·Meter E scale [Display B] ·Warning lighting position [Display C] ·Meter 1/4 scale [Display D] ·Meter 1/2 scale [Display E] ·Meter 3/4 scale [Display F] ·Meter F scale [Display G] ·Sender F point [Display H] |
| [AT indicator No.1] |
Display on the multi display |
Illuminates L, 2, 3, 4, D, N, R, or P (position) |
| [AT indicator No.2] |
Display on the multi display |
Illuminates 5, 6, 7, 8, M, or S (position) |
| [AT indicator No.3] |
Display on the multi display |
Illuminates sport shift D |
| [Display No.1] |
Display on the multi display |
Illuminate 6, 5, 4, 3, 2, 1, 0, or all. |
| [Display No.2] |
Display on the multi display |
9, 8, 7 |
| [High-beam indicator] |
Display on the meter indicator |
BEAM |
| [Front Fog Light indicator] |
Display on the meter indicator |
FR FOG |
| [Rear Fog Light indicator] |
Display on the meter indicator |
RR FOG |
| [Airbag warning] |
Display on the meter indicator |
AIRBAG |
| [Driver side seat belt warning] |
Display on the meter indicator |
D SEAT BELT |
| [P seat seat-belt warning] |
Display on the meter indicator |
P SEAT BELT |
| [Door (ALL) warning] |
Display on the meter indicator |
DOOR |
| [Remaining fuel warning] |
Display on the meter indicator |
FUEL |
| [ABS Warning Lamp] |
Display on the meter indicator |
ABS |
| [Slip Indicator Light] |
Display on the meter indicator |
SLIP |
| [TRC OFF indicator] |
Display on the meter indicator |
TRC OFF |
| [Tire Pressure warning] |
Display on the meter indicator |
Tire pressure |
| [Brake Warning Light] |
Display on the meter indicator |
Brake |
| [SPORT indicator] |
Display on the meter indicator |
SPORT |
| [SNOW indicator] |
Display on the meter indicator |
SNOW |
| [A/T Oil Temperature warning] |
Display on the meter indicator |
AT OIL TEMP |
| [Electric power steering warning] |
Display on the meter indicator |
EPS |
| [Cruise indicator] |
Display on the meter indicator |
CRUISE (green) |
| [Shift indicator (up) ] |
Display on the multi display |
Shift (up) |
| [Shift indicator (down) ] |
Display on the multi display |
Shift (down) |
| [SET indicator] |
Display on the meter indicator |
SET |
| [VSC OFF indicator] |
Display on the meter indicator |
VSC OFF |
| [Cruise warning] |
Display on the meter indicator |
CRUISE (yellow) |
| [Smart system indicator] |
Display on the meter indicator |
Smart warning (green) |
| [Smart system warning] |
Display on the meter indicator |
Smart warning (yellow) |
| [Check engine warning] |
Display on the meter indicator |
Check engine |
| [Water thermometer] |

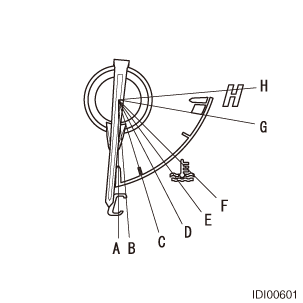

Movement of the water thermometer pointer (Refer to water temperature receiver gauge [Display 2]) |
·50°C {122°F} [Display A] ·60°C {140°F} [Display B] ·70°C {158°F} [Display C] ·80°C {176°F} [Display D] ·Intermediate stable range [Display E] ·110°C {230°F} [Display F] ·120°C {248°F} [Display G] ·127°C {261°F} [Display H] |
*1: When performing the system operation check mode, check if the actual meter reading is within the allowable range of meter reading (refer to ).
).NOTE:
·Items without settings are not displayed in the SSM3 or do not function.
·Telltales with no setting do not operate.
·If items do not operate normally, it can be determined that the combination meter ASSY is faulty.
·Telltales with no setting do not operate.
·If items do not operate normally, it can be determined that the combination meter ASSY is faulty.

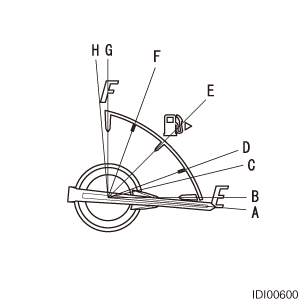

(b) [Display 1]: Fuel receiver gauge
| Display |
Gauge indicator position |
|---|---|
| A |
Sender E point |
| B |
Meter E scale |
| C |
Warning illumination point |
| D |
Meter 1/4 scale |
| E |
Meter 1/2 scale |
| F |
Meter 3/4 scale |
| G |
Meter F scale |
| H |
Sender F point |
| DTC | B1500 | Fuel Sender Open Detected |
|---|
Description of functions
The combination meter ASSY receives signals from the fuel sender gauge and drives the fuel receiver gauge. If the fuel sender gauge signals are found continuously abnormal for approximately 10 seconds, diagnostic code is output.
| Diagnostic codes |
1. Detecting conditions 2. Abnormal condition |
Faulty part |
|---|---|---|
| B1500 |
1. 10 seconds or more has passed after the engine started, and the IG voltage is 10.5 V or more 2. Fuel sender gauge malfunction |
·Combination meter ASSY ·Fuel sender gauge ASSY ·Fuel sender gauge ASSY NO.2 ·Fuel suction tube ASSY (with pump and gauge) ·Fuel return vent tube ·Wiring harness or connector |
Circuit figure
Inspection steps
1.
SSM3 data reading
(1) Using SSM3, display the [Current Data Display & Save] screen. Check the computer data. (Refer to )
)
SSM3 display: [Each System Check] → [Combination meter] → [Current Data Display & Save]
| Item Name [Symbol] |
Description/display range |
Normal value |
Remarks |
|---|---|---|---|
| [Fuel Input] [Fuel Input] |
Input value of fuel sender Display range: 0 to 127.5[L] |
Fuel level is displayed |
If it is abnormal, the fuel sender gauge may be faulty |
Criteria
: Data monitor value is almost equal to the value on the fuel receiver gauge.
NG
> Go to Step 2.
OK▼
Replacement of the combination meter ASSY (refer to )
)2.
Unit inspection of the fuel sender gauge ASSY
(1) Remove the fuel sender gauge ASSY. (Refer to )
)(2) Perform the unit inspection of the fuel sender gauge ASSY. (Refer to )
)NG
>Replacement of the fuel sender gauge ASSY (refer to )
)OK▼
3.
Unit inspection of the fuel suction tube ASSY (with pump and gauge)
(1) Resistance check
(a) Remove the fuel suction tube ASSY (with pump and gauge).
NG
>Replacement of the fuel suction tube ASSY (with pump and gauge) (Refer to )
)OK▼
4.
Unit inspection of the fuel sender gauge ASSY NO.2
(1) Remove the fuel sender gauge ASSY NO.2. (Refer to )
)(2) Perform the unit inspection of the fuel sender gauge ASSY NO.2. (Refer to )
)NG
>Replacement of the fuel sender gauge ASSY NO.2 (refer to )
)OK▼
5.
Unit inspection of the fuel return vent tube

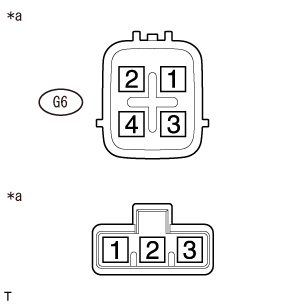

(1) Resistance check
(a) Remove the fuel return vent tube.
NG
>Replacement of the fuel return vent tube (refer to )
)OK▼
6.
Inspection of the wiring harness and connector (Combination meter ASSY - Fuel suction tube ASSY (with pump and gauge))
(1) Disconnect the connector D7 of the combination meter ASSY and the connector G7 of the fuel suction tube ASSY (with pump and gauge).
NG
>Repair or replacement of wiring harness or connector
OK▼
7.
Inspection of the wiring harness and connector (Fuel suction tube ASSY (with pump and gauge) - Fuel return vent tube)

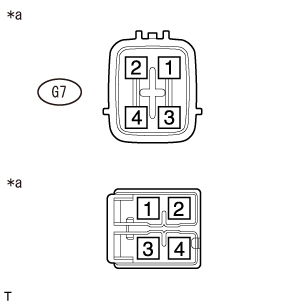

(1) Disconnect the connector G7 of the fuel suction tube ASSY (with pump and gauge) and the connector G6 of the fuel return vent tube.
NG
>Repair or replacement of wiring harness or connector
OK▼
8.
Inspection of the wiring harness and connector (Combination meter ASSY - Fuel return vent tube)
(1) Disconnect the connector D7 of the combination meter ASSY and the connector G6 of the fuel return vent tube.
NG
>Repair or replacement of wiring harness or connector
OK▼
Replacement of the combination meter ASSY (refer to )
)| DTC | B1509 | Ambient air temperature sensor open detection |
|---|
Circuit description
The thermistor ASSY is installed at the front of the condenser. It is used to detect the ambient air temperature, to display the ambient air temperature on the multi display of the combination meter ASSY, and to control “AUTO” of the heater & air conditioner. The resistance of the thermistor ASSY varies along with change of the ambient air temperature. When the ambient air temperature is low, the resistance is high. In contrast, when the ambient air temperature is high, the resistance is small. The combination meter ASSY gives voltage output (5 V) to the thermistor ASSY, and reads variation of voltage along with resistance change of the thermistor ASSY.
| DTC NO. |
1. Detecting conditions 2. Abnormal condition |
Inspection parts |
|---|---|---|
| B1509 |
1. 10 seconds or more has passed after the engine started, and the IG voltage is 10.5 V or more 2. Open or short circuit in the thermistor ASSY circuit |
·Thermistor ASSY ·Wire harness and connector ·Combination meter ASSY |
Circuit figure
Inspection steps
1.
Reading the SSM3 data (ambient temperature input value)
(1) Using SSM3, display the [Current Data Display & Save] screen. Check the computer data. (Refer to )
)
Criteria
SSM3 display: [Each System Check] → [Combination meter] → [Current Data Display & Save]
| Item Name [Item symbol] |
Description of item/display item |
Normal value |
Remarks |
|---|---|---|---|
| [Ambient Temperature] [Ambi Temp] |
Ambient air temperature is displayed. Display range: -40 to 87.5°C (-40 to 189.5°F) |
·In open circuit: (-40°C (-40°F)) is displayed. ·In short-circuit: (87.5°C (189.5°F)) is displayed. |
Thermistor ASSY system |
Result
| Result |
Go to |
|---|---|
| The same value as the ambient temperature sensor is displayed (during the inspection according to the list of diagnostic codes) |
A |
| The same value as the ambient temperature sensor is displayed (during the inspection according to the symptom table) |
B |
| The displayed value is not the same as the ambient temperature sensor |
C |
B
>Perform the circuit test shown on the symptom table. (Refer to )
)C
> Go to Step 3.
A▼
2.
Checking diagnostic codes
(1) Clear the diagnostic code using the SSM3.
(2) Using SSM3, check the diagnostic code again.
Criteria
: No DTC output
NG
>Replacement of the combination meter ASSY (refer to )
)OK▼
Complete
3.
Unit inspection of thermistor ASSY
(1) Remove the thermistor ASSY. (Refer to )
)(2) Inspect the individual thermistor ASSY. (Refer to )
)NG
>Replacement of thermistor ASSY (Refer to )
)OK▼
4.
Inspection of wire harness and connector (thermistor ASSY - combination meter ASSY)
NOTE:
For inspection procedures and precautions, refer to .
.(1) Disconnect connector D7 of the combination meter ASSY.
NG
>Repair or replacement of wiring harness or connector
OK▼
Replacement of the combination meter ASSY (refer to )
)| DTC | U0073 | CAN Communication Error |
|---|
| DTC | U0100 | Lost Communication With EGI |
|---|
| DTC | U0122 | Lost Communication With brake ECU |
|---|
| DTC | U0131 | Lost Communication With EPS |
|---|
| DTC | U0140 | Lost Communication With BIU |
|---|
| DTC | U0151 | Lost Communication With A/B |
|---|
Description of functions

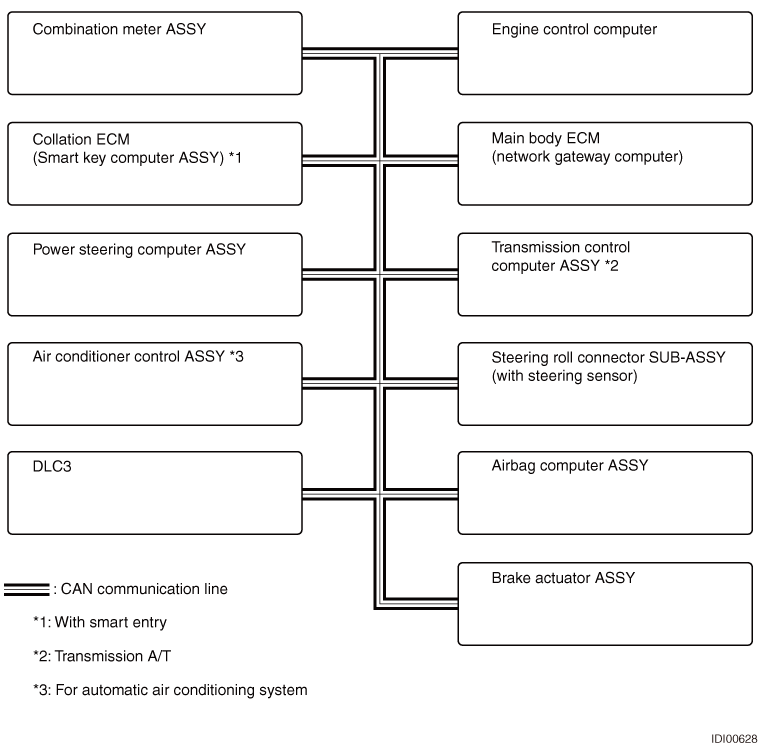

·U0073: Combination meter ASSY receives signals from various ECMs via CAN communication.
·U0100: Combination meter ASSY receives signals from the engine control computer via CAN communication.
·U0122: Combination meter ASSY receives signals from the brake actuator ASSY via CAN communication.
·U0131: Combination meter ASSY receives signals from the power steering computer ASSY via CAN communication.
·U0140: Combination meter ASSY receives signals from the main body ECM (network gateway computer) via CAN communication.
·U0151: Combination meter ASSY receives signals from the airbag computer ASSY via CAN communication.
·U0100: Combination meter ASSY receives signals from the engine control computer via CAN communication.
·U0122: Combination meter ASSY receives signals from the brake actuator ASSY via CAN communication.
·U0131: Combination meter ASSY receives signals from the power steering computer ASSY via CAN communication.
·U0140: Combination meter ASSY receives signals from the main body ECM (network gateway computer) via CAN communication.
·U0151: Combination meter ASSY receives signals from the airbag computer ASSY via CAN communication.
| DTC No. |
Detecting conditions |
Inspection parts |
|---|---|---|
| U0073 |
Lost communication with ECM |
CAN communication system |
| U0100 |
Lost communication with the engine control computer |
·CAN communication system ·Engine control computer |
| U0122 |
Lost communication with the brake actuator ASSY |
·CAN communication system ·Brake actuator ASSY |
| U0131 |
Lost communication with the power steering computer ASSY |
·CAN communication system ·Power steering computer ASSY |
| U0140 |
Lost communication with the main body ECM (network gateway computer) |
·CAN communication system ·Main body ECM (Network gateway computer) |
| U0151 |
Lost communication with the airbag computer ASSY |
·CAN communication system ·Airbag computer ASSY |
Inspection steps
1.
Reading the diagnostic code
(1) Using SSM3, check the output diagnostic code.
NOTE:
·When the diagnostic code of abnormal CAN communication system is output, refer to “How to troubleshoot” of the CAN communication system.
·If diagnostic codes for CAN communication error and other errors are output simultaneously, restore the CAN communication system to the normal state and then troubleshoot other systems.
·If diagnostic codes for CAN communication error and other errors are output simultaneously, restore the CAN communication system to the normal state and then troubleshoot other systems.
Next▼
To CAN communication system (Refer to )
)| Entire combination meter does not operate |
|---|
DESCRIPTION
This circuit is the power source circuit for the combination meter assembly.
WIRING DIAGRAM
INSPECTION PROCEDURE
CAUTION:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.
1.
CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - BATTERY AND BODY GROUND)
(1) Disconnect the D7 combination meter assembly connector.
(2) Measure the voltage according to the value(s) in the table below.
(3) Measure the resistance according to the value in the table below.
Standard Resistance
| Tester Connection |
Condition |
Specified Condition |
|---|---|---|
| D7-20 (ES1) - Body ground |
Always |
Below 1 Ω |
| D7-40 (ES2) - Body ground |
Always |
Below 1 Ω |
Text in Illustration
| *a |
Front view of wire harness connector (to Combination Meter Assembly) |
(4) Reconnect the D7 combination meter assembly connector.
NG
>REPAIR OR REPLACE HARNESS OR CONNECTOR
OK▼
REPLACE COMBINATION METER ASSEMBLY (See page )
)| Speed meter malfunction |
|---|
Description of functions
The combination meter ASSY receives vehicle speed signals from the brake actuator ASSY via CAN communication. The combination meter ASSY displays the vehicle speed based on the received vehicle speed signals.
NOTE:
Even when the speed meter is normal, slight difference may be present between the reading value and the actual vehicle speed. There are two possible causes for this difference. One is an external cause resulting from the tire size, tire pressure, and tire wear. The other is an internal factor resulting from the allowable range of the reading. Therefore, before troubleshooting, you must first check if these causes are related to the error. The tire size, pressure, and wear (external causes) are checked visually. (Refer to ) The allowable range of reading (internal cause) is checked using a speed meter tester. (Refer to )
) The allowable range of reading (internal cause) is checked using a speed meter tester. (Refer to )Circuit figure
Inspection steps
CAUTION:
If the check result of vehicle speed reading is outside the allowable range, perform an inspection using a speed meter tester. (Refer to )
)1.
Reading the diagnostic code
B
>To CAN communication system (Refer to )
)A▼
2.
Performing the SSM3 system operation check mode (speed meter)
(1) Using SSM3, display the [System Operation Check Mode] screen according to the screen instructions and perform a check. (Refer to )
)
SSM3 display: [Each System Check] → [Combination meter] → [Work Support] → [System Operation Check Mode]
| Item Name |
Contents of testing |
Check item |
|---|---|---|
| [Speed Meter Operation] |
Vehicle speed indication changeover |
240, 200, 160, 120, 80, 40, 0 (km/h) |
NOTE:
When performing [System Operation Check Mode], check if the actual meter reading is within the allowable range of meter reading (refer to ).
).B
>Replacement of the combination meter ASSY (refer to )
)A▼
3.
Reading the SSM3 data (vehicle speed)
(1) Using SSM3, display the [Current Data Display & Save] screen. Check the computer data. (Refer to )
)
NOTE:
Check the speed meter and the reference value of [Current Data Display & Save].
SSM3 display: [Each System Check] → [Combination meter] → [Current Data Display & Check]
| Item Name [Symbol] |
Description/display range |
Normal value |
Remarks |
|---|---|---|---|
| [Vehicle Speed] [Speed Meter] |
Vehicle speed input value Display range: 0 to 255[km/h] (0 to 158 MPH) |
0 to 255[km/h] (0 to 158 MPH) Roughly synchronized with actual vehicle speed |
Check the reading error of the speed meter |
B
>Replacement of the combination meter ASSY (refer to )
)A▼
4.
Reading the diagnostic code (VSC system)
B
>To VSC system (Refer to )
)A▼
5.
Reading the SSM3 data (vehicle speed)
(1) Using SSM3, display the [Current Data Display & Save] screen. Check the computer data. (Refer to )
)
NOTE:
Check the speed meter and the reference value of [Current Data Display & Save].
SSM3 display: [Each System Check] → [Brake Control System] → [Current Data Display & Save]
| Item Name [Symbol] |
Description/display range |
Normal value |
Remarks |
|---|---|---|---|
| [Vehicle Speed] [Vhcl Spd] |
Vehicle speed output value 0 to 326.4 km/h |
0 km/h: When stopped No significant fluctuation: When cruising |
- |
B
>Replacement of the brake actuator ASSY (Refer to )
)A▼
6.
Replacement of combination meter ASSY
B
>Replacement of the brake actuator ASSY (Refer to )
)A▼
Complete (Internal fault of the combination meter ASSY)
| Tachometer malfunction |
|---|
Description of functions
The combination meter ASSY receives engine speed signals from the engine control computer via CAN communication. The combination meter ASSY drives the tachometer based on the engine speed signals it receives.
Circuit figure
Inspection steps
CAUTION:
Before performing inspections according to this flow chart, check that no abnormal condition is present in the engine. (Refer to )
)1.
Reading the diagnostic code
B
>To CAN communication system (Refer to )
)A▼
2.
Performing the SSM3 system operation check mode (tachometer)
(1) Using SSM3, display the [System Operation Check Mode] screen according to the screen instructions and perform a check. (Refer to )
)
SSM3 display: [Each System Check] → [Combination meter] → [Work Support] → [System Operation Check Mode]
| Item Name |
Contents of testing |
Check item |
|---|---|---|
| [TachoMeter Operation] |
Engine speed indication changeover |
7000, 6000, 5000, 4000, 3000, 2000, 1000, 0 (r/min) |
NOTE:
When performing [System Operation Check Mode], check if the actual meter reading is within the allowable range of the meter reading (refer to ).
).B
>Replacement of the combination meter ASSY (refer to )
)A▼
3.
Reading the SSM3 data (engine speed)
(1) Using SSM3, display the [Current Data Display & Save] screen. Check the computer data. (Refer to )
)
NOTE:
Check the tachometer and the reference value of [Current Data Display & Save].
SSM3 display: [Each System Check] → [Combination meter] → [Current Data Display & Save]
| Item Name [Symbol] |
Description/display range |
Normal value |
Remarks |
|---|---|---|---|
| [Engine Speed] [Tacho Meter] |
Engine speed input Display range: 0 to 12750[r/min] |
Engine running state Roughly synchronized with engine speed |
- |
B
>Replacement of the combination meter ASSY (refer to )
)A▼
4.
Reading the diagnostic code (EFI system)
B
>To EFI system (Refer to )
)A▼
5.
Reading the SSM3 data (engine speed)
(1) Using SSM3, display the [Current Data Display & Save] screen according to the screen instructions and check the data. (Refer to )
)
NOTE:
Check the tachometer and the reference value of [Current Data Display & Save].
SSM3 display: [Each System Check] → [Engine Control System] → [Current Data Display & Save]
| Item Name [Symbol] |
Description/display range |
Normal value |
Remarks |
|---|---|---|---|
| [Engine Speed] [Engine Spd] |
Indicates the engine speed Display range: 0 to 16383.8[r/min] |
0 r/min Engine stop (IG ON) |
NE signal (NE sensor) |
| No significant fluctuation When engine is rotating at a constant speed |
B
>To EFI system (Refer to )
)A▼
6.
Replacement of combination meter ASSY
B
>Replacement of the engine control computer (Refer to )
)A▼
Complete (Internal fault of the combination meter ASSY)
| Fuel receiver gauge malfunction |
|---|
Description of functions
The combination meter ASSY uses the fuel sender gauge ASSY to detect the fuel level in the fuel tank. The fuel sender gauge ASSY has a variable resistor that changes its resistance depending on the fuel level. The fuel sender gauge ASSY receives voltage from the combination meter ASSY and adjusts its voltage based on the resistance that changes according to the fuel level in the fuel tank. The combination meter ASSY detects the voltage between the variable resistor and the resistor inside the combination meter ASSY, and drives the fuel receiver gauge.
Circuit figure
Inspection steps
1.
DTC check
(1) Using SSM3, check if the diagnostic code B1500 (Fuel Sender Open Detected) is output.
Criteria
: Diagnostic code B1500 (Fuel Sender Open Detected) is not output.
NG
>To relevant flowchart (Refer to )
)OK▼
2.
Performance of the SSM3 [System Operation Check Mode]
(1) Using SSM3, display the [System Operation Check Mode] screen according to the screen instructions and perform a check.
SSM3 display: [Each System Check] → [Combination meter] → [Work Support] → [System Operation Check Mode]
| Item Name |
Item description |
Reference values |
|---|---|---|
| [Fuel Meter Operation] |
Fuel meter indication changeover |
·Sender F point [Display H] ·Meter F scale [Display G] ·Meter 3/4 scale [Display F] ·Meter 1/2 scale [Display E] ·Meter 1/4 scale [Display D] ·Warning lighting position [Display C] ·Meter E scale (+warning illumination) [Display B] ·Sender E point (+warning illumination) [Display A] |
Criteria
: Each fuel level specified by [System Operation Check Mode] can be displayed smoothly.
NG
>Replacement of the combination meter ASSY (refer to )
)OK▼
3.
Reading the SSM3 data (Refer to )
)NG
> Go to Step 4.
OK▼
Replacement of the combination meter ASSY (refer to )
)4.
Unit inspection of the fuel sender gauge ASSY (refer to )
)B
>Replacement of the fuel sender gauge ASSY (refer to )
)A▼
5.
Unit inspection of the fuel suction tube ASSY (with pump and gauge) (Refer to )
)B
>Replacement of the fuel suction tube ASSY (with pump and gauge) (Refer to )
)A▼
6.
Unit inspection of the fuel sender gauge ASSY NO.2 (refer to )
)B
>Replacement of the fuel sender gauge ASSY NO.2 (refer to )
)A▼
7.
Unit inspection of the fuel return vent tube (refer to )
)B
>Replacement of the fuel return vent tube (refer to )
)A▼
8.
Inspection of the wiring harness and connector (Combination meter ASSY - Fuel suction tube ASSY (with pump and gauge)) (Refer to )
)NG
>Repair or replacement of wiring harness or connector
OK▼
9.
Inspection of the wiring harness and connector (Fuel suction tube ASSY (with pump and gauge) - Fuel return vent tube) (Refer to )
)NG
>Repair or replacement of wiring harness or connector
OK▼
10.
Inspection of the wiring harness and connector (Combination meter ASSY - Fuel return vent tube) (Refer to )
)NG
>Repair or replacement of wiring harness or connector
OK▼
Replacement of the combination meter ASSY (refer to )
)| Water temperature receiver gauge malfunction |
|---|
Description of functions
The combination meter ASSY receives engine coolant temperature signals from the engine control computer via CAN communication. The combination meter ASSY drives the water temperature gauge based on the engine coolant temperature signals it receives.

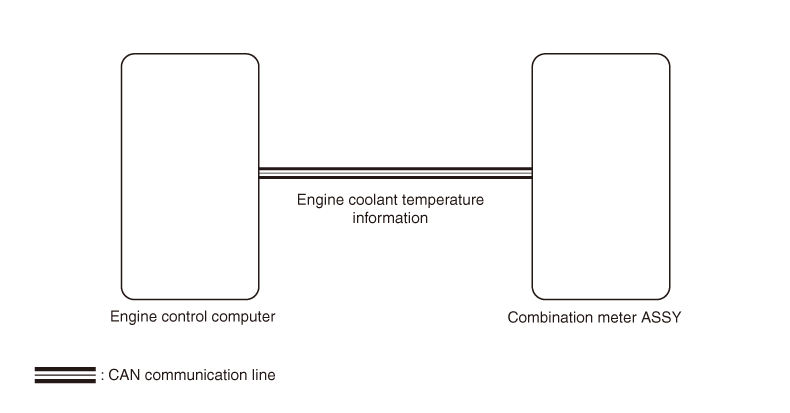

Circuit figure
Inspection steps
CAUTION:
Before performing inspections according to this flow chart, check that no abnormal condition is present in the engine. (Refer to )
)1.
Reading the diagnostic code
B
>To CAN communication system (Refer to )
)A▼
2.
Performance of the SSM3 [System Operation Check Mode]
(1) Using SSM3, display the [System Operation Check Mode] screen according to the screen instructions and perform a check. (Refer to )
)
SSM3 display: [Each System Check] → [Combination meter] → [Work Support] → [System Operation Check Mode]
| Item Name |
Contents of testing |
Check item |
|---|---|---|
| [Water thermometer] |
Coolant temperature indication changeover |
·127°C {261°F} [Display H] ·120°C {248°F} [Display G] ·110°C {230°F} [Display F] ·Intermediate stable range [Display E] ·80°C {176°F} [Display D] ·70°C {158°F} [Display C] ·60°C {140°F} [Display B] ·50°C {122°F} [Display A] |
Criteria
: Each value specified by [System Operation Check Mode] can be displayed smoothly.
NG
>Replacement of the combination meter ASSY (refer to )
)OK▼
3.
Reading SSM3 data (engine coolant temperature)
(1) Using SSM3, display the [Current Data Display & Save] screen. Check the computer data. (Refer to )
)
SSM3 display: [Each System Check] → [Combination meter] → [Current Data Display & Save]
| Item Name [Symbol] |
Description/display range |
Normal value |
Remarks |
|---|---|---|---|
| [Coolant Temp.] [Coolant Temp] |
Engine coolant temperature input Display range: 0 to 127.5°C (0 to 261.5°F) |
Equivalent to ambient temperature: When engine is cold When engine is fully warmed up: 80 to 100°C {176 to 212°F} |
If it is abnormal, the coolant temperature signal system may be faulty |
Criteria
: The normal value of [Current Data Display & Save] is almost equal to the value of the water temperature receiver gauge.
NG
>Replacement of the combination meter ASSY (refer to )
)OK▼
4.
Reading the diagnostic code (EFI system)
B
>To EFI system (Refer to )
)A▼
5.
Reading SSM3 data (engine coolant temperature)
(1) Using SSM3, display the [Current Data Display & Save] screen. Check the computer data. (Refer to )
)
SSM3 display: [Each System Check] → [Engine Control System] → [Current Data Display & Save]
| Item Name [Symbol] |
Description/display range |
Normal value |
Remarks |
|---|---|---|---|
| [Coolant Temp] [Coolant Temp] |
Indicates the engine coolant temperature Display range: -40 to 215°C (-40 to 419°F) |
75 to 100°C (167 to 212°F) After warming-up |
·Engine coolant temperature after warm-up is 75 to 100°C ·After the engine is stopped and left unattended for a long time, the engine coolant temperature, intake air temperature and ambient temperature will be almost the same ·If the engine coolant temperature reads -40°C or 215°C, an open or short circuit may be present in the sensor system |
Criteria
: The normal value of [Current Data Display & Save] is almost equal to the value of the water temperature receiver gauge.
NG
>To EFI system (Refer to )
)OK▼
6.
Replacement of combination meter ASSY
(1) Replace with a new or normally functioning combination meter ASSY (refer to ) and check the operation of the water temperature receiver gauge.
) and check the operation of the water temperature receiver gauge.B
>Replacement of the engine control computer (Refer to )
)A▼
Complete (Internal fault of the combination meter ASSY)
| Illumination level does not change when operating the light control rheostat |
|---|
Description of functions
When the knob of light control rheostat is turned up or down, the illumination intensity of the combination meter ASSY changes.
Circuit figure
Inspection steps
1.
SSM3 data reading
(1) Using SSM3, display the [Current Data Display & Save] screen according to the screen instructions and check the data.
SSM3 display: [Each System Check] → [Combination meter] → [Current Data Display & Save]
| Item Name [Symbol] |
Description/display range |
Normal value |
Remarks |
|---|---|---|---|
| [Tail Cancel SW] [Tail Cancel SW] |
Tail cancel switch state Display range: OFF to ON |
ON: Tail cancel switch ON OFF: Tail cancel switch OFF |
If it is abnormal, the tail cancel switch may be faulty |
| [Rheostat value] [Rheostat] |
Rheostat input value Display range: 0 to 255 |
Light control rheostat switch Dark (0) to Bright (255) |
If it is abnormal, the light control rheostat switch may be faulty |
Criteria
: The normal value is displayed properly.
NG
> Go to Step 2.
OK▼
Replacement of the combination meter ASSY (refer to )
)2.
Unit inspection of the light control rheostat
(1) Remove the light control rheostat. (Refer to )

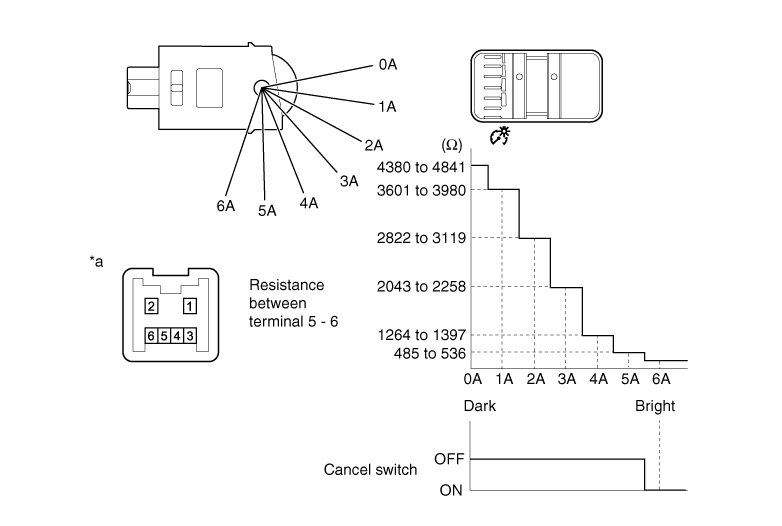

)Captions in illustration
| *a |
Connector not connected (Light control rheostat) |
(2) Operate the switch and measure the resistance between terminals.
NG
>Replacement of the light control rheostat (Refer to )
)OK▼
3.
Inspection of the wiring harness and connector (Combination meter ASSY - Light control rheostat)
(1) Disconnect connector D7 of the combination meter ASSY.
NG
>Repair or replacement of wiring harness or connector
OK▼
Replacement of the combination meter ASSY (refer to )
)| Can not switch ODO/TRIP meter display, or can not reset TRIP meter |
|---|
Circuit figure
Inspection steps
1.
SSM3 data reading
(1) Using SSM3, display the [Current Data Display & Save] screen according to the screen instructions and check the data.
SSM3 display: [Each System Check] → [Combination meter] → [Current Data Display & Save]
| Item Name [Symbol] |
Description/display range |
Normal value |
Remarks |
|---|---|---|---|
| [ODO/TRIP Change SW] [ODO/TRIP SW] |
ODO/TRIP Change SW state Display range: OFF to ON |
ON: When the switch is pressed OFF: When the switch is released |
If it is abnormal, the trip switch may be faulty |
| [Multi-display Change Switch] [Multi Disp SW] |
Multi display changeover SW state Display range: OFF to ON |
ON: When the switch is pressed OFF: When the switch is released |
If it is abnormal, the multi display switch may be faulty |
Criteria
: The normal value is displayed properly.
NG
> Go to Step 2.
OK▼
Replacement of the combination meter ASSY (refer to )
)2.
Unit inspection of the trip switch
(1) Remove the trip switch. (Refer to )
)
(2) Resistance check
(a) Measure the resistance between the terminals.

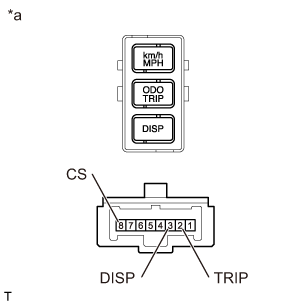

Captions in illustration
| *a |
Connector not connected (Trip switch) |
Resistance
| Inspection terminals (Terminal symbol) |
Inspection conditions |
Standard value |
|---|---|---|
| 2(TRIP) - 1 |
ODO/TRIP switch is pressed |
Less than 1 Ω |
| 2(TRIP) - 1 |
ODO/TRIP switch is released |
10 KΩ or more |
| 3(DISP) - 1 |
DISP switch is pressed |
Less than 1 Ω |
| 3(DISP) - 1 |
DISP switch is released |
10 KΩ or more |
| 8(cs) - 1* |
km/h/MPH switch is pressed |
Less than 1 Ω |
| 8(cs) - 1* |
km/h/MPH switch is released |
10 KΩ or more |
*: w/km/h MPH Switch
NG
>Replacement of the trip switch (Refer to )
)OK▼
3.
Inspection of the wiring harness and connector (Combination meter ASSY - Trip switch)
(1) Disconnect connector D7 of the combination meter ASSY.
(2) Measure the resistance between the terminals.
*: w/km/h MPH Switch
NG
>Repair or replacement of wiring harness or connector
OK▼
Replacement of the combination meter ASSY (refer to )
)
