Clock system
Parts location System information Troubleshooting
METER
CLOCK SYSTEM

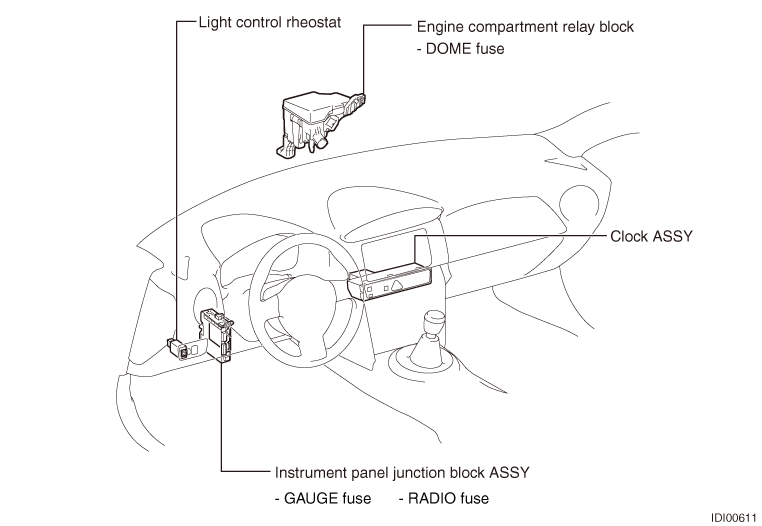

PARTS LOCATION
SYMPTOM TABLE
| Symptoms |
Inspection items |
Reference pages |
|---|---|---|
| No clock display |
Vehicle wiring harness and connector |
- |
| Replace the clock ASSY |
 |
|
| Can not set the time |
Check if time setting is performed while vehicle is in stoppage |
- |
| Replace the clock ASSY |
|
|
| Significant time error |
Replace the clock ASSY |
|
| Illumination level does not change when operating the light control rheostat |
Data monitor of SSM3 (external dimming output value) |
|
| Refer to the troubleshooting flowchart “Illumination level does not change when operating the light control rheostat” |
|
|
| Vehicle wiring harness and connector |
- |
|
| Inspect combination meter ASSY |
|
|
| Replace the clock ASSY |
|
HOW TO TROUBLESHOOT
1.
Bring in the car
Next▼
2.
Basic inspection
(1) Basic inspection
(a) Inspect the battery voltage.
Voltage
: 11 to 14V (when the engine is stopped)
Next▼
3.
Symptom table
(1) Symptom table (Refer to )
)Result
| Result |
Go to |
|---|---|
| Not applicable to the symptom table. |
A |
| Applicable to the symptom table. |
B |
B
>Go to Step 5.
A▼
4.
Perform troubleshooting with the method below based on malfunctions.
(1) ECM terminal matrix (Refer to )
)Next▼
5.
Adjustment, repair, or replacement
Next▼
Complete

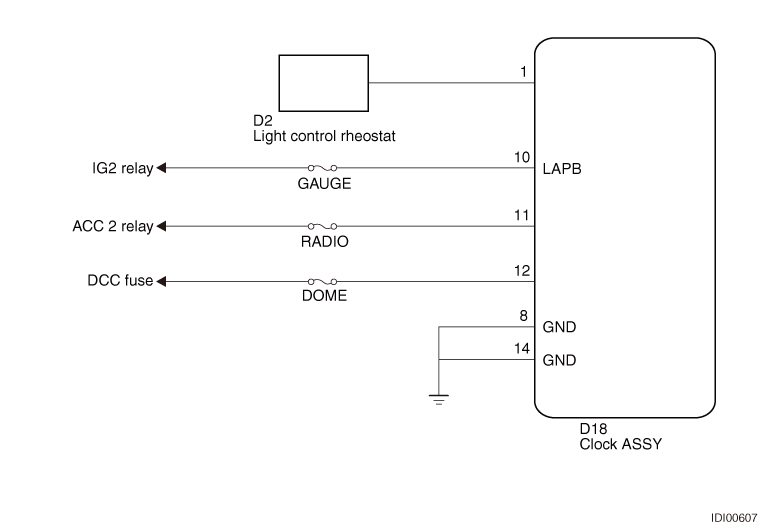

CIRCUIT FIGURE
