Combination meter ASSY
Components Removal / installation
METER
COMBINATION METER ASSY

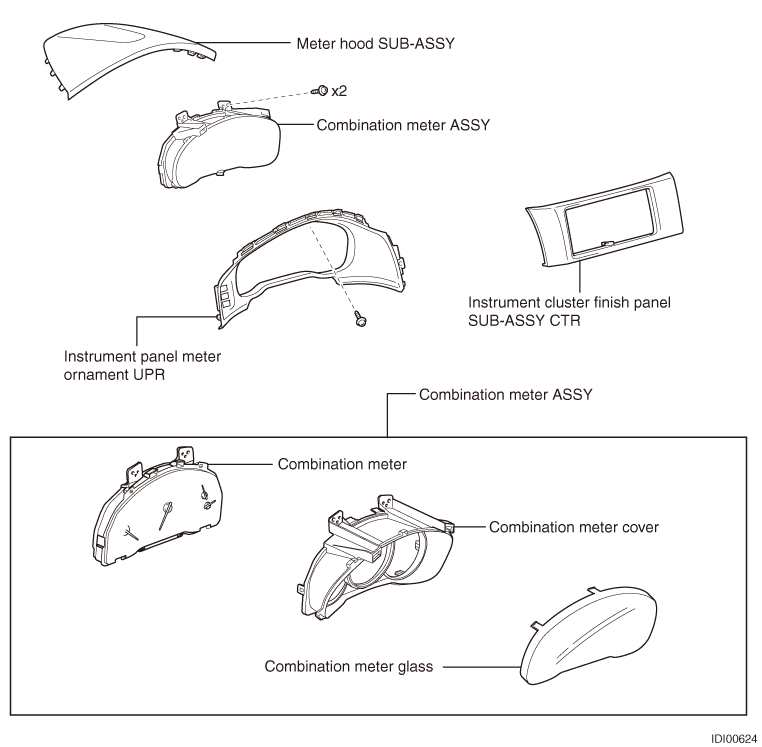

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)2. Removal of instrument cluster finish panel SUB-ASSY CTR (Refer to )
)3. Removal of the meter hood SUB-ASSY (Refer to )
)4. Removal of the instrument panel meter ornament UPR (Refer to )
)
DISASSEMBLY
1. Removal of the combination meter glass

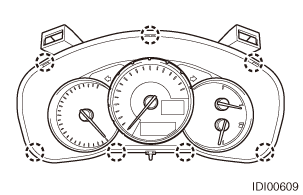

(1) Release seven claws and remove the combination meter glass.
CAUTION:
When removing the combination meter glass, do not touch the pointers.
2. Removal of the combination meter cover

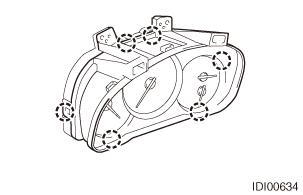

(1) Release six claws and remove the combination meter cover.
CAUTION:
When removing the combination meter cover, do not touch the pointers.
ASSEMBLY
1. Installation of the combination meter cover

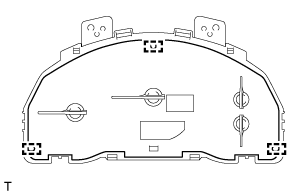

(1) Engage six claws and install the combination meter cover.
CAUTION:
When installing the combination meter cover, make sure that each dial is secured to the positioners
2. Installation of the combination meter glass
(1) Engage seven claws and install the combination meter glass.
INSTALLATION
1. Installation of the combination meter ASSY

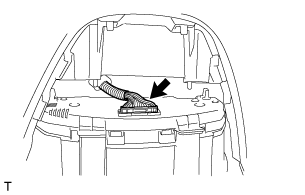

(1) Connect the connector.

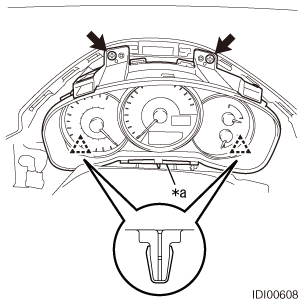

(2) Engage two clips and install the combination meter ASSY.
(3) Install the 2 screws.
2. Installation of the instrument panel meter ornament UPR (Refer to )
)3. Installation of the meter hood SUB-ASSY (Refer to )
)4. Installation of instrument cluster finish panel SUB-ASSY CTR (Refer to )
)5. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
6. Settings when removing/installing battery terminals (Refer to )
)
