Light control rheostat
Components Removal / installation
METER
LIGHT CONTROL RHEOSTAT

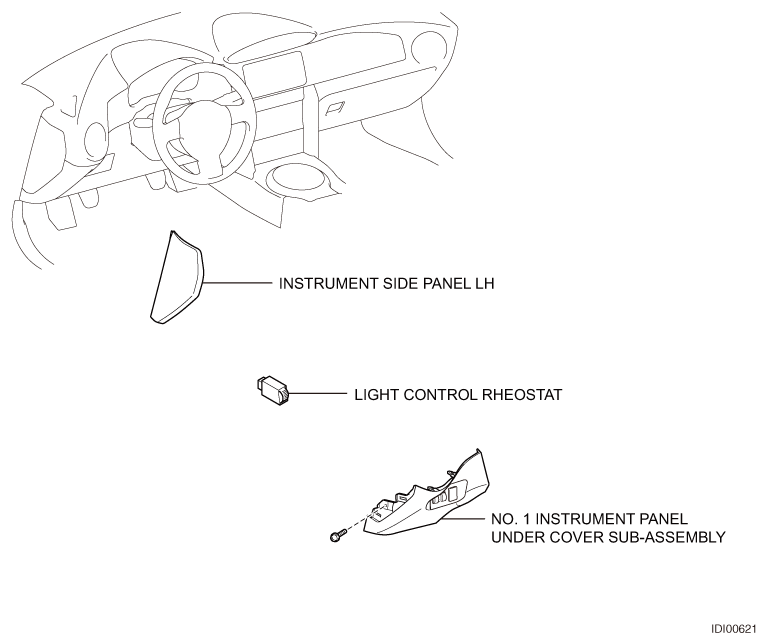

EXPLODED VIEW
REMOVAL
1. Removal of instrument side panel LH (Refer to
)
)
2. Removal of the instrument panel under cover SUB-ASSY NO.1

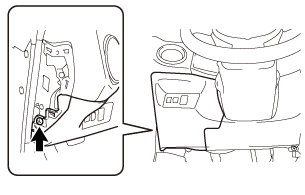

(1) Remove the screw.

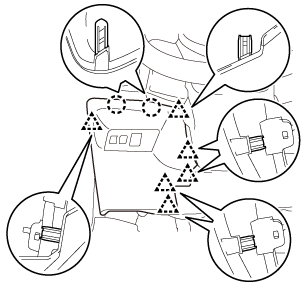

(2) Release two claws and six clips, and disconnect the instrument panel under cover SUB-ASSY NO.1.
(3) Disconnect the connectors, and remove the instrument panel under cover SUB-ASSY NO.1.
3. Removal of the light control rheostat

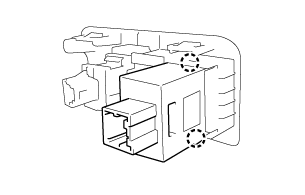

(1) Release two claws and remove the light control rheostat.
INSTALLATION
1. Installation of the light control rheostat
(1) Engage two claws and install the light control rheostat.
2. Installation of the instrument panel under cover SUB-ASSY NO.1
(1) Connect each connector.
(2) Engage two claws and six clips, and install the instrument panel under cover SUB-ASSY NO.1.
(3) Install the screw.
3. Installation of the instrument side panel LH (Refer to )
)
