Clock ASSY
Components Removal / installation
METER
CLOCK ASSY

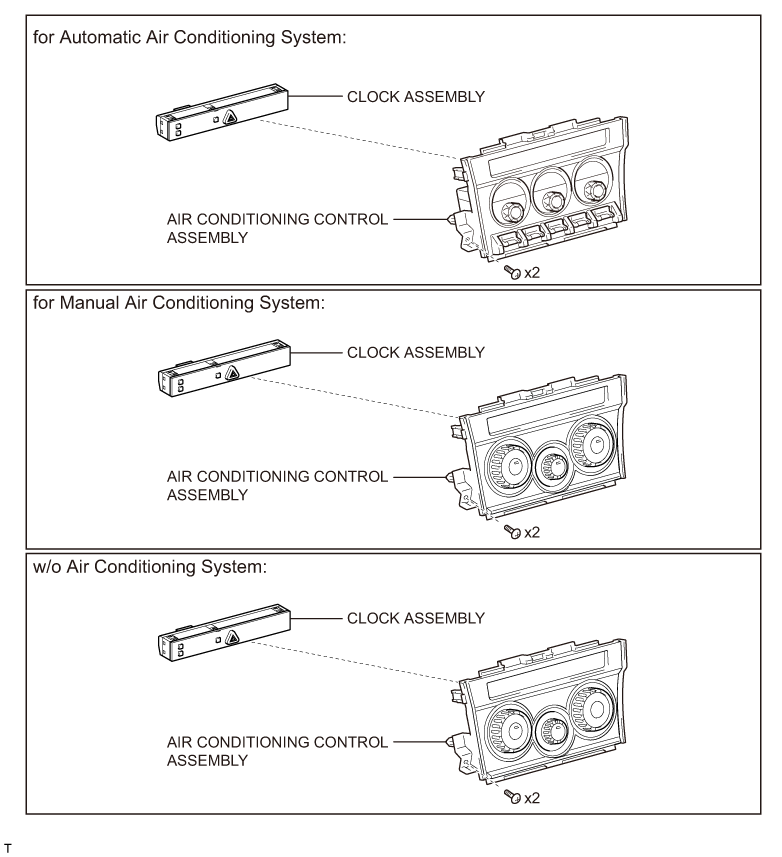

EXPLODED VIEW
REMOVAL
1. Removal of the air conditioner control ASSY (for automatic air conditioning system) (Refer to
)
)2. Removal of the air conditioner control ASSY (for manual air conditioning system) (Refer to )
)3. Removal of the heater control ASSY (without air conditioner) (Refer to )
)
4. Removal of the clock ASSY
(1) Release the 4 tabs, and remove the clock ASSY.
INSTALLATION
1. Installation of the clock ASSY
(1) Fit in the 4 tabs and install the clock ASSY.
2. Installation of the air conditioner control ASSY (for automatic air conditioning system) (Refer to )
)3. Installation of the air conditioner control ASSY (for manual air conditioning system) (Refer to )
)4. Installation of the heater control ASSY (without air conditioner) (Refer to )
)
