Trip switch
Components Inspection Removal / installation
METER
TRIP SWITCH

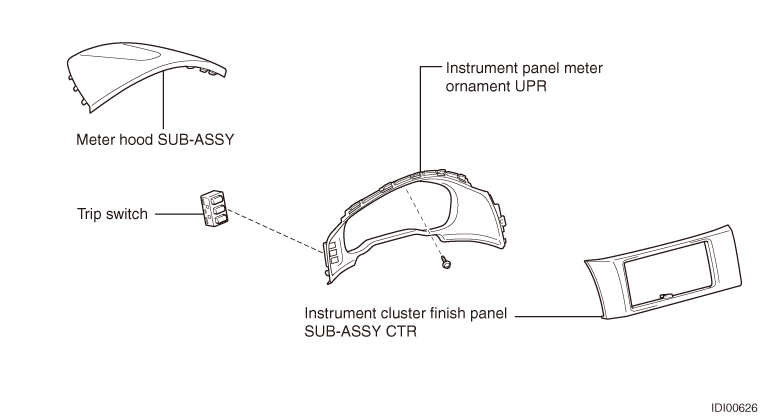

EXPLODED VIEW
REMOVAL
1. Removal of instrument cluster finish panel SUB-ASSY CTR (Refer to
)
)2. Removal of the meter hood SUB-ASSY (Refer to )
)3. Removal of the instrument panel meter ornament UPR (Refer to )
)
4. Removal of the trip switch

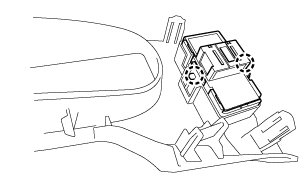

(1) Release two claws and remove the trip switch.
INSTALLATION
1. Installation of the trip switch
(1) Engage two claws and install the trip switch.
2. Installation of the instrument panel meter ornament UPR (Refer to )
)3. Installation of the meter hood SUB-ASSY (Refer to )
)4. Installation of instrument cluster finish panel SUB-ASSY CTR (Refer to )
)UNIT INSPECTION
1. Trip switch inspection
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals (Terminal symbol) |
Inspection conditions |
Standard value |
|---|---|---|
| 2(TRIP) - 1 |
Trip switch OFF → ON |
10 kΩ or more → less than 1 Ω |
| 3(DISP) - 1 |
Display switch OFF → ON |
10 kΩ or more → less than 1 Ω |
| 8(CS) - 1 |
Speed display setting switch OFF→ON |
10 kΩ or more → less than 1 Ω |

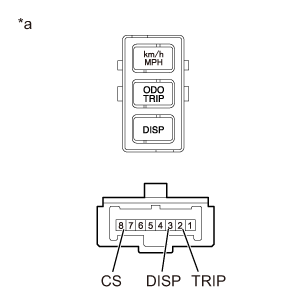

Captions in illustration
| *a |
Connector not connected (Trip switch) |
