Inner rearview mirror
Components Removal / installation
INNER MIRROR
INNER REARVIEW MIRROR

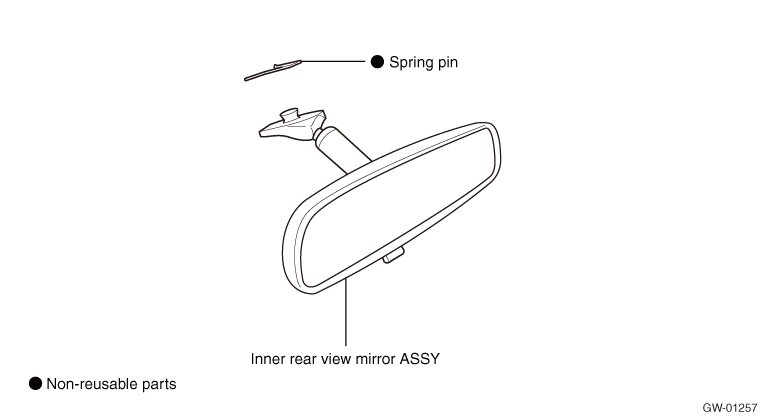

EXPLODED VIEW

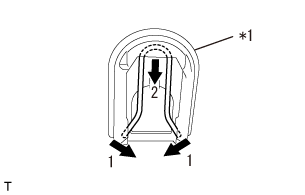

REMOVAL

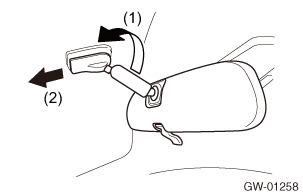

1. Removal of the inner rearview mirror ASSY
(1) Rotate the inner rearview mirror ASSY by 90°.
NOTE:
It can be removed by rotating clockwise or counterclockwise.
(2) Slide the inner rearview mirror ASSY to the front side of the vehicle, and remove it.

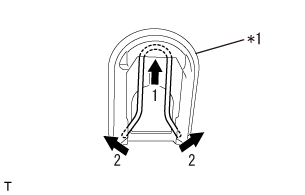

INSTALLATION
1. Installation of the spring pin

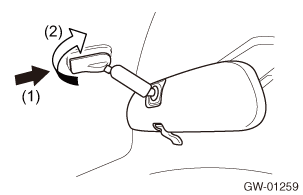

2. Installation of the inner rearview mirror ASSY
(1) Rotate the inner rearview mirror ASSY by 90°, and slide it to the spring pin from the front side of the vehicle.
(2) Rotate the inner rearview mirror ASSY by 90° clockwise or counterclockwise to install it.
NOTE:
It can be installed by rotating clockwise or counterclockwise.
