SRS AIRBAG SYSTEM
PRECAUTIONS
1. Before starting all works
(1) The airbag system is fitted with a backup power supply. After disconnecting the battery ground terminal, the airbag may operate if you do not wait for 60 seconds or more before starting the service of airbag system.


(2) When servicing a vehicle, be sure to turn the ignition switch to OFF, disconnect the ground terminal from battery, and wait for 60 seconds or more before starting work.
(3) If the airbag warning light illuminates, check or repair the vehicle immediately to prevent it from airbag system malfunction.

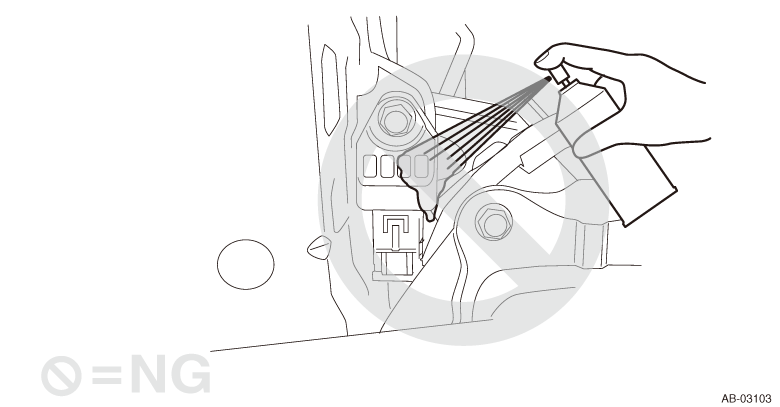

(4) Prevent water or oil from adhering to the connector terminals. Also, do not touch the connector terminals directly.

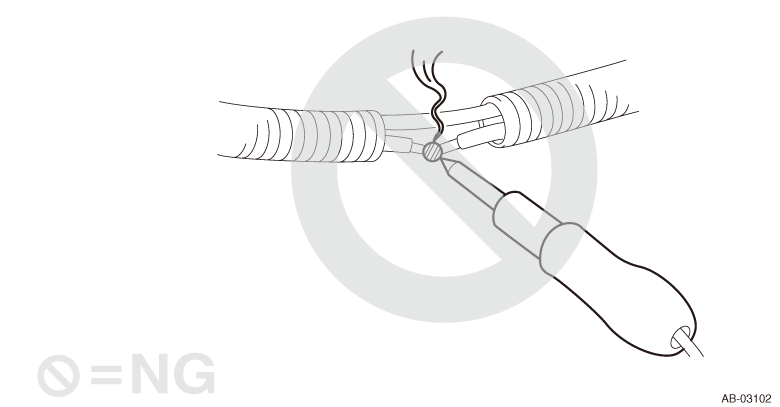

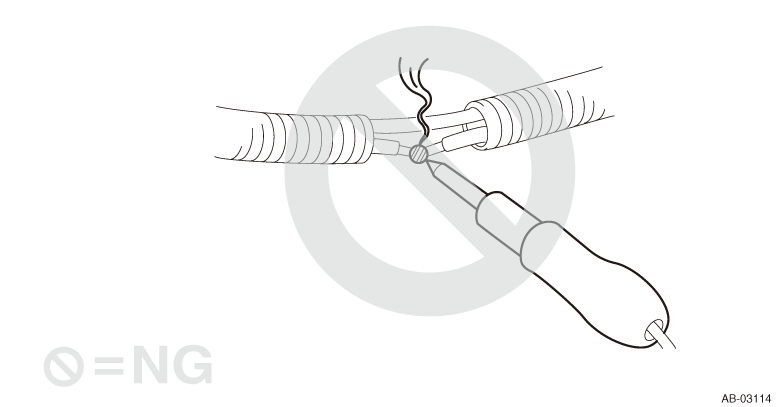

(5) If damage, open circuit or rust is found on airbag system wiring harness, do not repair the harness. Always replace the faulty harness with a new genuine part.


(6) When painting or performing sheet metal work on the front part of the vehicle, including the front wheel apron, front fender and radiator panel side, remove the front sub sensors and wiring harness of airbag system.
(7) When painting or performing sheet metal work on the side of the vehicle, including the side sill, center pillar and front and rear doors, remove the side airbag sensors, curtain airbag sensor, satellite safing sensor, front door impact sensor and wiring harness of the airbag system.


(8) When attaching the steering wheel and steering roll connector, be sure to adjust the steering roll connector.
2. Before starting parts replacement
(1) If airbag sensors, airbag module, airbag control module, pretensioners, harnesses, or the cover - if satellite safing is deformed or damaged, replace with new parts.

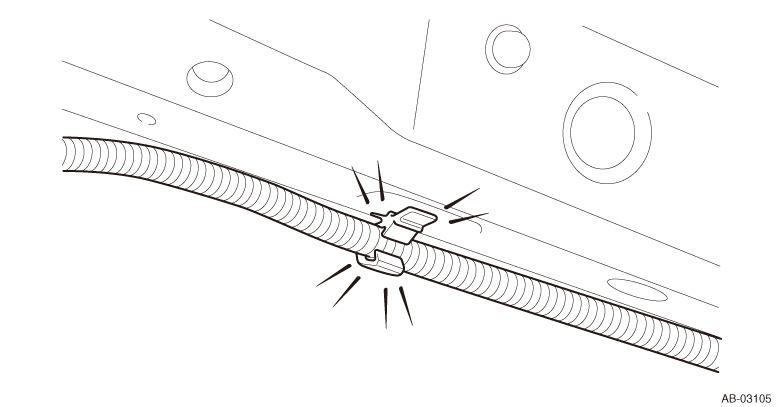

(2) Install the wiring harness securely with the specified clips to avoid interference or tangled with other parts.


(3) Do not use the airbag or pretensioner parts from other vehicles. Always replace the defective parts with new parts.
(4) Never reuse any activated airbag module and pretensioner.
(5) Do not discard undeployed airbag or pretensioner.
(6) When airbag control module, front sub sensor, side airbag sensor, curtain airbag sensor, satellite safing sensor and front door impact sensor are removed, do not reuse the bolts and nuts of them. Always replace with the specified new bolt and nut.
(7) When attaching the steering wheel and steering roll connector, be sure to adjust the steering roll connector.
(8) After removing each parts of the airbag system, keep them with the pad side facing upward on a dry, clean and flat surface away from heat, light sources, moisture and dust.

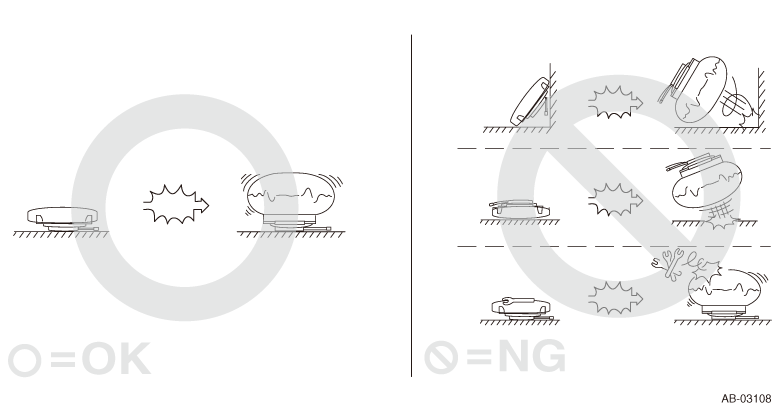

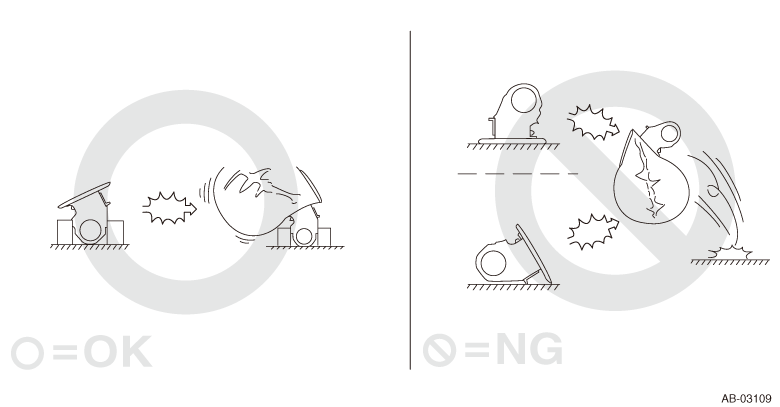

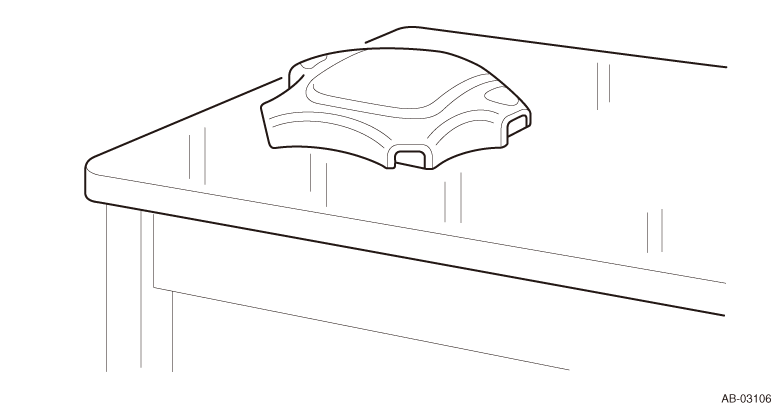

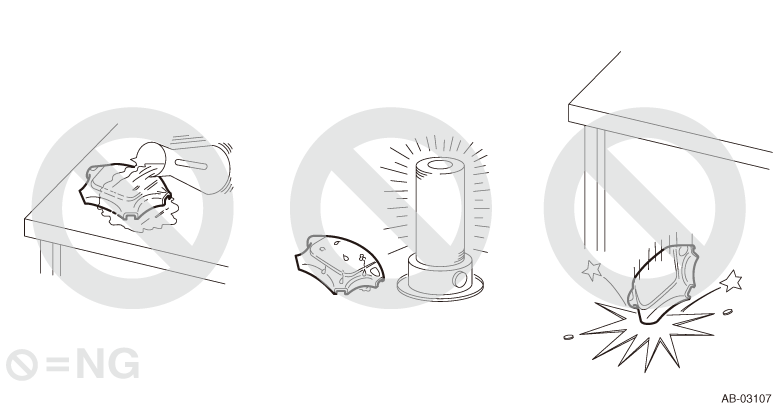

(9) Do not drop any airbag component, store them under high temperature of 85°C (185°F) or more, or let water, oil or grease get on them; the internal parts may be damaged or the reliability may be greatly lowered.


(10) When storing a removed airbag module, do not place it with the pad side facing downward. Do not place any objects on the airbag module. Do not pile up the airbag module. If the pad of the airbag module is in contact with other objects, it may cause a serious accident if the airbag accidentally operates.
(11) Driver side air bag module


(12) Passenger’s airbag module and side airbag module

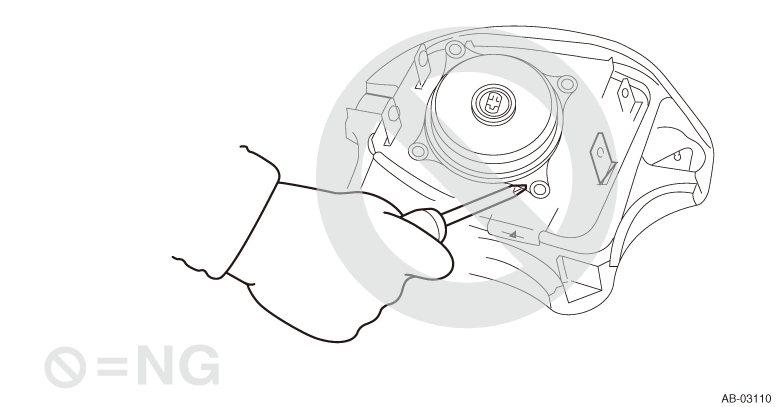

(13) Do not disassemble driver’s airbag module, knee airbag module, passenger’s airbag module, side airbag module, curtain airbag module or pretensioner.

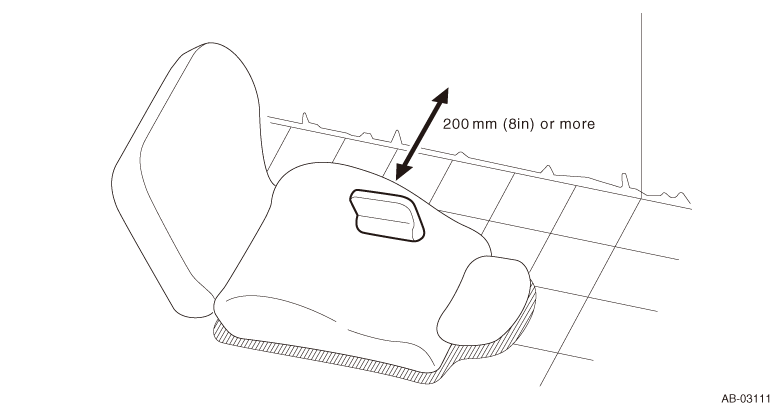

(14) The removed front seat with airbag module must be kept at least 200 mm (8 in) away from walls and other objects.


3. Before starting troubleshooting
(1) Even if any part must be replaced as the result of troubleshooting, do not use an airbag part or pretensioner part from other vehicles. Always replace the defective parts with new parts.

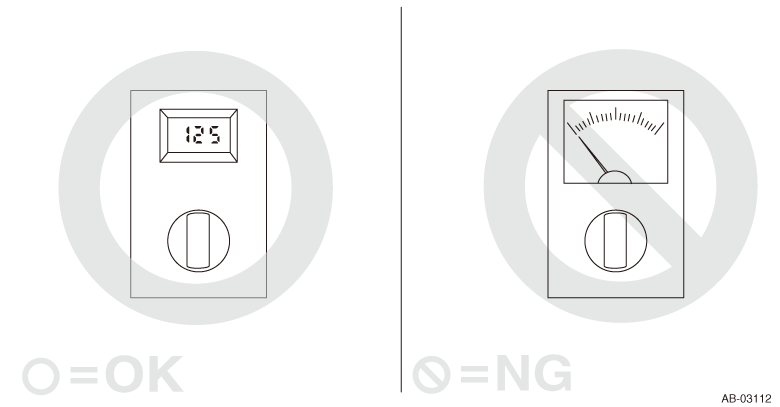

(2) When checking the airbag system, be sure to use a digital circuit tester. Use of an analog circuit tester may cause the airbag to activate erroneously due to a low current inside tester.


(3) Prevent water or oil from adhering to the connector terminals. Also, do not touch the connector terminals directly.


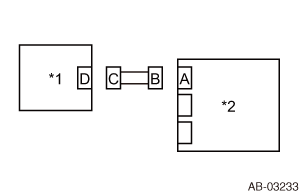

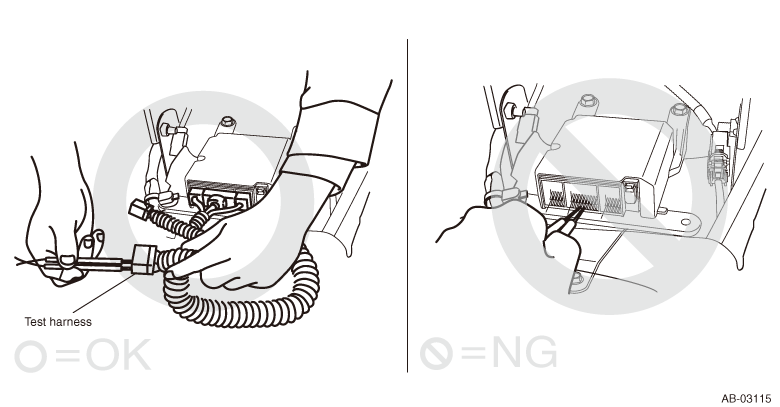

(4) When checking, use a test harness. Damage to connector terminal causes malfunction. Do not directly put the tester probe on airbag connector terminal.

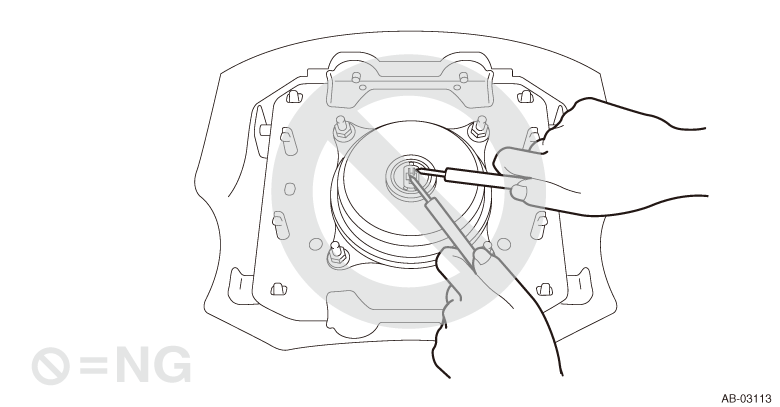

(5) Do not check continuity of the driver’s airbag module, knee airbag module, passenger’s airbag module, side airbag module, curtain airbag module or pretensioner.


(6) If damage, open circuit or rust is found on airbag system wiring harness, do not repair the harness. Always replace the faulty harness with a new genuine part.


4. Checking with a probe

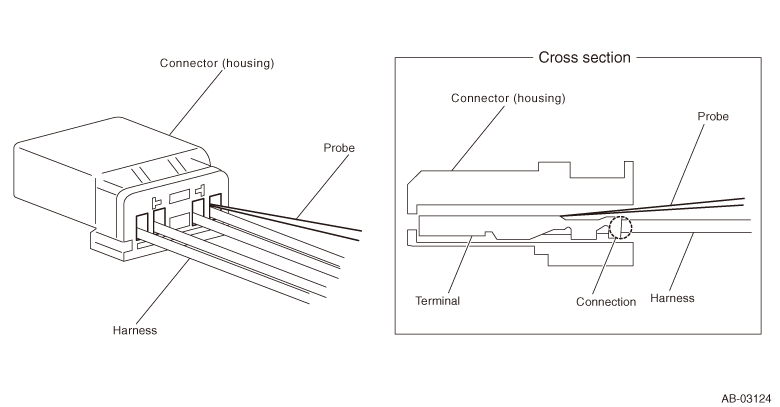

(1) Insert the probe into the harness hole, and contact it with the terminal.


(2) Do not insert the probe forcibly.

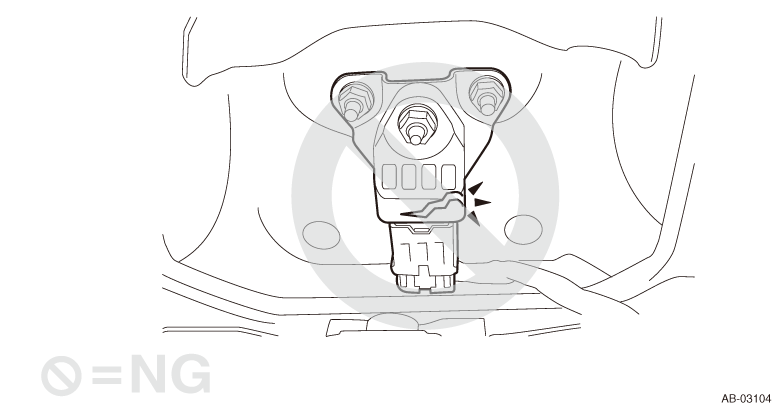

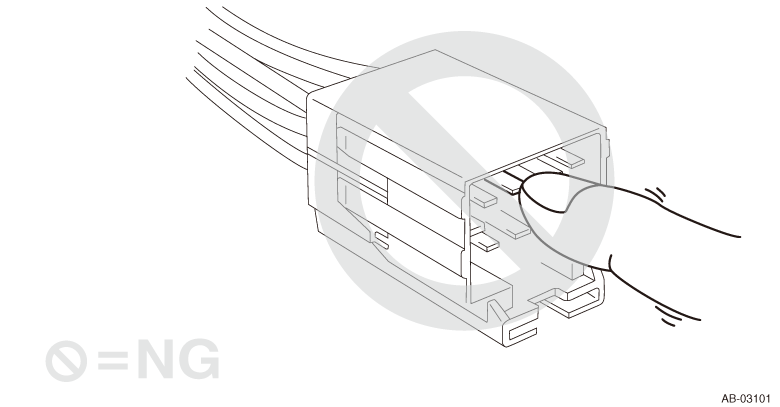

(3) Be careful not to contact the part between the terminal and harness with the tip of probe. (It will make harness come off easily from connector.)
INSPECTION

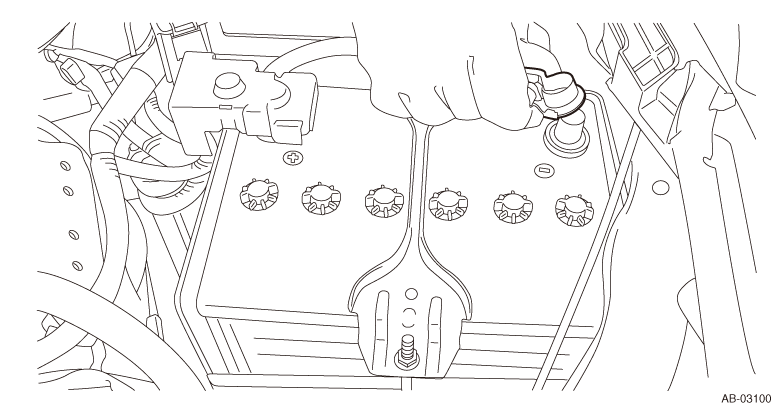

1. Measure the battery voltage and check the battery fluid.
Standard voltage
: 12V Specific gravity
: 1.260 or more
: 12V Specific gravity
: 1.260 or more
PREPARATION TOOL
CAUTION:
When measuring the voltage, resistance, etc. of the airbag system components, be sure to use the specified test harness.

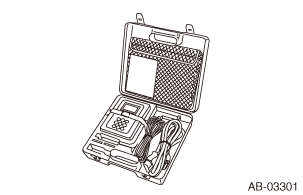

1. Subaru Select Monitor
| Shape |
Tool number |
Remarks |
|---|---|---|
![]() |
1B023XG0 |
Used for diagnosing electrical system failure. |

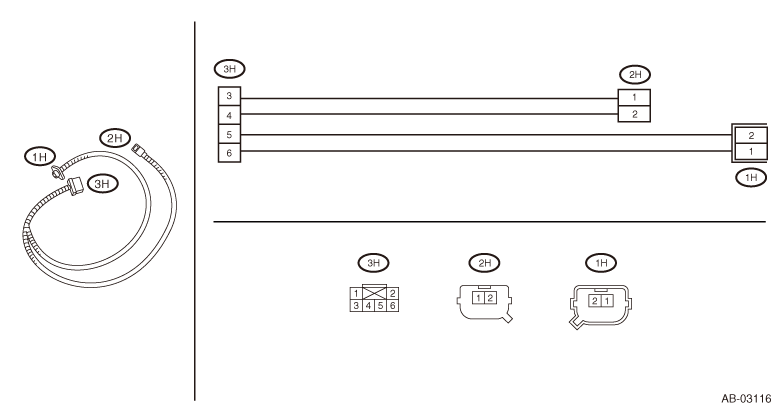

2. Test harness H

| Tool number |
Remarks |
|---|---|
| 98299FA030 |
Used when measuring voltage and resistance of front sub sensor and front door impact sensor. |

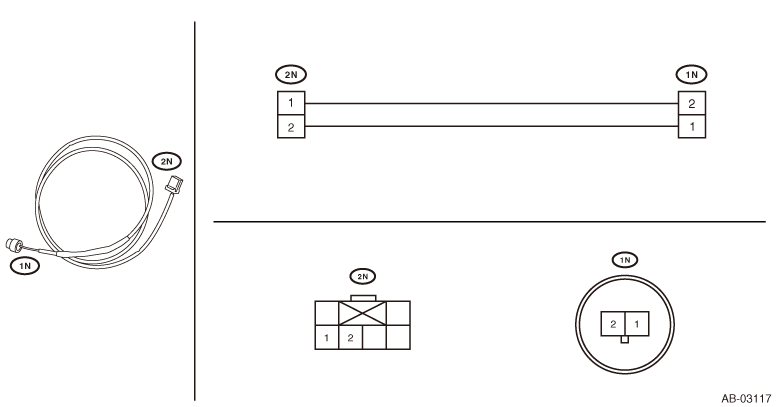

3. Test harness N

| Tool number |
Remarks |
|---|---|
| 98299SA000 |
Used when measuring voltage and resistance of driver’s airbag module, seat belt pretensioner, curtain airbag module, and knee airbag module. |

4. Test harness AG

| Tool number |
Remarks |
|---|---|
| 98299AG070 |
Used when measuring voltage and resistance of airbag control module. |

5. Test harness AH

| Tool number |
Remarks |
|---|---|

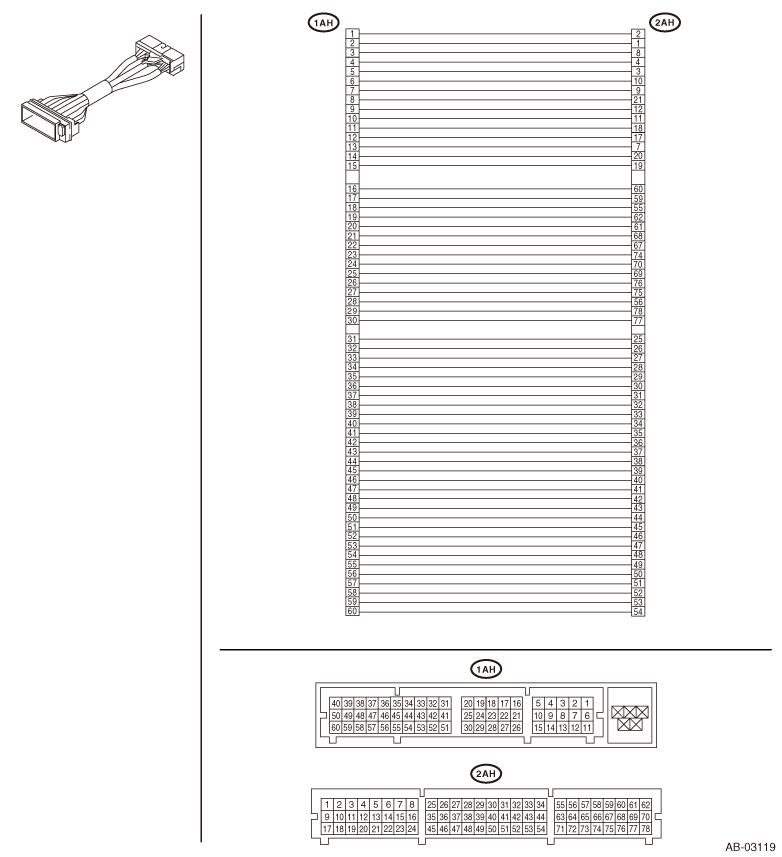

| 98299AG080 |
Used together with test harness AG when measuring voltage and resistance of the airbag control module. |

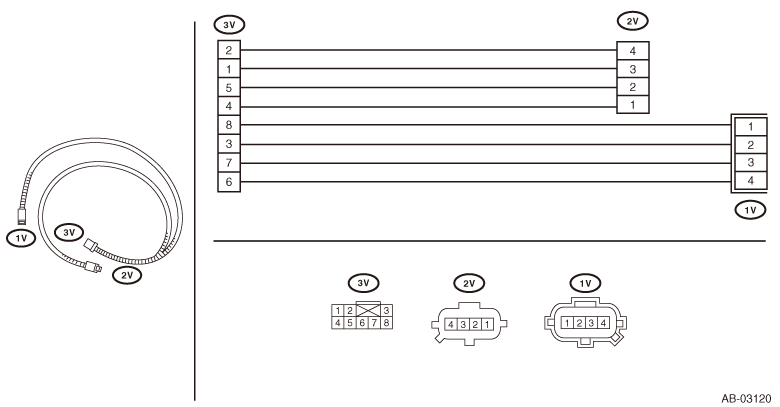

6. Test harness V

| Tool number |
Remarks |
|---|---|
| 98299AG010 |
Used when measuring voltage and resistance of side airbag sensor and curtain airbag sensor. |

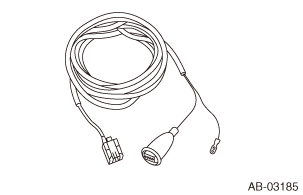

7. Airbag resistor

| Tool number |
Remarks |
|---|---|
| 98299PA040 |

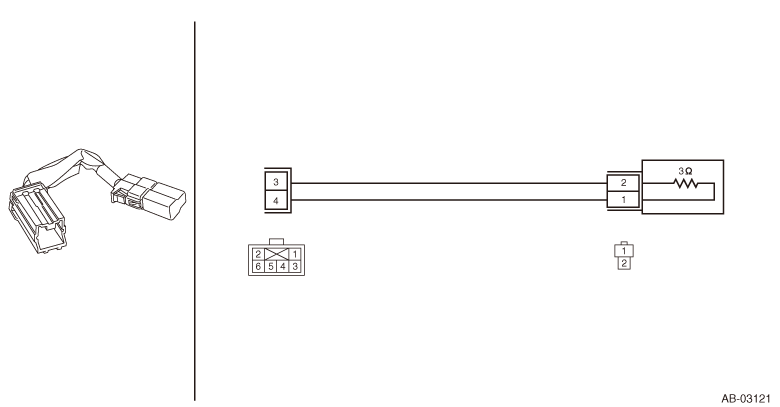

Used in replacement of airbag module for which resistance is same as airbag module. |

8. Test harness AJ

| Tool number |
Remarks |
|---|---|
| 98299FG000 |

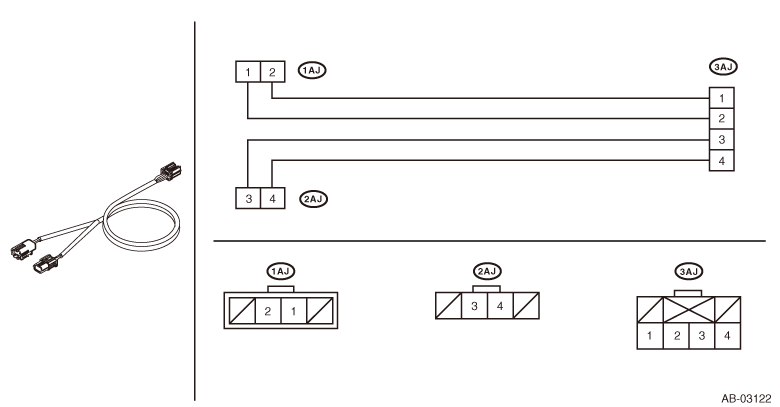

Used when measuring power supply and resistance of side airbag harness. |

9. Test harness AI

| Tool number |
Remarks |
|---|---|
| 98299AG090 |
·

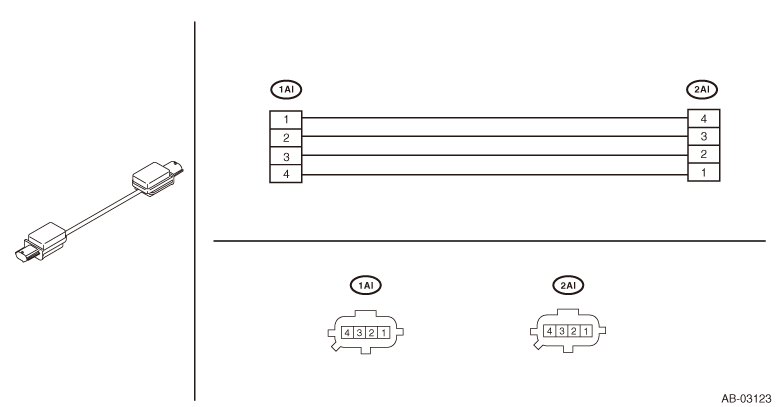

Used for diagnoses of side airbag sensor and curtain airbag sensor. ·Used together with test harness V. |

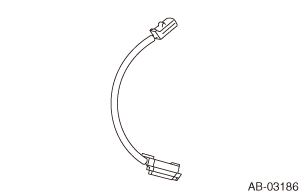

10. Test harness AT

| Tool number |
Remarks |
|---|---|
| 98299CA0020 |
Used when measuring power supply and resistance of side airbag harness. |

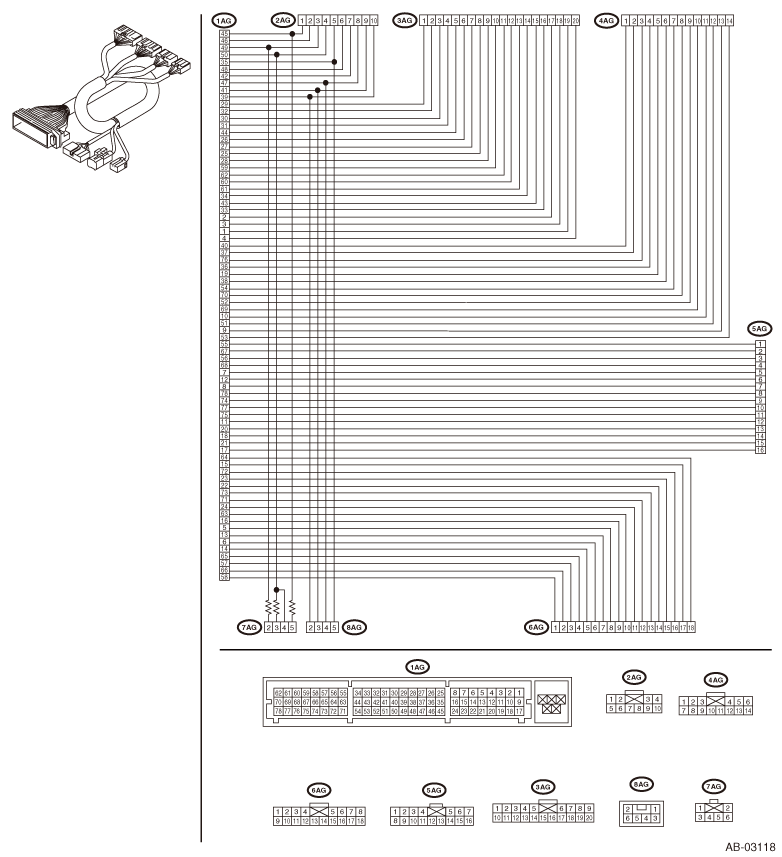

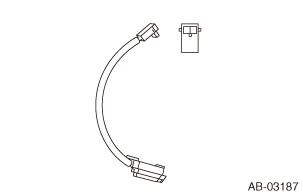

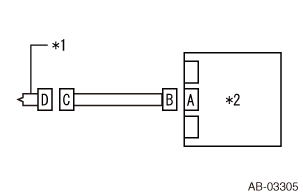

11. Test harness adapter D
| Shape |
Tool number |
Remarks |
|---|---|---|
![]() |
98299SA011 |
·
Used for operation process of driver’s airbag module. ·Used for operation process of curtain airbag module. ·Used for operation process of pretensioner. ·Used together with airbag deployment tool. (98299PA030) ·Before reuse, replace the repair connector (98299FJ010). |

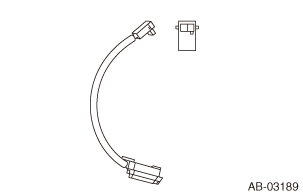

12. Test harness adapter F
| Shape |
Tool number |
Remarks |
|---|---|---|
![]() |
98299SA050 |
·
Used for operation process of pretensioner. ·Used together with airbag deployment tool. (98299PA030) ·Before reuse, replace the repair connector (98299FJ012). |
13. Test harness adapter AM
| Shape |
Tool number |
Remarks |
|---|---|---|
![]() |
98299FJ000 |
·
Used for operation process of passenger’s airbag module. ·Used together with airbag deployment tool. (98299PA030) |

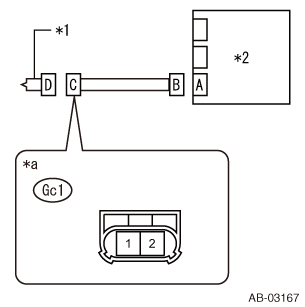

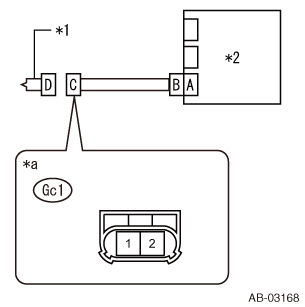

14. Test harness adapter AR
| Shape |
Tool number |
Remarks |
|---|---|---|
![]() |
98299CA000 |
·
Used for operation process of side airbag module. ·Used together with airbag deployment tool. (98299PA030) |
15. Airbag deployment tool
| Shape |
Tool number |
Remarks |
|---|---|---|
![]() |
98299PA030 |
·
Used for operation process of airbag module and pretensioner. ·Used together with each test harness adapter. |
16. Test harness adapter AN
| Shape |
Tool number |
Remarks |
|---|---|---|
![]() |

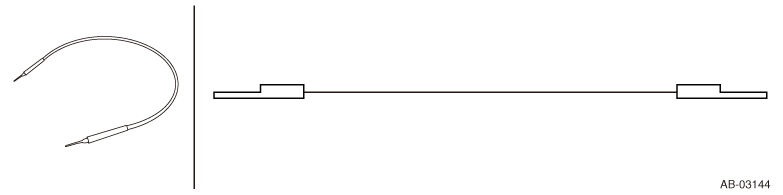

98299FJ010 |

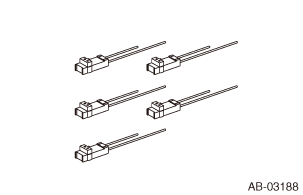

Repair kit for replacing the melted connector of test harness adapter D. |

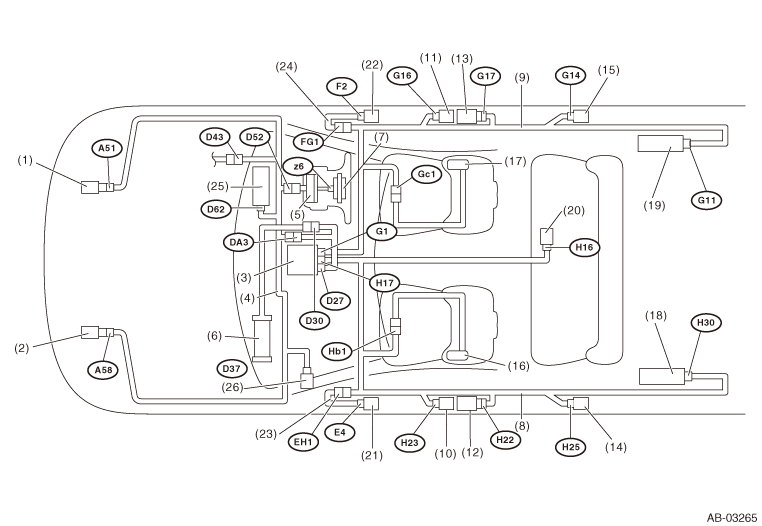

PARTS LOCATION

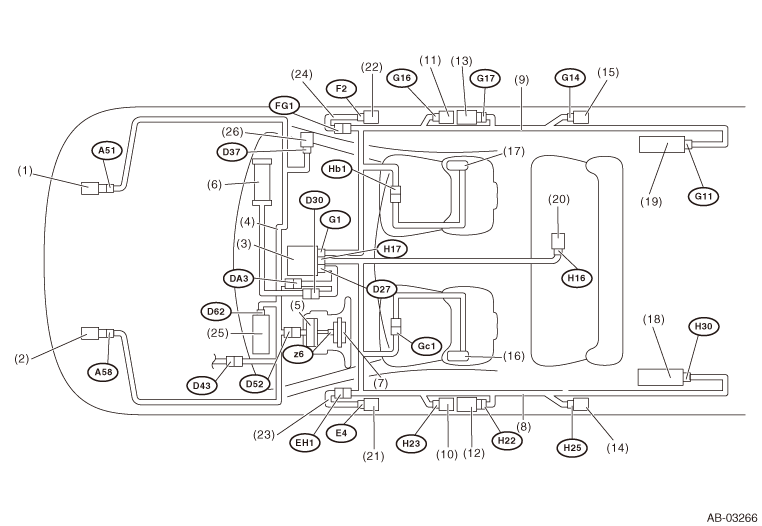

RHD model

LHD model

Captions in illustration
| (1) |
Front sub sensor RH |
(2) |
Front sub sensor LH |
| (3) |
Airbag control module |
(4) |
Airbag main harness |
| (5) |
Roll connector |
(6) |
Passenger’s airbag inflator |
| (7) |
Driver’s airbag inflator |
(8) |
Airbag rear harness LH |
| (9) |
Airbag rear harness RH |
(10) |
Side airbag sensor LH |
| (11) |
Side airbag sensor RH |
(12) |
Seat belt pretensioner LH |
| (13) |
Seat belt pretensioner RH |
(14) |
Curtain airbag sensor LH |
| (15) |
Curtain airbag sensor RH |
(16) |
Side airbag inflator LH |
| (17) |
Side airbag inflator RH |
(18) |
Curtain airbag inflator LH |
| (19) |
Curtain airbag inflator RH |
(20) |
Satellite safing sensor |
| (21) |
Front door impact sensor LH |
(22) |
Front door impact sensor RH |
| (23) |
Door harness LH |
(24) |
Door harness RH |
| (25) |
Knee airbag inflator |
(26) |
Passenger’s airbag cutoff switch |
Captions in illustration
| Connector No. |
D52 |
D27 |
D30 |
A58 |
A51 |
H17 |
G1 |
Hb1 |
H22 |
| Pin |
4 |
30 |
4 |
2 |
2 |
15 |
15 |
2 |
2 |
| Connector color |
Yellow |
Yellow |
Yellow |
Yellow |
Yellow |
Yellow |
Yellow |
Yellow |
Black |
| Male/Female |
Female |
Female |
Female |
Female |
Female |
Female |
Female |
Female |
Female |
| Connector No. |
H23 |
Gc1 |
G17 |
G16 |
G11 |
H25 |
H30 |
G14 |
z6 |
| Pin |
4 |
2 |
2 |
4 |
2 |
4 |
2 |
4 |
2 |
| Connector color |
Yellow |
Yellow |
Black |
Yellow |
Black |
Yellow |
Black |
Yellow |
Black |
| Male/Female |
Female |
Female |
Female |
Female |
Female |
Female |
Female |
Female |
Female |
| Connector No. |
E4 |
EH1 |
FG1 |
F2 |
H16 |
D37 |
D62 |
| Pin |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
| Connector color |
Yellow |
Yellow |
Yellow |
Yellow |
Yellow |
Yellow |
Black |
| Male/Female |
Female |
Female |
Female |
Female |
Female |
Female |
Female |
AIRBAG CONNECTOR
1. How to disconnect the power supply
CAUTION:
When pulling the slide lock or disconnecting connector, be sure to hold the connector, not the harness.

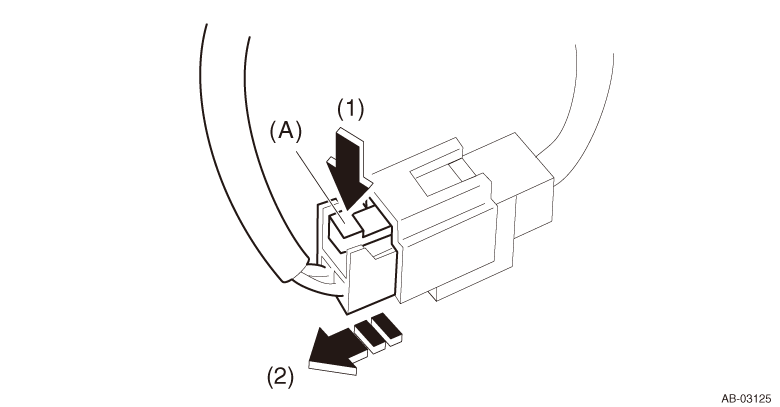

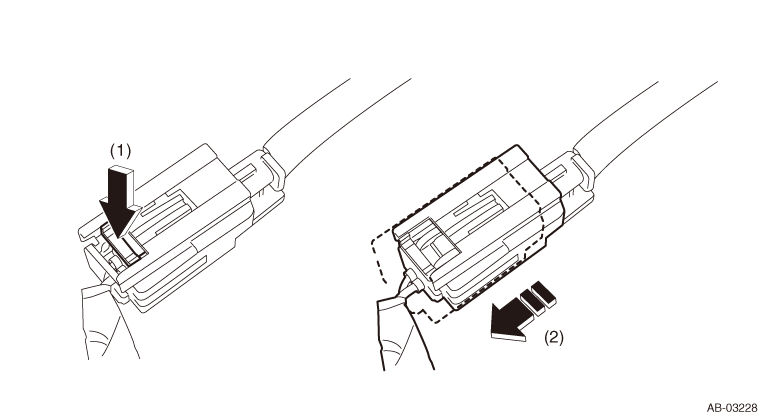

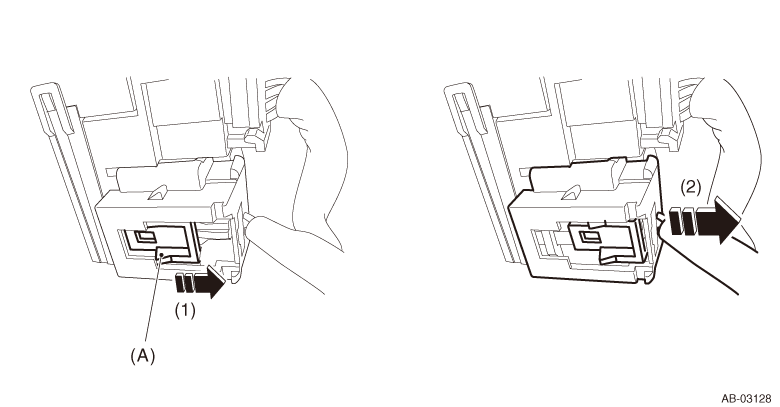

(1) Push the lock (A).
(2) While holding down the lock (A), disconnect the connector.


2. How to connect the power supply
CAUTION:

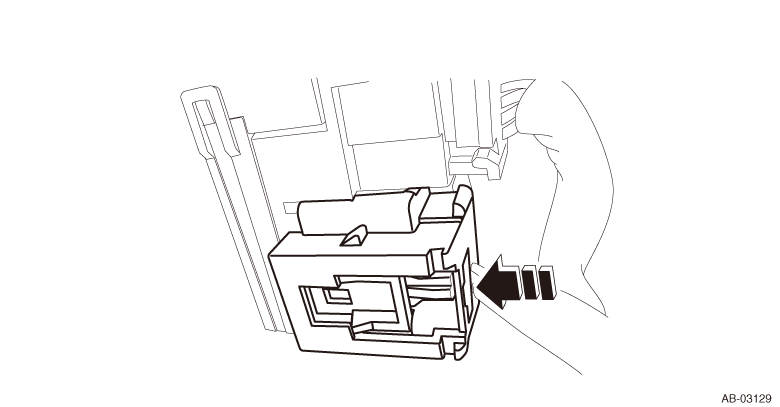

Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.

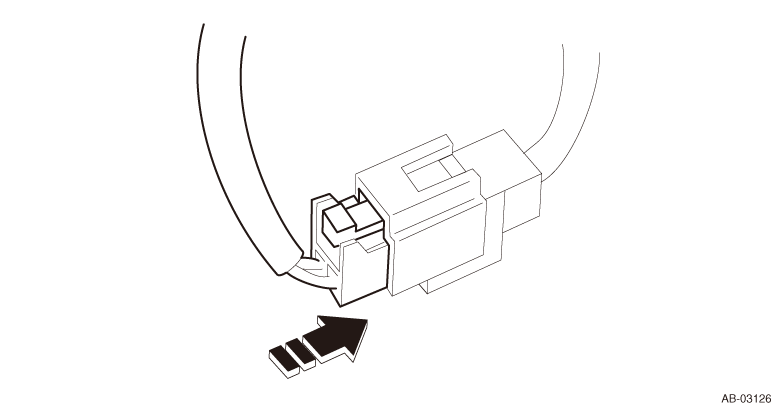

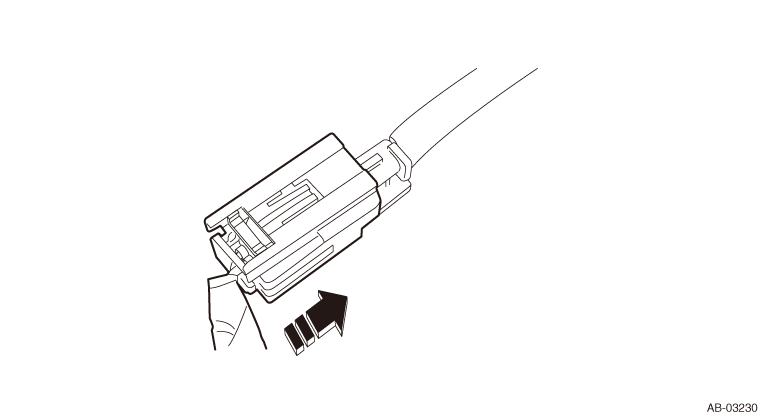

(1) Holding the connector, push it in securely until a clicking sound is heard.


3. How to disconnect the airbag control module

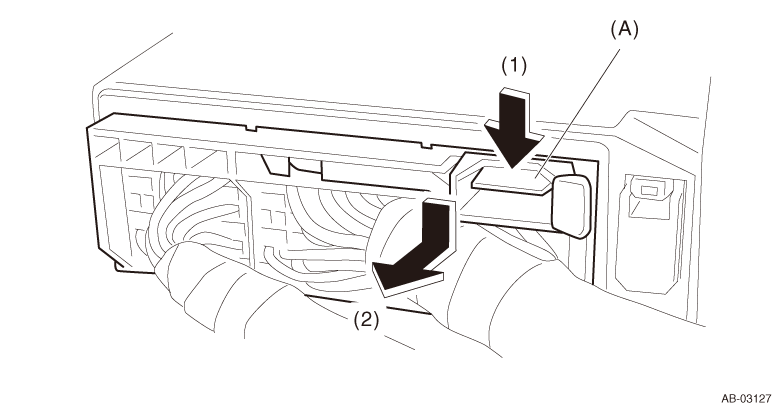

(1) Push the lock lever plate (A).
(2) While holding down the lock lever plate (A), pull the lever toward you.


4. How to connect the airbag control module
CAUTION:
Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.
(1) Insert the connector and push the lock lever in securely.
5. How to disconnect the driver’s airbag module (roll connector)
CAUTION:
When pulling the slide lock or disconnecting connector, be sure to hold the connector, not the harness.

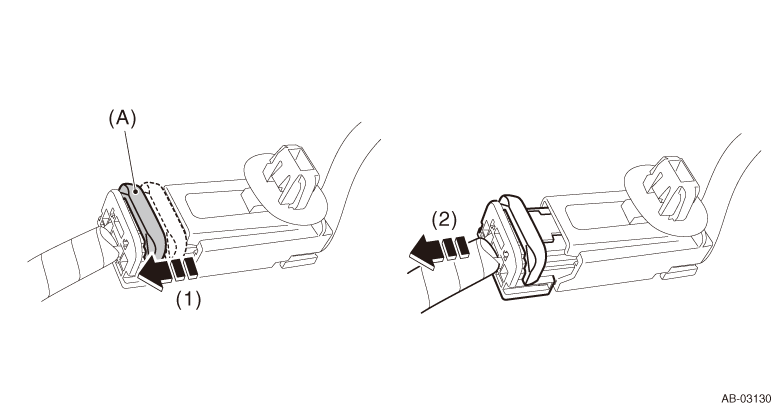

(1) Pull the slide lock (A) in the direction of arrow.
(2) With the slide lock pulled, disconnect the connector.


6. How to connect the driver’s airbag module (roll connector)
CAUTION:
Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.

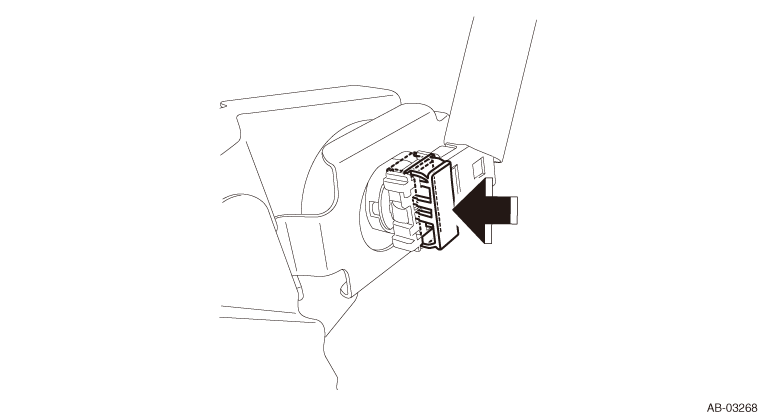

(1) Holding the connector, push it in securely until a clicking sound is heard.


7. How to disconnect the passenger’s airbag module
CAUTION:
When pulling the slide lock or disconnecting connector, be sure to hold the connector, not the harness.
(1) Pull the slide lock (A) in the direction of arrow.
(2) With the slide lock pulled, disconnect the connector.


8. How to connect the passenger’s airbag module
CAUTION:
Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.
(1) Holding the connector, push it in securely until a clicking sound is heard.

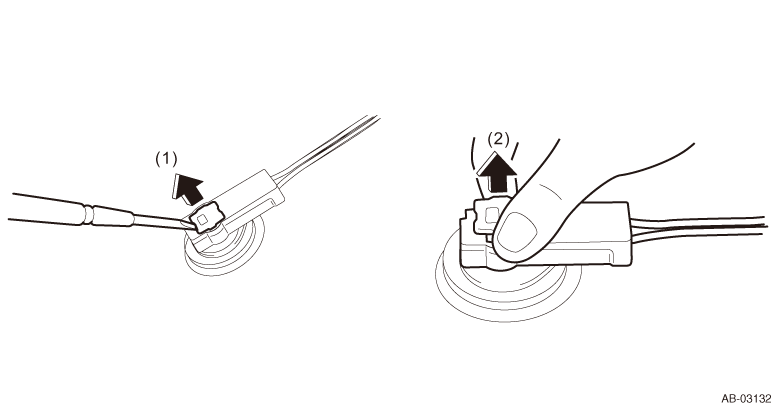

9. How to disconnect the driver’s airbag module, the curtain airbag module and the pretensioner

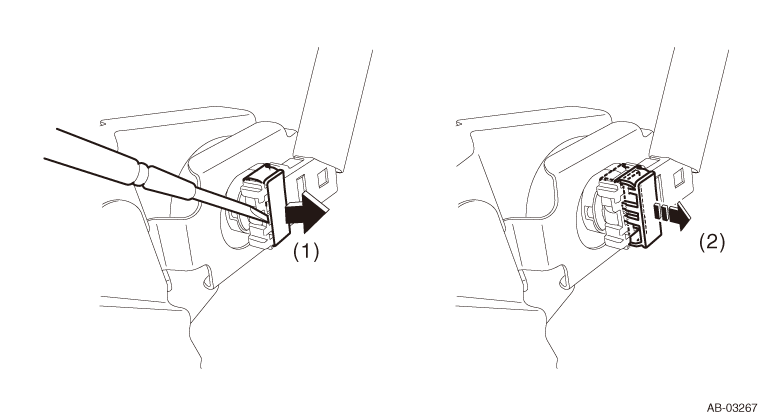

(1) Using a flat tip screwdriver, pry the push lock upward to unlock.
(2) Pull the connector to disconnect from the airbag module ASSY or the retractor ASSY.

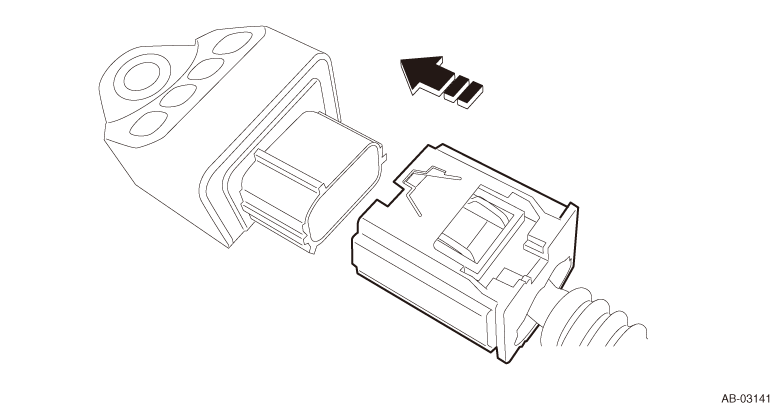

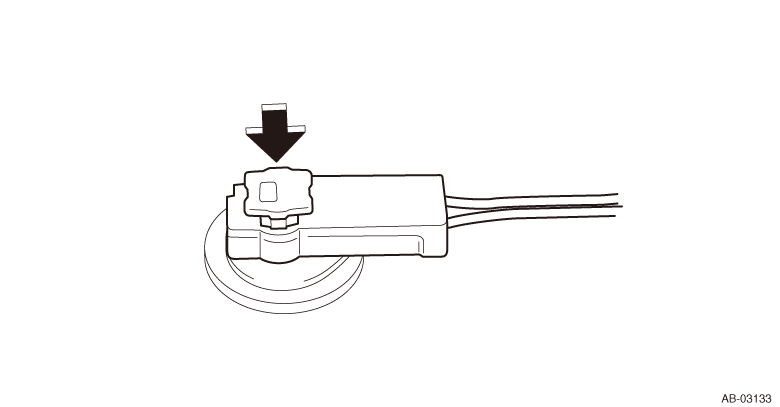

10. How to connect the driver’s airbag module, the curtain airbag module and the pretensioner
CAUTION:
·Be sure to insert the connector in until it is locked.
·Press in the push lock securely. Then pull it gently to make sure that it is locked.
·Press in the push lock securely. Then pull it gently to make sure that it is locked.
(1) Connect the connector in the reverse order of disconnecting. At this time, be sure to insert until a clicking sound is heard.


11. How to disconnect the front sub sensor
CAUTION:
When pulling the slide lock or disconnecting connector, be sure to hold the connector, not the harness.

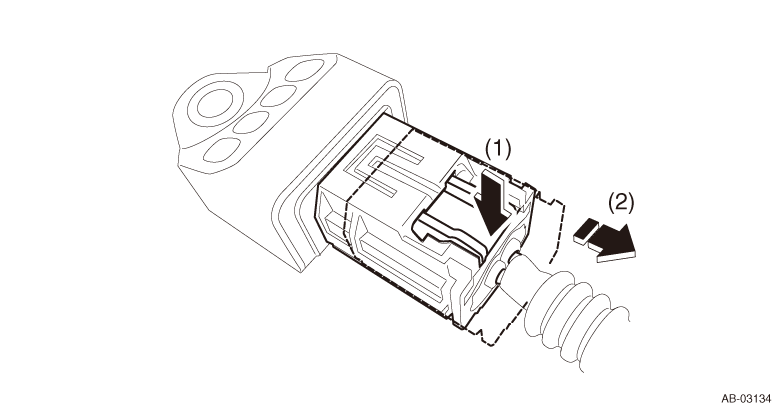

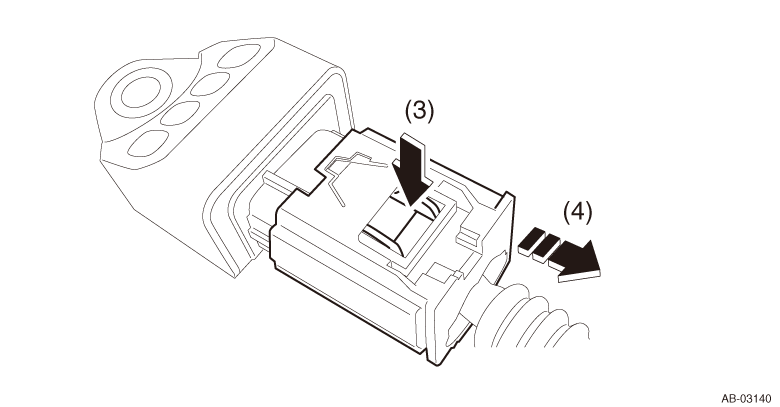

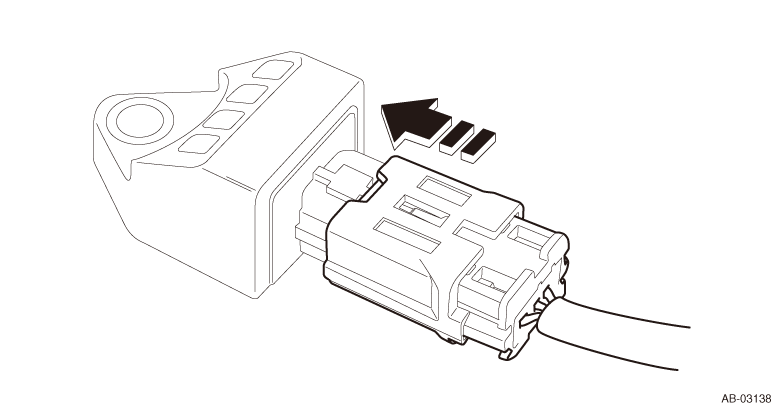

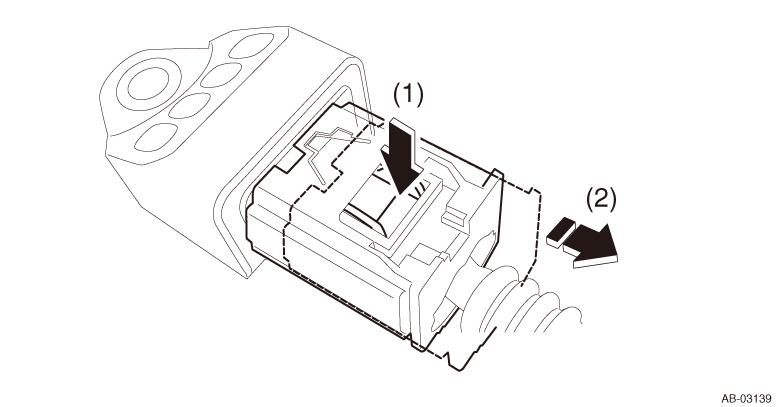

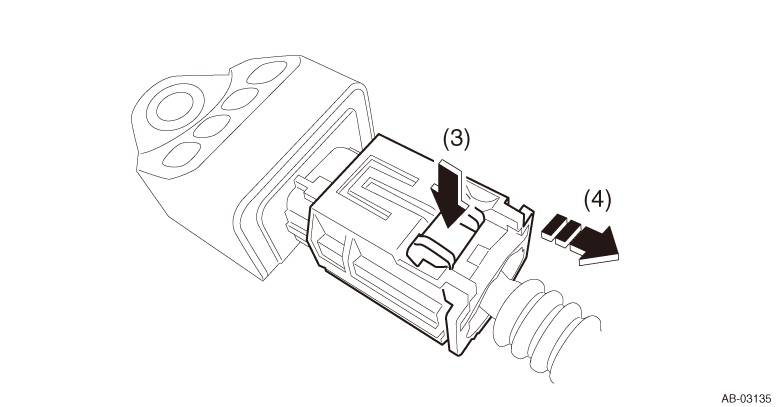

(1) Push the lock arm.
(2) Holding outer part, pull it one step in the direction of arrow.


(3) Push the lock arm again.
(4) Holding outer part, pull it in the direction of arrow to disconnect the connector.


12. How to connect the front sub sensor
CAUTION:
Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.

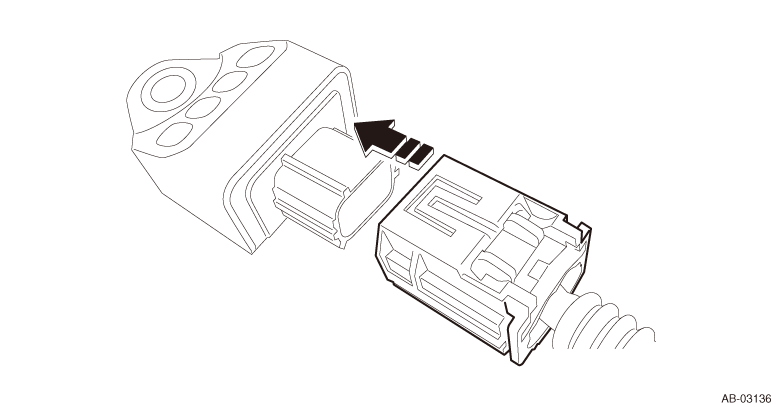

(1) Connect the connector in the reverse order of disconnecting. At this time, be sure to insert until a clicking sound is heard.


13. How to disconnect the front door impact sensor and the satellite safing sensor
CAUTION:
When pulling the slide lock or disconnecting connector, be sure to hold the connector, not the harness.

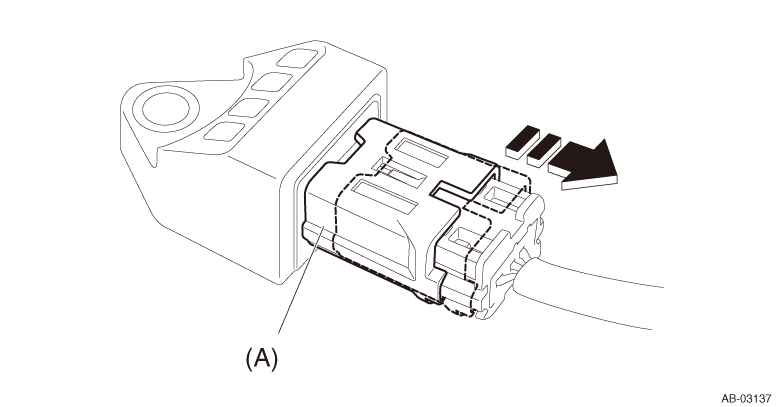

(1) Holding outer part (A), pull it in the direction of arrow.


14. How to connect the front door impact sensor and the satellite safing sensor
CAUTION:
·Outer side (A) moves back, and so do not touch the outer part.
·Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.
·Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.

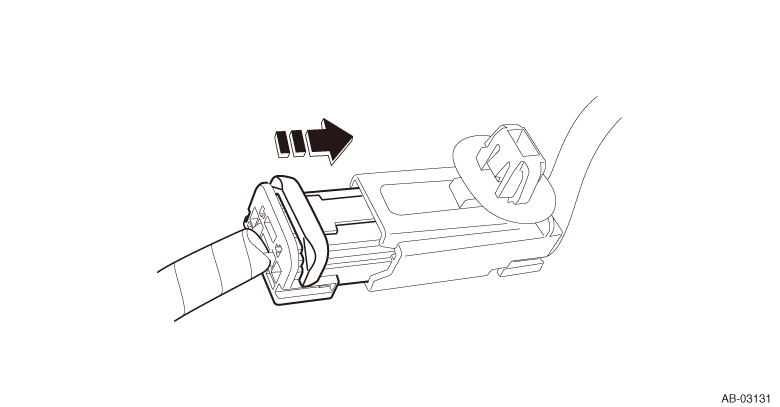

(1) Holding the connector, push it in securely until a clicking sound is heard.


15. How to disconnect the side airbag sensor and the curtain airbag sensor
CAUTION:
When pulling the slide lock or disconnecting connector, be sure to hold the connector, not the harness.
(1) Push the lock arm.
(2) Holding outer part, pull it one step in the direction of arrow.


(3) Push the lock arm again.
(4) Holding outer part, pull it in the direction of arrow to disconnect the connector.


16. How to connect the side airbag sensor and the curtain airbag sensor
CAUTION:
Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.
(1) Holding the connector, push it in securely until a clicking sound is heard.


17. How to disconnect the side airbag module
CAUTION:
When pulling the slide lock or disconnecting connector, be sure to hold the connector, not the harness.

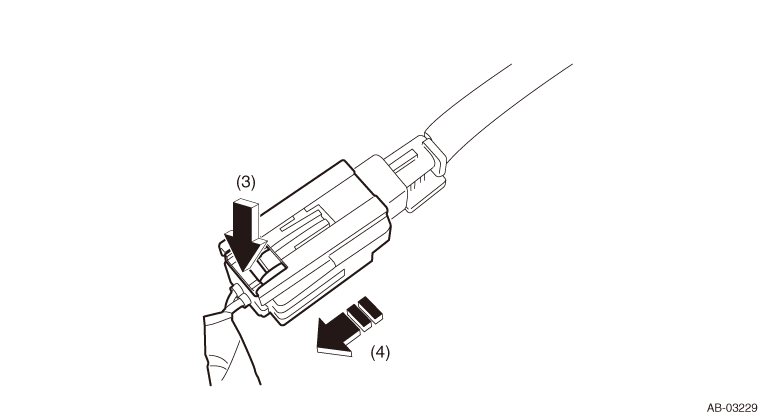

(1) Push the lock arm.
(2) Holding outer part, pull it one step in the direction of arrow.


(3) Push the lock arm again.
(4) Holding outer part, pull it in the direction of arrow to disconnect the connector.


18. How to connect the side airbag module
CAUTION:
Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.
(1) Connect the connector in the reverse order of disconnecting. At this time, be sure to insert until a clicking sound is heard.


19. How to disconnect the knee airbag module
(1) Using a flat tip screwdriver, pry the push lock upward to unlock.
(2) Pull the connector to disconnect it from the airbag module ASSY.


20. How to connect the knee airbag module
CAUTION:
·Be sure to insert the connector in until it is locked.
·Press in the push lock securely. Then pull it gently to make sure that it is locked.
·Press in the push lock securely. Then pull it gently to make sure that it is locked.
(1) Connect the connector in the reverse order of disconnecting. At this time, be sure to insert until a clicking sound is heard.


INSPECTION ITEMS AFTER A COLLISION
1. Replacement
Replace the following parts if the airbag system has been activated.
Replace the following parts if the airbag system has been activated.
(1) Frontal collision
·Driver side air bag module
·Knee airbag module
·Passenger’s airbag module
·Driver’s seat belt (pretensioner)
·Passenger’s seat belt (pretensioner)
·Airbag control module
·Front sub sensor (RH and LH)
·Roll connector
·Passenger’s seat cushion pad and frame ASSY
·Instrument panel (because it is integrated with passenger’s airbag module)
·Knee airbag module
·Passenger’s airbag module
·Driver’s seat belt (pretensioner)
·Passenger’s seat belt (pretensioner)
·Airbag control module
·Front sub sensor (RH and LH)
·Roll connector
·Passenger’s seat cushion pad and frame ASSY
·Instrument panel (because it is integrated with passenger’s airbag module)
(2) Side collision
·Airbag control module
·Satellite safing sensor
·Front door impact sensor (operating side)
·Side airbag module (operating side)
·Side airbag sensor (operating side)
·Curtain airbag module (operating side)
·Curtain airbag sensor (operating side)
·Pad ASSY - front seat backrest (operating side)
·Cover COMPL - front backrest (operating side)
·Trim panel - roof ASSY
·Trim panel for each pillar (operating side)
·Satellite safing sensor
·Front door impact sensor (operating side)
·Side airbag module (operating side)
·Side airbag sensor (operating side)
·Curtain airbag module (operating side)
·Curtain airbag sensor (operating side)
·Pad ASSY - front seat backrest (operating side)
·Cover COMPL - front backrest (operating side)
·Trim panel - roof ASSY
·Trim panel for each pillar (operating side)
(3) Other parts to check
Check for the following parts, and replace the damaged parts with new parts.
Check for the following parts, and replace the damaged parts with new parts.
·Check the steering wheel and the column ASSY - steering for mounting conditions and looseness of front and rear, upward and downward directions. Check for the column ASSY - steering for looseness of front and rear direction with tilt lever released. (After a collision, absorbing part of the column assembly - steering may have been operated.)
·Check the direct type connector of driver’s airbag module, curtain airbag module, pretensioner, etc. for damage, and also check each harness for pinch and connector damage. Replace the main harness as a unit if damage is found.
·Check the seat cushion, backrest, slide rail and headrest for installation condition and looseness.
·If any break or fray is found in the cover COMPL - front backrest of the driver’s seat or passenger’s seat, the side airbag system may not operate properly. In this case, replace the cover COMPL - front backrest with a new part.
·Check the direct type connector of driver’s airbag module, curtain airbag module, pretensioner, etc. for damage, and also check each harness for pinch and connector damage. Replace the main harness as a unit if damage is found.
·Check the seat cushion, backrest, slide rail and headrest for installation condition and looseness.
·If any break or fray is found in the cover COMPL - front backrest of the driver’s seat or passenger’s seat, the side airbag system may not operate properly. In this case, replace the cover COMPL - front backrest with a new part.
2. Inspection
If the vehicle is involved in a collision, even if it is a slight collision, be sure to check the following systems.
If the vehicle is involved in a collision, even if it is a slight collision, be sure to check the following systems.
(1) Driver’s airbag module ASSY
(a) In case of a frontal collision (driver’s airbag module activated), replace the following parts with new ones.
·Airbag control module
·Driver side air bag module
·Knee airbag module
·Passenger’s airbag module
·Seat belt pretensioner (RH and LH)
·Front sub sensor (RH and LH)
·Column ASSY - steering
·Driver side air bag module
·Knee airbag module
·Passenger’s airbag module
·Seat belt pretensioner (RH and LH)
·Front sub sensor (RH and LH)
·Column ASSY - steering
(b) In case of a frontal collision (driver’s airbag module activated), visually inspect the following items and replace any damaged part with a new one.
·Steering wheel
·Beam COMPL - steering
·Instrument panel harness and connector on body side
·Beam COMPL - steering
·Instrument panel harness and connector on body side
(c) In case of a frontal collision (driver’s airbag module not activated), visually inspect the following items and replace any damaged or cracked part with a new one. Specially inspect the damage of airbag module body, mounting bracket and harness connector.
·Driver side air bag module
·Knee airbag module
·Passenger’s airbag module
·Seat belt pretensioner (RH and LH)
·Front sub sensor (RH and LH)
·Instrument panel ASSY (because it is integrated with passenger’s airbag module)
·Knee airbag module
·Passenger’s airbag module
·Seat belt pretensioner (RH and LH)
·Front sub sensor (RH and LH)
·Instrument panel ASSY (because it is integrated with passenger’s airbag module)
(d) In case of no frontal collision, visually inspect the airbag modules for damage or contamination and replace any faulty part with a new one.
(2) Knee airbag module
(a) In case of a frontal collision (knee airbag module activated), replace the following parts with new ones.
·Airbag control module
·Driver side air bag module
·Knee airbag module (for models with knee airbag module only)
·Passenger’s airbag module
·Seat belt pretensioner (RH and LH)
·Front sub sensor (RH and LH)
·Column ASSY - steering
·Driver side air bag module
·Knee airbag module (for models with knee airbag module only)
·Passenger’s airbag module
·Seat belt pretensioner (RH and LH)
·Front sub sensor (RH and LH)
·Column ASSY - steering
(b) In case of a frontal collision (knee airbag module activated), visually inspect the following items, and replace a damaged part, if any, with a new one.
·Steering wheel
·Beam COMPL - steering
·Instrument panel harness and connector on body side
·Beam COMPL - steering
·Instrument panel harness and connector on body side
(c) In case of a frontal collision (knee airbag module not activated), visually inspect the following items, and replace a damaged or cracked part, if any, with a new one. Specially inspect the damage of airbag module body, mounting bracket and harness connector.
·Driver side air bag module
·Knee airbag module (for models with knee airbag module only)
·Passenger’s airbag module
·Seat belt pretensioner (RH and LH)
·Front sub sensor (RH and LH)
·Instrument panel ASSY (because it is integrated with passenger’s airbag module)
·Knee airbag module (for models with knee airbag module only)
·Passenger’s airbag module
·Seat belt pretensioner (RH and LH)
·Front sub sensor (RH and LH)
·Instrument panel ASSY (because it is integrated with passenger’s airbag module)
(d) In case of no frontal collision, visually inspect the airbag modules for damage or contamination and replace any faulty part with a new one.
(3) Passenger’s airbag module
(a) In case of a frontal collision (passenger’s airbag module activated), replace the following parts with new ones.
·Airbag control module
·Driver side air bag module
·Knee airbag module
·Passenger’s airbag module
·Seat belt pretensioner (RH and LH)
·Front sub sensor (RH and LH)
·Instrument panel ASSY (because it is integrated with passenger’s airbag module)
·Driver side air bag module
·Knee airbag module
·Passenger’s airbag module
·Seat belt pretensioner (RH and LH)
·Front sub sensor (RH and LH)
·Instrument panel ASSY (because it is integrated with passenger’s airbag module)
(b) In case of a frontal collision (passenger’s airbag module activated), visually inspect the following items and replace any damaged part with a new one.
·Beam COMPL - steering
·Instrument panel harness and connector on body side
·Instrument panel harness and connector on body side
(c) In case of a frontal collision (passenger’s airbag module not activated), visually inspect the following items and replace any damaged or cracked part with a new one. Specially inspect the damage of airbag module body, mounting bracket and harness connector.
·Driver side air bag module
·Knee airbag module
·Passenger’s airbag module
·Seat belt pretensioner (RH and LH)
·Front sub sensor (RH and LH)
·Instrument panel ASSY (because it is integrated with passenger’s airbag module)
·Knee airbag module
·Passenger’s airbag module
·Seat belt pretensioner (RH and LH)
·Front sub sensor (RH and LH)
·Instrument panel ASSY (because it is integrated with passenger’s airbag module)
(d) In case of no frontal collision, visually inspect the airbag modules for damage or contamination and replace any faulty part with a new one.
(4) Side airbag module
(a) In case of a side collision (side airbag module activated), replace the following parts with new ones.
·Airbag control module
·Satellite safing sensor
·Front door impact sensor
·Side airbag module
·Side airbag sensor
·Curtain airbag module
·Curtain airbag sensor
·Pad ASSY - front seat backrest
·Frame ASSY - front backrest
·Cover COMPL - front backrest
·Trim panel - roof ASSY
·Trim panel for each pillar
·Satellite safing sensor
·Front door impact sensor
·Side airbag module
·Side airbag sensor
·Curtain airbag module
·Curtain airbag sensor
·Pad ASSY - front seat backrest
·Frame ASSY - front backrest
·Cover COMPL - front backrest
·Trim panel - roof ASSY
·Trim panel for each pillar
(b) In case of a frontal collision (passenger’s airbag module activated), visually inspect the following items and replace any damaged part with a new one.
·Headrest ASSY
·Bushing - lock headrest
·Slide rail ASSY - OUT
·Slide rail ASSY - INN
·Cover - hinge front seat
·Knob - lifter
·Lever - reclining
·Side airbag harness and connector on body side
·Bushing - lock headrest
·Slide rail ASSY - OUT
·Slide rail ASSY - INN
·Cover - hinge front seat
·Knob - lifter
·Lever - reclining
·Side airbag harness and connector on body side
(c) In case of a side collision (side airbag module not activated), visually inspect the following items and replace any damaged or cracked part with a new one. Specially inspect the damage of airbag module body, mounting bracket and harness connector.
·Pad ASSY - front seat backrest
·Frame ASSY - front backrest
·Cover COMPL - front backrest
·Sensor ASSY - satellite safing
·Front door impact sensor
·Side airbag module
·Side airbag sensor
·Curtain airbag module
·Curtain airbag sensor
·Frame ASSY - front backrest
·Cover COMPL - front backrest
·Sensor ASSY - satellite safing
·Front door impact sensor
·Side airbag module
·Side airbag sensor
·Curtain airbag module
·Curtain airbag sensor
(d) In case of no side collision, visually inspect the airbag modules for contamination and replace any faulty part with a new one.
(5) Curtain airbag module
(a) In case of a side collision (curtain airbag module activated), replace the following parts with new ones.
·Airbag control module
·Satellite safing sensor
·Front door impact sensor
·Side airbag module
·Curtain airbag module
·Side airbag sensor
·Curtain airbag sensor
·Pad ASSY - front seat backrest
·Frame ASSY - front backrest
·Cover COMPL - front backrest
·Trim panel - roof ASSY
·Trim panel for each pillar
·Satellite safing sensor
·Front door impact sensor
·Side airbag module
·Curtain airbag module
·Side airbag sensor
·Curtain airbag sensor
·Pad ASSY - front seat backrest
·Frame ASSY - front backrest
·Cover COMPL - front backrest
·Trim panel - roof ASSY
·Trim panel for each pillar
(b) In case of a frontal collision (passenger’s airbag module activated), visually inspect the following items and replace any damaged part with a new one.
·Assist rail - front and rear
·Bracket - assist rail front and rear
·Curtain airbag harness and connector on body side
·Bracket - assist rail front and rear
·Curtain airbag harness and connector on body side
(c) In case of a side collision (curtain airbag module not activated), visually inspect the following items and replace any damaged or cracked part with a new one. Specially inspect the damage of airbag module body, mounting bracket and harness connector.
·Trim panel - roof ASSY
·Trim panel for each pillar
·Curtain airbag module
·Satellite safing sensor
·Front door impact sensor
·Side airbag sensor
·Curtain airbag sensor
·Trim panel for each pillar
·Curtain airbag module
·Satellite safing sensor
·Front door impact sensor
·Side airbag sensor
·Curtain airbag sensor
(d) In case of no side collision, visually inspect the airbag covers for damage or contamination and replace any faulty part with a new one.
(6) Airbag control module
(a) Check the following items and replace the damaged parts with new parts.
·Control module is cracked or deformed.
·Mounting bracket is cracked or deformed.
·Connector is scratched, cracked or deformed.
·Driver’s airbag module has been activated.
·Knee airbag module
·Passenger’s airbag module has been activated.
·Side airbag module has been activated.
·Curtain airbag module has been activated.
·Seat belt pretensioner has been activated.
·Lap seat belt pretensioner has been activated.
·Mounting bracket is cracked or deformed.
·Connector is scratched, cracked or deformed.
·Driver’s airbag module has been activated.
·Knee airbag module
·Passenger’s airbag module has been activated.
·Side airbag module has been activated.
·Curtain airbag module has been activated.
·Seat belt pretensioner has been activated.
·Lap seat belt pretensioner has been activated.
(7) Front sub sensor
(a) If the front section of the vehicle is damaged, check the following items and replace the damaged parts with new parts.
·Front sub sensor is cracked or deformed.
·Mounting bracket is cracked or deformed.
·Connector is scratched, cracked or deformed.
·Driver’s airbag module, knee airbag module, or passenger’s airbag module has been activated.
·Mounting bracket is cracked or deformed.
·Connector is scratched, cracked or deformed.
·Driver’s airbag module, knee airbag module, or passenger’s airbag module has been activated.
(8) Satellite safing sensor, front door impact sensor, side airbag sensor, and curtain airbag sensor
(a) If the side of the vehicle is damaged, check the following items and replace the damaged parts with new parts.
·Satellite safing sensor, front door impact sensor, side airbag sensor, and curtain airbag sensor are cracked or deformed.
·Connector is scratched, cracked or deformed.
·Side airbag module or curtain airbag module has been activated. (operating side)
·Connector is scratched, cracked or deformed.
·Side airbag module or curtain airbag module has been activated. (operating side)
(9) Roll connector
(a) Check the following items, and replace the damaged parts such as cracks, deformation, etc. with new parts.
·Combination switch
·Steering roll connector
·Steering roll connector
(10) Column ASSY steering and steering wheel
(a) Check the following items, and if there is anything out of standard value, replace it with a new part because it may be damaged.
·On-the-vehicle inspection of the steering system
·Unit inspection of the steering column
·Unit inspection of the steering column
(11) Passenger’s seat
(a) Check the following items and replace the damaged parts with new parts.
·Body or bracket of the seat belt inner - front is scratched, cracked or deformed.
·Frame ASSY - front backrest is cracked or deformed.
·Headrest ASSY has deformation or play.
·If the cover - front cushion and the cover COMPL - front backrest is damaged or frayed, replace the cover with a new part.
·Frame ASSY - front backrest is cracked or deformed.
·Headrest ASSY has deformation or play.
·If the cover - front cushion and the cover COMPL - front backrest is damaged or frayed, replace the cover with a new part.
CAUTION:
If any of the following applies, replace the pad ASSY - front seat cushion and frame ASSY - front cushion as a unit. Do not disassemble.
·Frame ASSY - front cushion or pad ASSY - front seat cushion is cracked or deformed.
·Harness and/or connector is cracked, deformed or broken. Harness wire is exposed.
·Harness and/or connector is cracked, deformed or broken. Harness wire is exposed.
LIST OF DIAGNOSTIC CODES
HOW TO TROUBLESHOOT
1.
Bring in the car
Next▼
5.
Circuit check
Next▼
9.
Confirming the problem
Next▼
10.
Replacement and repair
Next▼
11.
Confirmation test
Next▼
Complete
SUBARU SELECT MONITOR
Operation
For the operation procedure, refer to “PC application help for Subaru Select Monitor”.
| Communication for initializing is not possible |
|---|
Perform inspection when communication between the airbag control module and the Subaru Select Monitor is not possible.

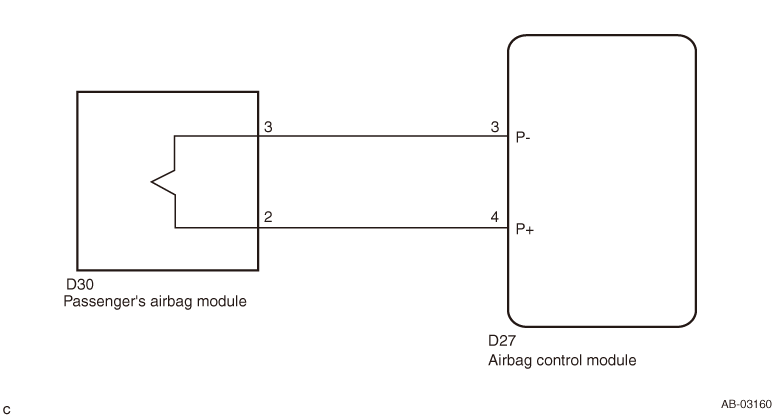

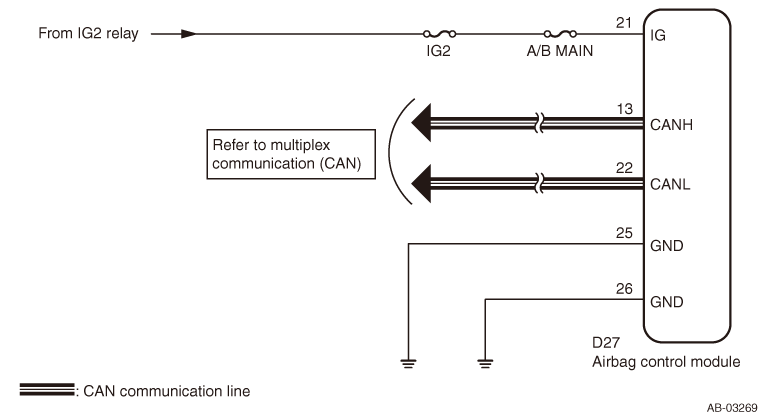

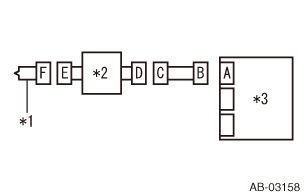

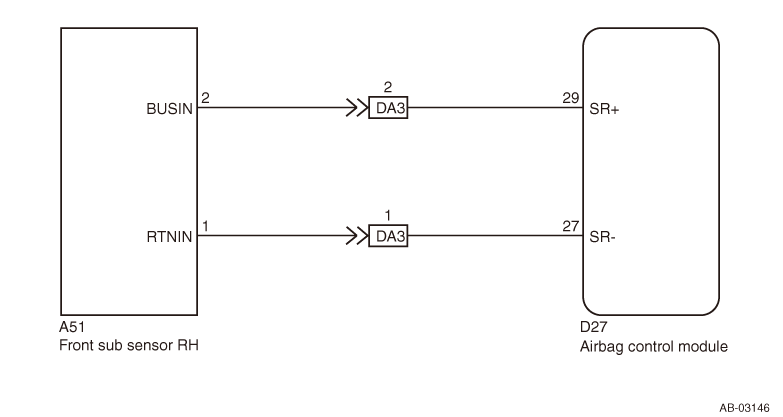

Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check of ignition switch
(1) Check the ignition switch
Criteria
: Ignition switch ON
NG
>Turn the ignition switch to ON and use the Subaru Select Monitor to select the airbag mode.
OK▼
2.
Battery check
(1) Turn the ignition switch to OFF.
(2) Measure the battery voltage.
Criteria
: The voltage is 11 V or more
NG
>Charge or replace the battery.
OK▼
3.
Check of battery terminal
(1) Check the battery terminal.
Criteria
: No fault is found.
NG
>Replace or tighten the battery terminal.
OK▼
4.
Communication check of Subaru Select Monitor
(1) Turn the ignition switch to ON.
(2) Use the Subaru Select Monitor to check that it communicates with other systems properly.
Criteria
: Communication with other systems is performed properly.
NG
>Go to Step 5.
OK▼
5.
Check of Subaru Select Monitor
(1) Check that the Subaru Select Monitor is powered on.
Criteria
: No fault is found.
NG
>Go to Step 6.
OK▼
6.
Fuse check
Criteria
: No fault is present in the data link connector fuse OBD (7.5 A) and ECM IG2 (10 A)
NG
>Replace the fuse. When the fuse is blown again, check the power circuit.
OK▼
Repair the harness between the battery and the data link connector.
7.
Check of airbag control module connector
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Check that the airbag control module connector (D27, G1, H17) is securely connected.
Criteria
: No fault is found.
NG
>Reconnect the airbag control module connector.
OK▼
8.
Communication check of Subaru Select Monitor
(1) Disconnect the airbag control module connector.
(2) Connect the battery ground terminal.
(3) Turn the ignition switch to ON.
(4) Check that communication with other systems is performed properly.
Criteria
: Communication with other systems is performed properly.
NG
>Go to Step 9.
OK▼
Replace the airbag control module.
9.
Fuse check
Criteria
: No fault is present in the A/B MAIN fuse (15 A)
NG
>Replace the fuse. When the fuse is blown again, check the power circuit.
OK▼
10.
Check of airbag control module connector
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Check that the airbag control module connector (D27, G1, H17) is securely connected.
Criteria
: No fault is found.
NG
>Reconnect the airbag control module connector.
OK▼
11.
CAN communication check
NG
>Repair it according to the check by the CAN communication system.
OK▼
12.
Check of power circuit

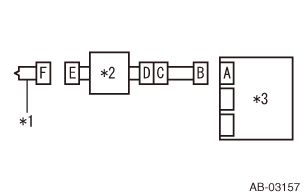

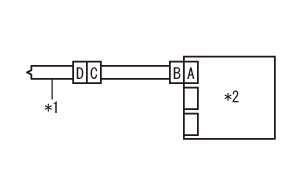

(1) Disconnect the connector (D27, G1, H17) from the airbag control module.

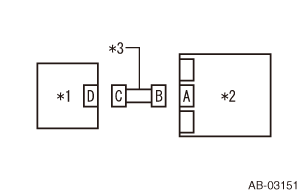

(2) Connect the connector (1AH) in the test harness AH to the connector (D27, G1, H17).
(3) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
(4) Turn the ignition switch to ON.
(5) Measure the voltage between the connector (2AG) in the test harness AG and the chassis ground.
NG
>Repair the harness between the airbag control module and the battery. Or replace the airbag main harness along with the bulkhead harness.
OK▼
13.
Check of resistance between airbag control module and chassis ground
(1) Turn the ignition switch to OFF.
(2) Measure the resistance between the connector (2AG) in the test harness AG and the chassis ground.
NG
>Repair the harness between the airbag control module and the chassis ground. Or replace the airbag main harness along with the bulkhead harness.
OK▼
14.
Check of connector connection failure
(1) Check for poor contact of the control module power supply, the ground line, and the data link connector.
Criteria
: No fault is found.
NG
>Repair the connector. (Regarding the airbag system connector, be sure to replace the connector with the harness, not repair.)
OK▼
Replace the airbag control module.
CHECK LIST FOR INTERVIEW
| Customer’s name |
|
Inspector’s name |
|
||||
| Vehicle bringing date |
/ |
/ |
Registration No. |
|
|||
| Odometer readout |
km miles |
Frame number |
|
||||
| Trouble occurrence date |
/ |
/ |
Registration year |
/ |
/ |
||
| Weather |
·Clear
·Cloudy ·Rainy ·Snowy ·Other: |
||||||
| Temperature |
°C ( °F) |
||||||
| Road condition |
·Flat road
·Uphill ·Downhill ·Unpaved road ·Other: |
||||||
| Vehicle operation |
·Start
·Idling ·Driving ·Constant speed ·Accelerating ·Decelerating ·Turning ·Other: |
||||||
| Details of trouble |
|
||||||
| Behavior of the airbag warning light |
·Normal (When turning the ignition switch to ON, the light illuminates for approx. 6 seconds, then goes off.)
·The light is stuck on. ·The light does not illuminate. |
||||||
| DTC output |
Normal code DTC: (code: ) |
||||||
CHECKING / CLEARING DIAGNOSTIC CODES
1. Reading diagnostic codes with the SSM3
(1) Connect the SSM3 to data link connector.
(2) Turn the ignition switch to ON.
(3) Select the following menu items using the SSM3. : [Each System Check]/[Airbag System]/[Diagnostic Code(s) Display]
NOTE:
For details on the DTCs, refer to “List of diagnostic codes”.
2. Clearing diagnostic codes with the SSM3
(1) Connect the SSM3 to data link connector.
(2) Turn the ignition switch to ON.
(3) Select the following menu items using the SSM3. : [Each System Check]/[Airbag System]/[Clear Memory]
NOTE:
After repairing the airbag system, clear the failure codes recorded in the airbag control module.
3. Check mode
Refer to the trouble situation on the interview check list to reproduce the same situation.
Refer to the trouble situation on the interview check list to reproduce the same situation.

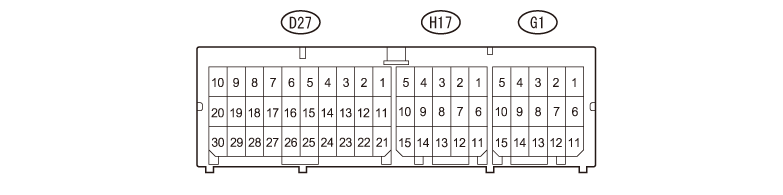

ECM TERMINAL ARRANGEMENT
1. Airbag ECM terminal arrangement

·Terminal numbers in airbag control module connector are shown in the figure.
·The airbag warning light illuminates when the connector is removed from the airbag control module.
·The airbag warning light illuminates when the connector is removed from the airbag control module.
| Item |
Terminal No. |
|
|---|---|---|
| Ignition power supply |
Dedicated fuse |
D27 - 21 |
| Passenger’s airbag module |
+ |
D27 - 4 |
| - |
D27 - 3 |
|
| Driver side air bag module |
+ |
D27 - 5 |
| - |
D27 - 6 |
|
| CAN-H |
|
D27 - 13 |
| CAN-L |
|
D27 - 22 |
| Front sub sensor LH |
+ |
D27 - 30 |
| - |
D27 - 28 |
|
| Front sub sensor RH |
+ |
D27 - 29 |
| - |
D27 - 27 |
|
| Ground line (GND) |
D27 - 25 |
|
| D27 - 26 |
||
| Passenger’s airbag OFF indicator |
D27 - 17 |
|
| Passenger’s airbag ON indicator |
D27 - 23 |
|
| Passenger’s airbag cutoff switch |
+ |
D27 - 14 |
| - |
D27 - 12 |
|
| Side airbag sensor LH Curtain airbag sensor LH Front door impact sensor LH |
+ |
H17 - 8 |
| - |
H17 - 15 |
|
| Side airbag module LH |
+ |
H17 - 9 |
| - |
H17 - 10 |
|
| Curtain airbag module LH |
+ |
H17 - 7 |
| - |
H17 - 6 |
|
| Seat belt pretensioner LH |
+ |
H17 - 2 |
| - |
H17 - 1 |
|
| Satellite safing sensor |
+ |
H17 - 11 |
| - |
H17 - 12 |
|
| Seat belt pretensioner RH |
+ |
G1 - 4 |
| - |
G1 - 5 |
|
| Side airbag sensor RH Curtain airbag sensor RH Front door impact sensor RH |
+ |
G1 - 8 |
| - |
G1 - 11 |
|
| Side airbag module RH |
+ |
G1 - 7 |
| - |
G1 - 6 |
|
| Curtain airbag module RH |
+ |
G1 - 9 |
| - |
G1 - 10 |
|
ARRANGEMENT DRAWING
Refer to arrangement drawing.

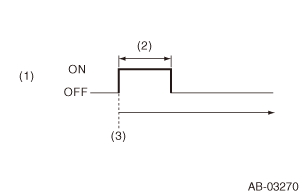

AIRBAG WARNING LIGHT ILLUMINATION PATTERN
| Airbag warning light remains ON / Airbag warning light remains OFF |
|---|
Faulty part
·Airbag warning light is faulty.
·Circuit between airbag control module and combination meter is shorted or open.
·Grounding circuit is faulty.
·Airbag control module is faulty.
·Connector connection is improper.
·Connection of airbag control module connector (D27, G1, H17) is improper.
·Circuit between airbag control module and combination meter is shorted or open.
·Grounding circuit is faulty.
·Airbag control module is faulty.
·Connector connection is improper.
·Connection of airbag control module connector (D27, G1, H17) is improper.
Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
CAN communication system check
NG
>Repair it according to the diagnosis by the CAN communication system.
OK▼
2.
Connector check
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Check the connection status of airbag CM connector.
Criteria
: No fault is found.
NG
>Repair the connector.
OK▼
3.
Combination meter check
(1) Check the combination meter.
Criteria
: No fault is found.
NG
>Repair or replace the combination meter.
OK▼
Replace the airbag CM.
| DTC | U0073 | Control module communication bus “A” off |
|---|
Circuit description
| DTC | B1000 | Airbag ECM Malfunction |
|---|
Circuit description
| DTC | B11F0 | Deployment Disposal Process Complete |
|---|
Circuit description
Deployment command signal is sent to the airbag control module by the collective operation tool for processing airbag deployment disposal. When the airbag installed in the vehicle is deployed, the corresponding DTC is recorded in the airbag control module. If this DTC is recorded, immediately replace the airbag control module with a new one.
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B11F0 |
Airbag control module disposal has been processed. |
Airbag control module |
Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check of diagnostic codes
(1) Read the DTC.
Criteria
: B11F0 is output.
NG
>Complete
OK▼
Replace the airbag control module.
| DTC | B11F1 | Front Airbag: Firing output |
|---|
Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B11F1 |
Front airbag module and seat belt pretensioner (LH/RH) are activated. |
·Airbag control module ·Driver side air bag module ·Driver side knee air bag module ·Passenger’s airbag module ·Front sub sensor of both sides ·Front outer seat belt with pretensioner of both sides ·Steering roll connector |
Inspection steps
Once this DTC is displayed, the memory cannot be cleared. Therefore replace the following parts.
·Airbag control module
·Driver side air bag module
·Driver side knee air bag module
·Passenger’s airbag module
·Front sub sensor of both sides
·Front outer seat belt with pretensioner of both sides
·Steering roll connector
·Driver side air bag module
·Driver side knee air bag module
·Passenger’s airbag module
·Front sub sensor of both sides
·Front outer seat belt with pretensioner of both sides
·Steering roll connector
| DTC | B11F6 | Side/Curtain Airbag: Firing output |
|---|
Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B11F6 |
·Side airbag module and curtain airbag module are activated. ·Curtain airbag module is activated. |
·Airbag control module ·Side airbag module (operating side) ·Side airbag sensor (operating side) ·Curtain airbag module (operating side) ·Curtain airbag sensor (operating side) ·Satellite safing sensor ·Front door impact sensor (operating side) |
Inspection steps
Once this DTC is displayed, the memory cannot be cleared. Therefore replace the following parts.
·Airbag control module
·Side airbag module (operating side)
·Side airbag sensor (operating side)
·Curtain airbag module (operating side)
·Curtain airbag sensor (operating side)
·Satellite safing sensor
·Front door impact sensor (operating side)
·Side airbag module (operating side)
·Side airbag sensor (operating side)
·Curtain airbag module (operating side)
·Curtain airbag sensor (operating side)
·Satellite safing sensor
·Front door impact sensor (operating side)
| DTC | B1610 | Front Sub Sensor RH Failure |
|---|
Circuit description
Inspection steps
The circuit within the front sub sensor RH is faulty. Replace the front sub sensor RH.
| DTC | B1612 | Front Sub Sensor RH Lost Communication |
|---|
| DTC | B1613 | Front Sub Sensor RH Initialization Error |
|---|
Circuit description

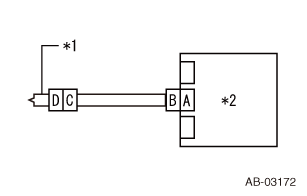

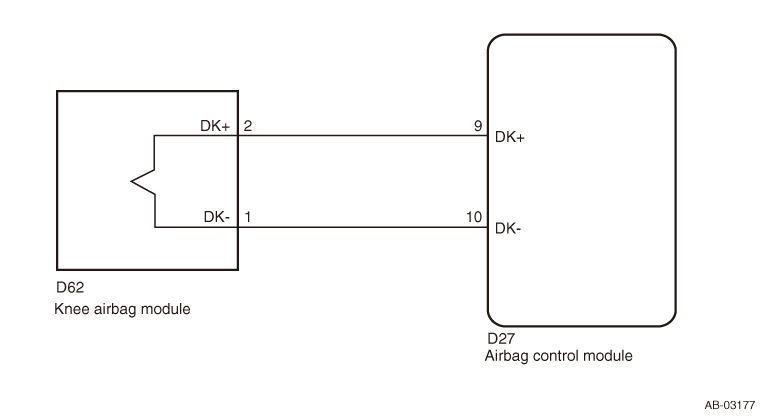

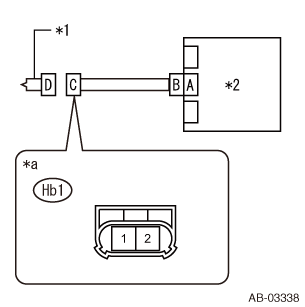

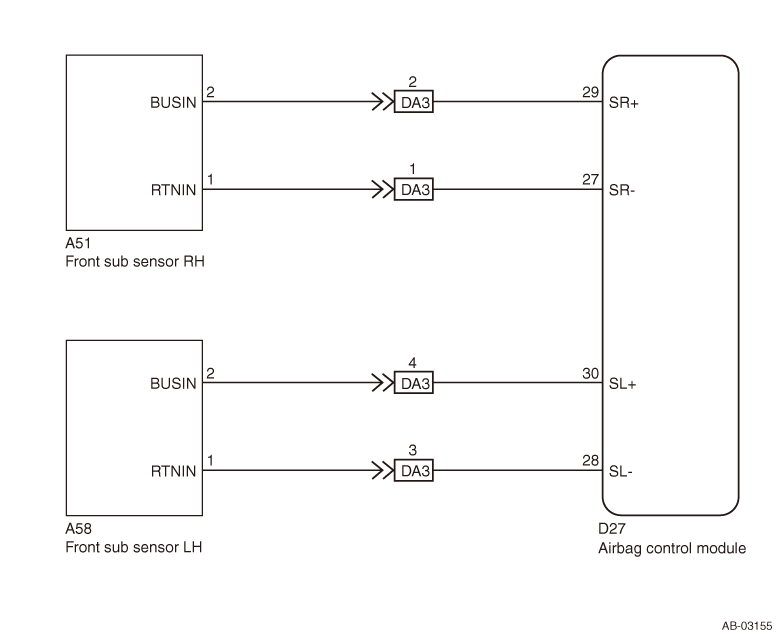

Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the front sub sensor RH.
Criteria
: No fault is found.
NG
>Replace the airbag main harness along with the body harness.
OK▼
2.
Check airbag main harness (front sensor bus RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Remove the column cover and disconnect the connector (D52).
(3) Disconnect the passenger’s airbag module connector (D30).
(4) Disconnect the connector (D27, G1, H17) of the airbag control module.
(5) Connect the connector (1AH) in the test harness AH to the connector B.
(6) Connect the connector 2AH in the test harness AH and the connector 1AG in the test harness AG.
(7) Connect the connector 1H in the test harness H to the connector E.
NG
>Replace the airbag main harness along with the body harness.
OK▼
3.
Check airbag main harness (front sensor bus RH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (4AG) No. 12 - chassis ground |
Always |
1 MΩ or more |
| (4AG) No. 14 - chassis ground |
Always |
1 MΩ or more |
| (4AG) No. 12 - (4AG) No. 14 |
Always |
1 MΩ or more |

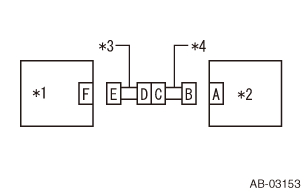

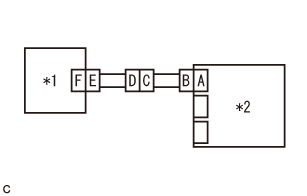

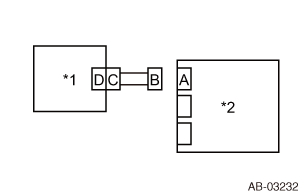

Captions in illustration
| *1 |
Front sub sensor RH |
| *2 |
Airbag control module |
NG
>Replace the airbag main harness along with the body harness.
OK▼
4.
Check airbag control module.
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
NG
>Replace the front sub sensor RH. Replace the airbag control module if it does not operate properly even after replacing the sensor.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1615 | Front Sub Sensor LH Failure |
|---|
Circuit description
Inspection steps
The circuit within the front sub sensor RH is faulty. Replace the front sub sensor RH.
| DTC | B1617 | Front Sub Sensor LH Lost Communication |
|---|
| DTC | B1618 | Front Sub Sensor LH Initialization Error |
|---|
Circuit description

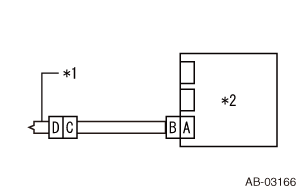

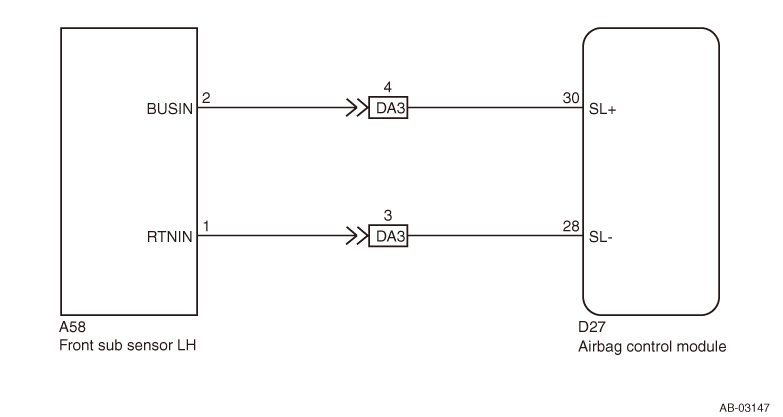

Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the front sub sensor LH.
Criteria
: No fault is found.
NG
>Replace the airbag main harness along with the body harness.
OK▼
2.
Check airbag main harness (front sensor bus LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Remove the column cover and disconnect the connector (D52).

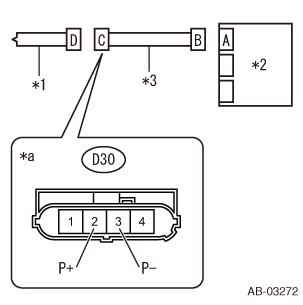

(3) Disconnect the passenger’s airbag module connector (D30).
(4) Disconnect the connector (D27, G1, H17) of the airbag control module.
(5) Connect the connector (1AH) in the test harness AH to the connector B.
(6) Connect the connector 2AH in the test harness AH and the connector 1AG in the test harness AG.
(7) Connect the connector 1H in the test harness H to the connector E.
NG
>Replace the airbag main harness along with the body harness.
OK▼
3.
Check airbag main harness (front sensor bus LH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (4AG) No. 7 - chassis ground |
Always |
1 MΩ or more |
| (4AG) No. 9 - chassis ground |
Always |
1 MΩ or more |
| (4AG) No. 7 - (4AG) No. 9 |
Always |

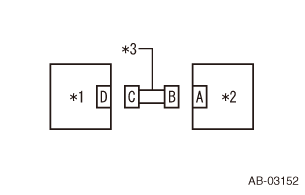

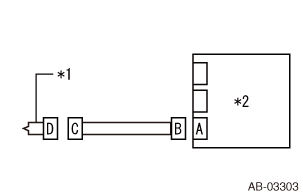

1 MΩ or more |
Captions in illustration
| *1 |
Front sub sensor LH |
| *2 |
Airbag control module |
NG
>Replace the airbag main harness along with the body harness.
OK▼
4.
Check airbag control module.
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the front sub sensor LH and the front sub sensor RH. Replace the airbag control module if it does not operate properly even after replacing the sensor.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B161A | Lost Communication with Front Satellite Sensor Bus |
|---|
Circuit description

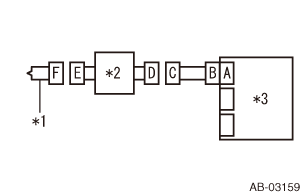

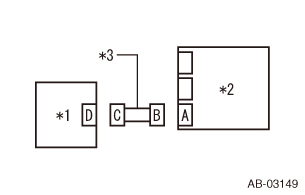

Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the front sub sensor LH.
Criteria
: No fault is found.
NG
>Replace the airbag main harness along with the body harness.
OK▼
2.
Check airbag main harness (front sensor bus LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Remove the column cover and disconnect the connector (D52).
(3) Disconnect the passenger’s airbag module connector (D30).
(4) Disconnect the connector (D27, G1, H17) of the airbag control module.
(5) Connect the connector (1AH) in the test harness AH to the connector B.
(6) Connect the connector 2AH in the test harness AH and the connector 1AG in the test harness AG.
(7) Connect the connector 1H in the test harness H to the connector E.
NG
>Replace the airbag main harness along with the body harness.
OK▼
3.
Check airbag main harness (front sensor bus LH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (4AG) No. 7 - chassis ground |
Always |
1 MΩ or more |
| (4AG) No. 9 - chassis ground |
Always |
1 MΩ or more |
| (4AG) No. 7 - (4AG) No. 9 |
Always |
1 MΩ or more |

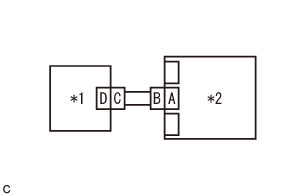

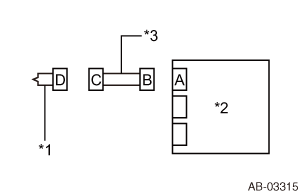

Captions in illustration
| *1 |
Front sub sensor LH |
| *2 |
Airbag control module |
NG
>Replace the airbag main harness along with the body harness.
OK▼
4.
Check airbag main harness (front sensor bus RH).
(1) Connect the connector 1H in the test harness H to the connector E.
NG
>Replace the airbag main harness along with the body harness.
OK▼
5.
Check airbag main harness (front sensor bus RH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (4AG) No. 12 - chassis ground |
Always |
1 MΩ or more |
| (4AG) No. 14 - chassis ground |
Always |
1 MΩ or more |
| (4AG) No. 12 - (4AG) No. 14 |
Always |
1 MΩ or more |

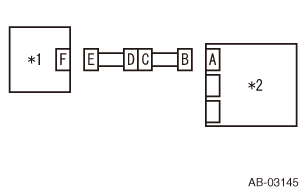

Captions in illustration
| *1 |
Front sub sensor RH |
| *2 |
Airbag control module |
NG
>Replace the airbag main harness along with the body harness.
OK▼
6.
Check airbag control module.
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the front sub sensor LH and the front sub sensor RH. Replace the airbag control module if it does not operate properly even after replacing the sensor.
OK▼
7.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B16F2 | Front Sub Sensor RH Recognition Error |
|---|
Circuit description
Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Replace front sub sensor RH.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the front sub sensor RH with a genuine sensor.
(3) Turn the ignition switch to ON.
Criteria
: The warning light is turned off.
NG
>Replace the airbag control module.
OK▼
Complete
| DTC | B16F3 | Front Sub Sensor LH Recognition Error |
|---|
Circuit description
Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Replace front sub sensor LH.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the front sub sensor LH with a genuine sensor.
(3) Turn the ignition switch to ON.
Criteria
: The warning light is turned off.
NG
>Replace the airbag control module.
OK▼
Complete
| DTC | B1620 | Side Airbag Sensor RH Failure |
|---|
Circuit description
Inspection steps
The circuit within the side airbag sensor RH is faulty. Replace the side airbag sensor RH.
| DTC | B1622 | Side Airbag Sensor RH Lost Communication |
|---|
| DTC | B1623 | Side Airbag Sensor RH Initialization Error |
|---|

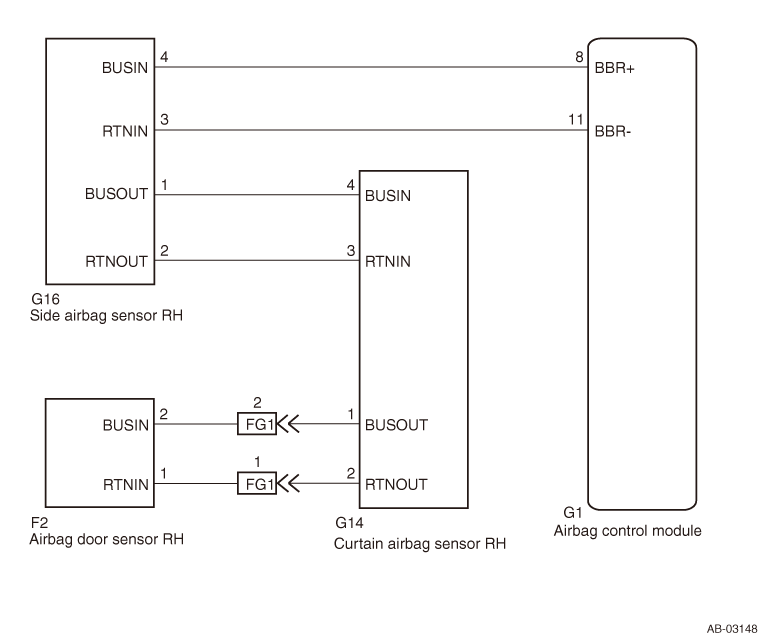

Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B1622 B1623 |
·Open or short circuit in harness of side sensor bus RH. ·Side airbag sensor RH, curtain airbag sensor RH, and front door impact sensor RH are faulty. ·Airbag control module is faulty. |
·Side airbag sensor RH ·Curtain airbag sensor RH ·Airbag control module ·Airbag rear harness ·Front door impact sensor RH |
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the side airbag sensor RH.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check airbag rear harness (between airbag control module and side airbag sensor RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G17) from the seat belt pretensioner RH.
(3) Disconnect the connector (G11) from the curtain airbag module RH.
(4) Disconnect the connector (Gc1) of the side airbag module RH.
(5) Disconnect the connector (D27, G1, H17) of the airbag control module.
(6) Connect the connector (1AH) in the test harness AH to the connector B.
(7) Connect the connector 2AH in the test harness AH and the connector 1AG in the test harness AG.
(8) Connect the connector 2V in the test harness V to the connector C.
(9) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (5AG) No. 14 - (3V) No. 1 |
Always |
Less than 10 Ω |
| (5AG) No. 15 - (3V) No. 2 |
Always |
Less than 10 Ω |

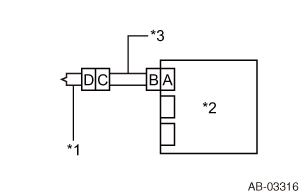

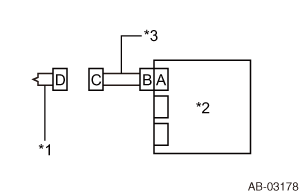

Captions in illustration
| *1 |
Side airbag sensor RH |
| *2 |
Airbag control module |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
3.
Check airbag rear harness (between airbag control module and side airbag sensor RH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 1 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 2 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 1 - (3V) No. 2 |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Side airbag sensor RH |
| *2 |
Airbag control module |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
NG
> Go to Step 6.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
6.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the side airbag sensor RH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
NG
>Replace the curtain airbag sensor RH. Replace the airbag control module if it does not operate properly even after replacing the sensor.
OK▼
7.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1625 | Side Airbag Sensor LH Failure |
|---|
Circuit description
Inspection steps
The circuit within the side airbag sensor LH is faulty. Replace the side airbag sensor LH.
| DTC | B1627 | Side Airbag Sensor LH Lost Communication |
|---|
| DTC | B1628 | Side Airbag Sensor LH Initialization Error |
|---|
Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B1627 B1628 |
·Open or short circuit in harness of side sensor bus LH. ·Side airbag sensor LH, curtain airbag sensor LH, and front door impact sensor LH are faulty. ·Airbag control module is faulty. |
·Side airbag sensor LH ·Curtain airbag sensor LH ·Airbag control module ·Airbag rear harness ·Front door impact sensor LH |

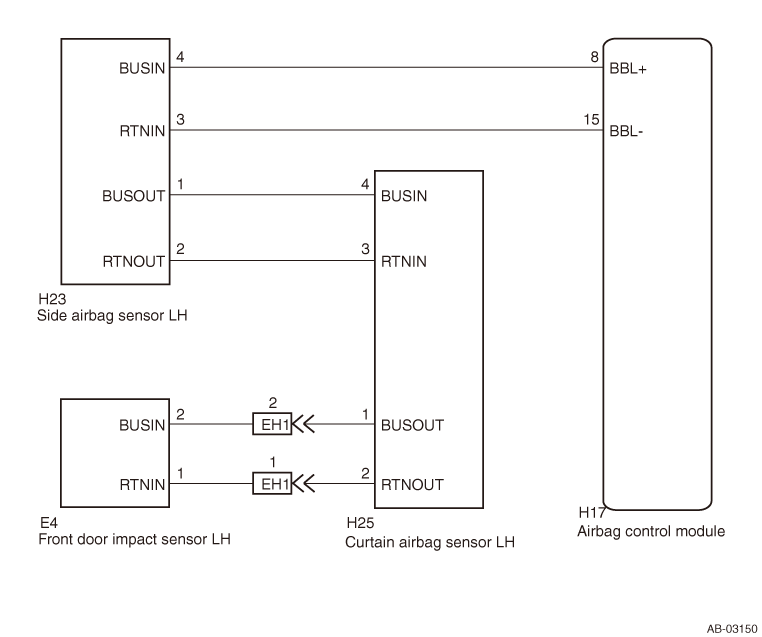

Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the side airbag sensor LH.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check airbag rear harness (between airbag control module and side airbag sensor LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H22) from the seat belt pretensioner LH.
(3) Disconnect the connector (H30) from the curtain airbag module LH.
(4) Disconnect the connector (Hb1) of the side airbag module LH.
(5) Disconnect the connector (D27, G1, H17) of the airbag control module.
(6) Connect the connector (1AH) in the test harness AH to the connector B.
(7) Connect the connector 2AH in the test harness AH and the connector 1AG in the test harness AG.
(8) Connect the connector 2V in the test harness V to the connector C.
(9) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (5AG) No. 9 - (3V) No. 2 |
Always |
Less than 10 Ω |
| (5AG) No. 10 - (3V) No. 1 |
Always |
Less than 10 Ω |
Captions in illustration
| *1 |
Side airbag sensor LH |
| *2 |
Airbag control module |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
3.
Check airbag rear harness (between airbag control module and side airbag sensor LH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 1 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 2 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 1 - (3V) No. 2 |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Side airbag sensor LH |
| *2 |
Airbag control module |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
NG
> Go to Step 6.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
6.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the side airbag sensor LH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
NG
>Replace the curtain airbag sensor LH. Replace the airbag control module if it does not operate properly even after replacing the sensor.
OK▼
7.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1630 | Curtain Airbag Sensor RH Failure |
|---|
Circuit description
Inspection steps
The circuit within the curtain airbag sensor RH is faulty. Replace the curtain airbag sensor RH.
| DTC | B1632 | Curtain Airbag Sensor RH Lost Communication |
|---|
| DTC | B1633 | Curtain Airbag Sensor RH Initialization Error |
|---|
Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B1632 B1633 |
·Open or short circuit in harness of side sensor bus RH. ·Side airbag sensor RH, curtain airbag sensor RH, and front door impact sensor RH are faulty. ·Airbag control module is faulty. |
·Side airbag sensor RH ·Curtain airbag sensor RH ·Airbag control module ·Airbag rear harness ·Front door impact sensor RH |
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check DTC
(1) Check for DTC.
Criteria
: DTC B1622 and B1623 are not displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
2.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the curtain airbag sensor RH.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
3.
Check airbag rear harness (between side airbag sensor and curtain airbag sensor RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G17) from the seat belt pretensioner RH.
(3) Disconnect the connector (G11) from the curtain airbag module RH.
(4) Disconnect the connector (Gc1) of the side airbag module RH.
(5) Disconnect the connector (G16) of the side airbag sensor RH.
(6) Connect the connector B of the side airbag sensor RH and the connector (1AI) in the test harness AI.
(7) Connect the connector (2AI) in the test harness AI and the connector (1V) in the test harness V.
(8) Disconnect the connector C from the curtain airbag sensor RH, and connect to the connector (2V) in the test harness V.
(9) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 2 - (3V) No. 6 |
Always |
Less than 10 Ω |
| (3V) No. 1 - (3V) No. 7 |
Always |
Less than 10 Ω |
Captions in illustration
| *1 |
Curtain airbag sensor RH |
| *2 |
Side airbag sensor RH |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check airbag rear harness (between side airbag sensor and curtain airbag sensor RH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 1 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 2 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 1 - (3V) No. 2 |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Curtain airbag sensor RH |
| *2 |
Side airbag sensor RH |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
5.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
NG
> Go to Step 7.
OK▼
6.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the curtain airbag sensor RH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
NG
> Go to Step 8.
OK▼
7.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the side airbag sensor RH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
NG
> Go to Step 8.
OK▼
Replace the airbag control module.
8.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1635 | Curtain Airbag Sensor LH Failure |
|---|
Circuit description
Inspection steps
The circuit within the curtain airbag sensor LH is faulty. Replace the curtain airbag sensor LH.
| DTC | B1637 | Curtain Airbag Sensor LH Lost Communication |
|---|
| DTC | B1638 | Curtain Airbag Sensor LH Initialization Error |
|---|
Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B1637 B1638 |
·Open or short circuit in harness of side sensor bus LH. ·Side airbag sensor LH, curtain airbag sensor LH, and front door impact sensor LH are faulty. ·Airbag control module is faulty. |
·Side airbag sensor LH ·Curtain airbag sensor LH ·Airbag control module ·Airbag rear harness ·Front door impact sensor LH |
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check DTC
(1) Check for DTC.
Criteria
: DTC B1627 and B1628 are not displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
2.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the curtain airbag sensor LH.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
3.
Check airbag rear harness (between side airbag sensor and curtain airbag sensor LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H22) from the seat belt pretensioner LH.
(3) Disconnect the connector (H30) from the curtain airbag module LH.
(4) Disconnect the connector (Hb1) of the side airbag module LH.
(5) Disconnect the connector (H23) of the side airbag sensor LH.
(6) Connect the connector B of the side airbag sensor LH and the connector (1AI) in the test harness AI.
(7) Connect the connector (2AI) in the test harness AI and the connector (1V) in the test harness V.
(8) Disconnect the connector C from the curtain airbag sensor LH, and connect to the connector (2V) in the test harness V.
(9) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 2 - (3V) No. 6 |
Always |
Less than 10 Ω |
| (3V) No. 1 - (3V) No. 7 |
Always |
Less than 10 Ω |
Captions in illustration
| *1 |
Curtain airbag sensor LH |
| *2 |
Side airbag sensor LH |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check airbag rear harness (between side airbag sensor and curtain airbag sensor LH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 1 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 2 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 1 - (3V) No. 2 |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Curtain airbag sensor LH |
| *2 |
Side airbag sensor LH |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
5.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is displayed.

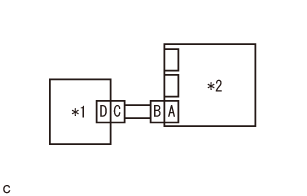

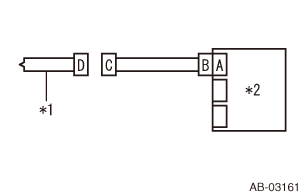

Captions in illustration
| *1 |
Side airbag sensor LH |
| *2 |
Airbag control module |
NG
> Go to Step 7.
OK▼
6.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the curtain airbag sensor LH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
NG
> Go to Step 8.
OK▼
7.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the side airbag sensor LH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
NG
> Go to Step 8.
OK▼
Replace the airbag control module.
8.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B16F4 | Side Airbag Sensor RH Recognition Error |
|---|
Circuit description
Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Replace side airbag sensor (RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the side airbag sensor RH with a genuine sensor.
(3) Turn the ignition switch to ON.
Criteria
: The warning light is turned off.
NG
>Replace the airbag control module.
OK▼
Complete
| DTC | B16F5 | Side Airbag Sensor LH Recognition Error |
|---|
Circuit description
Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Replace side airbag sensor LH.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the side airbag sensor LH with a genuine sensor.
(3) Turn the ignition switch to ON.
Criteria
: The warning light is turned off.
NG
>Replace the airbag control module.
OK▼
Complete
| DTC | B16F6 | Curtain Airbag Sensor RH Recognition Error |
|---|
Circuit description
Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Replace curtain airbag sensor RH.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the curtain airbag sensor RH with a genuine sensor.
(3) Turn the ignition switch to ON.
Criteria
: The warning light is turned off.
NG
>Replace the airbag control module.
OK▼
Complete
| DTC | B16F7 | Curtain Airbag Sensor LH Recognition Error |
|---|
Circuit description
Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Replace curtain airbag sensor LH.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the curtain airbag sensor LH with a genuine sensor.
(3) Turn the ignition switch to ON.
Criteria
: The warning light is turned off.
NG
>Replace the airbag control module.
OK▼
Complete
| DTC | B1642 | Side Satellite Sensor Bus RH Lost Communication |
|---|
Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B1642 |
·Open or short circuit in harness of side sensor bus RH. ·Side airbag sensor RH is faulty. ·Curtain airbag sensor RH is faulty. ·Front door impact sensor RH is faulty. ·Airbag control module is faulty. |
·Side airbag sensor RH ·Curtain airbag sensor RH ·Front door impact sensor RH ·Airbag control module ·Airbag rear harness ·Front door impact sensor RH |
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check DTC
(1) Check for DTC.
Criteria
: DTC B1622 and B1623 are not displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
2.
Check DTC
(1) Check for DTC.
Criteria
: DTC B1632 and B1633 are not displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
3.
Check DTC
(1) Check for DTC.
Criteria
: DTC B1692 and B1693 are not displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
4.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the front door impact sensor RH.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness and the door harness.
OK▼
5.
Check airbag rear harness (between airbag control module and side airbag sensor RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G17) from the seat belt pretensioner RH.
(3) Disconnect the connector (G11) from the curtain airbag module RH.
(4) Disconnect the connector (Gc1) of the side airbag module RH.
(5) Disconnect the connector (D27, G1, H17) of the airbag control module.
(6) Connect the connector (1AH) in the test harness AH to the connector B.
(7) Connect the connector 2AH in the test harness AH and the connector 1AG in the test harness AG.
(8) Disconnect the connector from the side airbag sensor RH.
(9) Connect the connector in the test harness V to the connector C.
(10) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (5AG) No. 15 - (3V) No. 2 |
Always |
Less than 10 Ω |
| (5AG) No. 14 - (3V) No. 1 |
Always |
Less than 10 Ω |
Captions in illustration
| *1 |
Side airbag sensor RH |
| *2 |
Airbag control module |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
6.
Check airbag rear harness (between airbag control module and side airbag sensor RH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 1 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 2 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 1 - (3V) No. 2 |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Side airbag sensor RH |
| *2 |
Airbag control module |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
7.
Check airbag rear harness (between side airbag sensor RH and curtain airbag sensor RH).
(1) Disconnect the connector (2V) in the test harness V from the connector of the side airbag sensor RH.
(2) Connect the connector B of the side airbag sensor RH and the connector (1AI) in the test harness AI.
(3) Connect the connector (2AI) in the test harness AI and the connector (1V) in the test harness V.
(4) Disconnect the connector from the curtain airbag sensor RH.
(5) Connect the connector (2V) in the test harness V to the connector C.
(6) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 2 - (3V) No. 6 |
Always |
Less than 10 Ω |
| (3V) No. 1 - (3V) No. 7 |
Always |
Less than 10 Ω |
Captions in illustration
| *1 |
Curtain airbag sensor RH |
| *2 |
Side airbag sensor RH |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
8.
Check airbag rear harness (between side airbag sensor RH and curtain airbag sensor RH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 1 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 2 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 1 - (3V) No. 2 |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Curtain airbag sensor RH |
| *2 |
Side airbag sensor RH |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
9.
Check airbag rear harness and door harness (between curtain airbag sensor RH and door sensor RH).
(1) Disconnect the connector from the front door impact sensor RH.
(2) Connect the connector (1H) in the test harness H to the connector E of the front door impact sensor RH.
(3) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 4 - (3H) No. 5 |
Always |
Less than 10 Ω |
| (3V) No. 5 - (3H) No. 6 |
Always |
Less than 10 Ω |
Captions in illustration
| *1 |
Front door impact sensor RH |
| *2 |
Curtain airbag sensor RH |
| *3 |
Door harness |
| *4 |
Airbag rear harness |
NG
>Check the door harness, and if any fault is found, replace the harness. If there is no fault, replace the airbag rear harness along with the body harness.
OK▼
10.
Check airbag rear harness and door harness (between curtain airbag sensor RH and door sensor RH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 4 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 5 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 4 - (3V) No. 5 |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Front door impact sensor RH |
| *2 |
Curtain airbag sensor RH |
| *3 |
Door harness |
| *4 |
Airbag rear harness |
NG
>Check the door harness, and if any fault is found, replace the harness. If there is no fault, replace the airbag rear harness along with the body harness.
OK▼
11.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
> Go to Step 13.
OK▼
12.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
13.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the side airbag sensor RH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
(6) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
> Go to Step 15.
OK▼
14.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
15.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the curtain airbag sensor RH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
(6) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
> Go to Step 17.
OK▼
16.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
17.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the front door impact sensor RH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
(6) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
18.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1647 | Side Satellite Sensor Bus LH Lost Communication |
|---|
Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B1647 |
·Open or short circuit in harness of side sensor bus LH. ·Side airbag sensor LH is faulty. ·Curtain airbag sensor LH is faulty. ·Front door impact sensor LH is faulty. ·Airbag control module is faulty. |
·Side airbag sensor LH ·Curtain airbag sensor LH ·Front door impact sensor LH ·Airbag control module ·Airbag rear harness ·Front door impact sensor LH |
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check DTC
(1) Check for DTC.
Criteria
: DTC B1627 and B1628 are not displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
2.
Check DTC
(1) Check for DTC.
Criteria
: DTC B1637 and B1638 are not displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
3.
Check DTC
(1) Check for DTC.
Criteria
: DTC B1697 and B1698 are not displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
4.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the front door impact sensor LH.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness and the door harness.
OK▼
5.
Check airbag rear harness (between airbag control module and side airbag sensor LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H22) from the seat belt pretensioner LH.
(3) Disconnect the connector (H30) from the curtain airbag module LH.
(4) Disconnect the connector (Hb1) of the side airbag module LH.
(5) Disconnect the connector (D27, G1, H17) of the airbag control module.
(6) Connect the connector (1AH) in the test harness AH to the connector B.
(7) Connect the connector 2AH in the test harness AH and the connector 1AG in the test harness AG.
(8) Disconnect the connector from the side airbag sensor LH.
(9) Connect the connector in the test harness V to the connector C.
(10) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (5AG) No. 10 - (3V) No. 1 |
Always |
Less than 10 Ω |
| (5AG) No. 9 - (3V) No. 2 |
Always |
Less than 10 Ω |
Captions in illustration
| *1 |
Side airbag sensor LH |
| *2 |
Airbag control module |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
6.
Check airbag rear harness (between airbag control module and side airbag sensor LH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 1 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 2 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 1 - (3V) No. 2 |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Side airbag sensor LH |
| *2 |
Airbag control module |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
7.
Check airbag rear harness (between side airbag sensor LH and curtain airbag sensor LH).
(1) Disconnect the connector (2V) in the test harness V from the connector of the side airbag sensor LH.
(2) Connect the connector B of the side airbag sensor LH and the connector (1AI) in the test harness AI.
(3) Connect the connector (2AI) in the test harness AI and the connector (1V) in the test harness V.
(4) Disconnect the connector from the curtain airbag sensor LH.
(5) Connect the connector (2V) in the test harness V to the connector C.
(6) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 2 - (3V) No. 6 |
Always |
Less than 10 Ω |
| (3V) No. 1 - (3V) No. 7 |
Always |
Less than 10 Ω |
Captions in illustration
| *1 |
Curtain airbag sensor LH |
| *2 |
Side airbag sensor LH |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
8.
Check airbag rear harness (between side airbag sensor LH and curtain airbag sensor LH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 1 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 2 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 1 - (3V) No. 2 |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Curtain airbag sensor LH |
| *2 |
Side airbag sensor LH |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
9.
Check airbag rear harness and door harness (between curtain airbag sensor LH and door sensor LH).
(1) Disconnect the connector from the front door impact sensor LH.
(2) Connect the connector (1H) in the test harness H to the connector E of the front door impact sensor LH.
(3) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 4 - (3H) No. 5 |
Always |
Less than 10 Ω |
| (3V) No. 5 - (3H) No. 6 |
Always |
Less than 10 Ω |
Captions in illustration
| *1 |
Front door impact sensor LH |
| *2 |
Curtain airbag sensor LH |
| *3 |
Door harness |
| *4 |
Airbag rear harness |
NG
>Check the door harness, and if any fault is found, replace the harness. If there is no fault, replace the airbag rear harness along with the body harness.
OK▼
10.
Check airbag rear harness and door harness (between curtain airbag sensor LH and door sensor LH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 4 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 5 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 4 - (3V) No. 5 |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Front door impact sensor LH |
| *2 |
Curtain airbag sensor LH |
| *3 |
Door harness |
| *4 |
Airbag rear harness |
NG
>Check the door harness, and if any fault is found, replace the harness. If there is no fault, replace the airbag rear harness along with the body harness.
OK▼
11.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
> Go to Step 13.
OK▼
12.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
13.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the side airbag sensor LH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
(6) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
> Go to Step 15.
OK▼
14.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
15.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the curtain airbag sensor LH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
(6) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
> Go to Step 17.
OK▼
16.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
17.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the front door impact sensor LH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
(6) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
18.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1651 | Manual Cut OFF Switch Trouble |
|---|
Circuit description
The airbag cutoff switch circuit consists of the airbag control module and the airbag cutoff switch.
The passenger’s airbag can be disabled by turning the airbag cutoff switch to OFF.
When the passenger’s airbag is disabled, the passenger’s airbag ON/OFF indicator (OFF) illuminates to alert the occupant.
If any fault is detected in the airbag cutoff switch circuit, the diagnostic code B1651 will be recorded.
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B1651 |
·Open or short circuit in harness of airbag cutoff switch. ·Airbag control module is faulty. ·Airbag cutoff switch is faulty. |
·Airbag main harness ·Airbag cutoff switch ·Airbag control module ·Body harness |

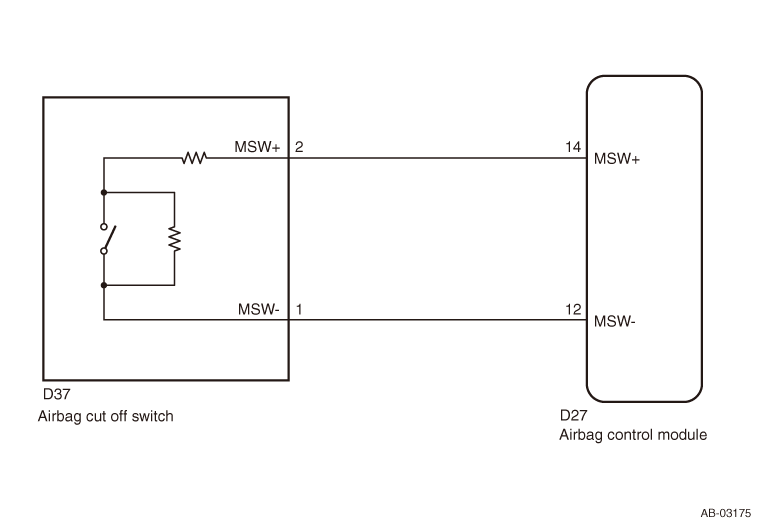

Circuit figure

Inspection steps
CAUTION:
·Before performing the diagnosis, refer to the precautions.
·When turning the ignition switch to ON, operate the airbag cutoff switch (ON/OFF) to visually check if any error occurs such as the passenger’s airbag ON/OFF indicator does not illuminate or the ON/OFF state does not change.
·After turning the ignition switch to OFF, you may have to wait for a while before disconnecting the battery terminals. Check appropriate precautions for battery terminal disconnection before proceeding.
·When turning the ignition switch to ON, operate the airbag cutoff switch (ON/OFF) to visually check if any error occurs such as the passenger’s airbag ON/OFF indicator does not illuminate or the ON/OFF state does not change.
·After turning the ignition switch to OFF, you may have to wait for a while before disconnecting the battery terminals. Check appropriate precautions for battery terminal disconnection before proceeding.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the airbag cutoff switch.
Criteria
: No fault is found.
NG
>Replace the airbag main harness or the body harness.
OK▼
2.
Check airbag main harness.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Remove the column cover and disconnect the connector (D52).
(3) Disconnect the passenger’s airbag module connector (D30).
(4) Disconnect the connector (D27, G1, H17) of the airbag control module.
(5) Connect the connector (1AH) in the test harness AH to the connector (D27, G1, H17).
(6) Connect the connector 2AH in the test harness AH and the connector 1AG in the test harness AG.
(7) Disconnect the connector (D37) from the airbag cutoff switch.
(8) Using a probe to the connector (D37), measure the resistance between the terminals.
CAUTION:
When measuring the resistance, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (D37) No. 1 - (4AG) No. 4 |
Always |
Less than 10 Ω |
| (D37) No. 2 - (4AG) No. 6 |
Always |
Less than 10 Ω |

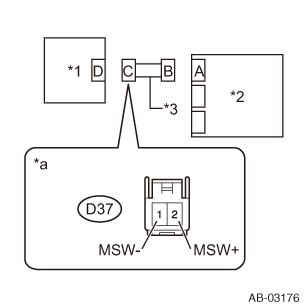

Captions in illustration
| *1 |
Airbag cutoff switch |
| *2 |
Airbag control module |
| *3 |
Body harness |
| *a |
Front side of body harness connector (To airbag cutoff switch) |
NG
>Replace the airbag main harness or the body harness.
OK▼
3.
Check airbag main harness.
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (4AG) No. 4 - (4AG) No. 6 |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Airbag cutoff switch |
| *2 |
Airbag control module |
| *3 |
Body harness |
| *a |
Front side of body harness connector (To airbag cutoff switch) |
NG
>Replace the airbag main harness or the body harness.
OK▼
4.
Check airbag main harness.
(1) Connect the battery ground terminal.
(2) Turn the ignition switch to ON.
(3) Measure the voltage between the terminals.
Voltage
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (4AG) No. 4 - chassis ground |
IG ON |
Less than 1 V |
| (4AG) No. 6 - chassis ground |
IG ON |
Less than 1 V |
Captions in illustration
| *1 |
Airbag cutoff switch |
| *2 |
Airbag control module |
| *3 |
Body harness |
| *a |
Front side of body harness connector (To airbag cutoff switch) |
NG
>Replace the airbag main harness or the body harness.
OK▼
5.
Check airbag main harness.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (4AG) No. 4 - chassis ground |
Always |
1 MΩ or more |
| (4AG) No. 6 - chassis ground |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Airbag cutoff switch |
| *2 |
Airbag control module |
| *3 |
Body harness |
| *a |
Front side of body harness connector (To airbag cutoff switch) |
NG
>Replace the airbag main harness or the body harness.
OK▼
6.
Check airbag cutoff switch.
NG
>Replace the airbag cutoff switch.
OK▼
7.
Check airbag control module.
(1) Connect all connectors.
(2) Connect the battery ground terminal, and clear the memory.
(3) Turn the ignition switch to OFF.
(4) Turn the ignition switch to ON and wait for 60 seconds or more.
(5) Read the DTC. (Current malfunction)
Criteria
: B1651 is not output.
NG
>Replace the airbag control module.
OK▼
Complete
| DTC | B1660 | Passenger’s Airbag Indicator Failure |
|---|
Circuit description

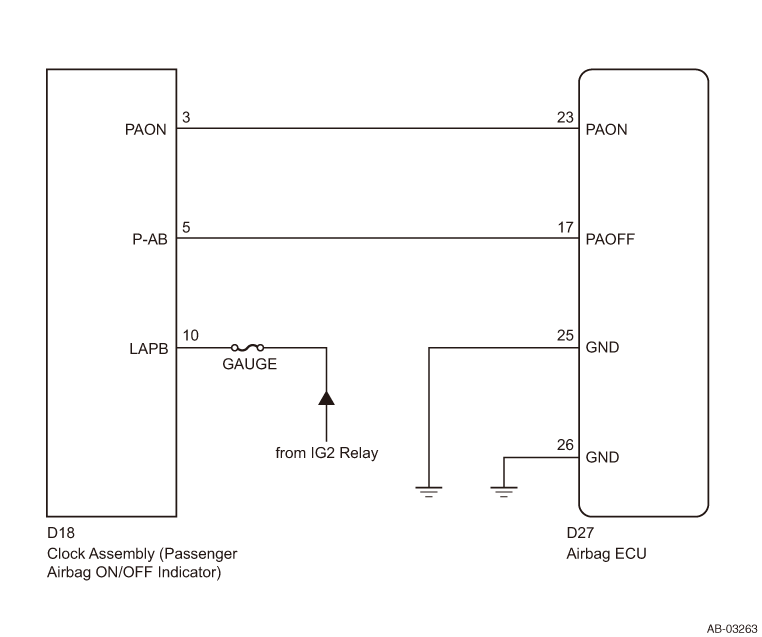

Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Check whether the connectors between the airbag control module and the airbag indicator are securely connected.
Criteria
: No fault is found.
NG
>Repair the bulkhead harness. Or replace the airbag main harness along with the body harness.
OK▼
2.
Check airbag main harness.
(1) Disconnect the connector (D27, G1, H17) from the airbag control module.
NG
> Go to Step 4.
OK▼
3.
Check airbag main harness.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Remove the clock ASSY and disconnect the connector (D18).
(3) Disconnect the connector (D27) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(4) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
(5) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (2AG) No. 9 - (2AG) No. 8 |
Always |
1 MΩ or more |
| (2AG) No. 9 - chassis ground |
Always |
1 MΩ or more |
| (2AG) No. 8 - chassis ground |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Clock ASSY |
| *2 |
Airbag control module |
NG
>Repair the bulkhead harness. Or replace the airbag main harness along with the body harness.
OK▼
Replace the clock ASSY
4.
Check airbag main harness.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(3) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
(4) Connect the connectors (7AG) and (8AG) in the test harness AG.
NG
> Go to Step 5.
OK▼
Replace the airbag control module.
5.
Check airbag main harness.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Remove the clock ASSY and disconnect the connector (D18).
(3) Measure the resistance between the connector (2AG) in the test harness AG and the connector (D18).
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (2AG) No. 9 - (D18) No. 5 |
Always |
Less than 1 Ω |
| (2AG) No. 8 - (D18) No. 3 |
Always |
Less than 1 Ω |
Captions in illustration
| *1 |
Clock ASSY |
| *2 |
Airbag control module |
NG
>Repair the bulkhead harness. Or replace the airbag main harness along with the body harness.
OK▼
6.
Check body harness.
(1) Turn the ignition switch to ON.
NG
>Check the power circuit.
OK▼
Replace the clock ASSY
| DTC | B1675 | Satellite Safing Sensor Failure |
|---|
Circuit description
Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Replace satellite safing sensor.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the satellite safing sensor with a genuine sensor.
(3) Turn the ignition switch to ON.
Criteria
: The warning light is turned off.
NG
>Replace the airbag control module.
OK▼
Complete
| DTC | B1678 | Lost Communication With Satellite Safing Sensor |
|---|
| DTC | B1679 | Satellite Safing Sensor Initialization Incomplete |
|---|
Circuit description

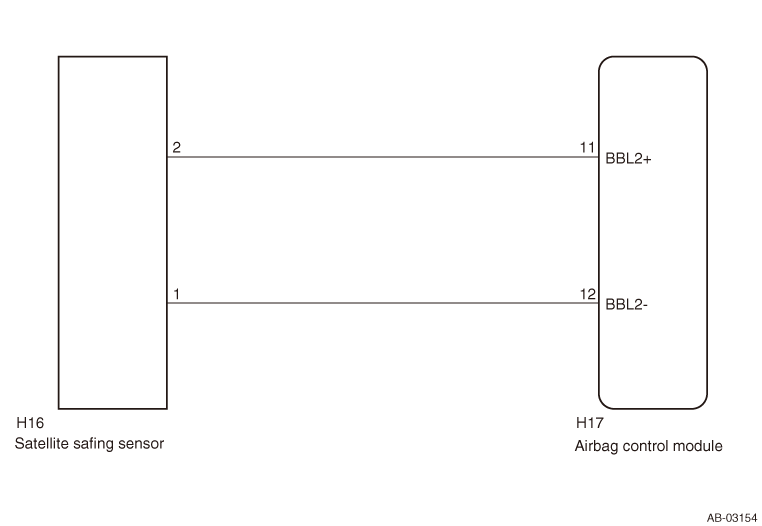

Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the satellite safing sensor.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check airbag rear harness (between airbag control module and satellite safing sensor).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G17, H22) from the seat belt pretensioner.
(3) Disconnect the connector (G11, H30) from the curtain airbag module.
(4) Disconnect the connector (Gc1, Hb1) from the side airbag module.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module.
(6) Connect the connector (1AH) in the test harness AH to the connector B.
(7) Connect the connector 2AH in the test harness AH and the connector 1AG in the test harness AG.
(8) Disconnect the connector from the satellite safing sensor.
(9) Connect the connector (1H) in the test harness H to the connector C.
(10) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (4AG) No. 3 - (3H) No. 5 |
Always |
Less than 10 Ω |
| (5AG) No. 11 - (3H) No. 6 |
Always |
Less than 10 Ω |
Captions in illustration
| *1 |
Satellite safing sensor |
| *2 |
Airbag control module |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
3.
Check airbag rear harness (between airbag control module and satellite safing sensor).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (4AG) No. 3 - chassis ground |
Always |
1 MΩ or more |
| (5AG) No. 11 - chassis ground |
Always |
1 MΩ or more |
| (4AG) No. 3 - (5AG) No. 11 |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Satellite safing sensor |
| *2 |
Airbag control module |
| *3 |
Airbag rear harness |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
NG
> Go to Step 6.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
6.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the satellite safing sensor.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
7.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B16F8 | Satellite Safing Sensor Recognition Error |
|---|
Circuit description
Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Replace satellite safing sensor.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the satellite safing sensor with a genuine sensor.
(3) Turn the ignition switch to ON.
Criteria
: The warning light is turned off.
NG
>Replace the airbag control module.
OK▼
Complete
| DTC | B16F9 | Door Sensor RH Recognition Error |
|---|
Circuit description
Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Replace front door impact sensor RH.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the front door impact sensor RH with a genuine sensor.
(3) Turn the ignition switch to ON.
Criteria
: The warning light is turned off.
NG
>Replace the airbag control module.
OK▼
Complete
| DTC | B1690 | Door Sensor RH Failure |
|---|
Circuit description
Inspection steps
The circuit within the front door impact sensor RH is faulty. Replace the front door impact sensor RH.
| DTC | B1692 | Lost Communication With Door Sensor RH |
|---|
| DTC | B1693 | Door Sensor RH Initialization Incomplete |
|---|
Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B1692 B1693 |
·Open or short circuit in harness of side sensor bus RH. ·Side airbag sensor RH is faulty. ·Front door impact sensor RH is faulty. ·Curtain airbag sensor RH is faulty. ·Airbag control module is faulty. |
·Front door impact sensor RH ·Curtain airbag sensor RH ·Airbag control module ·Airbag rear harness ·Side airbag sensor RH |
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check DTC
(1) Check for DTC.
Criteria
: DTC B1622 and B1623 are not displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
2.
Check DTC
(1) Check for DTC.
Criteria
: DTC B1632 and B1633 are not displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
3.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the front door impact sensor RH.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness and the door harness.
OK▼
4.
Check airbag rear harness and door harness (between curtain airbag sensor RH and door sensor RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G17) from the seat belt pretensioner RH.
(3) Disconnect the connector (G11) from the curtain airbag module RH.
(4) Disconnect the connector (Gc1) of the side airbag module RH.
(5) Disconnect the connector (G14) from the curtain airbag sensor RH.

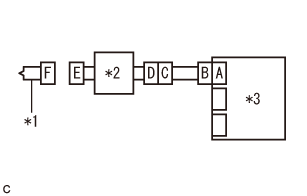

(6) Connect the connector B of the curtain airbag sensor RH and the connector (2V) in the test harness V.
(7) Disconnect the connector of the front door impact sensor RH.
(8) Connect the connector E of the front door impact sensor RH and the connector (1H) in the test harness H.
(9) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 4 - (3H) No. 5 |
Always |
Less than 10 Ω |
| (3V) No. 5 - (3H) No. 6 |
Always |
Less than 10 Ω |
Captions in illustration
| *1 |
Front door impact sensor RH |
| *2 |
Curtain airbag sensor RH |
| *3 |
Door harness |
| *4 |
Airbag rear harness |
NG
>Check the door harness, and if any fault is found, replace the harness. If there is no fault, replace the airbag rear harness along with the body harness.
OK▼
5.
Check airbag rear harness and door harness (between curtain airbag sensor RH and door sensor RH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 4 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 5 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 4 - (3V) No. 5 |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Front door impact sensor RH |
| *2 |
Curtain airbag sensor RH |
| *3 |
Door harness |
| *4 |
Airbag rear harness |
NG
>Check the door harness, and if any fault is found, replace the harness. If there is no fault, replace the airbag rear harness along with the body harness.
OK▼
6.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
> Go to Step 8.
OK▼
7.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
8.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the front door impact sensor RH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
(6) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
> Go to Step 10.
OK▼
9.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
10.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the curtain airbag sensor RH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
(6) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
11.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B16FA | Lost Communication With Door Sensor LH |
|---|
Circuit description
Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Replace front door impact sensor LH.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the front door impact sensor LH with a genuine sensor.
(3) Turn the ignition switch to ON.
Criteria
: The warning light is turned off.
NG
>Replace the airbag control module.
OK▼
Complete
| DTC | B1695 | Door Sensor LH Initialization Incomplete |
|---|
Circuit description
Inspection steps
The circuit within the front door impact sensor LH is faulty. Replace the front door impact sensor LH.
| DTC | B1697 | Lost Communication With Door Sensor LH |
|---|
| DTC | B1698 | Door Sensor LH Initialization Incomplete |
|---|
Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B1697 B1698 |
·Open or short circuit in harness of side sensor bus LH. ·Side airbag sensor LH is faulty. ·Front door impact sensor LH is faulty. ·Curtain airbag sensor LH is faulty. ·Airbag control module is faulty. |
·Front door impact sensor LH ·Curtain airbag sensor LH ·Airbag control module ·Airbag rear harness ·Side airbag sensor LH |
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check DTC
(1) Check for DTC.
Criteria
: DTC B1627 and B1628 are not displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
2.
Check DTC
(1) Check for DTC.
Criteria
: DTC B1637 and B1638 are not displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
3.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the front door impact sensor LH.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness and the door harness.
OK▼
4.
Check airbag rear harness and door harness (between curtain airbag sensor LH and door sensor LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H22) from the seat belt pretensioner LH.
(3) Disconnect the connector (H30) from the curtain airbag module LH.
(4) Disconnect the connector (Hb1) of the side airbag module LH.
(5) Disconnect the connector (H25) from the curtain airbag sensor LH.
(6) Connect the connector B of the curtain airbag sensor LH and the connector (2V) in the test harness V.
(7) Disconnect the connector of the front door impact sensor LH.
(8) Connect the connector E of the front door impact sensor LH and the connector (1H) in the test harness H.
(9) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 4 - (3H) No. 5 |
Always |
Less than 10 Ω |
| (3V) No. 5 - (3H) No. 6 |
Always |
Less than 10 Ω |
Captions in illustration
| *1 |
Front door impact sensor LH |
| *2 |
Curtain airbag sensor LH |
| *3 |
Door harness |
| *4 |
Airbag rear harness |
NG
>Check the door harness, and if any fault is found, replace the harness. If there is no fault, replace the airbag rear harness along with the body harness.
OK▼
5.
Check airbag rear harness and door harness (between curtain airbag sensor LH and door sensor LH).
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3V) No. 4 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 5 - chassis ground |
Always |
1 MΩ or more |
| (3V) No. 4 - (3V) No. 5 |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Front door impact sensor LH |
| *2 |
Curtain airbag sensor LH |
| *3 |
Door harness |
| *4 |
Airbag rear harness |
NG
>Check the door harness, and if any fault is found, replace the harness. If there is no fault, replace the airbag rear harness along with the body harness.
OK▼
6.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
> Go to Step 8.
OK▼
7.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
8.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the front door impact sensor LH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
(6) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
> Go to Step 10.
OK▼
9.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
10.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Replace the curtain airbag sensor LH.
(3) Connect all connectors.
(4) Clear the memory.
(5) Perform the reproduction procedure.
(6) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
11.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1800 | Short in Driver’s Airbag |
|---|
Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B1800 |
·Airbag main harness circuit is shorted. ·Airbag module harness (driver’s side) circuit is shorted. ·Roll connector circuit is shorted. ·Driver’s airbag module is faulty. ·Airbag control module is faulty. |
·Driver side air bag module ·Airbag control module ·Airbag main harness ·Roll connector |

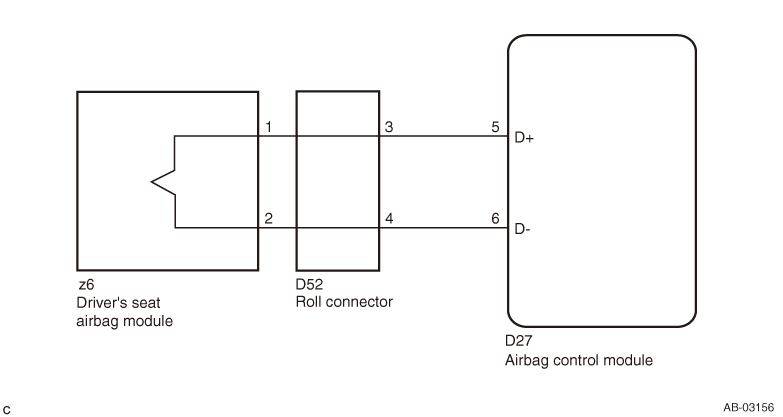

Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the driver’s airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag main harness along with the body harness.
OK▼
2.
Check driver’s airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (z6) from the driver’s airbag module.
(3) Connect the connector (1N) in the test harness N to the connector E.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the driver’s airbag module.
OK▼
3.
Check roll connector and airbag main harness (driver’s airbag harness).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the passenger’s airbag module connector (D30).
(3) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(4) Disconnect the connector (D27, G1, H17) of the airbag control module, and connect the connector (1AH) in the test harness AH.
(5) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
NG
> Go to Step 6.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
6.
Check airbag main harness (driver’s airbag harness).
(1) Disconnect the connector C.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
Replace the roll connector.
| DTC | B1801 | Open in Driver’s Airbag |
|---|
Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B1801 |
·Airbag main harness circuit is open. ·Airbag module harness (driver’s side) circuit is open. ·Roll connector is broken. ·Driver’s airbag module is faulty. ·Airbag control module is faulty. |
·Driver side air bag module ·Airbag control module ·Airbag main harness ·Roll connector |
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the driver’s airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag main harness along with the body harness.
OK▼
2.
Check driver’s airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (z6) from the driver’s airbag module.
(3) Connect the connector (1N) in the test harness N to the connector E.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the driver’s airbag module.
OK▼
3.
Check roll connector and airbag main harness (driver’s airbag harness).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the passenger’s airbag module connector (D30).
(3) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(4) Disconnect the connector (D27, G1, H17) of the airbag control module.
NG
> Go to Step 6.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
6.
Check airbag main harness (driver’s airbag harness).
(1) Remove the column cover and disconnect the connector (D52).
NG
>Replace the roll connector.
OK▼
Replace the airbag main harness along with the body harness.
| DTC | B1802 | Short in Driver’s Airbag (to Ground) |
|---|
Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B1802 |
·Airbag main harness circuit is shorted to ground. ·Airbag module harness (driver’s side) circuit is shorted to ground. ·Roll connector circuit is shorted to ground. ·Driver’s airbag module is faulty. ·Airbag control module is faulty. |
·Driver side air bag module ·Airbag control module ·Airbag main harness ·Roll connector |
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the driver’s airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag main harness along with the body harness.
OK▼
2.
Check driver’s airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (z6) from the driver’s airbag module.
(3) Connect the connector (1N) in the test harness N to the connector E.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the driver’s airbag module.
OK▼
3.
Check roll connector.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Remove the column cover and disconnect the connector (D52).
(3) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(4) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (2N) No. 1 - chassis ground |
Always |
1 MΩ or more |
| (2N) No. 2 - chassis ground |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Driver side air bag module |
| *2 |
Roll connector |
| *3 |
Airbag control module |
NG
>Replace the roll connector.
OK▼
4.
Check airbag main harness (driver’s airbag harness).
(1) Disconnect the test harness N from the connector E.
(2) Disconnect the passenger’s airbag module connector (D30).
(3) Disconnect the connector (D27, G1, H17) of the airbag control module, and connect the connector (1AH) in the test harness AH.
(4) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
(5) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3AG) No. 1 - chassis ground |
Always |
1 MΩ or more |
| (3AG) No. 3 - chassis ground |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Driver side air bag module |
| *2 |
Roll connector |
| *3 |
Airbag control module |
NG
>Replace the airbag main harness along with the body harness.
OK▼
5.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
6.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1803 | Short in Driver’s Airbag (to +B) |
|---|
Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B1803 |
·Airbag main harness circuit is shorted to power supply. ·Airbag module harness (driver’s side) circuit is shorted to power supply. ·Roll connector circuit is shorted to power supply. ·Driver’s airbag module is faulty. ·Airbag control module is faulty. |
·Driver side air bag module ·Airbag control module ·Airbag main harness ·Roll connector |
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the driver’s airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag main harness along with the body harness.
OK▼
2.
Check driver’s airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (z6) from the driver’s airbag module.
(3) Connect the connector (1N) in the test harness N to the connector E.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the driver’s airbag module.
OK▼
3.
Check roll connector.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Remove the column cover and disconnect the connector (D52).
(3) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(4) Measure the voltage between the terminals.
Voltage
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (2N) No. 1 (+) - chassis ground (-) |
Always |
Less than 1 V |
| (2N) No. 2 (+) - chassis ground (-) |
Always |
Less than 1 V |
Captions in illustration
| *1 |
Driver side air bag module |
| *2 |
Roll connector |
| *3 |
Airbag control module |
NG
>Replace the roll connector.
OK▼
4.
Check airbag main harness (driver’s airbag harness).
(1) Disconnect the test harness N from the connector E.
(2) Disconnect the passenger’s airbag module connector (D30).
(3) Disconnect the connector (D27, G1, H17) of the airbag control module, and connect the connector (1AH) in the test harness AH.
(4) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
(5) Connect the battery and then turn the ignition switch to ON.
(6) Measure the voltage between the terminals.
Voltage
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3AG) No. 1 (+) - chassis ground (-) |
Always |
Less than 1 V |
| (3AG) No. 3 (+) - chassis ground (-) |
Always |
Less than 1 V |
Captions in illustration
| *1 |
Driver side air bag module |
| *2 |
Roll connector |
| *3 |
Airbag control module |
NG
>Replace the airbag main harness along with the body harness.
OK▼
5.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
6.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1805 | Short in Passenger’s Airbag |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the passenger’s airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag main harness along with the body harness.
OK▼
2.
Check airbag main harness (passenger’s airbag harness).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Remove the column cover and disconnect the connector (D52).
(3) Disconnect the connector (D27, G1, H17) of the airbag control module, connect the connector (1AH) in the test harness AH, and release the short mechanism of the connectors.
(4) Disconnect the passenger’s airbag module connector (D30).
(5) Using a probe, measure the resistance between the terminals of connector (D30).
CAUTION:
When measuring the resistance, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (D30) No. 2 - (D30) No. 3 |
Always |
1 MΩ or more |

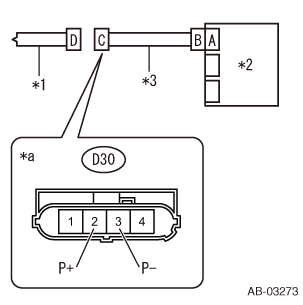

Captions in illustration
| *1 |
Passenger’s airbag module |
| *2 |
Airbag control module |
| *3 |
Airbag main harness |
| *a |
Passenger’s airbag module connector |
NG
>Replace the airbag main harness along with the body harness.
OK▼
3.
Check airbag control module.
(1) Disconnect the test harness from the connector (D27, G1, H17).
(2) Connect the connector (D27, G1, H17) to the airbag control module.
(3) Connect the driver’s airbag module connector (D52).
(4) Connect the battery ground terminal and turn the ignition switch to ON.
(5) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
4.
Check passenger’s airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Connect the passenger’s airbag module connector (D30).
(3) Connect the battery ground terminal, and clear the memory.
(4) Perform the reproduction procedure.
(5) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the passenger’s airbag module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1806 | Open in Passenger’s Airbag |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the passenger’s airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag main harness along with the body harness.
OK▼
2.
Check airbag main harness (passenger’s airbag harness).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Remove the column cover and disconnect the connector (D52).
(3) Disconnect the passenger’s airbag module connector (D30).
(4) Disconnect the connector (D27, G1, H17) of the airbag control module.
(5) Using a probe, measure the resistance between the terminals of connector (D30).
CAUTION:
When measuring the resistance, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| D30-2 - D30-3 |
Always |
Less than 10 Ω |
Criteria
: Airbag warning light remains on even after 6 seconds have passed.

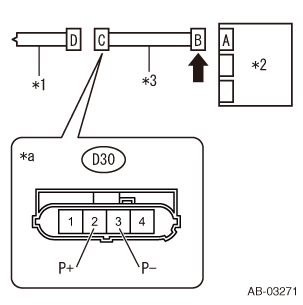

Captions in illustration
| *1 |
Passenger’s airbag module |
| *2 |
Airbag control module |
| *3 |
Airbag main harness |
| *a |
Passenger’s airbag module connector |
NG
>Replace the airbag main harness along with the body harness.
OK▼
3.
Check DTC
(1) Connect the connector (D27, G1, H17) to the airbag control module.
(2) Connect the connector (D52).
(3) Using a probe, short-circuit the terminals 2 to 3 of the connector C.
CAUTION:
When short-circuiting the terminals, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
(4) Connect the battery ground terminal and turn the ignition switch to ON.
(5) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
4.
Check passenger’s airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Connect the passenger’s airbag module connector (D30).
(3) Connect the battery ground terminal, and clear the memory.
(4) Perform the reproduction procedure.
NG
>Replace the passenger’s airbag module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1807 | Short in Passenger’s Airbag (to Ground) |
|---|
Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B1807 |
·Airbag main harness circuit is shorted to ground. ·Airbag module harness (passenger’s side) circuit is shorted to ground. ·Passenger’s airbag module is faulty. ·Airbag control module is faulty. |
·Passenger’s airbag module ·Airbag control module ·Airbag main harness |
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the passenger’s airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag main harness along with the body harness.
OK▼
2.
Check airbag main harness (passenger’s airbag harness).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Remove the column cover and disconnect the connector (D52).
(3) Disconnect the passenger’s airbag module connector (D30).
(4) Disconnect the connector (D27, G1, H17) of the airbag control module.
(5) Using a probe, measure the resistance between the terminals.
CAUTION:
When measuring the resistance, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (D30) No. 2 - chassis ground |
Always |
1 MΩ or more |
| (D30) No. 3 - chassis ground |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Passenger’s airbag module |
| *2 |
Airbag control module |
| *3 |
Airbag main harness |
| *a |
Passenger’s airbag module connector |
NG
>Replace the airbag main harness along with the body harness.
OK▼
3.
Check DTC
(1) Connect the connector (D27, G1, H17) to the airbag control module.
(2) Connect the connector (D52).
(3) Using a probe, short-circuit the terminals 2 and 3 of the connector (D30).
CAUTION:
When short-circuiting the terminals, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
(4) Connect the battery ground terminal and turn the ignition switch to ON.
(5) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
4.
Check passenger’s airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Connect the passenger’s airbag module connector (D30).
(3) Connect the battery ground terminal, and clear the memory.
(4) Perform the reproduction procedure.
NG
>Replace the passenger’s airbag module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1808 | Short in passenger’s airbag (to +B) |
|---|
Circuit description
| DTC No. |
DTC detected item |
Faulty part |
|---|---|---|
| B1808 |
·Airbag main harness circuit is shorted to power supply. ·Airbag module harness (passenger’s side) circuit is shorted to power supply. ·Passenger’s airbag module is faulty. ·Airbag control module is faulty. |
·Passenger’s airbag module ·Airbag control module ·Airbag main harness |
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the passenger’s airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag main harness along with the body harness.
OK▼
2.
Check airbag main harness (passenger’s airbag harness).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Remove the column cover and disconnect the connector (D52).
(3) Disconnect the passenger’s airbag module connector (D30).
(4) Disconnect the connector (D27, G1, H17) of the airbag control module.
(5) Using a probe, measure the voltage between the terminals.
CAUTION:
When measuring the voltage, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
Voltage
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (D30) No. 2 - chassis ground |
IG ON |
Less than 1 V |
| (D30) No. 3 - chassis ground |
IG ON |
Less than 1 V |
Captions in illustration
| *1 |
Passenger’s airbag module |
| *2 |
Airbag control module |
| *3 |
Airbag main harness |
| *a |
Passenger’s airbag module connector |
NG
>Replace the airbag main harness along with the body harness.
OK▼
3.
Check DTC
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Connect the connector (D27, G1, H17) to the airbag control module.
(3) Connect the connector (D52).
(4) Using a probe, short-circuit the terminals 2 and 3 of the connector (D30).
CAUTION:
When short-circuiting the terminals, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
(5) Connect the battery ground terminal and turn the ignition switch to ON.
(6) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
4.
Check passenger’s airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Connect the passenger’s airbag module connector (D30).
(3) Connect the battery ground terminal, and clear the memory.
(4) Perform the reproduction procedure.
NG
>Replace the passenger’s airbag module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1820 | Short in side airbag RH |
|---|
Circuit description

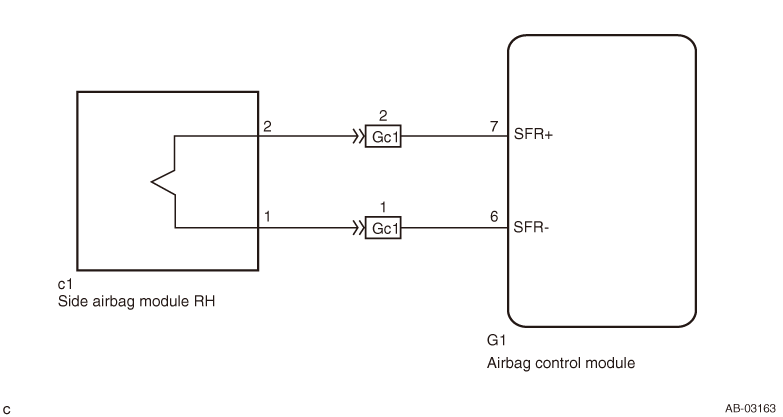

Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the side airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check airbag rear harness (side airbag module harness RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (Gc1) of the side airbag module RH.
(3) Disconnect the connector (D27, G1, H17) from the airbag control module.
(4) Connect the connector (1AH) in the test harness AH to the connector (D27, G1, H17), and release the short mechanism of the connectors.
(5) Disconnect the connector (G17) of the seat belt pretensioner RH.
(6) Disconnect the connector (G11) of the curtain airbag module RH.
(7) Using a probe, measure the resistance between the terminals of connector C.
CAUTION:
When measuring the resistance, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (Gc1) No. 1 - (Gc1) No. 2 |
Always |
1 MΩ or more |

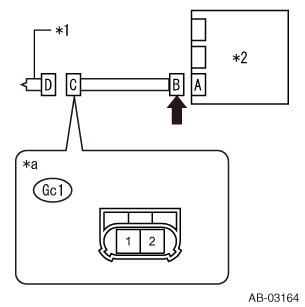

Captions in illustration
| *1 |
Side airbag module RH |
| *2 |
Airbag control module |
| *a |
Side airbag module connector |
![]() |
Release the short mechanism. |
NG
>Replace the airbag rear harness along with the body harness.
OK▼

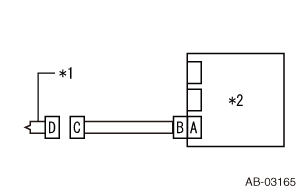

3.
Check airbag control module.
(1) Disconnect the test harness from the connector B.
(2) Connect the connector B to the airbag control module.
(3) Connect the connector (G17) of the seat belt pretensioner RH.
(4) Connect the connector (G11) of the curtain airbag module RH.
(5) Connect the battery ground terminal and turn the ignition switch to ON.
(6) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
4.
Check side airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Connect the connector (Gc1) of the side airbag module RH.
(3) Connect the battery ground terminal, and clear the memory.
(4) Perform the reproduction procedure.
NG
>Replace the side airbag module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1821 | Open in side airbag RH |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the side airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check airbag rear harness (side airbag module harness RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (Gc1) of the side airbag module RH.
(3) Disconnect the connector (D27, G1, H17) from the airbag control module.
(4) Disconnect the connector (G17) of the seat belt pretensioner RH.
(5) Disconnect the connector (G11) of the curtain airbag module RH.
(6) Using a probe, measure the resistance between the terminals of connector C.
CAUTION:
When measuring the resistance, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (Gc1) No. 1 - (Gc1) No. 2 |
Always |
Less than 10 Ω |
Captions in illustration
| *1 |
Side airbag module RH |
| *2 |
Airbag control module |
| *a |
Side airbag module connector |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
3.
Check airbag control module.
(1) Connect the connector B to the airbag control module.
(2) Connect the connector (G17) of the seat belt pretensioner RH.
(3) Connect the connector (G11) of the curtain airbag module RH.
(4) Using a test harness AT, short-circuit the terminals 1 and 2 of the connector C.
(5) Connect the battery ground terminal and turn the ignition switch to ON.
(6) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
4.
Check side airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Connect the connector (Gc1) of the side airbag module RH.
(3) Connect the battery ground terminal, and clear the memory.
(4) Perform the reproduction procedure.
NG
>Replace the side airbag module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1822 | Short in side airbag RH (to ground) |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the side airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check airbag rear harness (side airbag module harness RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (Gc1) of the side airbag module RH.
(3) Disconnect the connector (D27, G1, H17) from the airbag control module.
(4) Disconnect the connector (G17) of the seat belt pretensioner RH.
(5) Disconnect the connector (G11) of the curtain airbag module RH.
(6) Using a probe, measure the resistance between the terminals of connector C.
CAUTION:
When measuring the resistance, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (Gc1) No. 1 - chassis ground |
Always |
1 MΩ or more |
| (Gc1) No. 2 - chassis ground |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Side airbag module RH |
| *2 |
Airbag control module |
| *a |
Side airbag module connector |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
3.
Check airbag control module.
(1) Connect the connector B to the airbag control module.
(2) Connect the connector (G17) of the seat belt pretensioner RH.
(3) Connect the connector (G11) of the curtain airbag module RH.
(4) Using a test harness AT, short-circuit the terminals 1 and 2 of the connector C.
(5) Connect the battery ground terminal and turn the ignition switch to ON.
(6) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
4.
Check side airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Connect the connector (Gc1) of the side airbag module RH.
(3) Connect the battery ground terminal, and clear the memory.
(4) Perform the reproduction procedure.
NG
>Replace the side airbag module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1823 | Short in side airbag RH (to +B) |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the side airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check airbag rear harness (side airbag module harness RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (Gc1) of the side airbag module RH.
(3) Disconnect the connector (D27, G1, H17) from the airbag control module.
(4) Disconnect the connector (G17) of the seat belt pretensioner RH.
(5) Disconnect the connector (G11) of the curtain airbag module RH.
(6) Using a probe, measure the voltage between the terminals of connector C.
CAUTION:
When measuring the voltage, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
Voltage
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (Gc1) No. 1 - chassis ground |
IG ON |
Less than 1 V |
| (Gc1) No. 2 - chassis ground |
IG ON |
Less than 1 V |
Captions in illustration
| *1 |
Side airbag module RH |
| *2 |
Airbag control module |
| *a |
Side airbag module connector |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
3.
Check airbag control module.
(1) Connect the connector B to the airbag control module.
(2) Connect the connector (G17) of the seat belt pretensioner RH.
(3) Connect the connector (G11) of the curtain airbag module RH.
(4) Using a test harness AT, short-circuit the terminals 1 and 2 of the connector C.
(5) Connect the battery ground terminal and turn the ignition switch to ON.
(6) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
4.
Check side airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Connect the connector (Gc1) of the side airbag module RH.
(3) Connect the battery ground terminal, and clear the memory.
(4) Perform the reproduction procedure.
NG
>Replace the side airbag module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1825 | Short in side airbag LH |
|---|
Circuit description

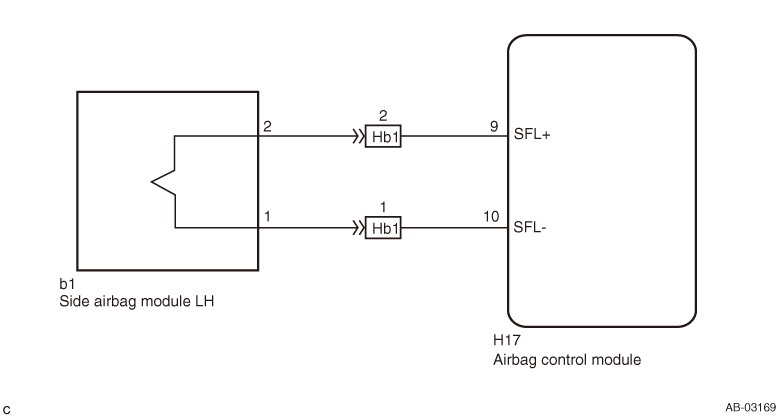

Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the side airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check airbag rear harness (side airbag module harness LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (Hb1) of the side airbag module LH.
(3) Disconnect the connector (D27, G1, H17) from the airbag control module.
(4) Connect the connector (1AH) in the test harness AH to the connector (D27, G1, H17), and release the short mechanism of the connectors.
(5) Disconnect the connector (H22) of the seat belt pretensioner LH.
(6) Disconnect the connector (H30) of the curtain airbag module LH.
(7) Using a probe, measure the resistance between the terminals of connector C.
CAUTION:
When measuring the resistance, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (Hb1) No. 1 - (Hb1) No. 2 |
Always |
1 MΩ or more |

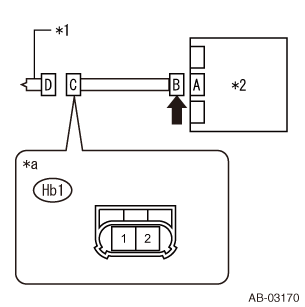

Captions in illustration
| *1 |
Side airbag module LH |
| *2 |
Airbag control module |
| *a |
Side airbag module connector |
![]() |
Release the short mechanism. |
NG
>Replace the airbag rear harness along with the body harness.
OK▼

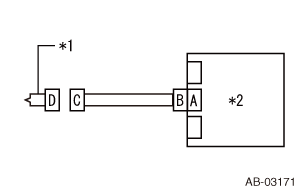

3.
Check airbag control module.
(1) Disconnect the test harness from the connector B.
(2) Connect the connector B to the airbag control module.
(3) Connect the connector (H22) of the seat belt pretensioner LH.
(4) Connect the connector (H30) of the curtain airbag module LH.
(5) Connect the battery ground terminal and turn the ignition switch to ON.
(6) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
4.
Check side airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Connect the side airbag module connector (Hb1).
(3) Connect the battery ground terminal, and clear the memory.
(4) Perform the reproduction procedure.
NG
>Replace the side airbag module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1826 | Open in side airbag LH |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the side airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check airbag rear harness (side airbag module harness LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (Hb1) of the side airbag module LH.
(3) Disconnect the connector (D27, G1, H17) from the airbag control module.
(4) Disconnect the connector (H22) of the seat belt pretensioner LH.
(5) Disconnect the connector (H30) of the curtain airbag module LH.
(6) Using a probe, measure the resistance between the terminals of connector C.
CAUTION:
When measuring the resistance, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (Hb1) No. 1 - (Hb1) No. 2 |
Always |
Less than 10 Ω |

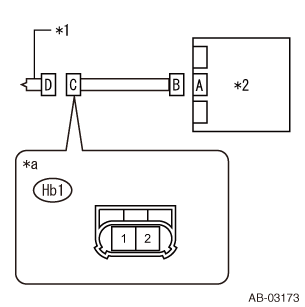

Captions in illustration
| *1 |
Side airbag module LH |
| *2 |
Airbag control module |
| *a |
Side airbag module connector |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
3.
Check airbag control module.
(1) Connect the connector B to the airbag control module.
(2) Connect the connector (H22) of the seat belt pretensioner LH.
(3) Connect the connector (H30) of the curtain airbag module LH.
(4) Using a test harness AT, short-circuit the terminals 1 and 2 of the connector C.
(5) Connect the battery ground terminal and turn the ignition switch to ON.
(6) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
4.
Check side airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Connect the side airbag module connector (Hb1).
(3) Connect the battery ground terminal, and clear the memory.
(4) Perform the reproduction procedure.
NG
>Replace the side airbag module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1827 | Short in side airbag LH (to ground) |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the side airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check airbag rear harness (side airbag module harness LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (Hb1) of the side airbag module LH.
(3) Disconnect the connector (D27, G1, H17) from the airbag control module.
(4) Disconnect the connector (H22) of the seat belt pretensioner LH.
(5) Disconnect the connector (H30) of the curtain airbag module LH.
(6) Using a probe, measure the resistance between the terminals of connector C.
CAUTION:
When measuring the resistance, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (Hb1) No. 1 - chassis ground |
Always |
1 MΩ or more |
| (Hb1) No. 2 - chassis ground |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Side airbag module LH |
| *2 |
Airbag control module |
| *a |
Side airbag module connector |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
3.
Check airbag control module.
(1) Connect the connector B to the airbag control module.
(2) Connect the connector (H22) of the seat belt pretensioner LH.
(3) Connect the connector (H30) of the curtain airbag module LH.
(4) Using a test harness AT, short-circuit the terminals 1 and 2 of the connector C.
(5) Connect the battery ground terminal and turn the ignition switch to ON.
(6) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
4.
Check side airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Connect the side airbag module connector (Hb1).
(3) Connect the battery ground terminal, and clear the memory.
(4) Perform the reproduction procedure.
NG
>Replace the side airbag module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1828 | Short in Side Airbag LH (to +B) |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the side airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check airbag rear harness (side airbag module harness LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (Hb1) of the side airbag module LH.
(3) Disconnect the connector (D27, G1, H17) from the airbag control module.
(4) Disconnect the connector (H22) of the seat belt pretensioner LH.
(5) Disconnect the connector (H30) of the curtain airbag module LH.
(6) Using a probe, measure the voltage between the terminals of connector C.
CAUTION:
When measuring the voltage, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.
Voltage
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (Hb1) No. 1 - chassis ground |
IG ON |
Less than 1 V |
| (Hb1) No. 2 - chassis ground |
IG ON |
Less than 1 V |
Captions in illustration
| *1 |
Side airbag module |
| *2 |
Airbag control module |
| *a |
Side airbag module connector |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
3.
Check airbag control module.
(1) Connect the connector B to the airbag control module.
(2) Connect the connector (H22) of the seat belt pretensioner LH.
(3) Connect the connector (H30) of the curtain airbag module LH.
(4) Using a test harness AT, short-circuit the terminals 1 and 2 of the connector C.
(5) Connect the battery ground terminal and turn the ignition switch to ON.
(6) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
4.
Check side airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Connect the side airbag module connector (Hb1).
(3) Connect the battery ground terminal, and clear the memory.
(4) Perform the reproduction procedure.
NG
>Replace the side airbag module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1830 | Short in curtain airbag RH squib circuit |
|---|
Circuit description

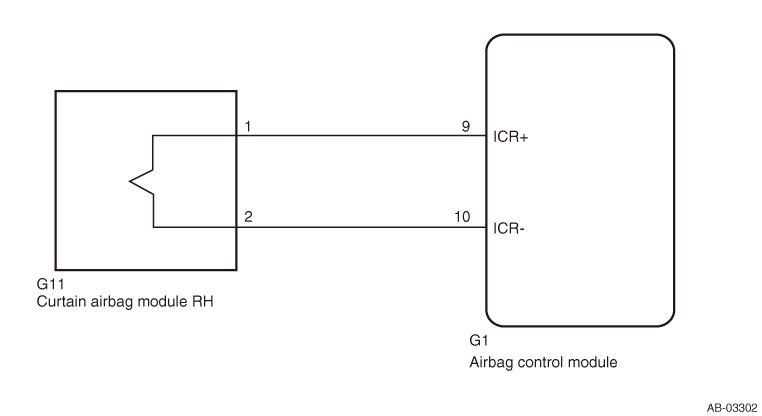

Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the curtain airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check curtain airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G11) from the curtain airbag module RH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the curtain airbag module.
OK▼
3.
Check airbag rear harness (curtain airbag module harness RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G17) from the seat belt pretensioner RH.
(3) Disconnect the connector (Gc1) from the side airbag module RH.
(4) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1831 | Open in curtain airbag RH squib circuit |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the curtain airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check curtain airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G11) from the curtain airbag module RH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the curtain airbag module.
OK▼
3.
Check airbag rear harness (curtain airbag module harness RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G17) from the seat belt pretensioner RH.
(3) Disconnect the connector (Gc1) from the side airbag module RH.
(4) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1832 | Short in curtain airbag RH squib circuit (to ground) |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the curtain airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check curtain airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G11) from the curtain airbag module RH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the curtain airbag module.
OK▼
3.
Check airbag rear harness (curtain airbag module harness RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G17) from the seat belt pretensioner RH.
(3) Disconnect the connector (Gc1) from the side airbag module RH.
(4) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1833 | Short in curtain airbag RH squib circuit (to +B) |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the curtain airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check curtain airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G11) from the curtain airbag module RH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the curtain airbag module.
OK▼
3.
Check airbag rear harness (curtain airbag module harness RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G17) from the seat belt pretensioner RH.
(3) Disconnect the connector (Gc1) from the side airbag module RH.
(4) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1835 | Short in curtain airbag LH squib circuit |
|---|
Circuit description

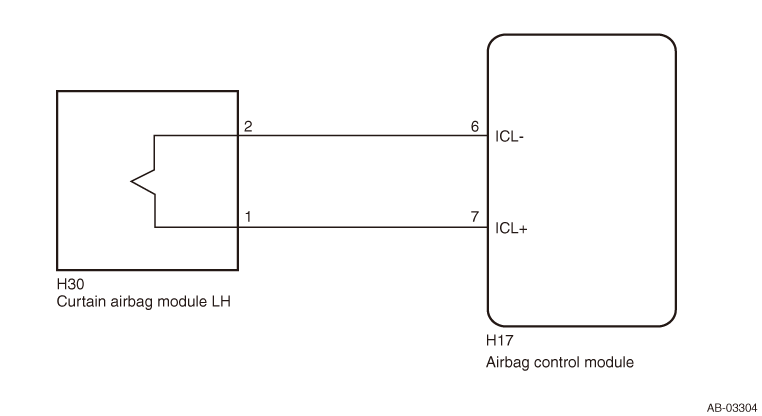

Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the curtain airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check curtain airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H30) from the curtain airbag module LH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the curtain airbag module.
OK▼
3.
Check airbag rear harness (curtain airbag module harness LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H22) from the seat belt pretensioner LH.
(3) Disconnect the connector (Hb1) from the side airbag module LH.
(4) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1836 | Open in curtain airbag LH squib circuit |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the curtain airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check curtain airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H30) from the curtain airbag module LH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the curtain airbag module.
OK▼
3.
Check airbag rear harness (curtain airbag module harness LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H22) from the seat belt pretensioner LH.
(3) Disconnect the connector (Hb1) from the side airbag module LH.
(4) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1837 | Short in curtain airbag LH squib circuit (to ground) |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the curtain airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check curtain airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H30) from the curtain airbag module LH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the curtain airbag module.
OK▼
3.
Check airbag rear harness (curtain airbag module harness LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H22) from the seat belt pretensioner LH.
(3) Disconnect the connector (Hb1) from the side airbag module LH.
(4) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1838 | Short in curtain airbag LH squib circuit (to +B) |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the curtain airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check curtain airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H30) from the curtain airbag module LH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the curtain airbag module.
OK▼
3.
Check airbag rear harness (curtain airbag module harness LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H22) from the seat belt pretensioner LH.
(3) Disconnect the connector (Hb1) from the side airbag module LH.
(4) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
(7) Measure the voltage between the terminals.
Voltage
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (5AG) No. 2 (+) - chassis ground (-) |
IG ON |
Less than 1 V |
| (5AG) No. 4 (+) - chassis ground (-) |
IG ON |
Less than 1 V |
Captions in illustration
| *1 |
Curtain airbag module LH |
| *2 |
Airbag control module |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1860 | Short in Driver’s Knee Airbag |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the knee airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag main harness.
OK▼
2.
Check knee airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (D62) from the knee airbag module.
(3) Connect the connector (1N) in the test harness N to the connector (D62).
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the knee airbag module.
OK▼
3.
Check airbag main harness (knee airbag harness).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the airbag resistor from the test harness N.
(3) Remove the column cover and disconnect the connector (D52).
(4) Disconnect the passenger’s airbag module connector (D30).
(5) Disconnect the connector (D27, G1, H17) of the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
NG
>Replace the airbag main harness along with the body harness.
OK▼
4.
Check airbag control module.
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1861 | Open in Driver’s Knee Airbag |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the driver’s airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag main harness.
OK▼
2.
Check knee airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (D62) from the knee airbag module.
(3) Connect the connector (1N) in the test harness N to the connector (D62).
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the knee airbag module.
OK▼
3.
Check airbag main harness (knee airbag harness).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the airbag resistor from the test harness N.
(3) Remove the column cover and disconnect the connector (D52).
(4) Disconnect the passenger’s airbag module connector (D30).
(5) Disconnect the connector (D27, G1, H17) of the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
(7) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3AG) No. 14 - (2N) No. 1 |
Always |
Less than 10 Ω |
| (3AG) No. 16 - (2N) No. 2 |
Always |
Less than 10 Ω |
Captions in illustration
| *1 |
Knee airbag module |
| *2 |
Airbag control module |
| *3 |
Airbag main harness |
NG
>Replace the airbag main harness along with the body harness.
OK▼
4.
Check airbag control module.
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1862 | Short in Driver’s Knee Airbag (to Ground) |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the driver’s airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag main harness.
OK▼
2.
Check knee airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (D62) from the knee airbag module.
(3) Connect the connector (1N) in the test harness N to the connector (D62).
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the knee airbag module.
OK▼
3.
Check airbag main harness (knee airbag harness).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the airbag resistor from the test harness N.
(3) Remove the column cover and disconnect the connector (D52).
(4) Disconnect the passenger’s airbag module connector (D30).
(5) Disconnect the connector (D27, G1, H17) of the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
(7) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3AG) No. 14 - chassis ground |
Always |
1 MΩ or more |
| (3AG) No. 16 - chassis ground |
Always |
1 MΩ or more |
Captions in illustration
| *1 |
Knee airbag module |
| *2 |
Airbag control module |
| *3 |
Airbag main harness |
NG
>Replace the airbag main harness along with the body harness.
OK▼
4.
Check airbag control module.
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1863 | Short in Driver’s Knee Airbag (to +B) |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the knee airbag module.
Criteria
: No fault is found.
NG
>Replace the airbag main harness.
OK▼
2.
Check knee airbag module.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (D62) from the knee airbag module.
(3) Connect the connector (1N) in the test harness N to the connector (D62).
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the knee airbag module.
OK▼
3.
Check airbag main harness (knee airbag harness).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the airbag resistor from the test harness N.
(3) Remove the column cover and disconnect the connector (D52).
(4) Disconnect the passenger’s airbag module connector (D30).
(5) Disconnect the connector (D27, G1, H17) of the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
(7) Connect the battery ground terminal and turn the ignition switch to ON.
(8) Measure the voltage between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3AG) No. 14 - chassis ground |
IG ON |
Less than 1 V |
| (3AG) No. 16 - chassis ground |
IG ON |
Less than 1 V |
Captions in illustration
| *1 |
Knee airbag module |
| *2 |
Airbag control module |
| *3 |
Airbag main harness |
NG
>Replace the airbag main harness along with the body harness.
OK▼
4.
Check airbag control module.
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1900 | Short in front P/T RH |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the seat belt pretensioner.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check seat belt pretensioner.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G17) from the seat belt pretensioner RH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the seat belt pretensioner.
OK▼
3.
Check airbag rear harness (seat belt pretensioner harness RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(3) Disconnect the connector (Gc1) from the side airbag module RH.
(4) Disconnect the connector (G11) from the curtain airbag module RH.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1901 | Open in front P/T RH |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the seat belt pretensioner.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check seat belt pretensioner.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G17) from the seat belt pretensioner RH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the seat belt pretensioner.
OK▼
3.
Check airbag rear harness (seat belt pretensioner harness RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(3) Disconnect the connector (Gc1) from the side airbag module RH.
(4) Disconnect the connector (G11) from the curtain airbag module RH.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1902 | Short in front P/T RH (to ground) |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the seat belt pretensioner.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check seat belt pretensioner.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G17) from the seat belt pretensioner RH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the seat belt pretensioner.
OK▼
3.
Check airbag rear harness (seat belt pretensioner harness RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(3) Disconnect the connector (Gc1) from the side airbag module RH.
(4) Disconnect the connector (G11) from the curtain airbag module RH.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1903 | Short in front P/T RH (to +B) |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the seat belt pretensioner.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check seat belt pretensioner.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (G17) from the seat belt pretensioner RH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the seat belt pretensioner.
OK▼
3.
Check airbag rear harness (seat belt pretensioner harness RH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(3) Disconnect the connector (Gc1) from the side airbag module RH.
(4) Disconnect the connector (G11) from the curtain airbag module RH.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
(7) Measure the voltage between the terminals.
Voltage
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3AG) No. 20 (+) - chassis ground (-) |
IG ON |
Less than 1 V |
| (3AG) No. 18 (+) - chassis ground (-) |
IG ON |
Less than 1 V |
Captions in illustration
| *1 |
Seat belt pretensioner RH |
| *2 |
Airbag control module |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1905 | Short in front P/T LH |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the seat belt pretensioner.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check seat belt pretensioner.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H22) from the seat belt pretensioner LH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the seat belt pretensioner.
OK▼
3.
Check airbag rear harness (seat belt pretensioner harness LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(3) Disconnect the connector (Hb1) from the side airbag module LH.
(4) Disconnect the connector (H30) from the curtain airbag module LH.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1906 | Open in front P/T LH |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the seat belt pretensioner.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check seat belt pretensioner.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H22) from the seat belt pretensioner LH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the seat belt pretensioner.
OK▼
3.
Check airbag rear harness (seat belt pretensioner harness LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(3) Disconnect the connector (Hb1) from the side airbag module LH.
(4) Disconnect the connector (H30) from the curtain airbag module LH.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1907 | Short in front P/T LH (to ground) |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the seat belt pretensioner.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check seat belt pretensioner.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H22) from the seat belt pretensioner LH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the seat belt pretensioner.
OK▼
3.
Check airbag rear harness (seat belt pretensioner harness LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(3) Disconnect the connector (Hb1) from the side airbag module LH.
(4) Disconnect the connector (H30) from the curtain airbag module LH.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
| DTC | B1908 | Short in front P/T LH (to +B) |
|---|
Circuit description
Circuit figure

Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1.
Check poor contact of connectors.
(1) Check for poor contact of the connectors between the airbag control module and the seat belt pretensioner.
Criteria
: No fault is found.
NG
>Replace the airbag rear harness along with the body harness.
OK▼
2.
Check seat belt pretensioner.
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the connector (H22) from the seat belt pretensioner LH.
(3) Connect the connector (1N) in the test harness N to the connector C.
(4) Connect the airbag resistor to the connector (2N) in the test harness N.
NG
>Replace the seat belt pretensioner.
OK▼
3.
Check airbag rear harness (seat belt pretensioner harness LH).
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds or more.
(2) Disconnect the airbag resistor from the connector (2N) in the test harness N.
(3) Disconnect the connector (Hb1) from the side airbag module LH.
(4) Disconnect the connector (H30) from the curtain airbag module LH.
(5) Disconnect the connector (D27, G1, H17) from the airbag control module, and connect the connector (1AH) in the test harness AH.
(6) Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
(7) Measure the voltage between the terminals.
Voltage
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| (3AG) No. 10 (+) - chassis ground (-) |
IG ON |
Less than 1 V |
| (3AG) No. 12 (+) - chassis ground (-) |
IG ON |
Less than 1 V |
Captions in illustration
| *1 |
Seat belt pretensioner LH |
| *2 |
Airbag control module |
NG
>Replace the airbag rear harness along with the body harness.
OK▼
4.
Check DTC
(1) Connect all connectors.
(2) Clear the memory.
(3) Perform the reproduction procedure.
(4) Read the DTC. (Current malfunction)
Criteria
: The same DTC is not displayed.
NG
>Replace the airbag control module.
OK▼
5.
Check DTC
Criteria
: No other DTC is displayed.
NG
>Perform the diagnosis according to the DTC.
OK▼
Complete
