Cruise Control System
Precautions Parts location System information Troubleshooting Diagnostic trouble codes
CRUISE CONTROL
CRUISE CONTROL SYSTEM
PRECAUTIONS
1. Precautions concerning cruise control system
(1) When using the cruise control system, turn the cruise control system main switch (ON-OFF button) to ON after engine has started.
(2) When not in use of cruise control system, turn the cruise control system main switch (ON-OFF button) to OFF.
(3) Pay attention to vehicle speed while driving in declining lanes even if the cruise control system is active to control the vehicle speed.
(4) +(ACCEL)/RES(RESUME) operation changes according to the cruise control system conditions. When the cruise control system controls the vehicle speed, +(ACCEL) operates. When the cruise control system does not control the vehicle speed, RES (RESUME) operates.
(5) When the cruise control indicator turns off or turns yellow against driver’s intention, a malfunction of the cruise control function may be occurring.
(6) Do not use the cruise control system under the following road conditions.
·Roads where the certain vehicle distance is difficult to be maintained due to heavy traffic
·Steep downhill lanes
·Curving lanes with a sharp bend
·Frozen or snowy roads
·Slippery roads
·Steep downhill lanes
·Curving lanes with a sharp bend
·Frozen or snowy roads
·Slippery roads
(7) Do not use the cruise control system while towing.

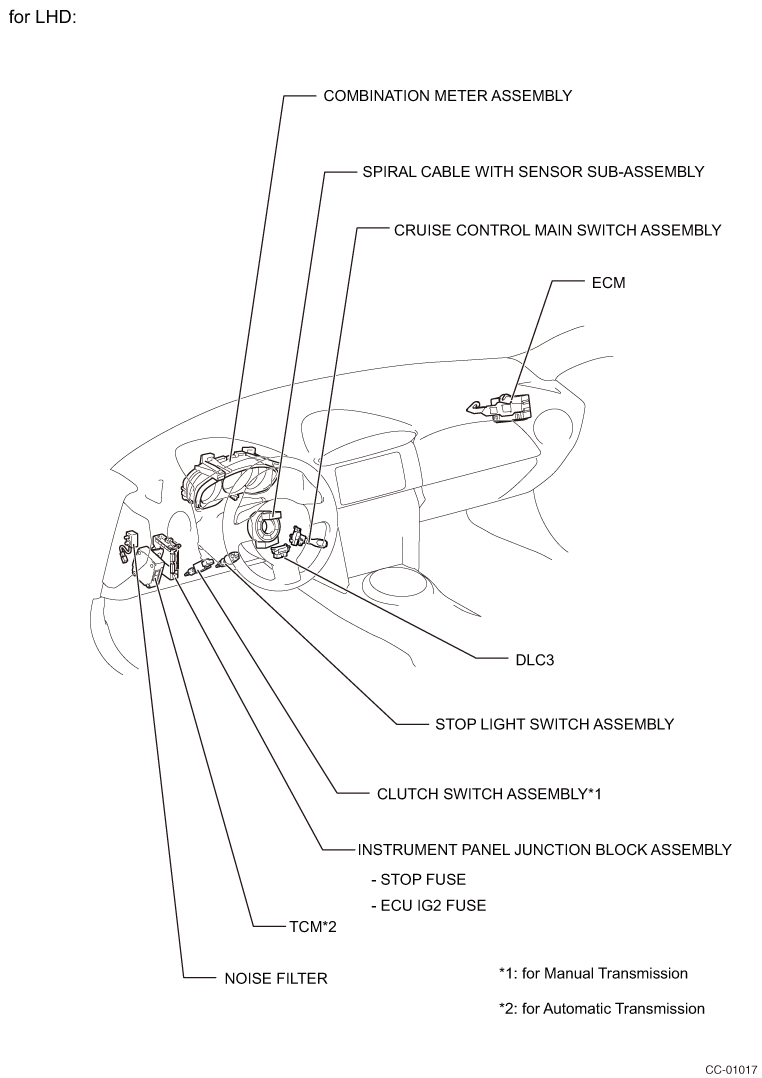

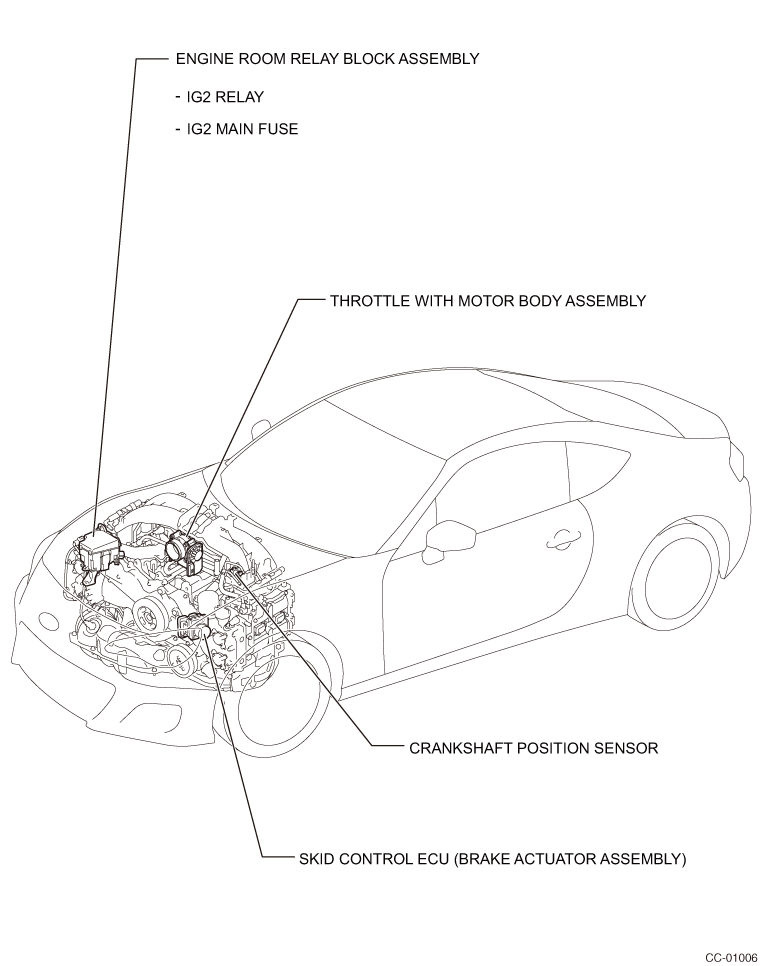

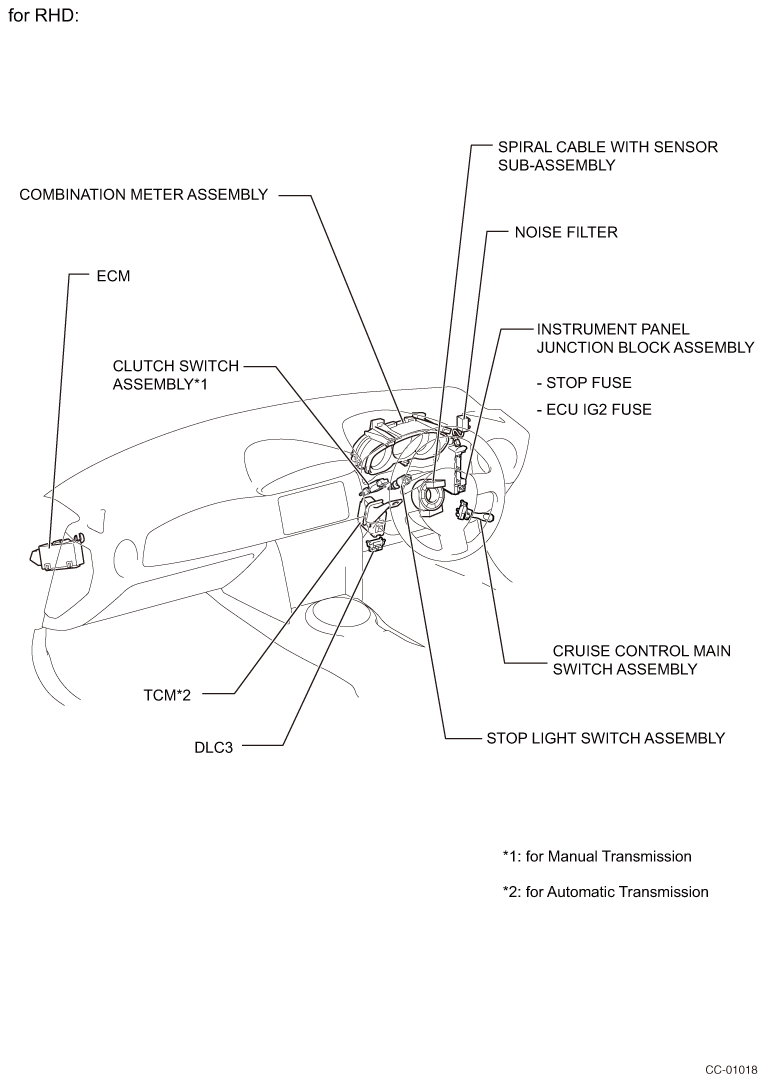

PARTS LOCATION

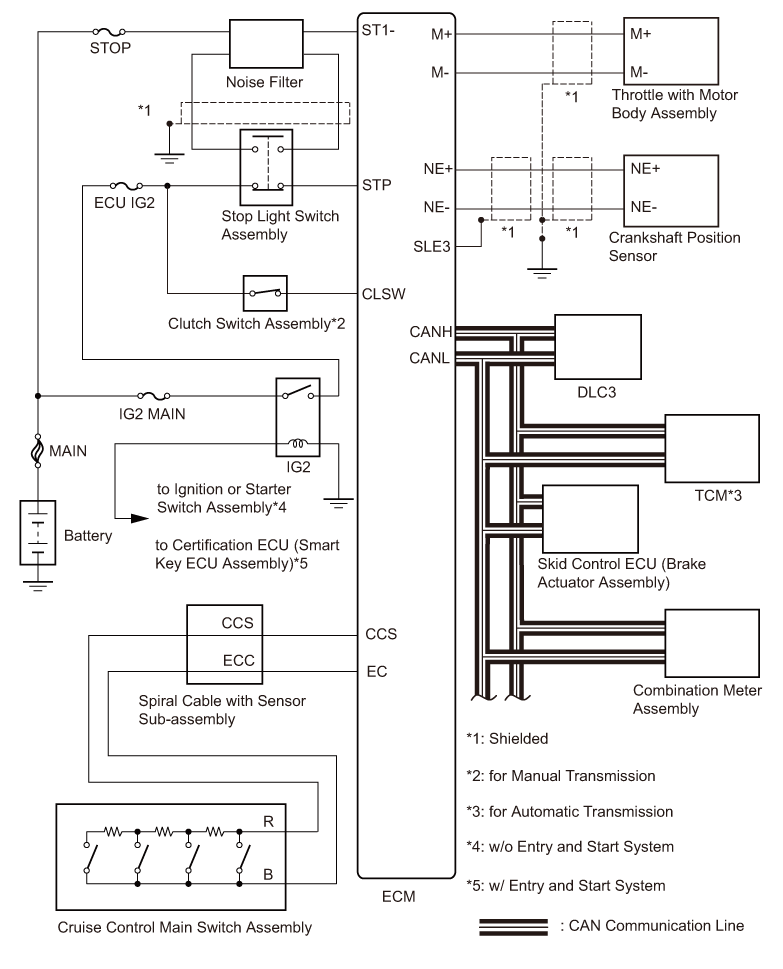

SYSTEM DIAGRAM
Communication chart
| Transmitter side |
receiver side |
Remarks |
Lines |
|---|---|---|---|
| TCM |
ECM |
Shift lever position and gear selection signal |
CAN |
| Skid control ECM |
ECM |
·Vehicle speed signal ·ABS, TRC or VSC operation signal |
CAN |
| ECM |
Combination meter ASSY (Cruise control indicator) (Cruise control SET indicator) |
Cruise control indicator and cruise control SET indicator operation signal |
CAN |
DESCRIPTION OF FUNCTIONS
1. Cruise Control System
(1) This function is controlled by ECM, and operated by throttle body. ECM controls the following functions.
: ON-OFF, -(COAST)/SET, +(ACCEL)/RES (RESUME), CANCEL, vehicle speed operation
: ON-OFF, -(COAST)/SET, +(ACCEL)/RES (RESUME), CANCEL, vehicle speed operation
(a) ECM compares the vehicle speed detected by speed sensor and the vehicle speed memorized through the cruise control main switch. When the vehicle speed exceeds the stored vehicle speed, ECM commands the throttle motor of the throttle body to close the valve, on the other hand, when the vehicle speed is lower than the stored vehicle speed, ECM commands to open the valve.
(b) ECM receives signals such as ON-OFF, -SET, +RES, CANCEL through the cruise control main switch to execute these commands.
(c) When the system turns to ON through the cruise control main switch (ON-OFF button), the cruise control indicator in the combination meter ASSY turns green through ECM.
(d) When trouble occurs while driving with the cruise control function ON, the cruise control indicator in the combination meter ASSY turns off or turns yellow through ECM.
(e) When the cruise control main switch turns to -SET while driving, the cruise control SET indicator in the combination meter ASSY turns green through ECM to start the vehicle speed control.

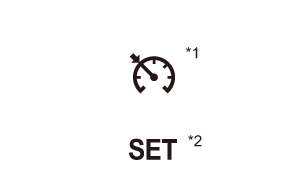

Captions in illustration
| *1 |
Cruise control indicator (illuminate green or yellow) |
*2 |
Cruise control SET indicator |
2. Vehicle speed control
(1) Minimum speed
Possible minimum speed setting is approx. 40 km/h {25 MPH}. When vehicle speed is lower than the minimum speed, the cruise control system cannot be set. When the vehicle speed lowers under the minimum speed while the cruise control controls the vehicle speed, the speed control deactivates automatically, however the stored vehicle speed will be maintained.
Possible minimum speed setting is approx. 40 km/h {25 MPH}. When vehicle speed is lower than the minimum speed, the cruise control system cannot be set. When the vehicle speed lowers under the minimum speed while the cruise control controls the vehicle speed, the speed control deactivates automatically, however the stored vehicle speed will be maintained.
(2) Maximum speed
Possible maximum speed setting is approx. 200km/h {125 MPH}. When vehicle speed exceeds the maximum speed, the cruise control system cannot be set. Also, +(ACCEL)/RES (RESUME) is not available to set the maximum speed higher.
Possible maximum speed setting is approx. 200km/h {125 MPH}. When vehicle speed exceeds the maximum speed, the cruise control system cannot be set. Also, +(ACCEL)/RES (RESUME) is not available to set the maximum speed higher.
3. Operation of the cruise control
(1) In addition to switching the cruise control system to ON/OFF, the cruise control main switch can operate the following seven functions.
: SET, -(COAST), TAP-DOWN, RES(RESUME), +(ACCEL), TAP-UP, CANCEL
: SET, -(COAST), TAP-DOWN, RES(RESUME), +(ACCEL), TAP-UP, CANCEL
(2) SET, -(COAST), TAP-DOWN activate with the switch down, while RES(RESUME), +(ACCEL), TAP-UP activate with the switch up.
(3) As the cruise control main switch is an auto return type switch, it is ON while operated in each arrowed direction, and OFF while not operated.
(a) SET control
When the cruise control main switch is in -SET while driving with the cruise control system in use (the cruise control indicator illuminates green), the vehicle speed is stored and the speed control starts.
When the cruise control main switch is in -SET while driving with the cruise control system in use (the cruise control indicator illuminates green), the vehicle speed is stored and the speed control starts.
(b) -(COAST) control
When the cruise control main switch is kept pressing to -/SET while the cruise control system is controlling the vehicle speed, the cruise control system sends the signal to ECM to operate the throttle valve motor of the throttle with the motor body ASSY, and then the throttle valve is closed. After this, when the cruise control main switch is released, the vehicle speed is stored and maintained.
When the cruise control main switch is kept pressing to -/SET while the cruise control system is controlling the vehicle speed, the cruise control system sends the signal to ECM to operate the throttle valve motor of the throttle with the motor body ASSY, and then the throttle valve is closed. After this, when the cruise control main switch is released, the vehicle speed is stored and maintained.
(c) TAP-DOWN control
When the cruise control main switch is pressed to -SET (for approx. 0.3 second) while the cruise control system is controlling the vehicle speed, the stored vehicle speed is decreased by 1.6 km/h {1 MPH} or 1 km/h {0.6 MPH} every time the switch is pressed. When the current and stored vehicle speed differs by 6.4 km/h {4 MPH} or 4 km/h {2.5 MPH} or more with the cruise control main switch pressed to -SET, the current vehicle speed is stored and the speed control is executed.
When the cruise control main switch is pressed to -SET (for approx. 0.3 second) while the cruise control system is controlling the vehicle speed, the stored vehicle speed is decreased by 1.6 km/h {1 MPH} or 1 km/h {0.6 MPH} every time the switch is pressed. When the current and stored vehicle speed differs by 6.4 km/h {4 MPH} or 4 km/h {2.5 MPH} or more with the cruise control main switch pressed to -SET, the current vehicle speed is stored and the speed control is executed.
(d) Acceleration control
When the cruise control main switch is kept pressing to +RES while the cruise control system is controlling the vehicle speed, the cruise control system sends the signal to ECM to operate the throttle valve motor of the throttle with the motor body ASSY, and then the throttle valve is opened. After this, when the cruise control main switch is released, the vehicle speed is stored and maintained.
When the cruise control main switch is kept pressing to +RES while the cruise control system is controlling the vehicle speed, the cruise control system sends the signal to ECM to operate the throttle valve motor of the throttle with the motor body ASSY, and then the throttle valve is opened. After this, when the cruise control main switch is released, the vehicle speed is stored and maintained.
(e) TAP-UP control
When the cruise control main switch is pressed to +RES (for approx. 0.3 second) while the cruise control system is controlling the vehicle speed, the stored vehicle speed is increased by 1.6 km/h {1 MPH} or 1 km/h {0.6 MPH} every time the switch is pressed. When the current and stored vehicle speed differs by 6.4 km/h {4 MPH} or 4 km/h {2.5 MPH} or more with the cruise control main switch pressed to +RES, the stored vehicle speed does not change.
When the cruise control main switch is pressed to +RES (for approx. 0.3 second) while the cruise control system is controlling the vehicle speed, the stored vehicle speed is increased by 1.6 km/h {1 MPH} or 1 km/h {0.6 MPH} every time the switch is pressed. When the current and stored vehicle speed differs by 6.4 km/h {4 MPH} or 4 km/h {2.5 MPH} or more with the cruise control main switch pressed to +RES, the stored vehicle speed does not change.
(f) RESUME control
When the vehicle speed is 32 km/h {20 MPH} or more after deactivating the cruise control intentionally (except by turning the cruise control ON-OFF switch to OFF), the vehicle speed stored at deactivating is resumed by pressing the cruise control main switch to +/RES.
When the vehicle speed is 32 km/h {20 MPH} or more after deactivating the cruise control intentionally (except by turning the cruise control ON-OFF switch to OFF), the vehicle speed stored at deactivating is resumed by pressing the cruise control main switch to +/RES.
(g) Shift down control (only AT)
When the vehicle drives downslope, the transmission shifts down when the actual vehicle speed exceeds the TCM control threshold by the specified value. When the TCM judges that the vehicle can drive according to the stored value, the transmission will shift up.
When the vehicle drives downslope, the transmission shifts down when the actual vehicle speed exceeds the TCM control threshold by the specified value. When the TCM judges that the vehicle can drive according to the stored value, the transmission will shift up.
(h) Intentional cancel operation.
By performing the following operation, the vehicle speed control by the cruise control is cancelled. (The stored vehicle speed is maintained in ECM.)
By performing the following operation, the vehicle speed control by the cruise control is cancelled. (The stored vehicle speed is maintained in ECM.)
·Brake pedal is depressed.
·Depress the clutch pedal. (for manual transmission)
·Shift the shift lever to 1st or R position. (for manual transmission)
·Shift the shift lever from D or M position to the other position. (for automatic transmission)
·Select the 1st with the shift lever in M position. (for automatic transmission)
·Use the shift paddle switch to select the 1st with the shift lever in M (using the shift paddle switch) . (for automatic transmission)
·Pull the cruise control main switch to CANCEL side.
·Turn the cruise control function to OFF using the cruise control main switch (ON-OFF button) (the stored vehicle speed in ECM will not be maintained).
·Depress the clutch pedal. (for manual transmission)
·Shift the shift lever to 1st or R position. (for manual transmission)
·Shift the shift lever from D or M position to the other position. (for automatic transmission)
·Select the 1st with the shift lever in M position. (for automatic transmission)
·Use the shift paddle switch to select the 1st with the shift lever in M (using the shift paddle switch) . (for automatic transmission)
·Pull the cruise control main switch to CANCEL side.
·Turn the cruise control function to OFF using the cruise control main switch (ON-OFF button) (the stored vehicle speed in ECM will not be maintained).
4. Auto cancel
ECM cancels the cruise control under certain conditions. The cause of cancellation can be confirmed by referring “CANCEL CODE”.
ECM cancels the cruise control under certain conditions. The cause of cancellation can be confirmed by referring “CANCEL CODE”.
HOW TO TROUBLESHOOT
NOTE:
·Follow the methods below to troubleshoot the cruise control functions.
·*: Use the SSM3.
·*: Use the SSM3.
CAUTION:
·Before performing all diagnostics or cruise control diagnostics, start the engine to check the initial illumination of ABS/VDC warning light turns off. (If you start the diagnostics before performing the above procedures, the cancel code “43” is recorded and CRUISE indicator does not illuminate even though the CRUISE switch is pressed.)
·When performing diagnosis, observe the legal speed limit on the road.
·The cancel code will also appear when the cruise control is cancelled by the driver’s operation. Do not confuse them.
·Be sure to get an assistant to support the diagnosis while driving, and have him/her operate the select monitor.
·When performing diagnosis, observe the legal speed limit on the road.
·The cancel code will also appear when the cruise control is cancelled by the driver’s operation. Do not confuse them.
·Be sure to get an assistant to support the diagnosis while driving, and have him/her operate the select monitor.
1.
Bring in the car
Next▼
2.
Battery voltage check
(1) Turn IG SW to OFF to check the battery.
Standard voltage
: 11 to 14 V
NOTE:
When the voltage is under 11 V, replace or charge the battery before the next step.
Next▼
3.
Check CAN communication system.
(1) Check CAN communication system. (Refer to
)
)
Criteria
: No fault is found.
NO
>Repair according to the check of CAN communication system.
YES▼
4.
Check malfunction indicator light.
(1) Make sure the malfunction indicator light illuminates.
Criteria
: No illumination
NO
>Go to Step 8.
YES▼
5.
Check CRUISE indicator light.
(1) Check the illumination of the CRUISE indicator.
Criteria
: No yellow illumination
NO
>Go to Step 10.
YES▼
6.
Check CRUISE switch operation.
(1) Check the CRUISE switch operation. (Check the illumination of the CRUISE indicator.)
Criteria
: CRUISE switch turns on (CRUISE indicator illuminates)
NO
>Perform Diagnostics with Phenomenon 1 (Refer to)
)YES▼
7.
Check cruise control set operation.
(1) Check the cruise control setting operation.
Criteria
: The cruise control can be set while driving at 40 km/h {25 MPH} or more.
NO
>To procedure 10 on diagnostic procedures according to symptoms
YES▼
Go to Step 11.
8.
Check DTC
(1) Read all DTCs using SSM3.
Criteria
: The engine or ABS/VDC related DTC displays.
NO
>Perform Diagnostics with Phenomenon 2 (Refer to)
)YES▼
9.
Check freeze frame data.
(1) Record the DTC displayed.
(2) Using the Subaru Select Monitor, check the Freeze Frame Data or Information in Trouble State.
Criteria
: The Freeze Frame Data or Information in Trouble State is recorded.
NO
>Perform the diagnosis according to the engine or ABS/VDC related DTC.
YES▼
Record the data. Perform the diagnosis according to the engine or ABS/VDC related DTC.
10.
Check cancel code.
(1) Using SSM3, read the cancel codes.
NOTE:
·Do not turn the ignition switch to OFF after the cruise control is deactivated.
·Do not operate the cruise control command switch after the cruise control is deactivated.
·Do not operate the cruise control command switch after the cruise control is deactivated.
If the above is performed, the cancel code will be cleared.
Criteria
: Cancel codes are not recorded.
NO
>Perform diagnosis according to the cancel codes.
YES▼
11.
Check set indicator.
(1) Check the illumination of the SET indicator.
Criteria
: SET indicator illuminates.
NO
>Perform Diagnostics with Phenomenon 3 (Refer to)
)YES▼
12.
Check vehicle speed is held within set speed.
(1) Vehicle speed is held within set speed ±3 km/h {±2 MPH}.
NOTE:
Check on level ground.
Criteria
: Speed is held.
NO
>Perform Diagnostics with Phenomenon 4 (Refer to)
)YES▼
13.
+RES operation check
(1) Check +RES switch operation.
Criteria
: The vehicle speed increases or returns to set speed after +RES switch has been pressed.
NO
>Perform Diagnostics with Phenomenon 5 (Refer to)
)YES▼
14.
-SET operation check
(1) Check -SET switch operation.
Criteria
: The vehicle speed decreases after -SET switch has been pressed.
NO
>Perform Diagnostics with Phenomenon 6 (Refer to)
)YES▼
15.
Cancel operation check
(1) Check the CANCEL switch operation.
Criteria
: Cruise control is released after CANCEL switch has been pressed.
NO
>Perform Diagnostics with Phenomenon 7 (Refer to)
)YES▼
16.
Check cruise control release operation.
(1) Check the cruise control release operation.
Criteria
: Cruise control is released after brake pedal has been depressed.
NO
>Perform Diagnostics with Phenomenon 8 (Refer to)
)YES▼
17.
Check cruise control release operation.
(1) Check the cruise control release operation.
Criteria
: Cruise control is released after shifting to the neutral position.
NO
>Perform Diagnostics with Phenomenon 9 (Refer to)
)YES▼
18.
Check cruise control release operation.
(1) Check the cruise control release operation.
Criteria
: Cruise control is released after clutch pedal has been depressed.
NO
>Perform Diagnostics with Phenomenon 10 (Refer to)
)YES▼
Complete
DIAGNOSTICS WITH PHENOMENON
1. Diagnostic procedures according to symptoms
| Phenomenon |
Check Item |
Note |
|
|---|---|---|---|
| 1 |
ON-OFF switch is not turned ON. (CRUISE indicator does not illuminate.) Or the cruise control is cancelled without CRUISE switch operation. |
(1) Perform cruise cancel conditions diagnosis. |
Perform the diagnosis according to displayed cancel code. |
| (2) Perform the data list diagnosis. |
Check the input signal of cruise control system. |
||

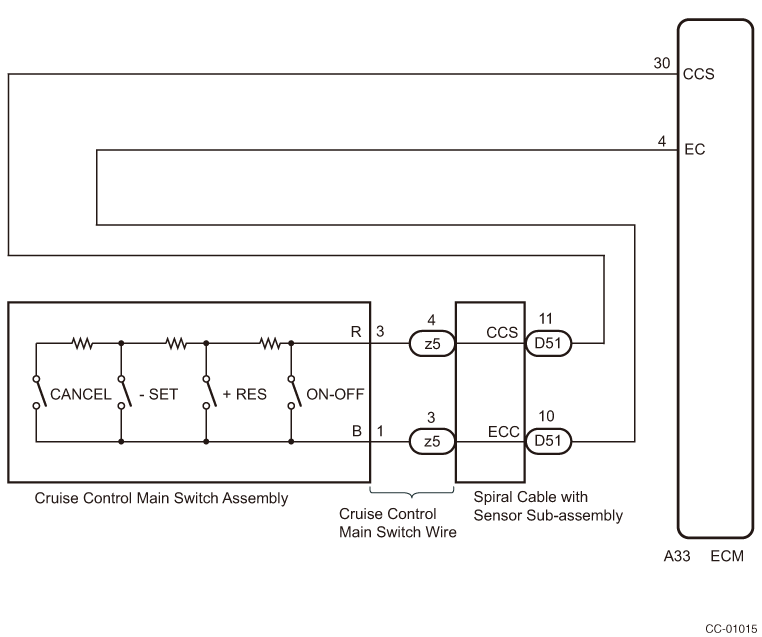

| (3) Check the cruise control command switch. |
Perform the diagnosis according to the Cancel Code 11. (Refer to ) |
||
| (4) Check the CRUISE indicator. |
Perform the diagnosis according to the check of CRUISE indicator & SET indicator. |
||
| 2 |
Cruise control cannot be set. Or cruise control is cancelled without releasing operation. |
(1) Perform cruise cancel conditions diagnosis. |
Perform the diagnosis according to displayed cancel code. |
| (2) Perform the data list diagnosis. |
Check the input signal of cruise control system. |
||
| (3) Check the cruise control command switch. |
Perform the diagnosis according to the Cancel Code 11. (Refer to ) |
||

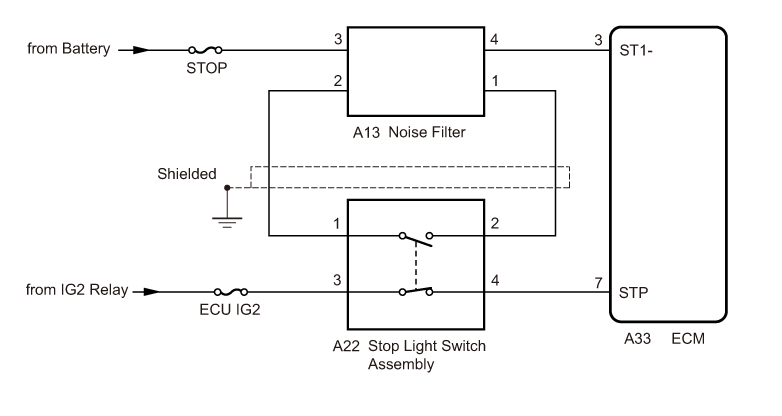

| (4) Check stop light switch and brake switch. |
Perform the diagnosis according to the Cancel Code 12. (Refer to ) |
||
| (5) Check the neutral position switch. |
Perform the diagnosis according to the Cancel Code 14 or 62. |
||
| (6) Check vehicle speed sensor. |
Perform the diagnosis according to the Cancel Code 22. (Refer to ) |
||
| 3 |
SET indicator does not illuminate. |
Check the SET indicator. |
Perform the diagnosis according to the check of CRUISE indicator & SET indicator. |
| 4 |
Vehicle speed is not held within set speed ±3 km/h (±2 MPH). |
Check the vehicle speed sensor. |
Perform the diagnosis according to the Cancel Code 22. (Refer to ) |
| 5 |
Vehicle speed does not increase or does not return to set speed after +RES switch has been pressed. |
(1) Perform the data list diagnosis. |
Check the input signal of cruise control system. |
| (2) Check the +RES switch. |
Perform the diagnosis according to the Cancel Code 11. (Refer to ) |
||
| 6 |
Vehicle speed does not decrease after -SET switch has been pressed. |
(1) Perform the data list diagnosis. |
Check the input signal of cruise control system. |
| (2) Check the -SET switch. |
Perform the diagnosis according to the Cancel Code 11. (Refer to ) |
||
| 7 |
Cruise control is not released after CANCEL switch has been pressed. |
(1) Perform the data list diagnosis. |
Check the input signal of cruise control system. |
| (2) Check the CANCEL switch. |
Perform the diagnosis according to the Cancel Code 11. (Refer to ) |
||
| 8 |
Cruise control is not released after brake pedal has been depressed. |
(1) Perform the data list diagnosis. |
Check the input signal of cruise control system. |
| (2) Check stop light switch and brake switch. |
Perform the diagnosis according to the Cancel Code 12. (Refer to ) |
||
| 9 |
Cruise control is not released after shifting to the neutral position. |
(1) Perform the data list diagnosis. |
Check the input signal of cruise control system. |
| (2) Check the neutral position switch. |
Perform the diagnosis according to the Cancel Code 14. (Refer to ) |
||
| 10 |
Cruise control is not released after clutch pedal has been depressed. |
Perform the data list diagnosis. |
Check the input signal of cruise control system. |
| Check the clutch switch. |
Perform the diagnosis according to the Cancel Code 13. (Refer to ) |
||
2. Check CRUISE indicator & SET indicator.
TROUBLE SYMPTOM:
Cruise control can be set, but the CRUISE indicator & SET indicator do not illuminate.
1.
Check CRUISE indicator & SET indicator.
(1) Check the combination meter.
Criteria
: CRUISE indicator & SET indicator illuminate.
NO
>Replace the combination meter.
YES▼
2.
Check CAN communication system.
(1) Check CAN communication system. (Refer to )
)
Criteria
: No fault is found.
NO
>Repair according to the check of CAN communication system.
YES▼
Replace the ECM.

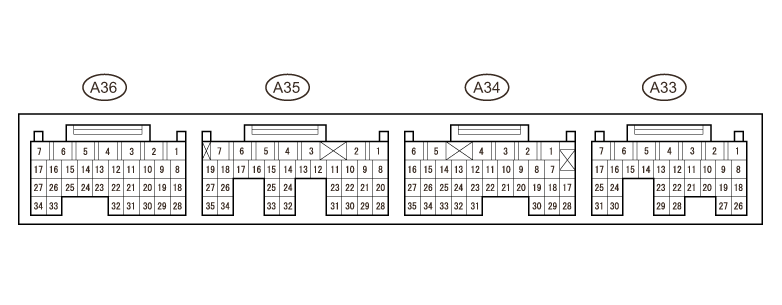

ECM TERMINAL ARRANGEMENT
1. Check ECM.
| Terminal No. (. symbol) |
Terminal description |
Condition |
Standard value |
|---|---|---|---|
| A33-3 (BRK2) - A33-4 (GNDBY) |
Brake signal |
IG ON, brake pedal depressed |
Less than 1 V |
| IG ON, brake pedal released |
11 to 14 V |
||
| A33-7 (BRK2) - A33-4 (GNDBY) |
Stop light signal |
IG ON, brake pedal depressed |
11 to 14 V |
| IG ON, brake pedal released |
Less than 1 V |
||
| A33-15 (CLT)* - A33-4 (GNDBY) |
Clutch switch circuit |
IG ON, clutch pedal depressed |
Less than 1 V |
| IG ON, clutch pedal released |
11 to 14 V |
||
| A33-30 (CCMD) - A33-4(GNDBY) |
Cruise control main switch circuit |
All switch OFF released |
1 MΩ or more |
| Cruise ON/OFF switch ON |
Less than 1 Ω |
||
| +RES switch ON |
235 to 245 Ω |
||
| -SET Switch ON |
617 to 643 Ω |
||
| CANCEL switch ON |
1509 to 1571 Ω |
*
: For manual transmission
SUBARU SELECT MONITOR
1. OPERATION
The on-board diagnosis function of the cruise control system uses Subaru Select Monitor. The on-board diagnosis function operates in two categories, which are used depending on the type of problems.
The on-board diagnosis function of the cruise control system uses Subaru Select Monitor. The on-board diagnosis function operates in two categories, which are used depending on the type of problems.
(1) Cruise Control Cancel Conditions Diagnosis:
·This category of diagnosis requires actual vehicle driving in order to determine the cause, as when cruise speed is cancelled during driving although cruise cancel condition is not entered.
·Cruise control memory in ECM stores the cancel code which occurred during driving. When there are multiple cancel code, they are shown on the Subaru Select Monitor.
·Cruise control memory in ECM stores the cancel code which occurred during driving. When there are multiple cancel code, they are shown on the Subaru Select Monitor.
CAUTION:
·In the cruise control memory, not only the cruise control “cancel” occurred (although the “cancel” operation is not entered by the driver), but also the “cancel” condition input by the driver is stored.
·The latest memory content (latest code) is cleared when ignition switch is turned to OFF. However, memory contents set by the diagnosis of faulty switches related to the system and cruise control will remain as trouble history (memory code) after the ignition switch is turned to OFF.
·The latest memory content (latest code) is cleared when ignition switch is turned to OFF. However, memory contents set by the diagnosis of faulty switches related to the system and cruise control will remain as trouble history (memory code) after the ignition switch is turned to OFF.
(2) Data list diagnostics:
Data list diagnosis function is used to determine whether or not the input signal system is in good order, according to signal emitted from switches, sensors, etc.
Data list diagnosis function is used to determine whether or not the input signal system is in good order, according to signal emitted from switches, sensors, etc.
·Vehicle cannot be driven at cruise speed when the problem occurs in the cruise control system or relevant circuits.
·Monitor the signal conditions from switches and sensors.
·Monitor the signal conditions from switches and sensors.
2. BASIC OPERATION
For operation procedures, refer to the “PC application help for Subaru Select Monitor”.
For operation procedures, refer to the “PC application help for Subaru Select Monitor”.
CANCEL CODE READING
1. OPERATION
(1) Connect the SSM3 to the DLC3.
(2) Start the engine.
(3) Turn on the SSM3.
(4) Select from the following menu items: [Each System Check]/[Engine System Control]/[Cancel Code(s) Display]
(5) Drive vehicle at 40 km/h {25 MPH} or more and set the cruise control.
CAUTION:
·When performing diagnosis, observe the legal speed limit on the road.
·The cancel code will also appear when the cruise control is cancelled by the driver’s operation. Do not confuse them.
·Be sure to get an assistant to support the diagnosis while driving, and have him/her operate the select monitor.
·The cancel code will also appear when the cruise control is cancelled by the driver’s operation. Do not confuse them.
·Be sure to get an assistant to support the diagnosis while driving, and have him/her operate the select monitor.
(6) When the set speed is cancelled by itself (when cancelled without a cancel operation such as applying the brake) or if the cruise control could not be set by performing the setting operation, selecting the [Cancel Code(s) Display] on the engine malfunction diagnosis screen will display the cancel code on the select monitor display.
NOTE:
The [Latest Diagnostic Code(s)] and [Memorized Diagnostic Code(s)] are contained in the cancel code. The latest code recognized during current test drive is displayed in [Latest Diagnostic Code(s)]. Cancel codes resulting from fault diagnosis of switches relating to the system and cruise control are also displayed in [Memorized Diagnostic Code(s)].
(7) Perform Engine DTC Clear Memory operation. Cancel codes for switches relating to the system and cruise control are deleted by clearing memory on the engine side.
NOTE:
·The latest code will be cleared by turning ignition switch to OFF.
·For detailed operation procedures, refer to “PC application help for Subaru Select Monitor”.
·For details on cancel codes, refer to List of Cancel Codes.
·For detailed operation procedures, refer to “PC application help for Subaru Select Monitor”.
·For details on cancel codes, refer to List of Cancel Codes.
LIST OF CANCEL CODES
NOTE:
·The cancel code is registered even when cancel is performed intentionally by the driver.
·Cancel codes are cleared if the ignition switch is turned to OFF.
·If a different cancel code is input after a cancel code (latest code) has been input, the latest code is overwritten.
·If the cruise indicator light turns yellow, a malfunction is occurring in the system or cruise control related switch. The cancel code at this time is saved even after ignition switch is OFF as a memory code of a past malfunction.
·To display a cancel code, use the Subaru Select Monitor to read the code after the cruise control is deactivated during a driving test.
·Cancel codes are cleared if the ignition switch is turned to OFF.
·If a different cancel code is input after a cancel code (latest code) has been input, the latest code is overwritten.
·If the cruise indicator light turns yellow, a malfunction is occurring in the system or cruise control related switch. The cancel code at this time is saved even after ignition switch is OFF as a memory code of a past malfunction.
·To display a cancel code, use the Subaru Select Monitor to read the code after the cruise control is deactivated during a driving test.
| Cancel code |
Item |
Content of diagnosis |
Note |
|---|---|---|---|
| 11 |
[Main switch] |
ON-OFF switch of cruise control main switch is turned to OFF, and then the cruise control is released. |
This code is displayed without operating the CRUISE switch. Refer to Cancel Code 11. (Refer to ) |
| 12 |
[Stop & Brake switch] |
Stop light switch or brake switch is turned to ON, and then the cruise control is released. |
This code is displayed without depressing the brake pedal. Refer to Cancel Code 12. (Refer to ) |
| 13 |
[Clutch switch] |
Clutch switch is turned to ON, and then the cruise control is released. |
This code is displayed without depressing the clutch pedal. Refer to Cancel Code 13. (Refer to ) |
| 14 |
[Neutral switch] |
Neutral position switch is turned to ON, and then the cruise control is released. |
This code is displayed without shifting to neutral position. Refer to Cancel Code 14. (Refer to ) |
| 15 |
[Cancel switch] |
Cancel switch is turned to ON, and then the cruise control is released. |
This code is displayed without operating the cancel switch. Refer to Cancel Code 15. (Refer to ) |
| 16 |
[Ignition Switch] |
Ignition switch is turned to OFF, and then the cruise control is released. |
This code is displayed without operating the ignition switch. Refer to Cancel Code 16. (Refer to ) |
| 22 |
[Abnormality of change in vehicle speed] |
Malfunction of vehicle speed signal variation is detected. |
Refer to Cancel Code 22. (Refer to ) |
| 24 |
[Abnormality of switches related to cruise control] |
Open circuit of cruise control switch is detected during cruise driving. (The system is judged as model without cruise control.) |
This code is displayed with normal operation. Refer to Cancel Code 24. (Refer to ) |
| 31 |
[Abnormal engine speed Signal] |
·Abnormal increase of engine speed is detected. ·Gear is placed in Neutral, 1st or Reverse position. |
Cruise in 2nd shift position or more. Refer to Cancel Code 31. (Refer to ) |
| 32 |
[Cruse Control out of Range] |
·Controlled vehicle speed decreased under the limit during cruising. ·Set operation was performed at vehicle speed unavailable for setting. ·RESUME operation was performed without memorized vehicle speed. |
This code is displayed, though the vehicle speed is increased to the speed available for cruise set and set operation was performed again. Refer to Cancel Code 32. (Refer to ) |
| 34 |
[Prohibition of cruise control at continuing big Accel. angle] |
The vehicle has been driven at higher speed than set vehicle speed for an abnormally long time (approximately 10 minutes) during cruise driving. |
This code is displayed when driving for a long period of time at higher speed than appropriate cruise set vehicle speed by operating accelerator pedal. In this case, the cruise setting is deactivated. Refer to Cancel Code 34. (Refer to ) |
| 35 |
[Prohibition of cruise control at vehicle speed F/B malfunction] |
Set vehicle speed cannot be kept because of some reasons (steep uphill, parking brake, abnormal decrease of engine output, etc.) during cruise driving. |
This code is displayed when driving condition is not suitable for cruise control. Perform cruise set operation again after clearing the possible cause. Refer to Cancel Code 35. (Refer to ) |
| 41 |
[VDC/TCS Operating] |
Vehicle dynamics control (VDC) or TCS is activated during cruise driving or cruise setting. |
This code is displayed when driving condition is not suitable for cruise control. Perform cruise set operation again after clearing the possible cause. Refer to Cancel Code 41. (Refer to ) |
| 43 |
[ABS/VDC Failure] |
·During cruise driving or cruise setting, the situation that some or all functions for ABS or VDC can not work is detected. ·CRUISE indicator does not illuminate even though you pressed the CRUISE switch before starting the engine. |
Refer to Cancel Code 43. (Refer to ) |
| 45 |
[Meter Failure] |
Combination meter malfunction is detected during cruise driving or cruise setting. |
Refer to Cancel Code 45. (Refer to ) |
| 49 |
[TCM Failure] |
Transmission control module (TCM) malfunction is detected during cruise driving or cruise setting. |
Refer to Cancel Code 49. (Refer to ) |
| 61 |
[Brake switch abnormal] |
Malfunction in the stop light & brake switch is detected. |
Refer to Cancel Code 61. (Refer to ) |
| 62 |
[Neutral Switch Failure] |
Neutral position switch malfunction is detected. |
Refer to Cancel Code 62. (Refer to ) |
| 63 |
[Abnormality 1 of change in vehicle speed] |
Malfunction of vehicle speed signal variation is detected. |
Refer to Cancel Code 63. (Refer to ) |
| 64 |
[Engine Sensor Failure 1] |
Malfunction related to engine is detected. |
Refer to Cancel Code 64. (Refer to ) |
| 65 |
[Abnormality 1 of switches related to cruise control] |
Cruise control command switch malfunction is detected. (When the switch is pressed ON for a long time (approximately two minutes), stuck ON condition is detected.) |
Refer to Cancel Code 65. (Refer to ) |
DATA LIST DIAGNOSTICS
1. OPERATION
(1) Connect the SSM3 to the DLC3.
(2) Start the engine.
(3) Turn on the SSM3.
(4) Select from the following menu items: [Each System Check]/[Engine System Control]/[Current Data Display & Save]
(5) Make sure that normal display is shown when operated as follows:
·Depress and release the brake pedal. (Stop light switch and brake switch turn ON).
·Turn the “ON-OFF” switch to ON.
·Turn the “-SET” switch to ON.
·Turn the “+RES” switch to ON.
·Depress or release the clutch switch.
·Place the shift lever in any position other than neutral.
·Turn the “CANCEL” switch to ON.
·Turn the “ON-OFF” switch to ON.
·Turn the “-SET” switch to ON.
·Turn the “+RES” switch to ON.
·Depress or release the clutch switch.
·Place the shift lever in any position other than neutral.
·Turn the “CANCEL” switch to ON.
NOTE:
For detailed operation procedures, refer to “PC application help for Subaru Select Monitor”.
| Cancel Code 11 |
|---|
Circuit description
In addition to switching the cruise control system to ON/OFF, the cruise control main switch can operate the following seven functions. For SET, -(COAST), TAP DOWN, use -SET switch. For RES, +(ACCEL), TAP UP, use +RES switch. For CANCEL, use CANCEL switch. As the cruise control main switch is an auto return type switch, it is ON while operated in each arrowed direction, and OFF while not operated. When the inner contact of the cruise control main switch is turned on by the switch operation, the ECM reads the operating voltage for each switch.
Circuit figure
Inspection steps
1.
Check cruise control main switch circuit.
(1) Remove the driver’s airbag module.
(2) Disconnect the harness connector of cruise control command switch.
(3) Turn the ignition switch to ON.
NG
>Check the roll connector, and repair or replace the harness.
OK▼
2.
Check cruise control main switch circuit.
(1) Turn the ignition switch to OFF.
(2) Remove the cruise control command switch.
(3) Turn the ignition switch to ON.
NG
>Check ECM, and repair or replace the harness.
OK▼
3.
Check cruise control main switch circuit.
(1) Measure the resistance when the cruise control main switch is not in operation.
NG
>Replace the cruise control main switch.
OK▼
4.
Check cruise control main switch circuit.
(1) Measure the resistance when the cruise control ON-OFF switch is pressed.
NG
>Replace the cruise control main switch.
OK▼
5.
Check cruise control main switch circuit.
NG
>Replace the cruise control main switch.
OK▼
6.
Check cruise control main switch circuit.
NG
>Replace the cruise control main switch.
OK▼
7.
Check cruise control main switch circuit.
NG
>Replace the cruise control main switch.
OK▼
Replace the ECM.
| Cancel Code 12 |
|---|
Circuit description
When the brake pedal is released, ECM terminal BRK1 receives positive (+) battery voltage through IG2 fuse. While the brake pedal is depressed, the stop light switch sends signals to ECM terminal BRK1 and BRK2. When terminal BRS1 receives the signal, ECM cancels the cruise control driving.
Circuit figure
Inspection steps
1.
Check brake switch.
(1) Check the brake switch.
Criteria
: The switch and its installation position is correct.
NG
>Replace the switch main body or adjust its installation position.
OK▼
2.
Check brake switch circuit.
(1) Turn the ignition switch to OFF.
(2) Disconnect the parking brake switch connector.
(3) Turn the ignition switch to ON.
NG
>Check the fuse, and repair or replace the harness.
OK▼
3.
Check brake switch circuit.
(1) Turn the ignition switch to OFF.
(2) Disconnect the ECM connector.
(3) Turn the ignition switch to ON.
NG
>Repair or replace the harness.
OK▼
Replace the ECM.
| Cancel Code 13 |
|---|
Circuit description
When the clutch pedal is released, ECM receives positive (+) battery voltage through IG2 fuse. While the clutch pedal is depressed, the clutch switch sends signals to ECM terminal CLT. When terminal CLT receives the signal, ECM cancels the cruise control driving.

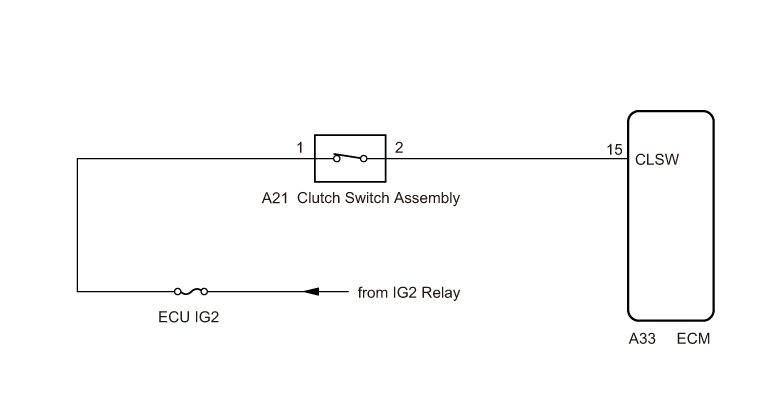

Circuit figure
Inspection steps
1.
Check clutch switch.
(1) Check the clutch switch.
Criteria
: The switch and its installation position is correct.
NG
>Replace the switch main body or adjust its installation position.
OK▼
2.
Check clutch switch circuit.
(1) Turn the ignition switch to OFF.
(2) Disconnect the clutch switch connector.
(3) Turn the ignition switch to ON.
NG
>Check the fuse, and repair or replace the harness.
OK▼
3.
Check clutch switch circuit.
(1) Turn the ignition switch to OFF.
(2) Disconnect the ECM connector.
(3) Turn the ignition switch to ON.
NG
>Repair or replace the harness.
OK▼
Replace the ECM.
| Cancel Code 14 |
|---|
Circuit description
Detected when select lever is set in the neutral position, or when malfunction related to neutral position switch occurs.
Circuit figure
Inspection steps
1.
Check neutral start switch circuit.
(1) Disconnect the connector for neutral start switch ASSY.
(2) Turn the ignition switch to ON.
NG
>Repair or replace the harness.
OK▼
2.
Check neutral start switch circuit.
(1) Turn the ignition switch to OFF.
NG
>Repair or replace the harness.
OK▼
3.
Check neutral start switch.
(1) Perform a unit inspection of neutral start switch.
Criteria
: No fault is found.
NO
>Replace neutral start switch.
YES▼
Replace the ECM.
| Cancel Code 15 |
|---|
Circuit description
Detected when CANCEL switch is pressed or malfunction related to CRUISE switch occurs.
Inspection steps
Perform the inspection according to the Cancel Code 11. (Refer to )
)| Cancel Code 16 |
|---|
Circuit description
Detected when ignition switch is turned to OFF or malfunction related to the ignition switch occurs.

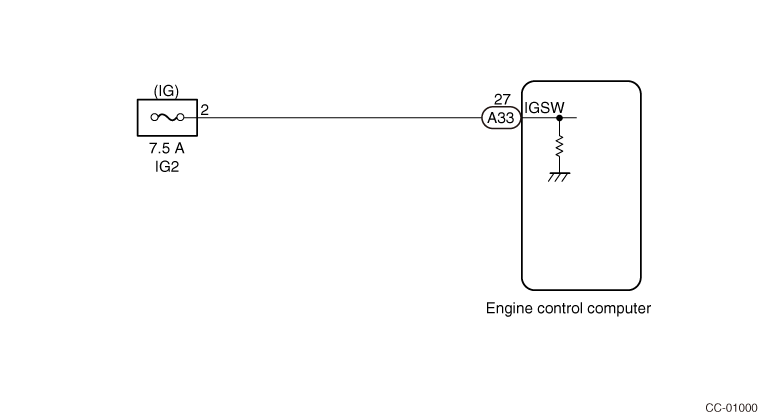

Circuit figure
Inspection steps
1.
Check ignition switch circuit.
(1) Turn the ignition switch to OFF.
(2) Disconnect the ECM harness connector.
(3) Turn the ignition switch to ON.
NG
>Check the fuse, or repair or replace the harness.
OK▼
Check poor contact of connector.
| Cancel Code 22 |
|---|
Circuit description
Malfunction related to vehicle speed sensor is detected.
Inspection steps
1.
Check ABS or VDC warning light.
(1) Turn the ignition switch to ON.
(2) After the initial operation of combination meter is completed, check if ABS or VDC warning light continues to illuminate.
Criteria
: Warning light is OFF.
NO
>Check VSC system. (For procedures, refer to )
)YES▼
2.
Check CAN communication system.
(1) Check CAN communication system. (Refer to )
)
Criteria
: No fault is found.
NO
>Repair according to the CAN communication system.
YES▼
Replace the ECM.
| Cancel Code 24 |
|---|
Circuit description
Malfunction in cruise control-related switch is detected.
Inspection steps
Perform the inspection according to the Cancel Code 11. (Refer to )
)| Cancel Code 31 |
|---|
Circuit description
Engine speed signal malfunction is detected.
Abnormal increase of engine speed is detected.
Gear is placed in 1st or Reverse position.
Inspection steps
After driving at the 2nd gear position or higher, perform the cruise setting again. If a cancel code is not detected, it is normal.
| Cancel Code 32 |
|---|
Circuit description
Detected when the vehicle speed is out of the system controllable range.
Inspection steps
Increase vehicle speed high enough to allow the cruise control to function, and then perform setting operation again.
If cancel code is still detected after setting cruise again, perform the inspection according to Cancel Code 22. (Refer to )
)| Cancel Code 34 |
|---|
Circuit description
The vehicle has been driven at a speed higher than set speed for a long time (approximately 10 minutes) during cruise driving.
This cancel code is detected when driving for a long period of time at a speed higher than appropriate for cruise control setting by operating the accelerator pedal.
Inspection steps
Perform the cruise control setting operation again. If the cancel code is not detected, it is normal.
| Cancel Code 35 |
|---|
Circuit description
Detected when it is impossible to perform the vehicle speed feedback.
Set vehicle speed cannot be kept for some reasons (steep uphill, unreleased parking brake, etc.) during cruise driving. Cancel code is detected when driving condition is not suitable for cruise control.
Inspection steps
Perform cruise set operation again after clearing the possible cause.
| Cancel Code 41 |
|---|
Circuit description
VDC/TCS has operated.
Vehicle dynamics control (VDC) or TCS is operated during cruise driving or cruise setting.
Inspection steps
Check VSC system. (Refer to )
)| Cancel Code 43 |
|---|
Circuit description
·The situation that some or all functions for ABS/VDC can not work is detected.
During cruise driving or cruise setting, the situation that some or all functions for ABS/VDC can not work is detected.
During cruise driving or cruise setting, the situation that some or all functions for ABS/VDC can not work is detected.
·CRUISE indicator does not illuminate even though you pressed the CRUISE switch before starting the engine.
Detected when the CRUISE switch is pressed during the initial diagnosis of ABS/VDC. It is normal if the CRUISE indicator illuminates when you press the CRUISE switch again after starting the engine and confirming that the initial illumination of the ABS/VDC warning light has been ended.
Detected when the CRUISE switch is pressed during the initial diagnosis of ABS/VDC. It is normal if the CRUISE indicator illuminates when you press the CRUISE switch again after starting the engine and confirming that the initial illumination of the ABS/VDC warning light has been ended.
Inspection steps
Check VSC system. (Refer to )
)| Cancel Code 45 |
|---|
Circuit description
Combination meter malfunction is detected.
Combination meter malfunction is detected during cruise driving or cruise setting.
Inspection steps
Check CAN communication system. (Refer to )
)| Cancel Code 49 |
|---|
Circuit description
Automatic transmission malfunction is detected.
Automatic transmission malfunction is detected during cruise driving or cruise control setting.
Inspection steps
Check the automatic transmission system. (Refer to )
)| Cancel Code 61 |
|---|
Circuit description
Malfunction in the stop light & brake switch is detected.
Inspection steps
Perform the inspection according to the Cancel Code 12. (Refer to )
)| Cancel Code 62 |
|---|
Circuit description
Neutral position switch malfunction is detected.
Inspection steps
Perform the inspection according to the Cancel Code 14. (Refer to )
)| Cancel Code 63 |
|---|
Circuit description
Malfunction of vehicle speed signal variation is detected.
Inspection steps
Perform the inspection according to the Cancel Code 22. (Refer to )
)| Cancel Code 64 |
|---|
Circuit description
Malfunction related to engine is detected.
Inspection steps
Check the engine control. (Refer to )
)| Cancel Code 65 |
|---|
Circuit description
Cruise control main switch malfunction is detected.
Inspection steps
Perform the inspection according to the Cancel Code 11. (Refer to )
)
