Passenger’s airbag module
Components Removal / installation
SRS AIRBAG
PASSENGER’S AIRBAG MODULE

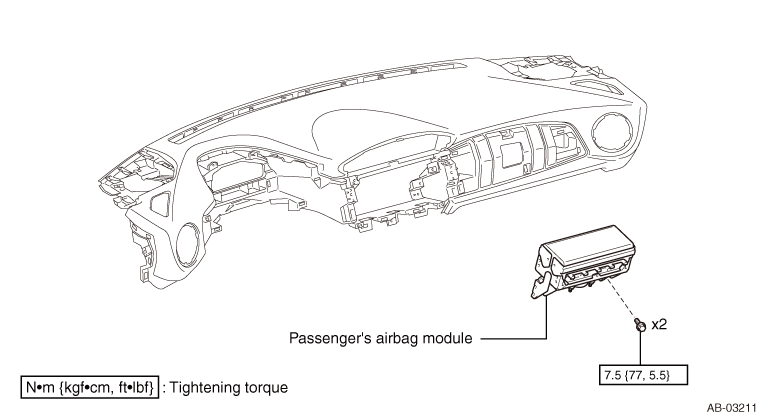

EXPLODED VIEW
REMOVAL
WARNING:
The following service operations include the works which may affect the SRS airbag system. Before starting work, always be sure to confirm the precautions related to the SRS airbag system. (Refer to
)
)1. Precautions
CAUTION:
After turning the ignition switch to OFF, you may have to wait for a while before disconnecting the battery terminals. Check appropriate precautions for battery terminal disconnection before proceeding. (Refer to )
)2. Disconnection of the battery ground terminal
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and then wait for 60 seconds before starting the work. (Refer to )
)WARNING:
The air bag and pretensioner system are fitted with a backup power supply. If you start the work within 60 seconds after disconnecting the battery ground terminal, the air bag may be activated.
CAUTION:
To avoid damage to the molding, be sure to fully open the door glasses on both driver’s and passenger’s sides.
3. Removal of the instrument panel SUB-ASSY (Refer to )
)
4. Removal of the passenger’s airbag module
WARNING:
When storing a removed passenger’s airbag module, even if it is a temporary storage, be sure to place the airbag module with the deploying side facing upward.

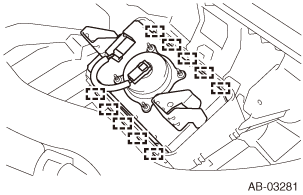

(1) Bend the airbag door wall at the front side of the vehicle to release 5 hooks.
(2) Release 5 hooks on the airbag door wall at the rear side of the vehicle, and remove the passenger’s airbag module.
INSTALLATION
WARNING:
The following service operations include the works which may affect the SRS airbag system. Before starting work, always be sure to confirm the precautions related to the SRS airbag system. (Refer to )
)CAUTION:
Do not allow the harnesses and the connectors to interfere or get tangled with other parts.
1. Installation of the passenger’s airbag module
(1) Before installation, inspect the following items and replace any faulty part with a new one.
·Passenger’s airbag lid (instrument panel surface) is cracked or deformed.
·Airbag module is cracked or deformed.
·Harness and/or connector is cracked, deformed or broken.
·Harness wire is exposed.
·Mounting bracket is cracked or deformed.
·Airbag module is cracked or deformed.
·Harness and/or connector is cracked, deformed or broken.
·Harness wire is exposed.
·Mounting bracket is cracked or deformed.
(2) Engage 5 vehicle rear hooks on the passenger’s airbag module, and install it on the vehicle rear side of the airbag door wall.
(3) Push in the passenger’s airbag module, and engage 5 vehicle front hooks with the vehicle front side of the airbag door wall.
2. Installation of the instrument panel SUB-ASSY (Refer to )
)3. Inspection of the airbag warning light (Refer to )
)DISPOSAL
1. Precautions for handling the device
WARNING:
The following service operations include the works which may affect the SRS airbag system. Before starting work, always be sure to confirm the precautions related to the SRS airbag system. (Refer to )
)2. Disposal of passenger’s airbag module (for module only)
WARNING:
·Perform the operation outdoors on a level surface where safety can be ensured. Avoid performing the operation in residential and similar areas as much as possible.
·Before operation, notify people in the surrounding area because the operation makes a loud noise.
·Before operation, notify people in the surrounding area because the operation makes a loud noise.
(1) Removal of passenger’s airbag module (Refer to )
)(2) Securing of passenger’s airbag module
(a) Connect the SST (98299FJ000) and the passenger’s airbag module connector, and lock it securely.
SST
98299FJ000 (test harness adapter AM)

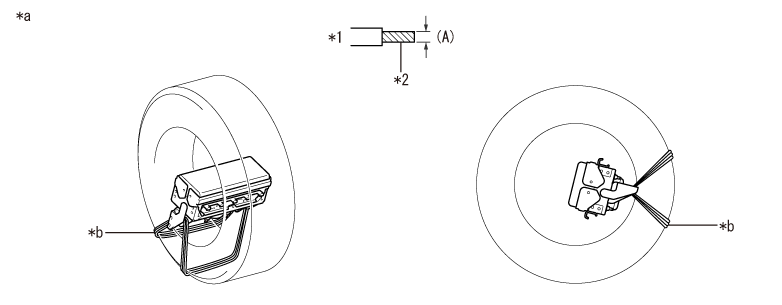

(b) Using wiring harnesses (with a core (A in the figure) of 1.25 mm2 {0.00194 sq in} or more), secure the passenger’s airbag module to the tire.
WARNING:
Strictly follow the two instructions below. Otherwise, serious damage might be caused due to flying debris of the activated passenger’s airbag module or tire, etc.
·When activating the passenger’s airbag module, a force of approx. 1 t is applied on the wiring harnesses. Therefore, secure the module tightly with triple wiring harnesses without slack.
·As shown in the figure, be sure to install the passenger’s airbag module with the deploying side facing the center of the tire.
·As shown in the figure, be sure to install the passenger’s airbag module with the deploying side facing the center of the tire.
CAUTION:
Use waste tires for disposal operation.
Captions in illustration
| *1 |
Wiring harness |
*2 |
Core |
| *a |
Secure the airbag with the deploying side facing upward |
*b |
Use three wiring harnesses as a unit (without slack) |
(3) Activation of passenger’s airbag module

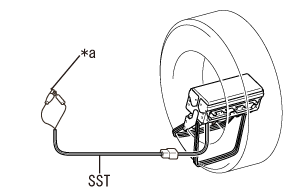

(a) Short the alligator clip and the terminal of SST (98299PA030).
SST
98299PA030
Captions in illustration
| *a |
Short the circuit |
(b) Connect the following SSTs together.
SST
98299PA030 (airbag deployment tool)
98299FJ000 (test harness adapter AM)

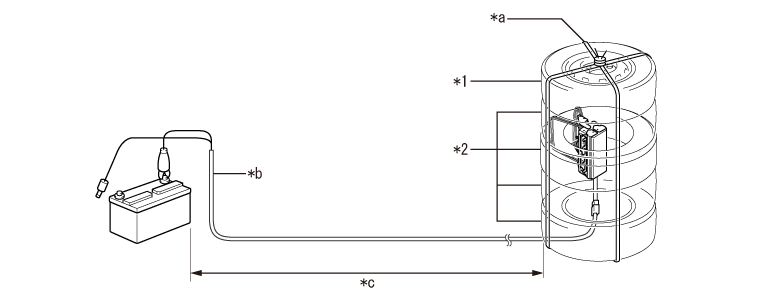

(c) As shown in the figure, place two tires on top of each other, and then pile the tire-mounted passenger’s airbag module, a tire, and a tire with disc wheel in that order.
Captions in illustration
| *1 |
Tire with disc wheel |
*2 |
Tire without disc wheel |
| *a |
Wrap the wire twice or more (without slack) |
*b |
Fully extend the SST |
| *c |
Keep 5 m {16.4 ft} or more from the tires |
- |
- |
(d) Using a wire with a diameter of 1.8 mm {0.07 in} or more (usual iron wire for general-purpose: corresponding to JIS SWM-B), wrap the entire tires twice or more without slack to fix them tightly.
CAUTION:
·Secure them so that the total load capacity becomes 1 t or more.
·Use waste tires and disc wheels for disposal operation.
·Use waste tires and disc wheels for disposal operation.
(e) Fully expand the SST (98299PA030) from the passenger’s airbag module and place the battery 5 m {16.4 ft} or more away from the tires.
(f) Place pylons with ropes, etc. around the tires to keep out of the area within a radius of 5 m {16.4 ft} from the outside of the tires.
Captions in illustration
| *a |
Keep 5 m {16.4 ft} or more |
(g) After ensuring the safety of the surrounding area, connect the alligator clip of the SST (98299PA030) to the battery ground terminal.
(h) Connect the terminal of the SST (98299PA030) to the battery positive terminal to activate the passenger’s airbag module.
WARNING:
·Perform the operation outdoors on a level surface where safety can be ensured. Avoid performing the operation in residential and similar areas as much as possible.
·Before operating, notify people in the surrounding area because the operation makes a quite loud noise.
·Before the operation, ensure that nobody is in the area.
·Before the operation, notify people near the operating area in a loud voice.
·Before operating, notify people in the surrounding area because the operation makes a quite loud noise.
·Before the operation, ensure that nobody is in the area.
·Before the operation, notify people near the operating area in a loud voice.
(4) Disposal of passenger’s airbag module
(a) Place an activated passenger’s airbag module in a strong clear vinyl bag and seal the bag before disposal.
WARNING:
·Because some parts of an activated passenger’s airbag module may be very hot (hundreds of degrees Celsius or more), leave it 40 minutes or more after operation.
·Do not put water on an activated passenger’s airbag module.
·Wear dustproof safety goggles and gloves when handling an activated passenger’s airbag module.
·Never discard any undeployed passenger’s airbag module.
·Be sure to wash your hands with water after completion of the operation.
·Do not put water on an activated passenger’s airbag module.
·Wear dustproof safety goggles and gloves when handling an activated passenger’s airbag module.
·Never discard any undeployed passenger’s airbag module.
·Be sure to wash your hands with water after completion of the operation.
3. Disposal of passenger’s airbag module (for vehicle-mounted module)
CAUTION:
·When disposing a passenger’s airbag module, do not use the customer’s vehicle to activate the airbag.
·When activating an airbag, follow the instructions below.
·When activating an airbag, follow the instructions below.
NOTE:
Prepare a battery as a power supply for activating the airbag.
(1) Refer to the precautions. (Refer to )
)(2) Disconnect the cable from the battery ground terminal.
WARNING:
To disable the SRS system, disconnect the battery ground terminal, and then wait for at least 60 seconds before starting the work.
(3) Remove the instrument panel SUB-ASSY LWR. (Refer to )
)
(4) Activation of passenger’s airbag module

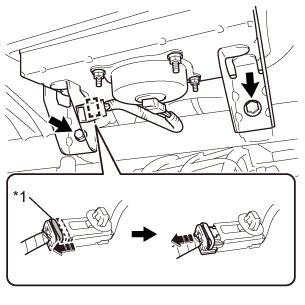

(a) Disconnect the connector from the passenger’s airbag module.
Captions in illustration
| *1 |
Airbag connector lock |
CAUTION:
When disconnecting the airbag connector, be careful not to damage the airbag wiring harness.
(b) Short the alligator clip and the terminal of SST (98299PA030).
SST
98299PA030
Captions in illustration
| *a |
Short the circuit |
CAUTION:
Keep the short condition between terminals of the SST (98299PA030) until just before the activation process.
(c) Connect the following SSTs together.
SST
98299PA030 (airbag deployment tool), 98299FJ000 (test harness adapter AM)

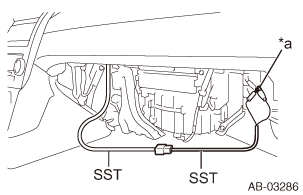

(d) Connect the SST (98299FJ000) to the airbag (passenger’s airbag module), and lock it securely.

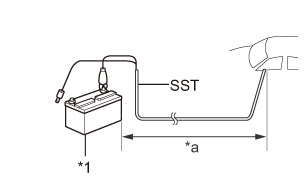

(e) Move the SST to the position at least 5 m {16.4 ft} away from the vehicle front side window.
Captions in illustration
| *1 |
Battery |
| *a |
5 m {16.4 ft} or more |
(f) Fully expand the SST, and then fully close the windows, doors and trunk.
(5) Activate the airbag.
(a) Check that nobody is in the vehicle and within a radius of 5 m {16.4 ft} from the vehicle.
(b) Connect the SST clip to the battery positive terminal.
(c) Connect the SST terminal to the battery ground terminal to activate the passenger’s airbag module.
WARNING:
·Because some parts of an activated airbag (passenger’s airbag module) may be very hot (hundreds of degrees Celsius or more), leave it 40 minutes or more after operation.
·Do not put water on an activated airbag (passenger’s airbag module).
·Wear dustproof safety goggles and gloves when handling an activated airbag (passenger’s airbag module).
·Never discard any undeployed airbag (passenger’s airbag modules).
·Be sure to wash your hands with water after completion of the operation.
·Do not put water on an activated airbag (passenger’s airbag module).
·Wear dustproof safety goggles and gloves when handling an activated airbag (passenger’s airbag module).
·Never discard any undeployed airbag (passenger’s airbag modules).
·Be sure to wash your hands with water after completion of the operation.
