Passenger’s airbag ON/OFF indicator light
Components Removal / installation
SRS AIRBAG
PASSENGER’S AIRBAG ON/OFF INDICATOR LIGHT

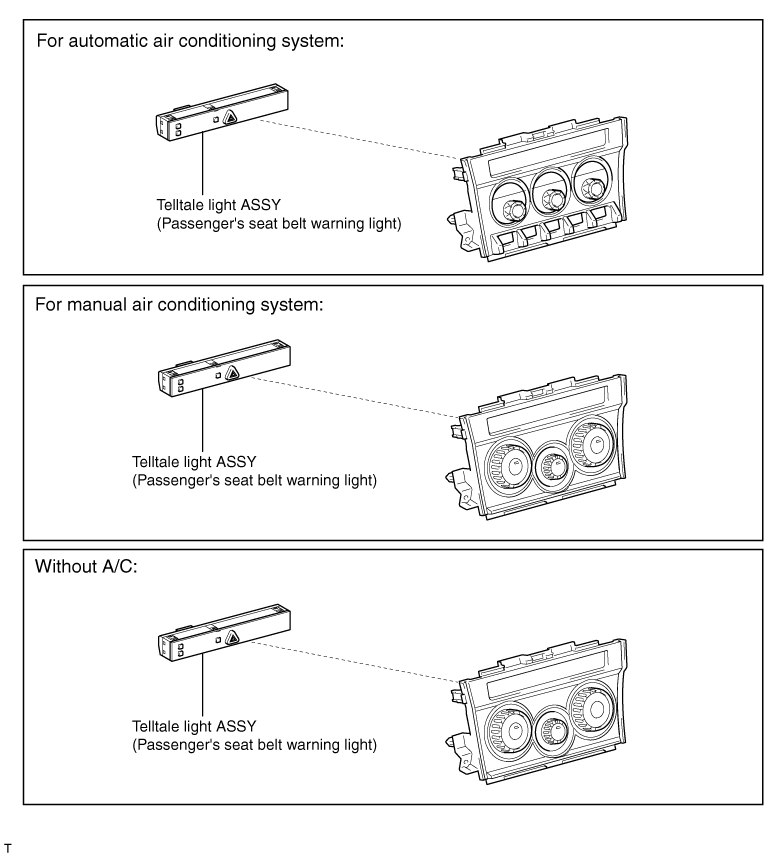

EXPLODED VIEW
REMOVAL
1. Removal of the air conditioner control ASSY (for automatic air conditioning systems) (Refer to
)
)2. Removal of the air conditioner control ASSY (for manual air conditioning systems) (Refer to )
)3. Removal of air conditioner control ASSY (without air conditioner)
NOTE:
Repeat the same removal steps for the manual air conditioning system.
4. Removal of the clock ASSY
(1) Release 4 claws and remove the clock ASSY from the air conditioner control ASSY.
INSTALLATION
1. Installation of the clock ASSY
(1) Engage 4 claws and install the clock ASSY to the air conditioner control ASSY.
2. Installation of the air conditioner control ASSY (for automatic air conditioning systems) (Refer to )
)3. Installation of the air conditioner control ASSY (for manual air conditioning systems) (Refer to )
)4. Installation of air conditioner control ASSY (without air conditioner)
NOTE:
Repeat the same installation steps for the manual air conditioning system.
5. Inspection of the airbag warning light (Refer to )
)UNIT INSPECTION
1. Inspection of the clock ASSY
(1) Check the lighting condition of the passenger’s seat belt warning light when the battery is connected to the connector terminals.
Criteria
| Battery connection |
Criteria |
|---|---|
| Battery positive → 10 Battery ground → 6 |
The passenger’s seat belt warning light turns on. |

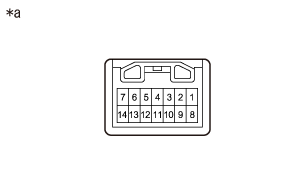

Captions in illustration
| *a |
Connector not connected (Clock ASSY) |
