Rear seat ASSY

Components Removal / installation

SEAT

REAR SEAT ASSY

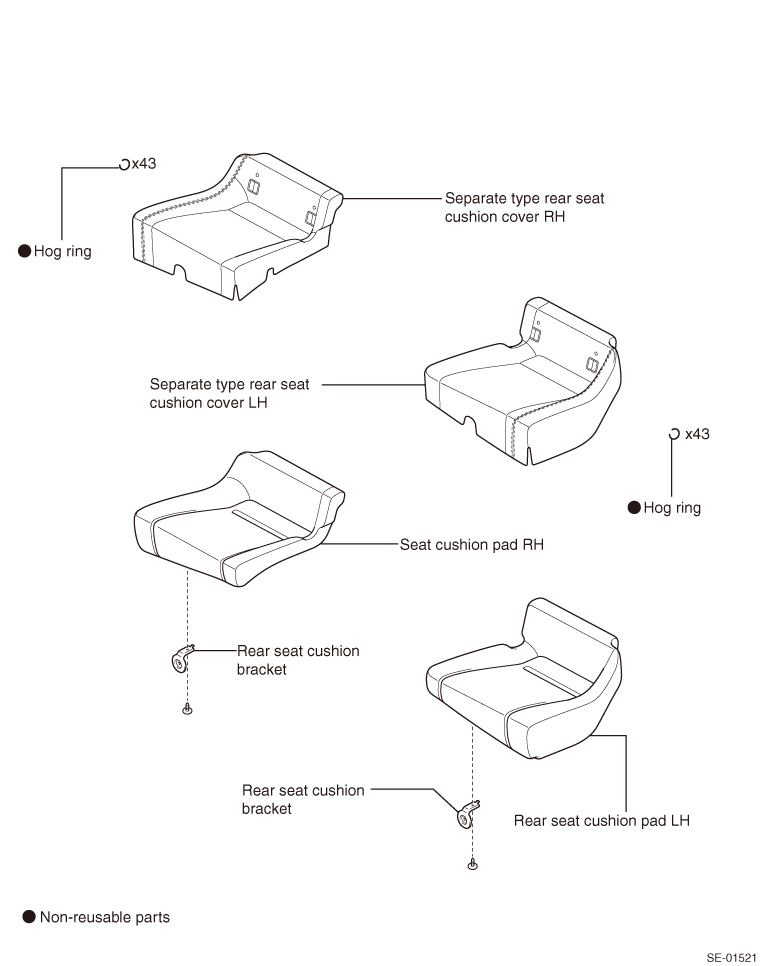

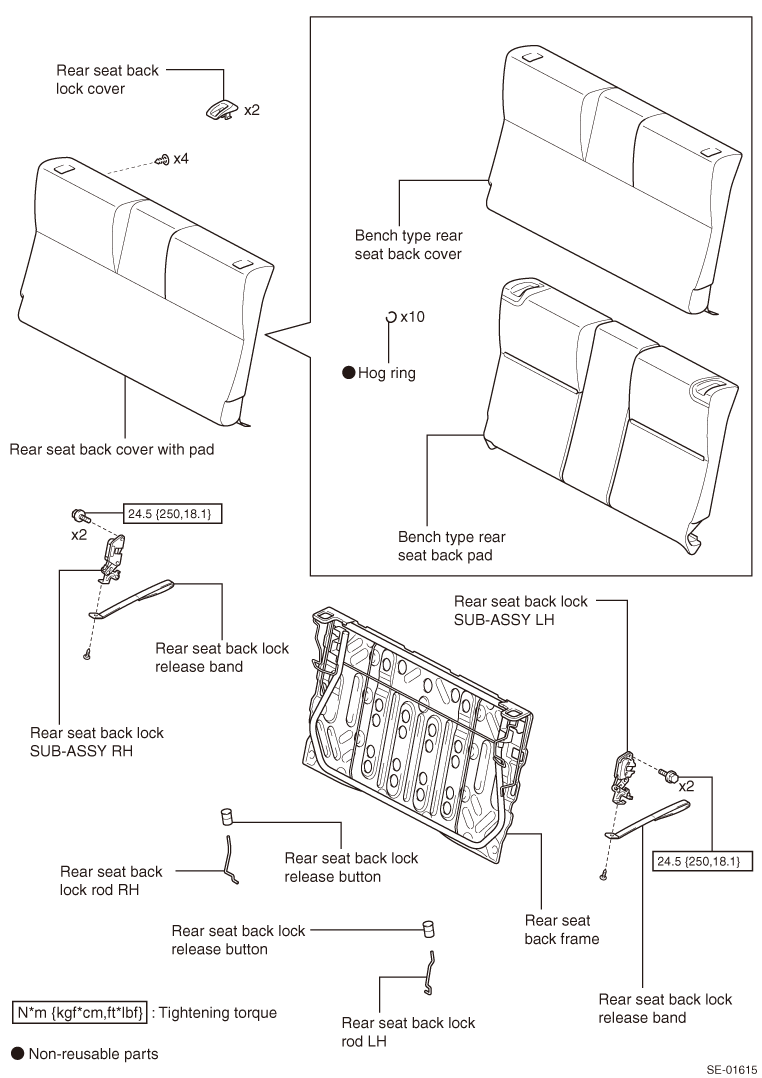

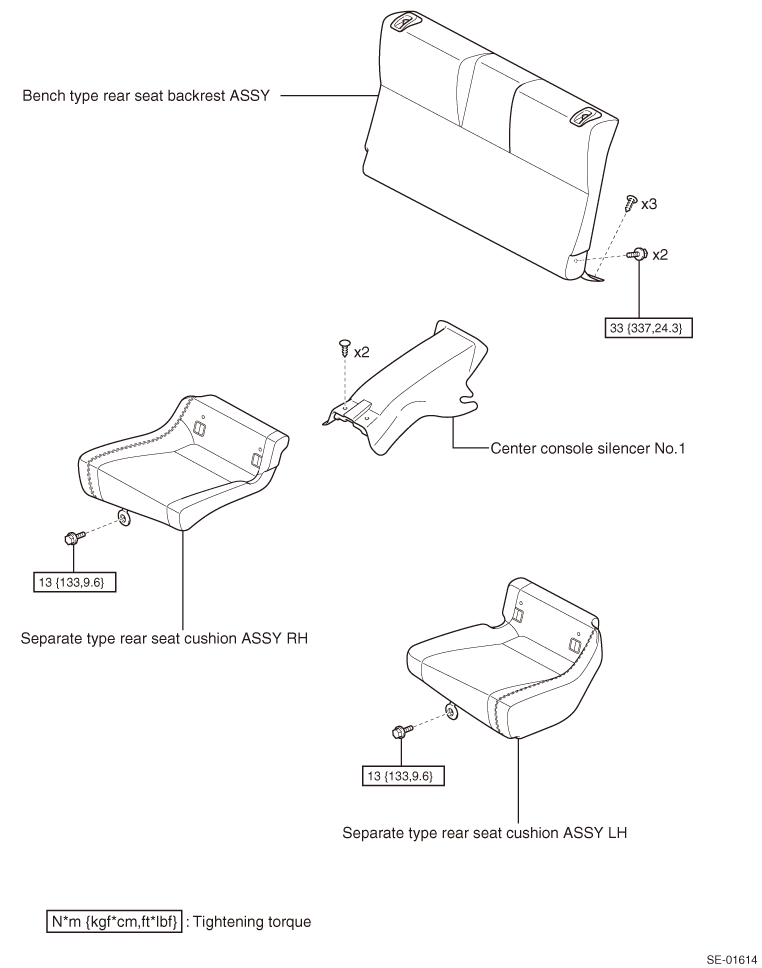

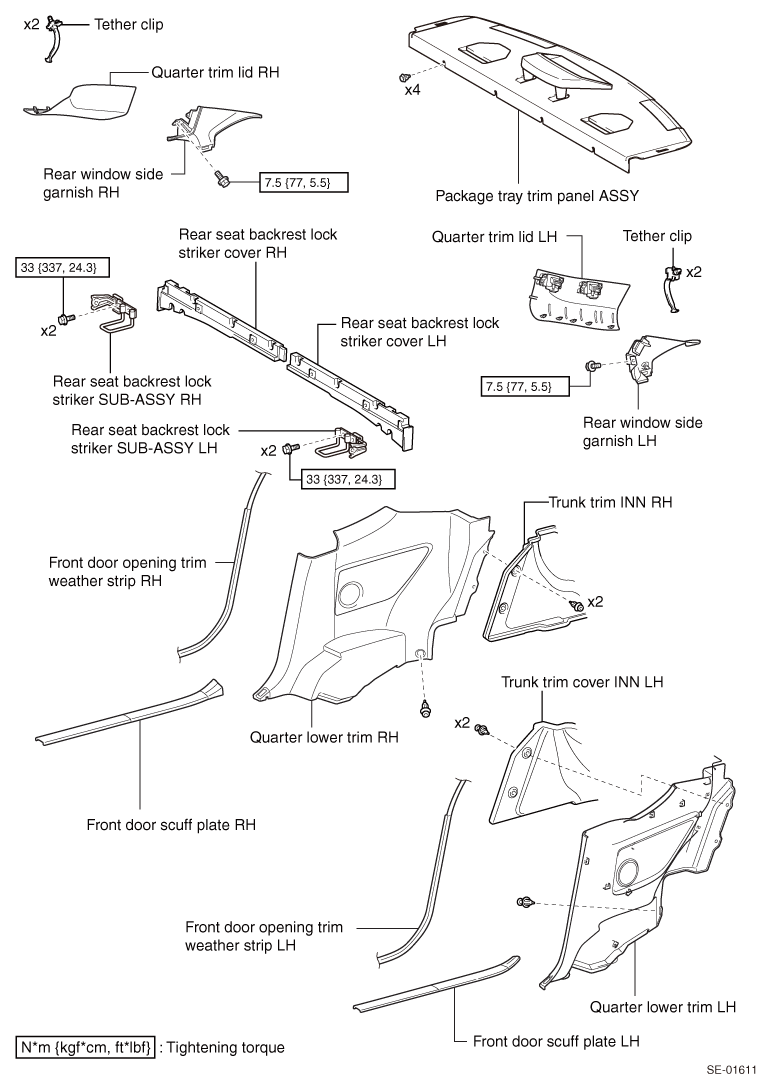

EXPLODED VIEW

REMOVAL

1. Precautions

WARNING:

Before starting the work, read the precautions for the SRS airbag system to make sure to properly perform the work. (Refer to

)

CAUTION:

After turning the ignition switch to OFF, you may have to wait for a while before disconnecting the battery terminals. Check appropriate precautions for battery terminal disconnection before proceeding. (Refer to

)

2. Disconnection of the battery ground terminal

WARNING:

·Turn the ignition switch to OFF, disconnect the battery ground terminal, and then wait for 60 seconds before starting the work.
·The air bag and pretensioner system are fitted with a backup power supply. If you start the work within 60 seconds after disconnecting the battery ground terminal, the air bag may be activated.

CAUTION:

To avoid damage to the molding, be sure to fully open the door glasses on both driver’s and passenger’s sides.

3. Removal of the separate type rear seat cushion ASSY

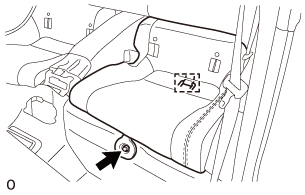

(1) Remove the bolt.

(2) Release the hook and remove the rear seat cushion ASSY LH.

CAUTION:

·Be careful not to damage the seat, the body exterior and interior.
·If you remove the rear seat cushion ASSY without releasing the hook, the rear seat cushion ASSY may be deformed.

4. Removal of the separate type rear seat cushion ASSY RH

NOTE:

Remove the part in the same manner as LH side.

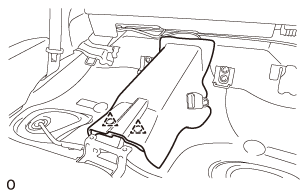

5. Removal of the center console silencer No.1

(1) Remove 2 clips and remove the center console silencer No.1.

6. Removal of the bench type rear seat backrest ASSY

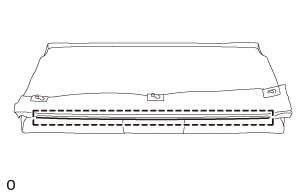

(1) Remove 3 clips and turn over the rear seat backrest cover.

(2) Remove 2 bolts and remove the bench type rear seat backrest ASSY.

CAUTION:

Be careful not to damage the seat, the body exterior and interior.

7. Removal of front door scuff plate LH (Refer to

)

8. Removal of front door scuff plate RH

NOTE:

Remove the part in the same manner as LH side.

9. Removal of front door opening trim weather strip LH

(1) Remove the front door opening trim weather strip LH to the extent that the quarter lower trim LH can be removed.

10. Removal of the front door opening trim weather strip RH

NOTE:

Remove the part in the same manner as LH side.

11. Disconnection of trunk trim cover INN LH (Refer to

)

12. Disconnection of trunk trim cover INN RH

NOTE:

Remove the part in the same manner as LH side.

13. Removal of quarter lower trim LH (Refer to

)

14. Removal of quarter lower trim RH

NOTE:

Remove the part in the same manner as LH side.

15. Removal of the quarter trim lid LH (Refer to

)

16. Removal of quarter trim lid RH

NOTE:

Remove the part in the same manner as LH side.

17. Removal of the rear window side garnish LH (Refer to

)

18. Removal of rear window side garnish RH

NOTE:

Remove the part in the same manner as LH side.

19. Removal of package tray trim panel ASSY (Refer to

)

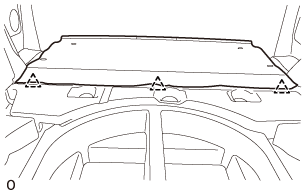

20. Removal of the rear seat backrest lock striker cover LH

(1) Remove 3 clips and remove the rear seat backrest lock striker cover LH.

21. Removal of the rear seat backrest lock striker cover RH

NOTE:

Remove the part in the same manner as LH side.

22. Removal of the rear seat backrest lock striker SUB-ASSY LH

(1) Remove 2 bolts and remove the rear seat backrest lock striker SUB-ASSY LH.

23. Removal of the rear seat backrest lock striker SUB-ASSY RH

NOTE:

Remove the part in the same manner as LH side.

DISASSEMBLY

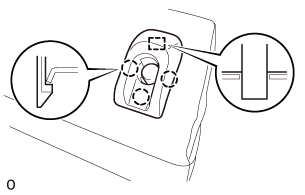

1. Removal of the rear seat backrest lock cover

(1) Release 3 claws and the guide, and remove the rear seat backrest lock cover.

NOTE:

Remove both parts using the same procedures.

2. Removal of the rear seat backrest cover with pad

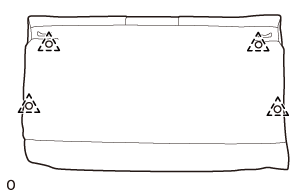

(1) Remove the 4 clips.

(2) Release the hook and turn over the bench type rear seat backrest cover.

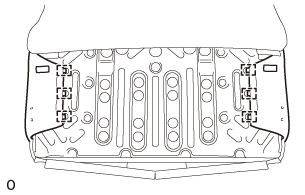

(3) Release 6 hooks and remove the rear seat backrest cover with pad from the rear seat backrest frame.

3. Removal of the bench type rear seat backrest cover

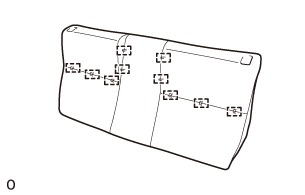

(1) Remove 10 hog rings and remove the bench type rear seat backrest cover from the bench type rear seat backrest pad.

4. Removal of the rear seat backrest lock rod LH

(1) Release the claw.

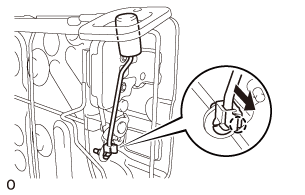

(2) Pull off the rear seat backrest lock rod LH to the direction of the arrow in the figure to remove it from the rear seat backrest lock SUB-ASSY LH.

5. Removal of the rear seat backrest lock rod RH

NOTE:

Remove the part in the same manner as LH side.

6. Removal of the rear seat backrest lock release button

(1) Rotate the rear seat backrest lock release button counterclockwise to remove it from the rear seat backrest lock rod LH and RH.

7. Removal of the rear seat backrest lock SUB-ASSY LH

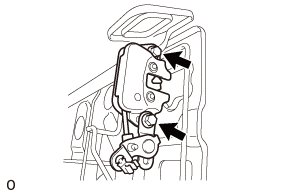

(1) Remove 2 bolts and remove the rear seat backrest lock SUB-ASSY LH from the rear seat backrest frame.

8. Removal of the rear seat backrest lock SUB-ASSY RH

NOTE:

Remove the part in the same manner as LH side.

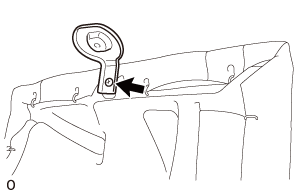

9. Removal of the rear seat cushion bracket

(1) Remove the screw, and remove the rear seat cushion bracket from the rear seat cushion ASSY LH.

NOTE:

Perform the same procedures for the RH side.

10. Removal of the separate type rear seat cushion cover LH

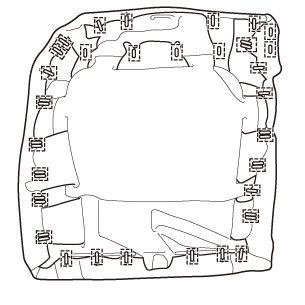

(1) Remove 40 hog rings.

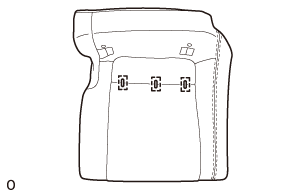

(2) Remove 3 hog rings, and remove the separate type rear seat cushion cover LH from the separate type rear seat cushion pad LH.

11. Removal of the separate type rear seat cushion cover RH

NOTE:

Remove the part in the same manner as LH side.

ASSEMBLY

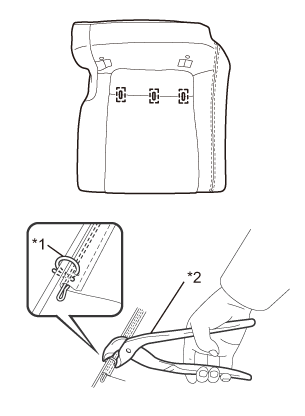

1. Installation of the separate type rear seat cushion cover LH

(1) Temporally install the separate type rear seat cushion cover LH to the separate type rear seat cushion pad LH.

(2) Using hog ring pliers, attach 3 new hog rings.

CAUTION:

·Be careful not to contaminate or damage the separate type rear seat cushion cover LH.
·Align the centers of the fabric and the separate type rear seat cushion pad LH taking care not to make wrinkles, and attach the hog rings.

NOTE:

If the separate type rear seat cushion cover LH for replacement is not provided with the retracting wire, reuse the original wire.

Captions in illustration

*1	New hog ring
*2	Hog ring pliers

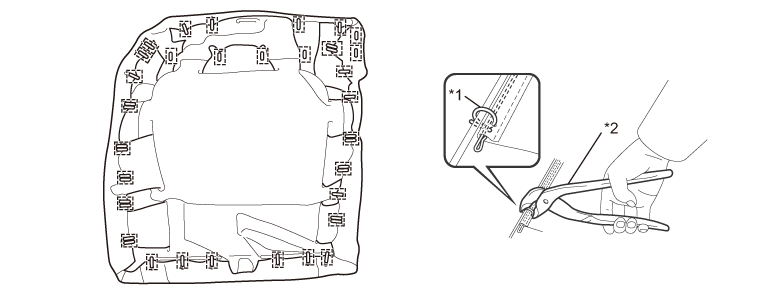

(3) Using hog ring pliers and 40 new hog rings, install the separate type rear seat cushion cover LH to the rear seat cushion pad LH.

CAUTION:

Captions in illustration

New hog ring

Hog ring pliers

2. Installation of the separate type rear seat cushion cover RH

NOTE:

Install the part in the same manner as LH side.

3. Installation of the rear seat cushion bracket

(1) Install the rear seat cushion bracket to the rear seat cushion ASSY LH with the screw.

NOTE:

Perform the same procedures for the RH side.

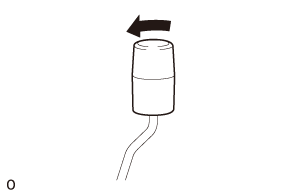

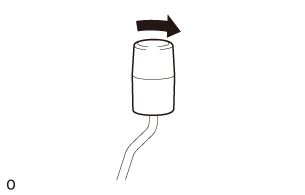

4. Installation of the rear seat backrest lock release button

(1) Rotate the rear seat backrest lock release buttons to the direction of the arrow in the figure, and install these 2 buttons to the rear seat backrest lock rod RH and LH respectively.

5. Installation of the rear seat backrest lock SUB-ASSY LH

(1) Install the rear seat backrest lock SUB-ASSY LH to the rear seat backrest frame with 2 bolts.

Standard value:

Tightening torque=24.5N·m { 250kgf·cm} {18.1ft·lbf}

6. Installation of the rear seat backrest lock SUB-ASSY RH

NOTE:

Install the part in the same manner as LH side.

7. Installation of the rear seat backrest lock rod LH

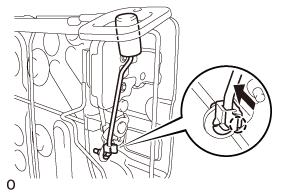

(1) As shown in the figure, insert the rear seat backrest lock rod LH.

(2) Engage the claw and install the rear seat backrest lock rod LH.

8. Installation of the rear seat backrest lock rod LH

NOTE:

Install the part in the same manner as LH side.

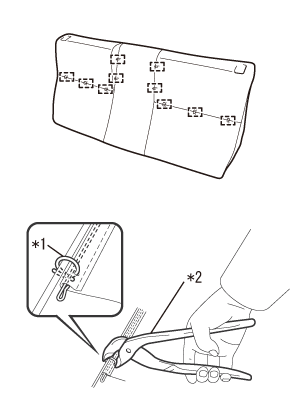

9. Installation of the bench type rear seat backrest cover

(1) Temporally install the rear seat backrest cover to the bench type rear seat backrest pad.

(2) Using hog ring pliers and 10 new hog rings, install the bench type rear seat backrest cover to the bench type rear seat backrest pad.

CAUTION:

·Be careful not to contaminate or damage the bench type rear seat backrest cover.
·Align the centers of the fabric and the bench type rear seat backrest pad taking care not to make wrinkles, and attach the hog rings.

NOTE:

If the bench type rear seat backrest cover for replacement is not provided with the retracting wire, reuse the original wire.

Captions in illustration

*1	New hog ring
*2	Hog ring pliers

10. Installation of the rear seat backrest cover with pad

(1) Temporally install the rear seat backrest cover with pad to the rear seat backrest frame.

(2) Engage 6 hooks.

(3) Engage the hook.

(4) Install the rear seat backrest cover with pad with 4 clips.

11. Installation of the rear seat backrest lock cover

(1) Engage the guide and 3 claws, and install the rear seat backrest lock cover.

NOTE:

Install both parts using the same procedures.

INSTALLATION

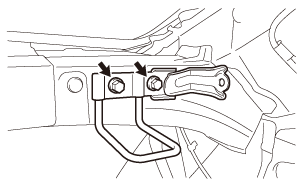

1. Installation of the rear seat backrest lock striker SUB-ASSY LH

(1) Install the rear seat backrest lock striker SUB-ASSY LH with 2 bolts.

2. Installation of the rear seat backrest lock striker SUB-ASSY RH

NOTE:

Install the part in the same manner as LH side.

3. Installation of the rear seat backrest lock striker cover LH

(1) Engage 3 clips and install the rear seat backrest lock striker cover LH.

4. Installation of the rear seat backrest lock striker cover RH

NOTE:

Install the part in the same manner as LH side.

5. Installation of package tray trim panel ASSY (Refer to

)

6. Installation of the rear window side garnish LH (Refer to

)

7. Installation of rear window side garnish RH

NOTE:

Install the part in the same manner as RH side.

8. Installation of the quarter trim lid LH (Refer to

)

9. Installation of quarter trim lid RH

NOTE:

Install the part in the same manner as LH side.

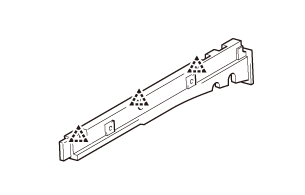

10. Installation of quarter lower trim LH

(1) Engage the 7 clips and install the quarter lower trim LH.

(2) Install the 3 clips.

11. Installation of quarter lower trim RH

NOTE:

Install the part in the same manner as LH side.

12. Installation of the trunk trim cover INN LH (Refer to

)

13. Installation of the trunk trim cover INN RH

NOTE:

Install the part in the same manner as LH side.

14. Installation of front door scuff plate LH (Refer to

)

15. Installation of front door scuff plate RH

NOTE:

Install the part in the same manner as LH side.

16. Installation of front door opening trim weather strip LH

17. Installation of front door opening trim weather strip RH

18. Installation of the bench type rear seat backrest ASSY

(1) Carry in the bench type rear seat backrest ASSY to the vehicle.

CAUTION:

Be careful not to damage the seat, the body exterior and interior.

(2) Install the bench type rear seat backrest ASSY with 2 bolts.

Standard value:

Tightening torque=33N·m { 337kgf·cm} {24.3ft·lbf}

(3) Install the rear seat backrest cover with 3 clips.

19. Installation of the center console silencer No.1

(1) Install the center console silencer No.1 with 2 clips.

20. Installation of the separate type rear seat cushion ASSY

(1) Carry in the rear seat ASSY LH to the vehicle.

CAUTION:

Be careful not to damage the seat, the body exterior and interior.

(2) Engage the hook and temporally install the rear seat cushion ASSY LH.

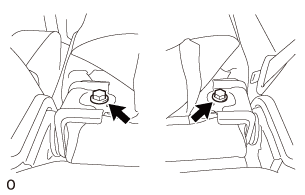

(3) Install the rear seat cushion ASSY LH with the bolt.

Standard value:

Tightening torque=13N·m { 133kgf·cm} {9.6ft·lbf}

CAUTION:

When installing the rear seat cushion ASSY, install it so that the rear seat belt ASSY inner does not face downward.

21. Installation of the separate type rear seat cushion ASSY RH

NOTE:

Install the part in the same manner as LH side.
