Seat heater switch

Components Inspection Removal / installation

SEAT

SEAT HEATER SWITCH

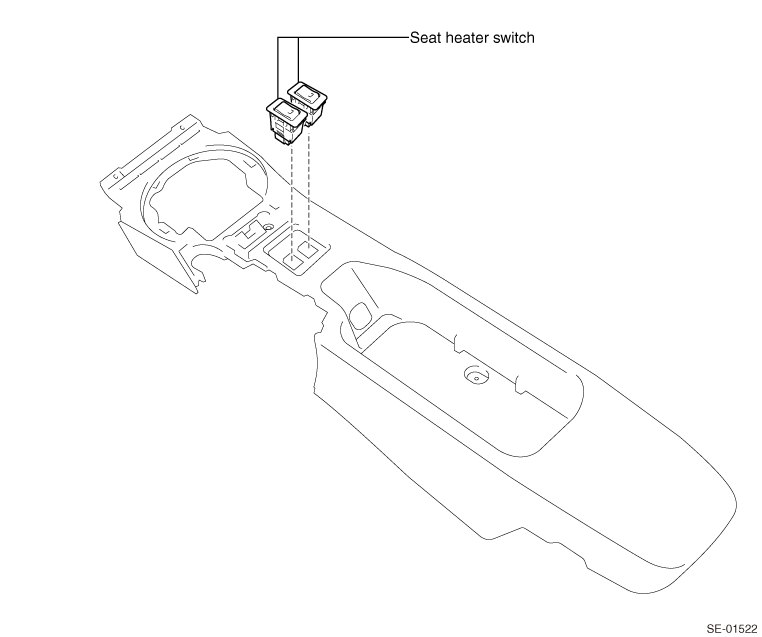

EXPLODED VIEW

REMOVAL

1. Removal of the console box ASSY (Refer to

)

2. Removal of the seat heater switch

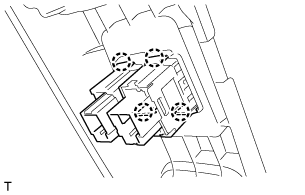

(1) Release 4 claws and remove 2 seat heater switches from the console box ASSY.

INSTALLATION

1. Installation of the seat heater switch

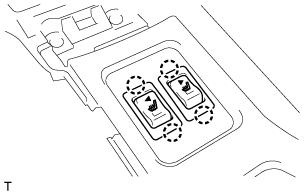

(1) Engage 4 claws and install 2 seat heater switches to the console box ASSY.

NOTE:

As shown in the figure, install the switch with the triangle mark pointing the outside of the vehicle.

2. Installation of console box ASSY

(Refer to

)

UNIT INSPECTION

1. Inspection of the seat heater switch (LH side)

(1) Inspection of the seat heater switch

(a) Measure the resistance according to the following chart.

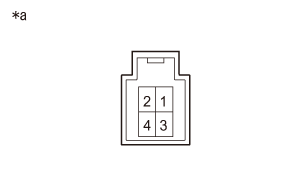

*a	Connector not connected (seat heater switch (LH side))

*a	Connector not connected (seat heater switch (LH side))

Battery connection	Switch conditions	Criteria
Battery positive terminal → 2 Battery ground terminal → 3	HI side ON	Indicator illuminates.
Battery positive terminal → 2 Battery ground terminal → 3	LO side ON	Indicator illuminates.

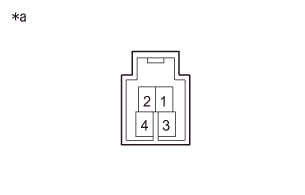

*a	Connector not connected (seat heater switch (RH side))

*a	Connector not connected (seat heater switch (RH side))

Battery connection	Switch conditions	Criteria
Battery positive terminal → 2 Battery ground terminal → 3	HI side ON	Indicator illuminates.
Battery positive terminal → 2 Battery ground terminal → 3	LO side ON	Indicator illuminates.
