FRONT SEATBACK HEATER
Inspection
SEAT
FRONT SEATBACK HEATER

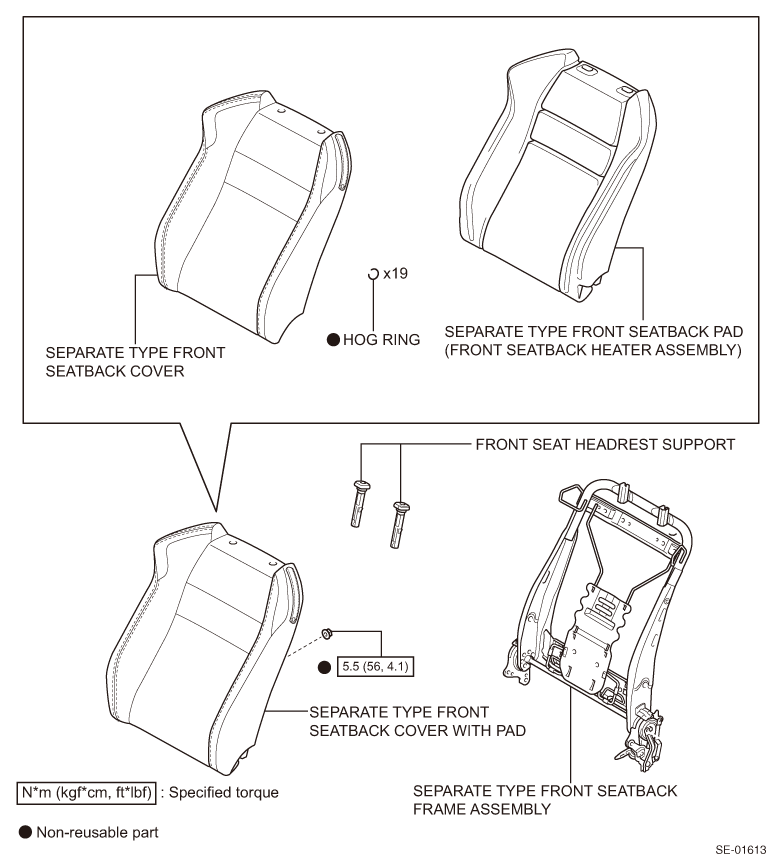

COMPONENTS
REMOVAL
1. REMOVE FRONT SEAT ASSEMBLY (Refer to
)
)2. REMOVE RECLINING ADJUSTER RELEASE HANDLE (Refer to )
)3. REMOVE VERTICAL ADJUSTING HANDLE (for Driver Side) (Refer to )
)4. REMOVE FRONT SEAT CUSHION SHIELD (Refer to )
)5. REMOVE FRONT SEAT INNER CUSHION SHIELD (Refer to )
) 6. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY (Refer to )
)7. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD (Refer to )
)
8. REMOVE SEPARATE TYPE FRONT SEATBACK PAD(FRONT SEATBACK HEATER ASSEMBLY)
(1) Remove the 14 hog rings and separate type front seatback pad from the separate type front seatback cover
INSPECTION

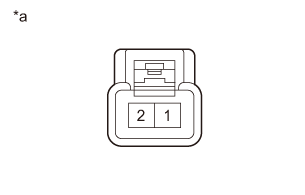

1. INSPECT FRONT SEAT BACK HEATER ASSEMBLY LH
2. INSPECT FRONT SEAT BACK HEATER ASSEMBLY RH
INSTALLATION
1. INSTALL SEPARATE TYPE FRONT SEATBACK PAD (FRONT SEATBACK HEATER ASSEMBLY) (Refer to )
)2. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD (Refer to )
)3. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY (Refer to )
)4. INSTALL FRONT SEAT INNER CUSHION SHIELD (Refer to )
)5. INSTALL FRONT SEAT CUSHION SHIELD (Refer to )
)6. INSTALL VERTICAL ADJUSTING HANDLE (Refer to )
)7. INSTALL RECLINING ADJUSTER RELEASE HANDLE (Refer to )
) 8. INSTALL FRONT SEAT ASSEMBLY (Refer to )
)9. Inspection of the airbag warning light (Refer to )
)
