FRONT SEAT CUSHION HEATER
Inspection
SEAT
FRONT SEAT CUSHION HEATER

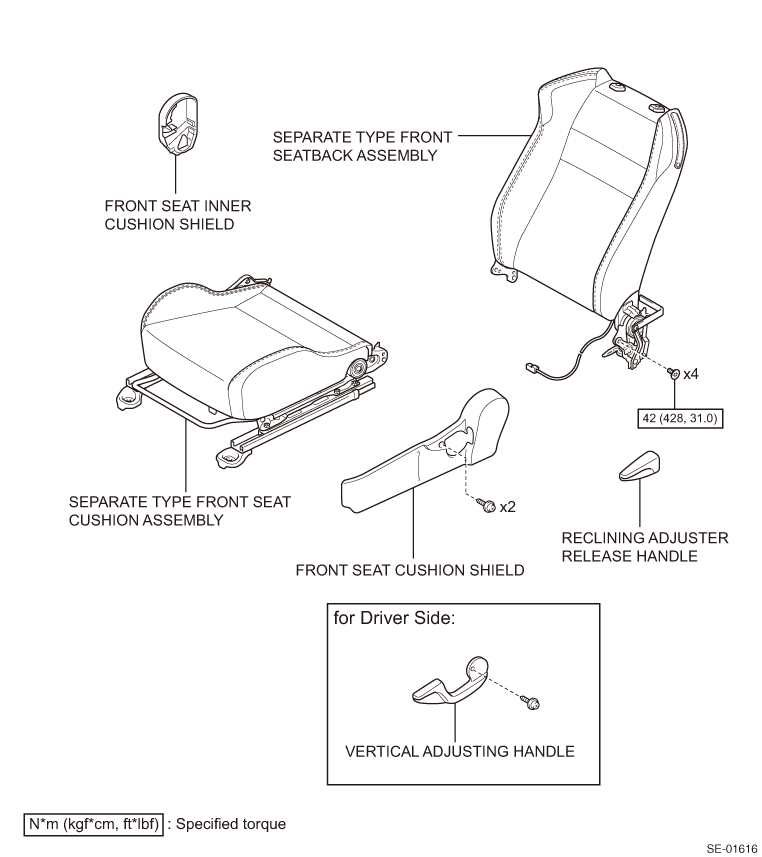

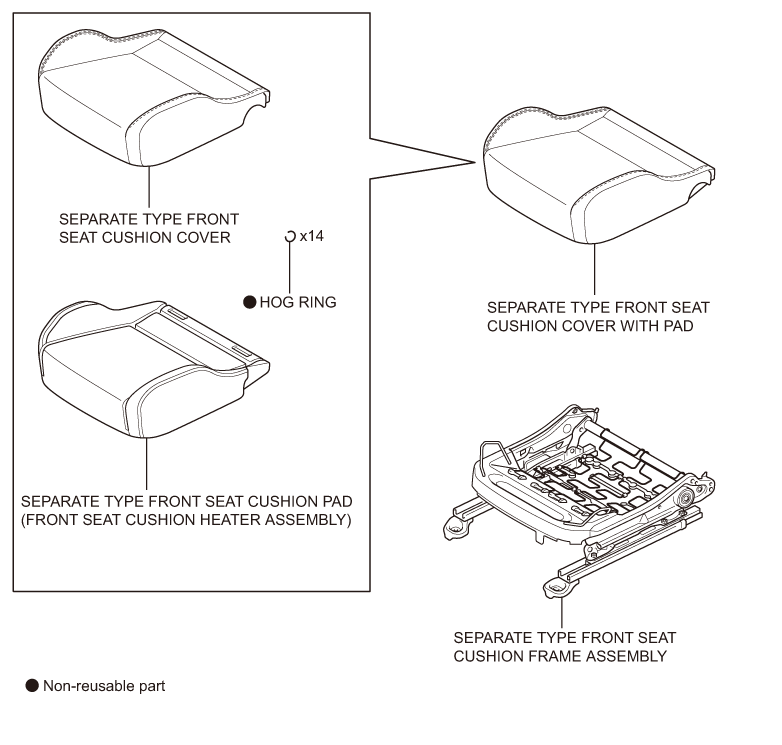

COMPONENTS
REMOVAL
1. REMOVE FRONT SEAT ASSEMBLY (Refer to
)
)2. REMOVE RECLINING ADJUSTER RELEASE HANDLE (Refer to )
)3. REMOVE VERTICAL ADJUSTING HANDLE (for Driver Side) (Refer to )
)4. REMOVE FRONT SEAT CUSHION SHIELD (Refer to )
)5. REMOVE FRONT SEAT INNER CUSHION SHIELD (Refer to )
) 6. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY (Refer to )
)7. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (Refer to )
)
8. REMOVE SEPARATE TYPE FRONT SEAT CUSHION PAD(FRONT SEATBACK HEATER ASSEMBLY)

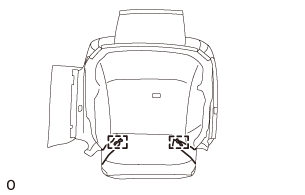

(1) Remove the 2 hog rings.

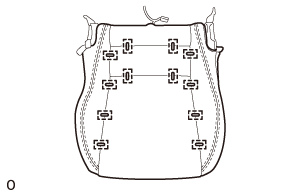

(2) Remove the 12 hog rings and the separate type front seat cushion pad from the separate type front seat cushion cover.
INSPECTION
1. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY LH
(1) Measure the resistance according to the value(s) in the table below.

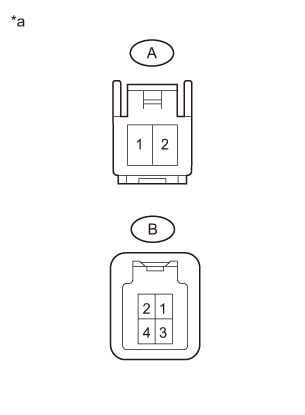

Text in Illustration
| *a |
Component without harness connected (Separate Type Front Seat Cushion Pad LH) |
Standard Resistance
If the result is not as specified, replace the separate type front seat cushion pad LH.| Tester Connection |
Condition |
Specified Condition |
|---|---|---|
| A-1 - B-1 |
Always |
Below 1 Ω |
| A-2 - A-3 |
Always |
3.21 to 3.85 Ω |
| A-2 - B-2 |
Always |
3.21 to 3.85 Ω |
| A-3 - B-2 |
Always |
Below 1 Ω |
2. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY RH
(1) Measure the resistance according to the value(s) in the table below.
Text in Illustration
| *a |
Component without harness connected (Separate Type Front Seat Cushion Pad RH) |
Standard Resistance
If the result is not as specified, replace the separate type front seat cushion pad RH.| Tester Connection |
Condition |
Specified Condition |
|---|---|---|
| A-1 - B-1 |
Always |
Below 1 Ω |
| A-2 - A-3 |
Always |
3.21 to 3.85 Ω |
| A-2 - B-2 |
Always |
3.21 to 3.85 Ω |
| A-3 - B-2 |
Always |
Below 1 Ω |
INSTALLATION
1. INSTALL SEPARATE TYPE FRONT SEAT CUSHION PAD (FRONT SEATBACK HEATER ASSEMBLY)

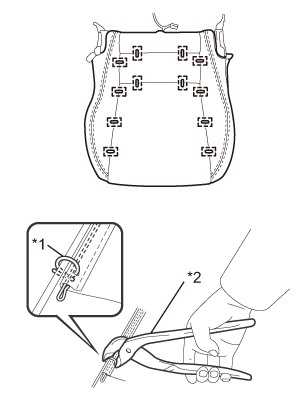

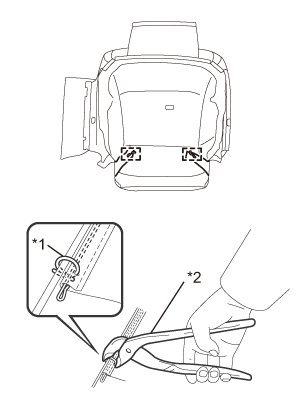

(1) Using hog ring pliers, install the separate type front seat cushion pad to the separate type front seat cushion cover with 12 new hog rings.
NOTE:
·Be careful not to damage the separate type front seat cushion cover.
·When installing the hog rings. take care to minimize wrinkles as much as possible.
·When installing the hog rings. take care to minimize wrinkles as much as possible.
Captions in illustration
| *1 |
Hog Ring |
| *2 |
Hog Ring Pliers |
2. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (Refer to )
)3. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY (Refer to )
)4. INSTALL FRONT SEAT INNER CUSHION SHIELD (Refer to )
)5. INSTALL FRONT SEAT CUSHION SHIELD (Refer to )
)6. INSTALL VERTICAL ADJUSTING HANDLE(for Driver Side) (Refer to )
)7. INSTALL RECLINING ADJUSTER RELEASE HANDLE (Refer to )
) 8. INSTALL FRONT SEAT ASSEMBLY (Refer to )
)9. Inspection of the airbag warning light (Refer to )
)
