Simple Occupant Sensor
Components Inspection Removal / installation
SEAT BELT
SIMPLE OCCUPANT SENSOR

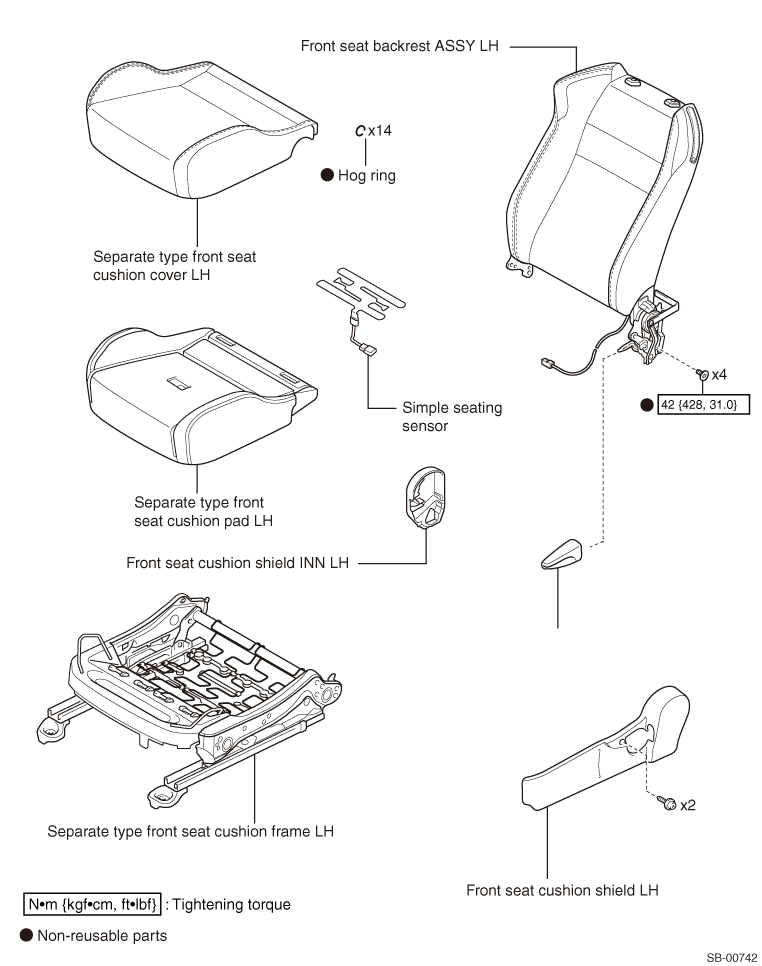

EXPLODED VIEW
NOTE:
Vehicles with steering wheels on the left are mirrored.
REMOVAL
1. Removal of the front seat ASSY LH
NOTE:
Remove the part in the same manner as RH side. (Refer to
)
)2. Removal of the reclining adjuster release handle LH
NOTE:
Remove the part in the same manner as RH side. (Refer to )
)3. Removal of the front seat cushion shield LH
NOTE:
Remove the part in the same manner as RH side. (Refer to )
)4. Removal of the front seat cushion shield INN LH
NOTE:
Remove the part in the same manner as RH side. (Refer to )
)5. Removal of the front seat backrest ASSY LH
NOTE:
Remove the part in the same manner as RH side. (Refer to )
)6. Removal of the separate type front seat cushion cover with pad
NOTE:
Remove the part in the same manner as RH side. (Refer to )
)
7. Removal of the separate type front seat cushion pad LH

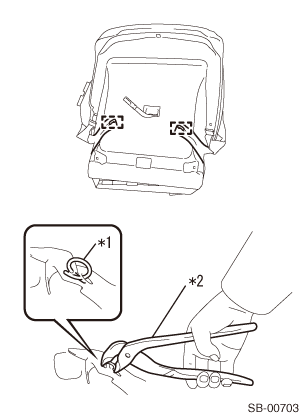

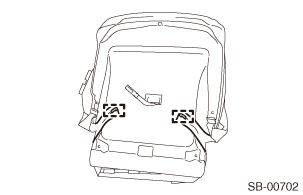

(1) Remove 2 hog rings.
(2) Remove 12 hog rings, and remove the separate type front seat cushion pad LH from the separate type front seat cushion cover LH.
INSTALLATION
1. Installation of the separate type front seat cushion pad LH

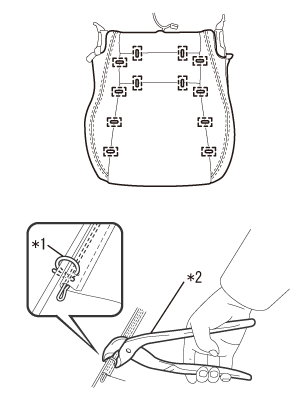

(1) Using hog ring pliers and 12 new hog rings, install the separate type front seat cushion pad LH to the separate type front seat cushion cover LH.
CAUTION:
·Be careful not to dirty or damage the separate type front seat cushion cover LH.
·Align the centers of the fabric and the separate type front seat cushion pad LH, taking care not to make wrinkles, and attach the hog rings.
·Align the centers of the fabric and the separate type front seat cushion pad LH, taking care not to make wrinkles, and attach the hog rings.
Captions in illustration
| *1 |
New hog ring |
| *2 |
Hog ring pliers |
2. Installation of the separate type front seat cushion cover with pad
NOTE:
Install the part in the same manner as RH side. (Refer to )
)3. Installation of the front seat cushion shield INN LH
NOTE:
Install the part in the same manner as RH side. (Refer to )
)4. Installation of the front seat cushion shield LH
NOTE:
Install the part in the same manner as RH side. (Refer to )
)5. Installation of the reclining adjuster release handle LH
NOTE:
Install the part in the same manner as RH side. (Refer to )
)6. Installation of the front seat ASSY LH
NOTE:
Install the part in the same manner as RH side. (Refer to )
)UNIT INSPECTION
1. Inspection of the separate type front seat cushion pad LH
(1) Resistance inspection for the simple occupant sensor
(a) Measure the resistance according to the following chart.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| 1 - 3 |
Sitting in the passenger’s seat |
100 Ω or less |
| Not sitting in the passenger’s seat |
1 MΩ or more |

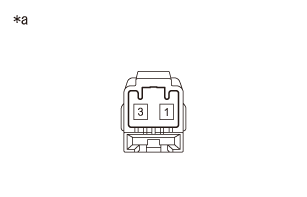

Captions in illustration
| *a |
Connector not connected (simple occupant sensor) |
