Front seat inner belt ASSY
Components Inspection Removal / installation
SEAT BELT
FRONT SEAT INNER BELT ASSY

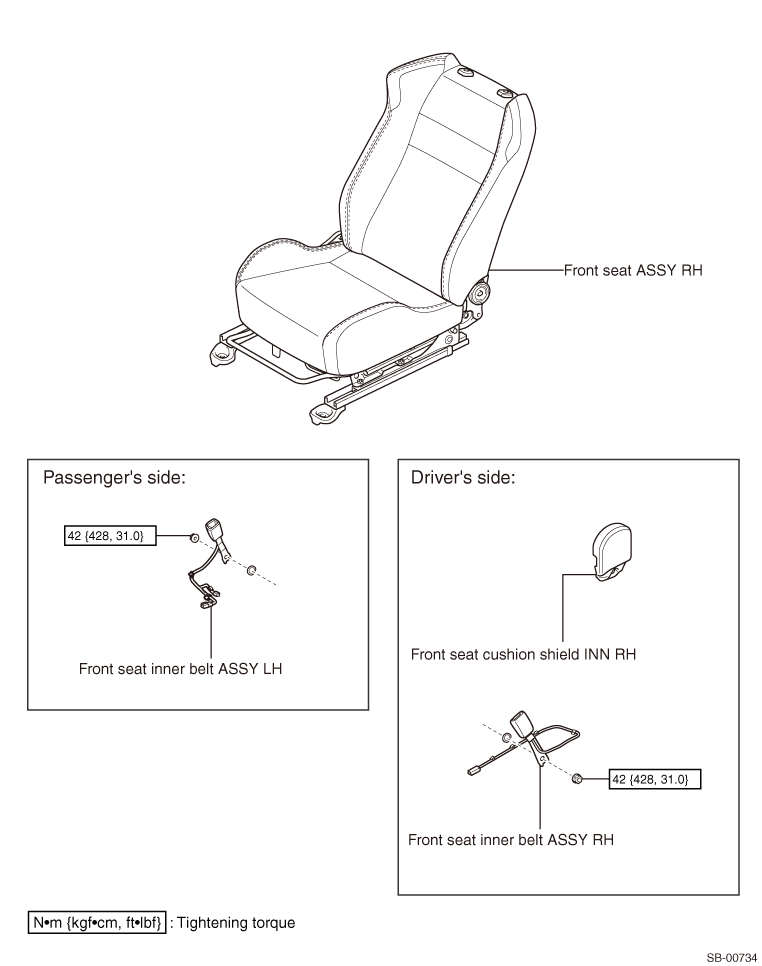

EXPLODED VIEW
NOTE:
Vehicles with steering wheels on the left are mirrored.
REMOVAL
1. Precautions for handling the device
NOTE:
The procedures described below are for the RH side of a vehicle with the steering wheel on the right. Unless otherwise specified, perform the same procedures for the LH side.
2. Removal of the front seat ASSY RH (Refer to
)
)3. Removal of the front seat cushion shield INN RH (driver’s side) (Refer to )
)
4. Removal of the front seat inner belt ASSY RH (driver’s side)

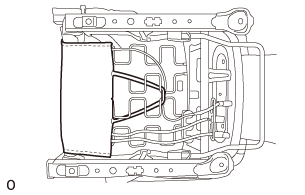

(1) Remove the rubber band of the separate type front seat backrest cover RH.

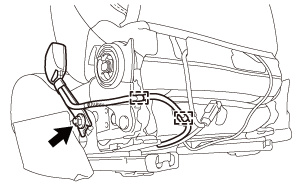

(2) Release the claw and 3 clamps, and disconnect the wiring harness of the front seat inner belt ASSY RH.

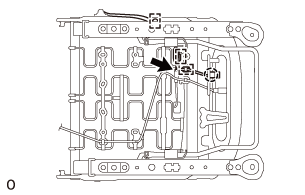

(3) Release the 2 clamps and disconnect the wiring harness of the front seat inner belt ASSY RH.

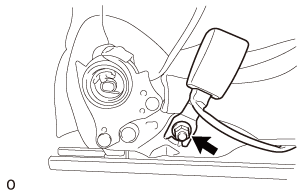

(4) Remove the nut and the washer, and remove the front seat inner belt ASSY RH.
5. Removal of the front seat inner belt ASSY LH (passenger’s side)
(1) Disconnect the simple occupant sensor connector.
(2) Release the claw and 3 clamps, and disconnect the wiring harness of the front seat inner belt ASSY LH.
(3) Remove the nut and the washer, and remove the front seat inner belt ASSY LH.
INSTALLATION
NOTE:
The procedures described below are for the RH side of a vehicle with the steering wheel on the right. Perform the same procedures for the LH side.
1. Installation of the front seat inner belt ASSY RH (driver’s side)
(1) Install the front seat inner belt ASSY RH with the nut and the washer.
Standard value:
Standard value:
Tightening torque=42N·m
{
428kgf·cm}
{31.0ft·lbf}
CAUTION:

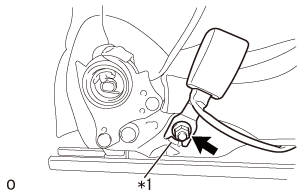

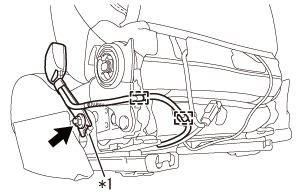

Be careful not to allow the front seat inner belt ASSY RH ride over the location.
Captions in illustration
| *1 |
Location |

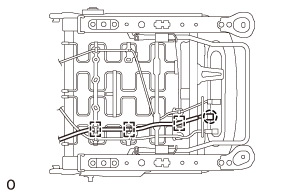

(2) Engage the claw and 5 clamps, and install the wiring harness of the front seat inner belt ASSY RH.
(3) Install the rubber band of the separate type front seat backrest cover RH.
2. Installation of the front seat inner belt ASSY LH (passenger’s side)
(1) Install the front seat inner belt ASSY LH with the nut and the washer.
Standard value:
Standard value:
Tightening torque=42N·m
{
428kgf·cm}
{31.0ft·lbf}
CAUTION:
Be careful not to allow the front seat inner belt ASSY LH ride over the location.
Captions in illustration
| *1 |
Location |
(2) Engage the claw and 3 clamps, and install the wiring harness of the front seat inner belt ASSY LH.
(3) Connect the simple occupant sensor connector.
3. Installation of the front seat cushion shield INN RH (driver’s side) (Refer to )
)4. Installation of the front seat ASSY RH (Refer to )
)UNIT INSPECTION
1. Inspection of the front seat inner belt ASSY RH
(1) Measure the resistance according to the following chart.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| 1 - 2 |
Tongue plate not inserted to the buckle |
Less than 1 Ω |
| Tongue plate inserted to the buckle |
Less than 10 kΩ |

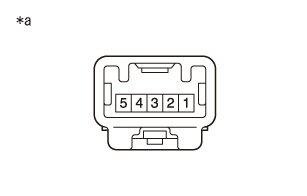

Captions in illustration
| *a |
Connector not connected (Front seat inner belt ASSY RH) |
2. Inspection of the front seat inner belt ASSY LH
(1) Measure the resistance according to the following chart.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| A-2 - H19-2 |
Always |
Less than 1 Ω |
| A-1 - H19-1 |
Tongue plate not inserted to the buckle |
Less than 1 Ω |
| Tongue plate inserted to the buckle |
10 kΩ or more |

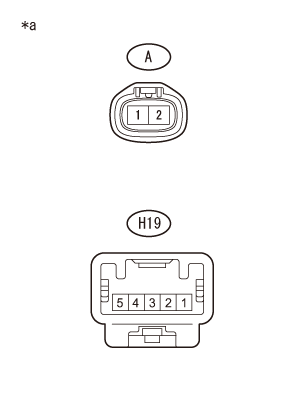

Captions in illustration
| *a |
Connector not connected (front seat inner belt ASSY LH) |
