Rear seat inner belt ASSY
Components Removal / installation
SEAT BELT
REAR SEAT INNER BELT ASSY

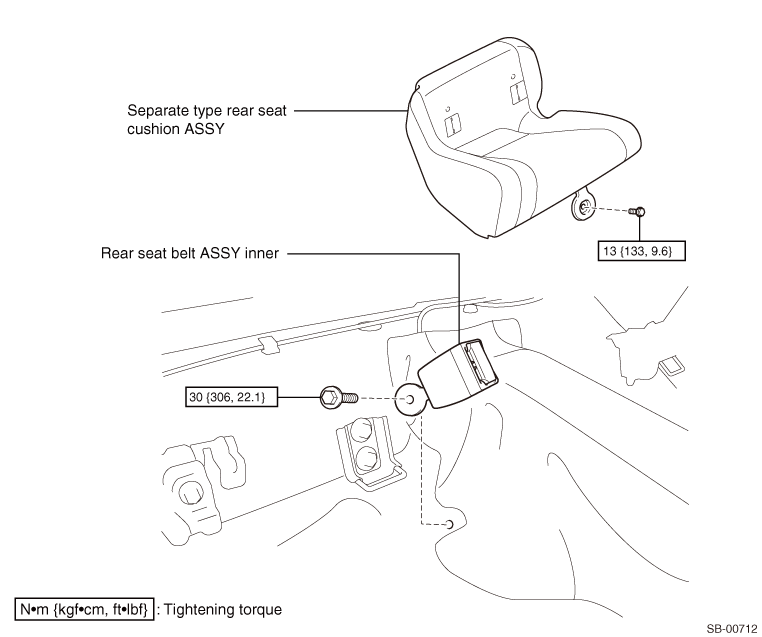

EXPLODED VIEW
REMOVAL
NOTE:
The procedures described below are for the RH side. Perform the same procedures for the LH side.
1. Removal of separate type rear seat cushion ASSY (Refer to
)
)
2. Removal of the rear seat belt ASSY inner
(1) Remove the bolt and remove the rear seat belt ASSY inner.
INSTALLATION
NOTE:
The procedures described below are for the RH side. Perform the same procedures for the LH side.
1. Installation of the rear seat belt ASSY inner

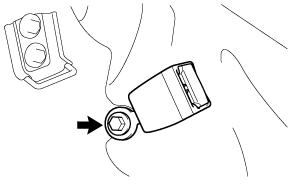

(1) Install the rear seat belt ASSY inner RH with the bolt in the direction shown in the figure.
Standard value:
Standard value:
Tightening torque=30N·m
{
306kgf·cm}
{22.1ft·lbf}
2. Installation of separate type rear seat cushion ASSY (Refer to )
)
