Rear seat outer belt ASSY
Components Removal / installation
SEAT BELT
REAR SEAT OUTER BELT ASSY

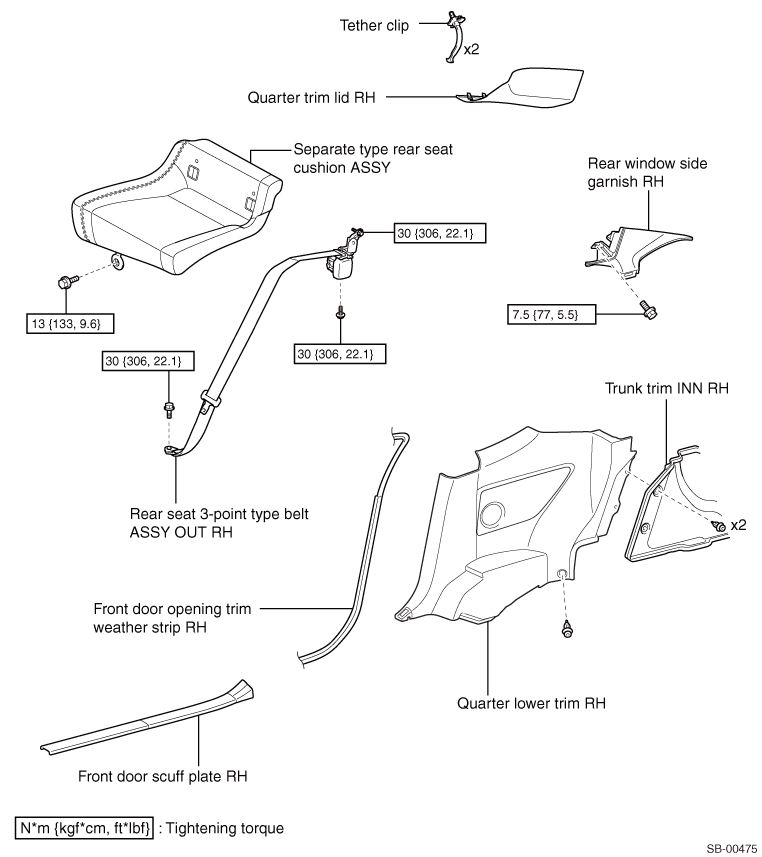

EXPLODED VIEW
REMOVAL
NOTE:
The procedures described below are for the RH side. Perform the same procedures for the LH side.
1. Removal of separate type rear seat cushion ASSY (Refer to
)
)2. Removal of the front door scuff plate RH (Refer to )
)3. Removal of the front door opening trim weather strip RH
(1) Remove the front door opening trim weather strip RH to the extent that the quarter lower trim RH can be removed.
4. Removal of quarter lower trim RH (Refer to )
)5. Removal of quarter trim lid RH (Refer to )
)6. Removal of the rear window side garnish RH (Refer to )
)
7. Removal of the rear seat 3-point type belt ASSY OUT RH

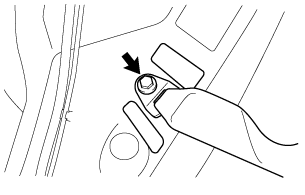

(1) Remove the bolt and disconnect the floor anchor part of the rear seat belt ASSY OUT RH.

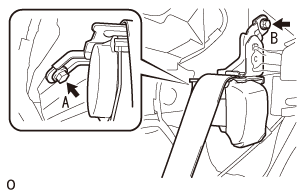

(2) Remove the bolt A.
(3) Loosen the bolt B and remove the rear seat belt ASSY OUT RH.
INSTALLATION
NOTE:
The procedures described below are for the RH side. Perform the same procedures for the LH side.
1. Installation of the rear seat 3-point type belt ASSY OUT RH
(1) Check of the inclination angle for activating the ELR locking operation

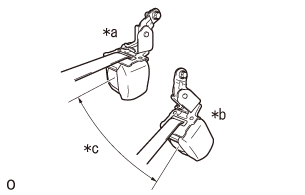

Captions in illustration
| *a |
Unlocked |
| *b |
Locked |
| *c |
27° |
(a) Slowly move the retractor from the installation position, and check that the belt is not locked when the angle is within 12° in all directions, and that it is always locked when the angle is 27° or larger in all directions.
CAUTION:
Do not disassemble the retractor.
(2) Tighten the bolt A and temporally install the retractor part of the rear seat belt ASSY OUT RH.
(3) Install the retractor part of the rear seat belt ASSY OUT RH with the bolt B.
Standard value:
Standard value:
Tightening torque=30N·m
{
306kgf·cm}
{22.1ft·lbf}
Bolts A, B
(4) Install the floor anchor part of the rear seat belt ASSY OUT RH with the bolt.
Standard value:
Standard value:
Tightening torque=30N·m
{
306kgf·cm}
{22.1ft·lbf}
CAUTION:
·Pay attention to the direction to install the floor anchor part.
·Be careful not to allow the floor anchor part ride over the location.
·Be careful not to allow the floor anchor part ride over the location.
·Be careful not to twist the rear seat belt ASSY OUT RH.

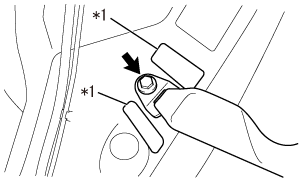

Captions in illustration
| *1 |
Location |
(5) ELR locking operation check
(a) Check that the belt is locked if quickly pulled out when it is mounted on the vehicle.
2. Installation of the rear window side garnish RH (Refer to )
)3. Installation of the quarter trim lid RH (Refer to )
)4. Installation of the quarter lower trim RH (Refer to )
)5. Installation of front door opening trim weather strip RH
6. Installation of the front door scuff plate RH (Refer to )
)7. Installation of the separate type rear seat cushion ASSY
