Child seat restraining device (ISO-FIX)
Components Removal / installation
SEAT BELT
CHILD SEAT RESTRAINING DEVICE (ISO-FIX)

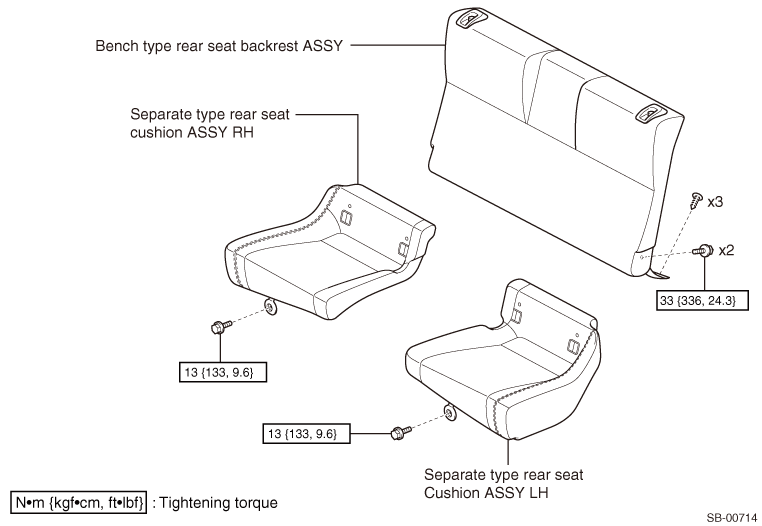

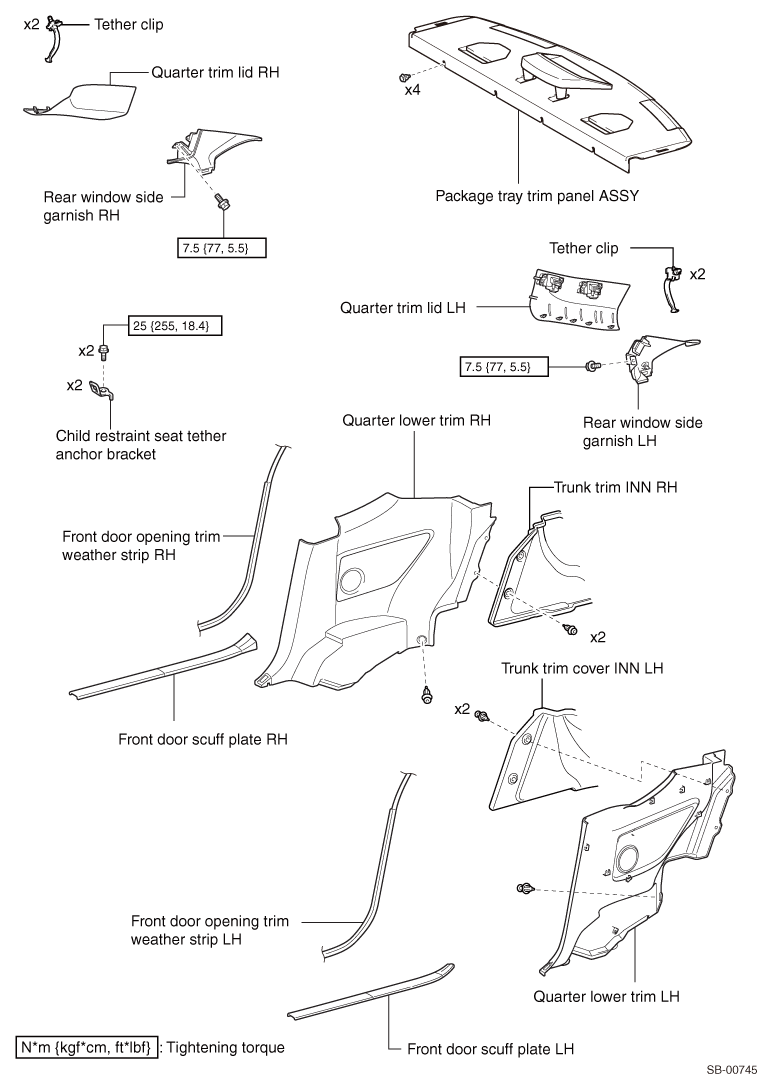

EXPLODED VIEW
REMOVAL
1. Removal of separate type rear seat cushion ASSY (Refer to
)
)2. Removal of the separate type rear seat cushion ASSY LH
NOTE:
Remove the part in the same manner as RH side.
3. Removal of the bench type rear seat backrest ASSY (Refer to )
)4. Removal of the front door scuff plate RH (Refer to )
)5. Removal of front door scuff plate LH
NOTE:
Remove the part in the same manner as RH side.
6. Removal of the front door opening trim weather strip RH
(1) Remove the front door opening trim weather strip RH to the extent that the luggage compartment trim side cover RH can be removed.
7. Removal of front door opening trim weather strip LH
NOTE:
Remove the part in the same manner as RH side.
8. Removal of quarter lower trim RH (Refer to )
)9. Removal of quarter lower trim LH
NOTE:
Remove the part in the same manner as RH side.
10. Removal of quarter trim lid RH (Refer to )
)11. Removal of quarter trim lid LH
NOTE:
Remove the part in the same manner as RH side.
12. Removal of the rear window side garnish RH (Refer to )
)13. Removal of the rear window side garnish LH
NOTE:
Remove the part in the same manner as RH side.
14. Removal of package tray trim panel ASSY (Refer to )
)

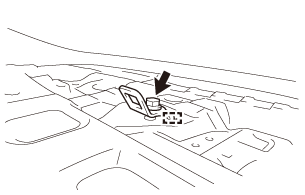

15. Removal of the child restraint seat tether anchor bracket
(1) Remove the bolt.
(2) Remove the guide and remove the child restraint seat tether anchor bracket.
NOTE:
Remove both parts using the same procedures.
INSTALLATION
1. Installation of the child restraint seat tether anchor bracket
(1) Insert the guide and temporally install the child restraint seat tether anchor bracket.
(2) Install the child restraint seat tether anchor bracket with the bolt.
Standard value:
Standard value:
Tightening torque=25N·m
{
255kgf·cm}
{18.4ft·lbf}
NOTE:
Install both parts using the same procedures.
2. Installation of package tray trim panel ASSY (Refer to )
)3. Installation of the rear window side garnish RH (Refer to )
)4. Installation of rear window side garnish LH
NOTE:
Install the part in the same manner as RH side.
5. Installation of the quarter trim lid RH (Refer to )
)6. Installation of quarter trim lid LH
NOTE:
Install the part in the same manner as RH side.
7. Installation of the quarter lower trim RH (Refer to )
)8. Installation of quarter lower trim LH
NOTE:
Install the part in the same manner as RH side.
9. Installation of front door opening trim weather strip RH
10. Installation of front door opening trim weather strip LH
11. Installation of the front door scuff plate RH (Refer to )
)12. Installation of front door scuff plate LH
NOTE:
Install the part in the same manner as RH side.
13. Installation of the bench type rear seat backrest ASSY (Refer to )
)14. Installation of separate type rear seat cushion ASSY (Refer to )
)15. Installation of the separate type rear seat cushion ASSY LH
