Child seat fixing device (ISO-FIX)
Components Removal / installation
SEAT BELT
CHILD SEAT FIXING DEVICE (ISO-FIX)

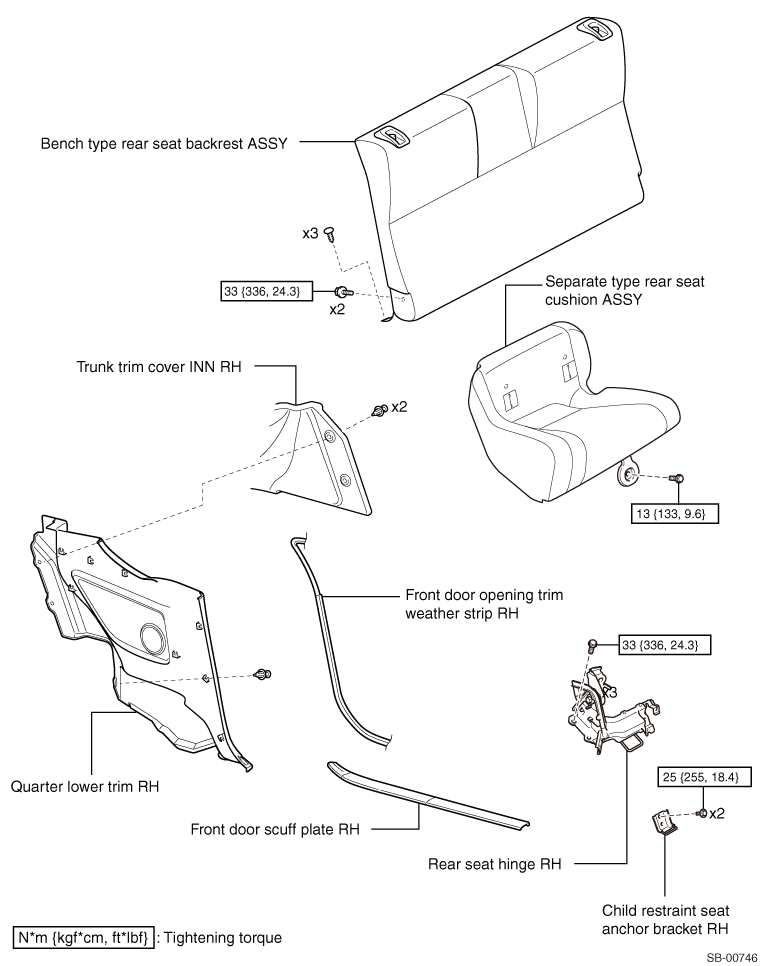

EXPLODED VIEW
REMOVAL
1. Precautions for handling the device
NOTE:
The procedures described below are for the RH side. Perform the same procedures for the LH side.
2. Removal of separate type rear seat cushion ASSY (Refer to
)
)3. Removal of the bench type rear seat backrest ASSY (Refer to )
)

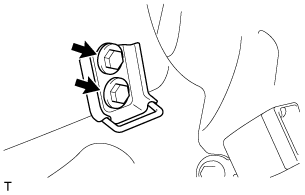

4. Removal of the child restraint seat anchor bracket RH
(1) Remove 2 bolts and remove the child restraint seat anchor bracket RH.
5. Removal of the front door scuff plate RH (Refer to )
)6. Removal of the front door opening trim weather strip RH
(1) Remove the front door opening trim weather strip RH to the extent that the quarter lower trim RH can be removed.
7. Removal of quarter lower trim RH (Refer to )
)

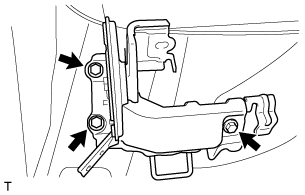

8. Removal of the rear seat hinge RH
(1) Remove 3 bolts and remove the rear seat hinge RH.
INSTALLATION
NOTE:
The procedures described below are for the RH side. Perform the same procedures for the LH side.
1. Installation of the rear seat hinge RH
(1) Install the rear seat hinge RH with 3 bolts.
Standard value:
Standard value:
Tightening torque=33N·m
{
337kgf·cm}
{24.3ft·lbf}
2. Installation of the quarter lower trim RH (Refer to )
)3. Installation of the front door opening trim weather strip RH (Refer to )
)4. Installation of the front door scuff plate RH (Refer to )
)5. Installation of the child restraint seat anchor bracket RH
(1) Install the child restraint seat anchor bracket RH with 2 bolts.
Standard value:
Standard value:
Tightening torque=25N·m
{
255kgf·cm}
{18.4ft·lbf}
6. Installation of the bench type rear seat backrest ASSY (Refer to )
)7. Installation of separate type rear seat cushion ASSY (Refer to )
)
