Front blower motor (with fan)
Components Inspection Removal / installation
AIR CONDITIONER
FRONT BLOWER MOTOR (WITH FAN)

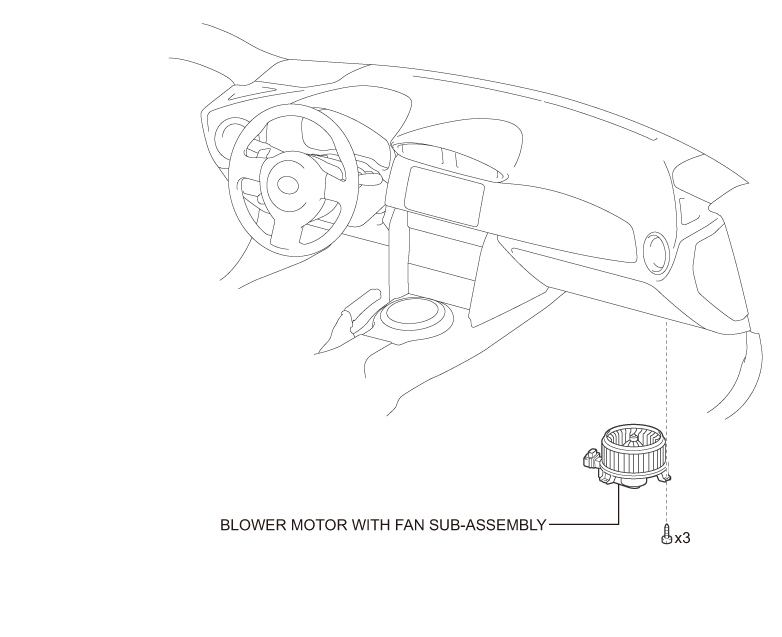

EXPLODED VIEW
REMOVAL
1. Removal of blower motor SUB-ASSY (with fan)
(1) Disconnect the connector.

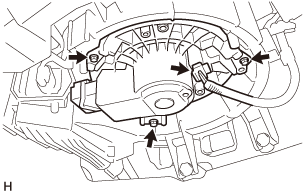

(2) Remove the 3 screws and remove the blower motor SUB-ASSY (with fan).
INSTALLATION
1. Installation of blower motor SUB-ASSY (with fan)
(1) Install the blower motor SUB-ASSY (with fan) with the 3 screws.
(2) Connect the connector.
UNIT INSPECTION
1. Inspection of blower motor SUB-ASSY (with fan)
(1) Operation inspection

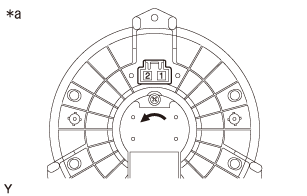

(a) Check operation when battery voltage is applied between the connector terminals of the blower motor SUB-ASSY (with fan).
Criteria
| Battery connection |
Criteria |
|---|---|
| Battery positive → 2 Battery ground → 1 |
The motor rotates in the direction of the arrow in the figure without abnormal noise. |
Captions in illustration
| *a |
Connector not connected (Blower motor SUB-ASSY (with fan)) |
