FRESH/RECIRC door actuator
Components Inspection Removal / installation
AIR CONDITIONER
FRESH/RECIRC DOOR ACTUATOR

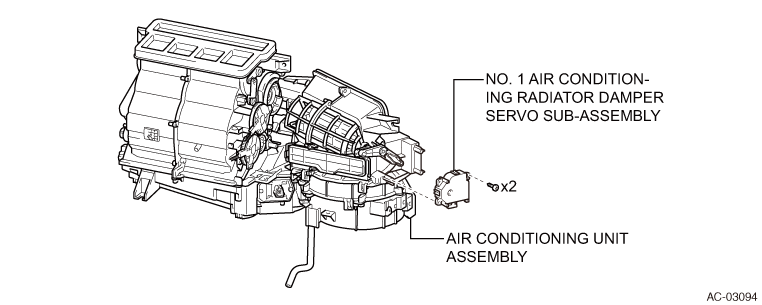

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)2. Removal of console box ASSY (Refer to )
)3. Removal of instrument cluster finish panel SUB-ASSY CTR (Refer to )
)4. Removal of instrument cluster finish panel garnish NO.1 (Refer to )
)5. Removal of instrument cluster finish panel garnish NO.2 (Refer to )
)6. Removal of air conditioner control ASSY (Refer to )
)7. Removal of the instrument side panel RH (Refer to )
)8. Removal of glove compartment door ASSY (Refer to )
)9. Removal of instrument panel SUB-ASSY LWR (Refer to )
)
10. Removal of air conditioner radiator damper servo SUB-ASSY NO.1
(1) Disconnect the connector.

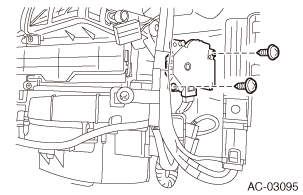

(2) Remove the 2 screws and remove air conditioner radiator damper servo SUB-ASSY NO.1.
INSTALLATION
1. Installation of air conditioner radiator damper servo SUB-ASSY NO.1
(1) Install air conditioner radiator damper servo SUB-ASSY NO.1 with the 2 screws.
(2) Connect the connector.
2. Installation of instrument panel SUB-ASSY LWR (Refer to )
)3. Installation of glove compartment door ASSY (Refer to )
)4. Installation of the instrument side panel RH (Refer to )
)5. Installation of air conditioner control ASSY (Refer to )
)6. Installation of instrument cluster finish panel garnish NO.2 (Refer to )
)7. Installation of instrument cluster finish panel garnish NO.1 (Refer to )
)8. Installation of instrument cluster finish panel SUB-ASSY CTR (Refer to )
)9. Installation of console box ASSY (Refer to )
)10. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
11. Settings when removing/installing battery terminals (Refer to )
)UNIT INSPECTION
1. Inspection of air conditioner radiator damper servo SUB-ASSY NO.1
(1) Operation inspection
(a) Check operation when battery voltage is applied between connector terminals of the air conditioner radiator damper servo SUB-ASSY NO.1.
Criteria
| Battery connection |
Criteria |
|---|---|
| Battery positive → 7 Battery ground → 1 |
RECIRC position, rotates in the direction of the arrow in the figure. |
| Battery positive → 7 Battery ground → 3 |
FRESH position, rotates in the direction of the arrow in the figure. |

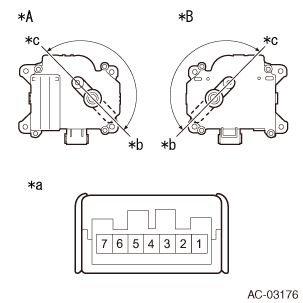

Captions in illustration
| *A |
LHD model |
| *B |
RHD model |
| *a |
Connector not connected (Air conditioner radiator damper servo SUB-ASSY NO.1) |
| *b |
RECIRC |
| *c |
FRESH |
