Blower resistor

Components Inspection Removal / installation

AIR CONDITIONER

BLOWER RESISTOR

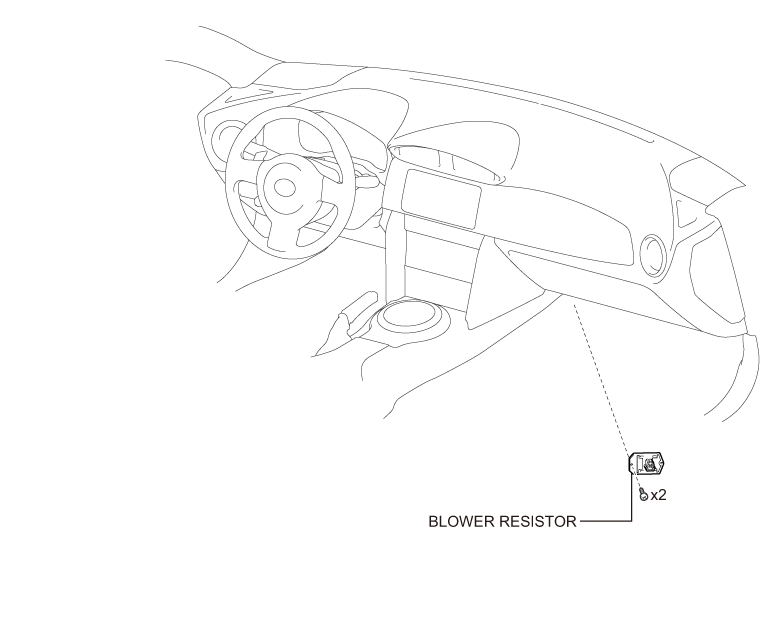

EXPLODED VIEW

REMOVAL

1. Removal of blower register

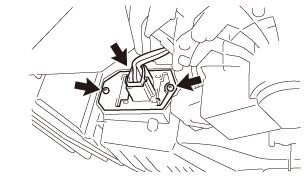

(1) Disconnect the connector.

(2) Remove the 2 screws and remove the blower register.

INSTALLATION

1. Installation of blower register

(1) Install the blower register with the 2 screws.

(2) Connect the connector.

UNIT INSPECTION

1. Check of blower resistor

(1) Resistance inspection

(a) Check the resistance between the connector terminals.

Resistance

Terminal No.	Inspection conditions	Standard value
1 - 4	Always	2.92 Ω
1 - 3	Always	0.44 Ω
1 - 2	Always	1.12 Ω

NOTE:

Temperature fuse is present between terminals 1 and 3.

Captions in illustration

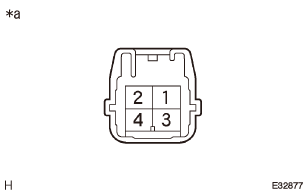

*a	Connector not connected (Blower resistor)
