Air conditioner panel (for automatic air conditioning system)
Components Inspection Removal / installation
AIR CONDITIONER
AIR CONDITIONER PANEL (FOR AUTOMATIC AIR CONDITIONING SYSTEM)

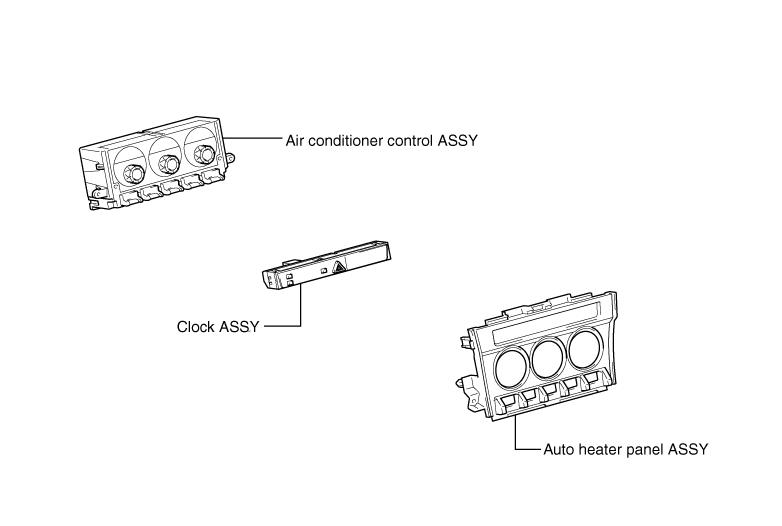

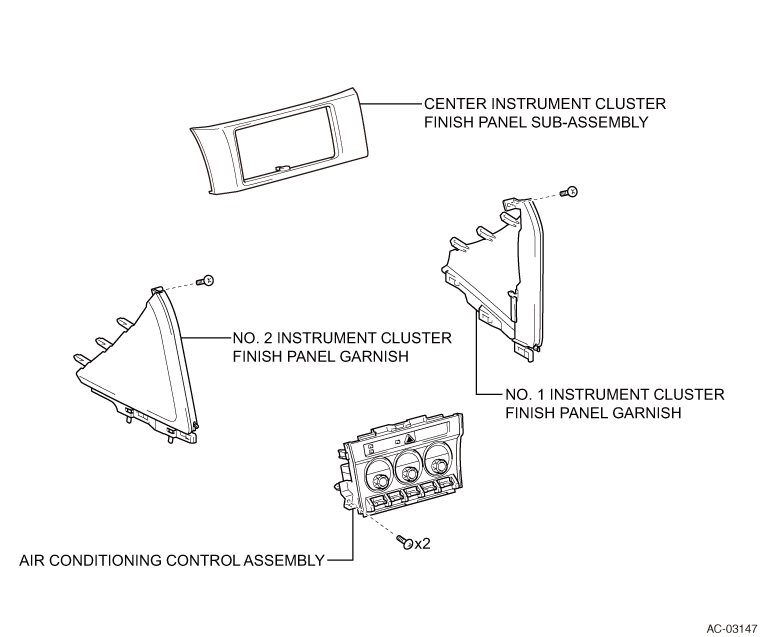

EXPLODED VIEW
REMOVAL
1. Removal of console box ASSY (Refer to
)
)2. Removal of instrument cluster finish panel SUB-ASSY CTR (Refer to )
)3. Removal of instrument cluster finish panel garnish NO.1 (Refer to )
)4. Removal of instrument cluster finish panel garnish NO.2 (Refer to )
)

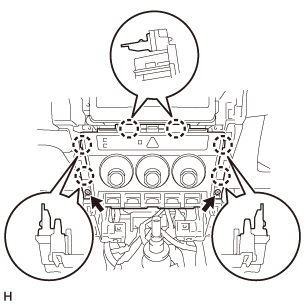

5. Removal of air conditioner control ASSY
(1) Remove the 2 screws.
(2) Release the 6 tabs.

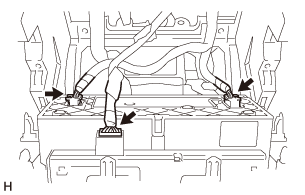

(3) Disconnect the connectors, and disconnect the air conditioner control ASSY.
DISASSEMBLY
1. Removal of heater control base SUB-ASSY

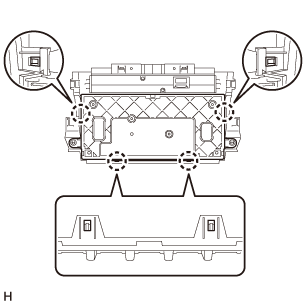

(1) Release the 4 claws and remove the heater control base SUB-ASSY.
2. Removal of clock ASSY (Refer to )
)ASSEMBLY
1. Installation of clock ASSY (Refer to )
)
2. Installation of heater control base SUB-ASSY
(1) Engage the 4 claws and install the heater control base SUB-ASSY.
INSTALLATION
1. Installation of air conditioner control ASSY
(1) Connect each connector.
(2) Fit in the 6 claws.
(3) Install the air conditioner control ASSY with the 2 screws.
2. Installation of instrument cluster finish panel garnish NO.1 (Refer to )
)3. Installation of instrument cluster finish panel garnish NO.2 (Refer to )
)4. Installation of instrument cluster finish panel SUB-ASSY CTR (Refer to )
)5. Installation of the console box ASSY (Refer to )
)UNIT INSPECTION

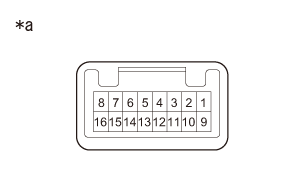

1. Inspection of air conditioner control ASSY
