Power supply outlet socket (installed to the front side)
Components Removal / installation
CIGARETTE LIGHTER/ACCESSORY SOCKET (INTERIOR)
POWER SUPPLY OUTLET SOCKET (INSTALLED TO THE FRONT SIDE)

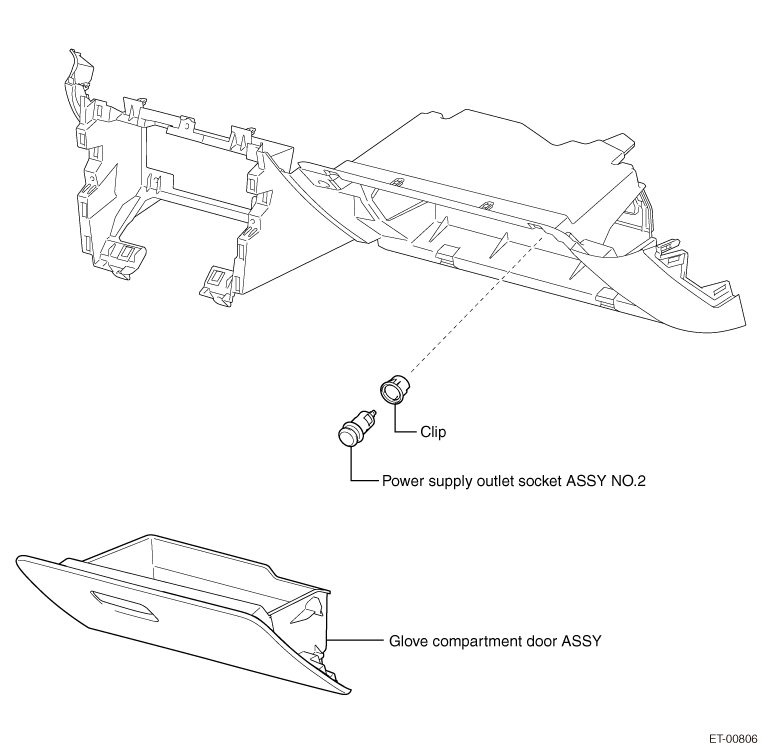

EXPLODED VIEW
REMOVAL
1. Removal of glove compartment door ASSY (Refer to
)
)
2. Removal of power supply outlet socket ASSY NO.2

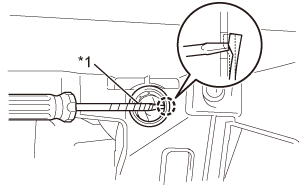

(1) While pressing the inner claw of power supply outlet socket ASSY NO.2 with a flat tip screwdriver wrapped with protective tape, pull the ASSY toward you.
Captions in illustration
| *1 |
Protective tape |
(2) Disconnect the connector and remove power supply outlet socket ASSY NO.2.
NOTE:
If it is difficult to remove the ASSY, remove the instrument panel SUB-ASSY LWR and release the claw from behind.
3. Removal of clip

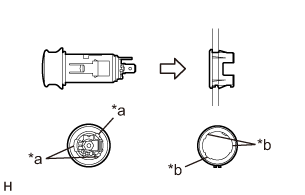

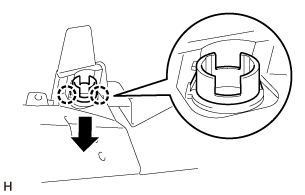

(1) Release the 2 claws and remove the clip.
INSTALLATION
1. Installation of clip

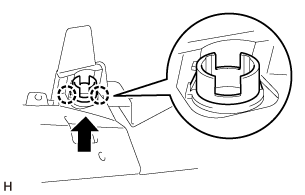

(1) Engage the 2 claws and install the clip.
2. Installation of power supply outlet socket ASSY NO.2
3. Installation of glove compartment door ASSY (Refer to )
)
