Subaru BRZ 2013 · Service Manual Interior body & electrical

Power supply outlet socket (installed to the rear side)

Components Removal / installation

CIGARETTE LIGHTER/ACCESSORY SOCKET (INTERIOR)

POWER SUPPLY OUTLET SOCKET (INSTALLED TO THE REAR SIDE)

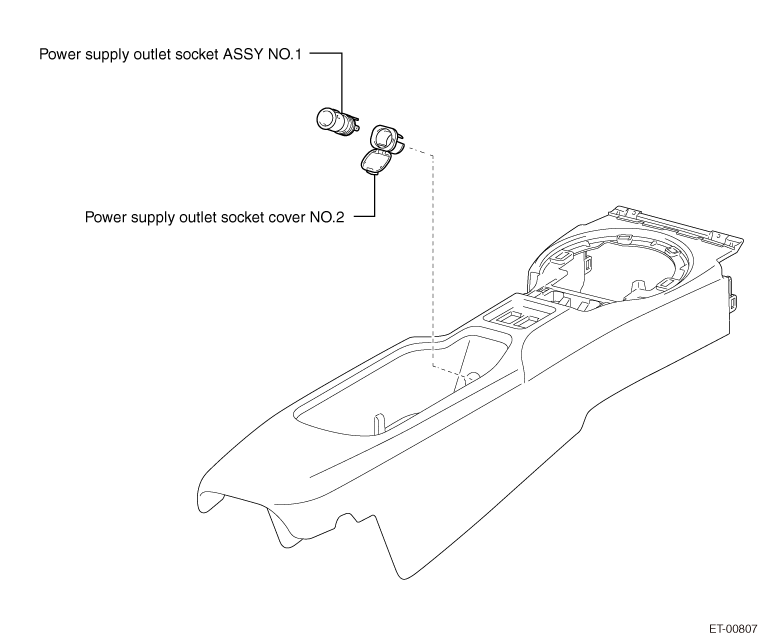

EXPLODED VIEW

REMOVAL

1. Removal of console box ASSY (Refer to

)

2. Removal of power supply outlet socket ASSY NO.1

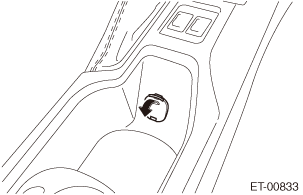

(1) Open the lid of power supply outlet socket ASSY NO.1.

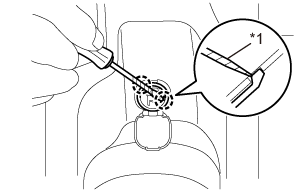

(2) Release the 2 claws with a flat tip screwdriver wrapped with protective tape, and remove power supply outlet socket ASSY NO.1.

Captions in illustration

*1	Protective tape

3. Removal of power supply outlet socket cover NO.2

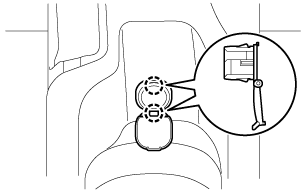

(1) Release the 2 claws and remove power supply outlet socket cover NO.2.

1. Installation of power supply outlet socket cover NO.2

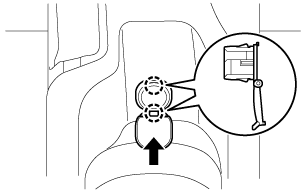

(1) Engage the 2 claws and install power supply outlet socket cover NO.2.

2. Installation of power supply outlet socket ASSY NO.1

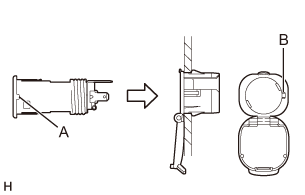

(1) Align portion A of power supply outlet socket ASSY NO.1 with portion B of power supply outlet socket cover NO.2 as shown in the figure.

(2) Engage the 2 claws and install power supply outlet socket ASSY NO.1 to power supply outlet socket cover NO.2.

3. Installation of console box ASSY (Refer to

)
