INSTRUMENT PANEL LWR
PRECAUTIONS
1. Models with the SRS airbag and pretensioner
(1) This section includes the service operation which may have an influence on the SRS airbag. Before starting the relevant service operations, read the working precautions and notes in the general section of this manual, ensuring the secure operation. (Refer to
)
)2. Precautions during removal and installation
(1) When releasing clips or claws with a flat tip screwdriver or molding remover, always wrap the tool with protective tape to prevent damage to parts.

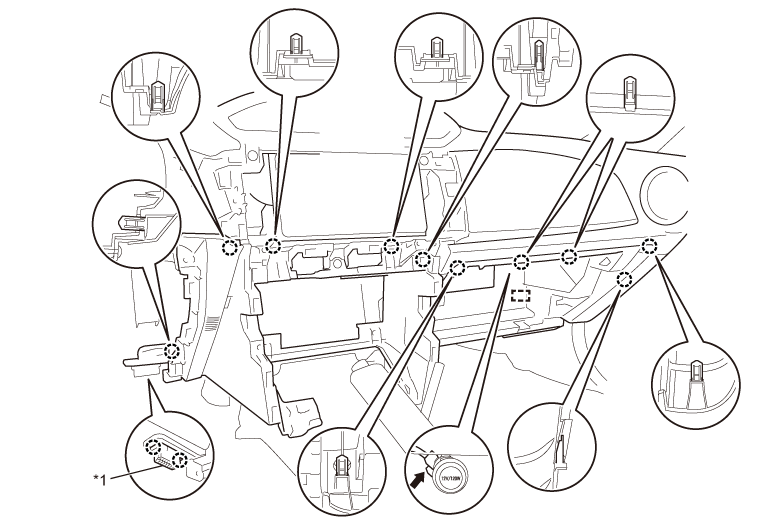

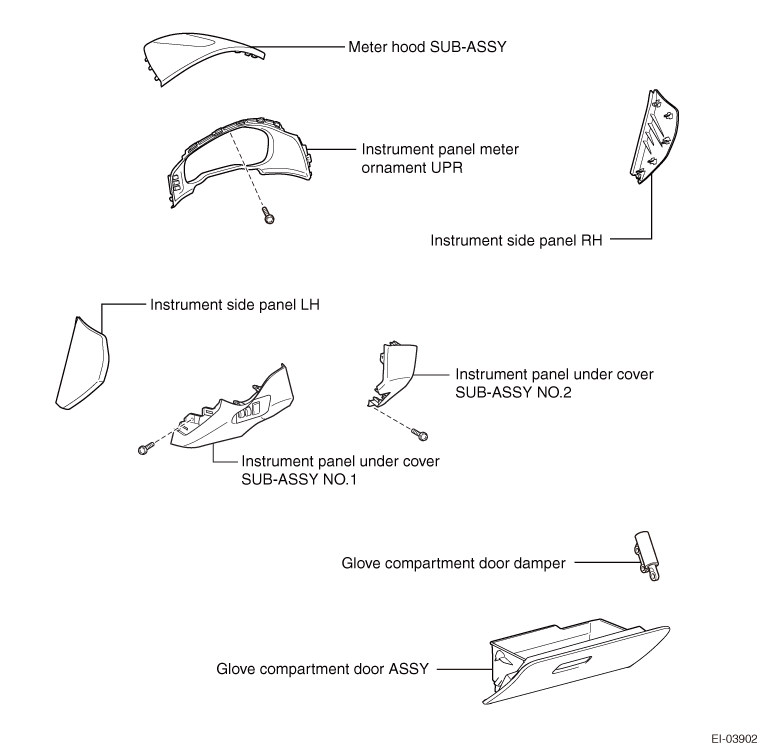

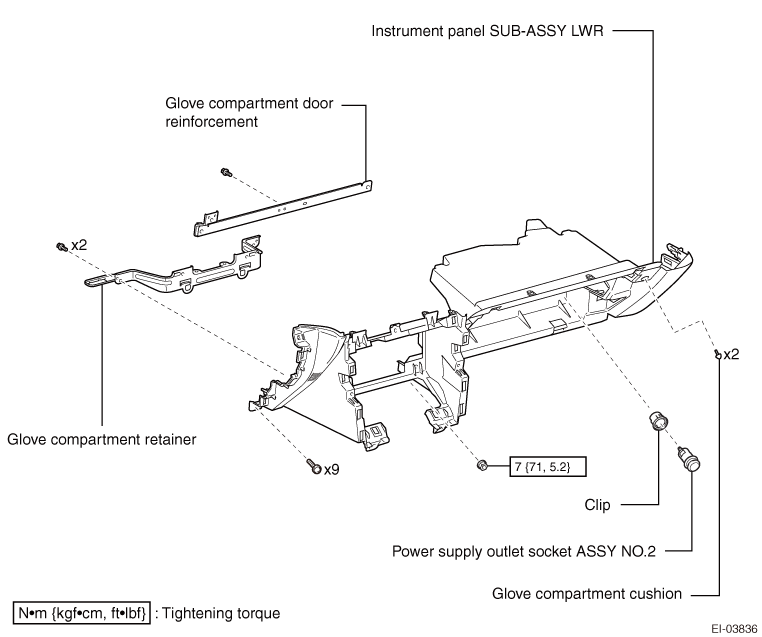

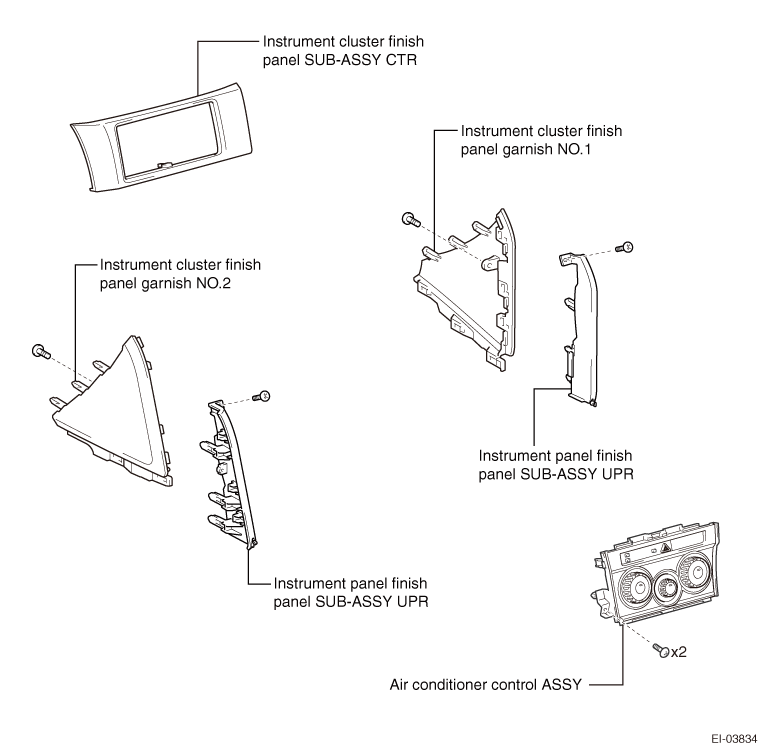

EXPLODED VIEW
REMOVAL

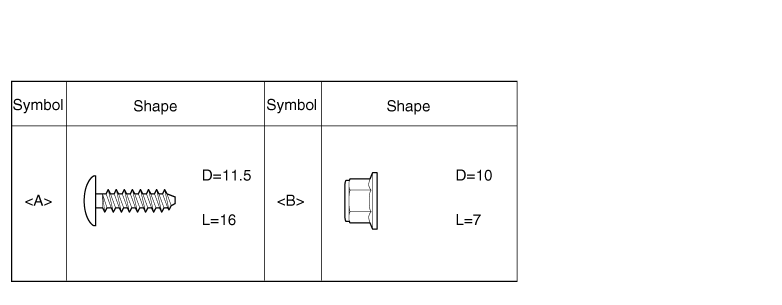

List of bolts, screws, and nuts
NOTE:
·Bolts, screws, and nuts required for removal or installation of the instrument panel LWR are indicated by symbols in context and figures.
·In the figure, D represents nominal (mm) while L represents bolt length (mm).
·In the figure, D represents nominal (mm) while L represents bolt length (mm).
1. Precautions
CAUTION:
After turning the ignition switch to OFF, you may have to wait for a while before disconnecting the battery terminals. Check appropriate precautions for battery terminal disconnection before proceeding. (Refer to )
)2. Disconnection of the battery ground terminal (Refer to )
)3. Removal of the console box ASSY (Refer to )
)

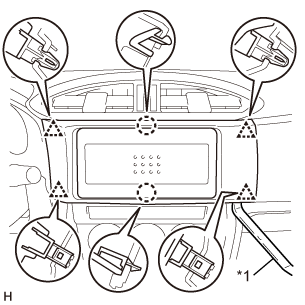

4. Removal of instrument cluster finish panel SUB-ASSY CTR
5. REMOVE RADIO RECEIVER WITH BRACKET

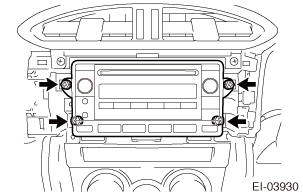

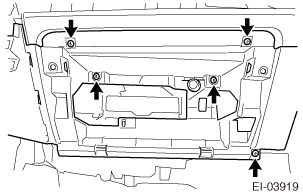

(1) Remove the 4 bolts to remove the radio receiver with bracket.

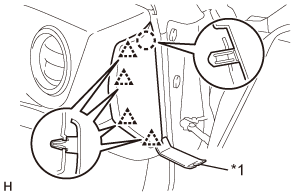

6. Removal of instrument cluster finish panel garnish NO.2
(1) Remove the screw and release the 6 claws. Pull instrument cluster finish panel garnish NO.2 toward you and remove it.

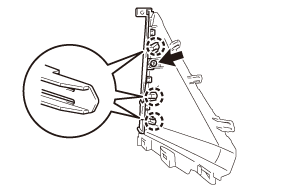

7. Removal of instrument panel finish panel SUB-ASSY UPR (installed on the LH side)
(1) Remove the screw.
(2) Release the 3 claws and remove the instrument panel finish panel SUB-ASSY UPR.
8. Removal of instrument cluster finish panel garnish NO.1
NOTE:
Remove the part in the same manner as LH side.
9. Removal of instrument panel finish panel SUB-ASSY UPR (installed on the RH side)

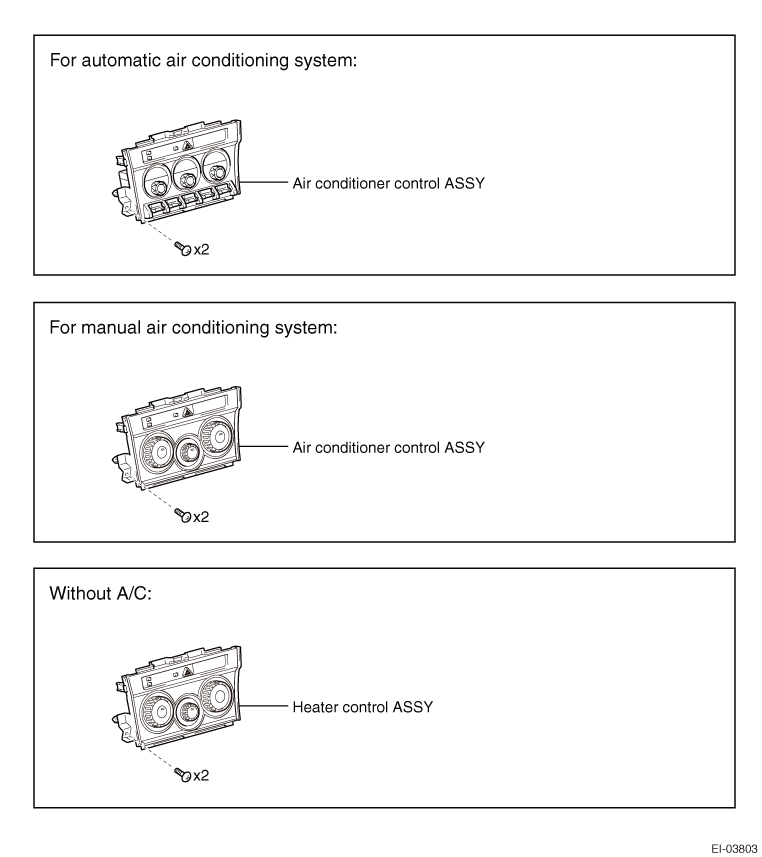

10. Removal of air conditioner control ASSY (for automatic air conditioning system) (Refer to )
)11. Removal of air conditioner control ASSY (for manual air conditioning system) (Refer to )
)12. Removal of the air conditioner control ASSY (without air conditioner)
NOTE:
Repeat the same removal steps for the manual air conditioning system.

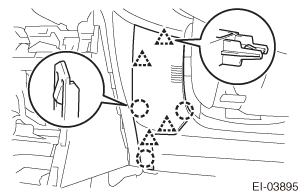

13. Removal of instrument side panel LH

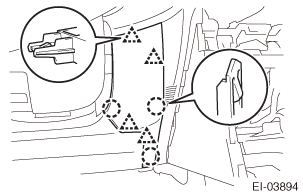

14. Removal of instrument side panel RH
NOTE:
Remove the part in the same manner as LH side.
15. Removal of meter hood SUB-ASSY
(1) Remove the screw.

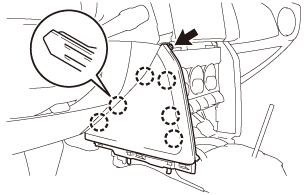

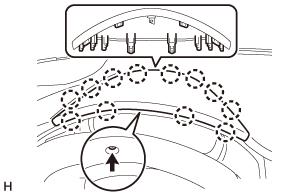

(2) Release the 12 claws. Pull the meter hood SUB-ASSY obliquely upward and toward you and remove it.

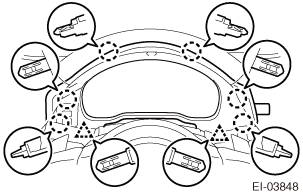

16. Removal of instrument panel meter ornament UPR

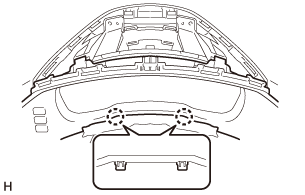

(1) Release the 2 clips and 6 claws.
(2) Release the 2 claws connecting the instrument panel meter ornament UPR to the steering column cover.
(3) Disconnect the connector and remove the instrument panel meter ornament UPR.
17. Removal of the instrument panel under cover SUB-ASSY NO.1
18. Removal of the instrument panel under cover SUB-ASSY NO.2
(1) For LHD
(a) Remove the screw.
(b) Release the 3 claws and 4 clips, and then remove the lower D inner cover ASSY.
(2) For RHD
(a) Remove the screw.
(b) Release the 4 clips and 3 claws.

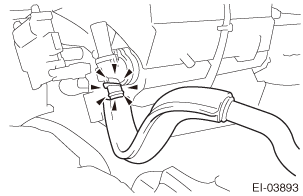

(c) Disconnect the aspirator hose and the connector, and remove the lower D inner cover ASSY.
19. Removal of glove compartment door ASSY

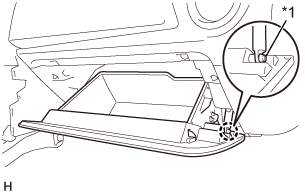

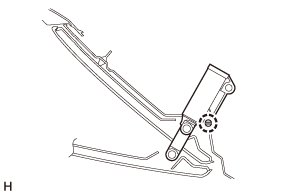

(1) Release the claw and disconnect the glove compartment door damper.
Captions in illustration
| *1 |
Glove compartment door damper |

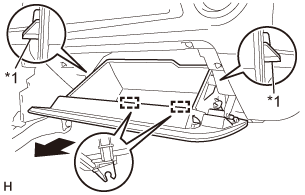

(2) Release the 2 stoppers and pull out the glove compartment door ASSY until it is level.
Captions in illustration
| *1 |
Stopper |
(3) Pull the glove compartment door ASSY horizontally, release the 2 hinges, and remove the glove compartment door ASSY.
CAUTION:
If the glove compartment door ASSY is pulled upward and removed, the hinges may be loosened. Always pull the ASSY horizontally to remove it.
20. Removal of glove compartment door damper
(1) Release the claw and remove the glove compartment door damper.
21. Removal of instrument panel SUB-ASSY LWR

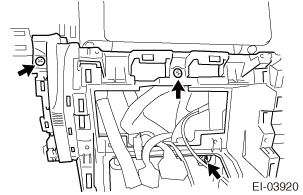

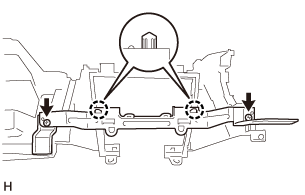

(1) Remove the 5 screws.
(2) Remove the 2 screws and nuts.
(3) Disconnect the aspirator hose. (LHD Automatic air conditioning system model)
DISASSEMBLY
1. Removal of glove compartment retainer

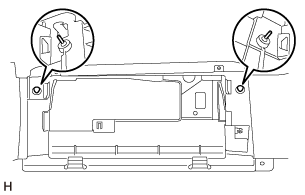

(1) Remove the 2 screws, release the 2 claws, and remove the glove compartment retainer.

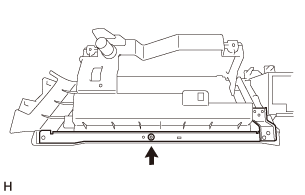

2. Removal of glove compartment door reinforcement
(1) Remove the screw and remove the glove compartment door reinforcement.
3. Removal of glove compartment cushion
(1) Remove the 2 glove compartment cushions.
4. Removal of power supply outlet socket ASSY NO.2 (Refer to )
)5. Removal of clip (Refer to )
)6. Removal of the aspirator hose and in-vehicle sensor (LHD automatic air conditioning system model) (Refer to )
)ASSEMBLY
1. Installation of clip (Refer to )
)2. Installation of power supply outlet socket ASSY NO.2 (Refer to )
)
3. Installation of glove compartment cushion
(1) Install the 2 glove compartment cushions.
4. Installation of glove compartment door reinforcement
(1) Install the glove compartment door reinforcement with the screw.
5. Installation of glove compartment retainer
(1) Install the 2 screws, engage the 2 claws, and install the glove compartment retainer.
6. Installation of aspirator hose and in-vehicle sensor (LHD automatic air conditioning system model) (Refer to )
)INSTALLATION
1. Installation of instrument panel SUB-ASSY LWR
(1) Engage the 14 claws and connect the connectors and clamps.
(2) Connect the aspirator hose. (LHD Automatic air conditioning system model)
(3) Install the 2 screws and nuts.
(4) With the 5 screws, install the instrument panel SUB-ASSY LWR.
2. Installation of glove compartment door damper
(1) Engage the claw and install the glove compartment door damper.
3. Installation of glove compartment door ASSY
(1) Engage the 2 hinges of the glove compartment door ASSY horizontally.
(2) Engage the 2 stoppers and install the glove compartment door ASSY.
CAUTION:
If the stoppers are engaged from above, the hinges may be loosened. Always engage them horizontally.
(3) Engage the claw and install the glove compartment door damper.
4. Installation of the instrument panel under cover SUB-ASSY NO.2
(1) Engage the 3 claws and the 4 clips.
(2) With a screw, install the instrument panel under cover SUB-ASSY NO.2.
(3) Connect the aspirator hose and the connector. (RHD Automatic air conditioning system model)
5. Installation of instrument panel under-cover SUB-ASSY NO.1 (Refer to )
)6. Installation of instrument panel meter ornament UPR
(1) Connect the connector.
(2) Engage the 2 claws connecting the instrument panel meter ornament UPR to the steering column cover.
(3) Engage the 2 clips and 6 claws and install the instrument panel meter ornament UPR.
7. Installation of meter hood SUB-ASSY
(1) Fit in the 12 claws.
(2) With the screw, install the meter hood SUB-ASSY.
8. Installation of instrument side panel RH
(1) Engage the 4 clips and the claw and install the instrument panel side panel RH.
9. Installation of instrument side panel LH
NOTE:
Install the part in the same manner as RH side.
10. Installation of air conditioner control ASSY (for automatic air conditioning system) (Refer to )
)11. Installation of air conditioner control ASSY (for manual air conditioning system) (Refer to )
)12. Installation of instrument panel finish panel SUB-ASSY UPR (installed on the RH side)
(1) Fit in the 3 claws.
(2) With the screw, install the instrument panel finish panel SUB-ASSY UPR.
13. Installation of instrument cluster finish panel garnish NO.1
(1) Fit in the 6 claws.
CAUTION:
If the claws are not correctly inserted, the claws may be damaged.
(2) With the screw, install the instrument cluster finish panel garnish NO.1.
14. Installation of instrument panel finish panel SUB-ASSY UPR (installed on the LH side)
NOTE:
Install the part in the same manner as RH side.
15. Installation of instrument cluster finish panel garnish NO.2
NOTE:
Install the part in the same manner as RH side.
16. Installation of instrument cluster finish panel SUB-ASSY CTR
(1) Engage the 4 clips and 2 claws and install the instrument cluster finish panel SUB-ASSY CTR.
17. Installation of console box ASSY (Refer to )
)18. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
19. Settings when removing/installing battery terminals (Refer to )
)20. Inspection of the airbag warning light (Refer to )
)
