Front console box
Components Removal / installation
INSTRUMENT PANEL / BODY INTERIOR
FRONT CONSOLE BOX

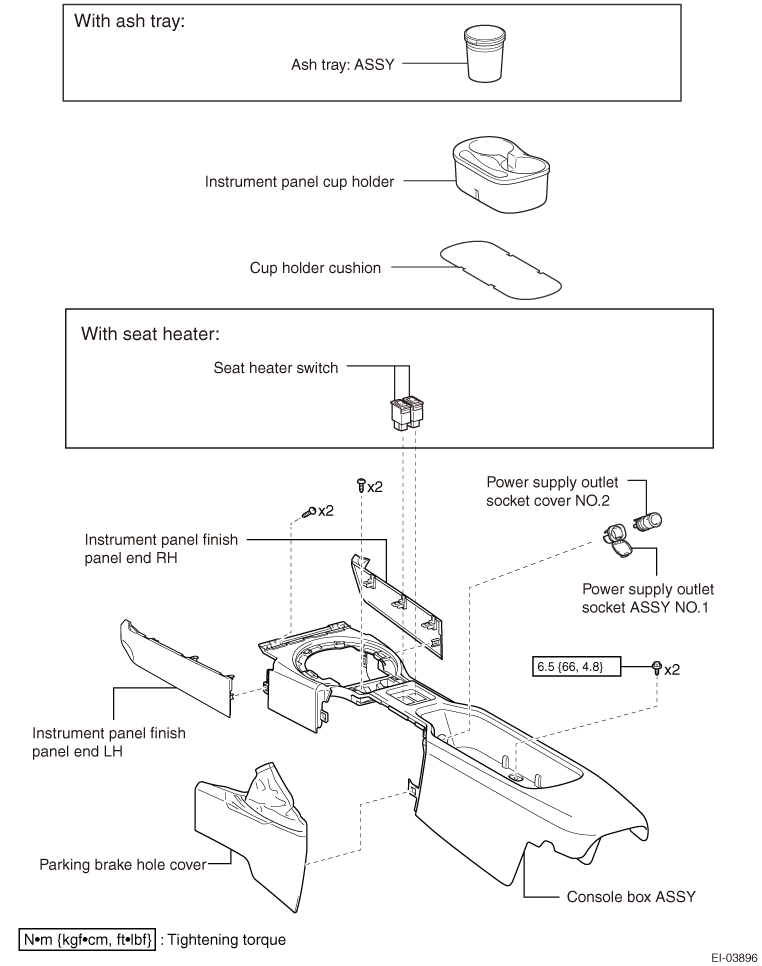

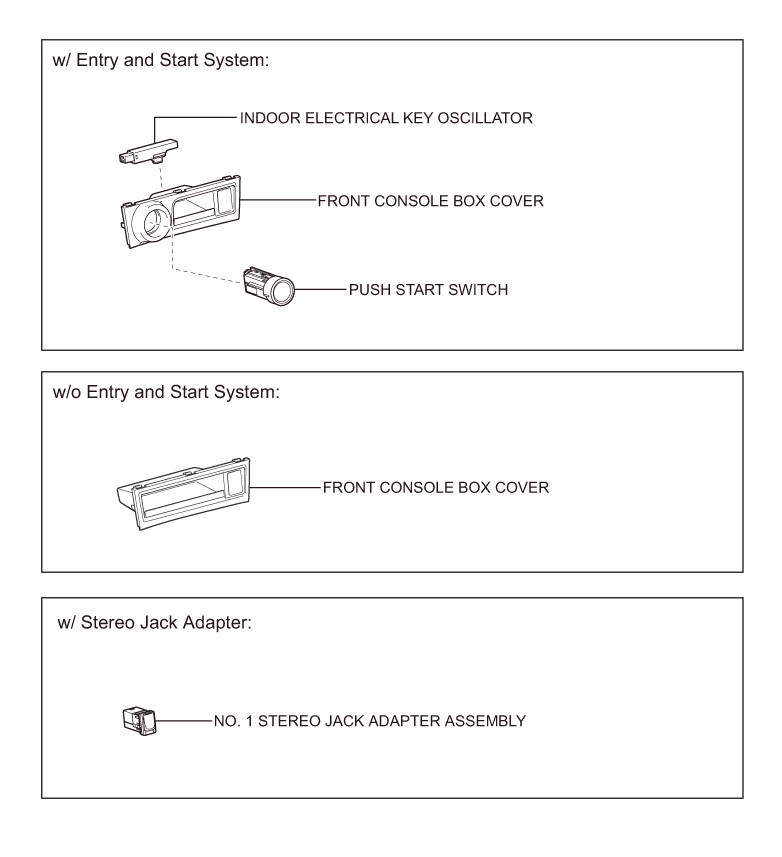

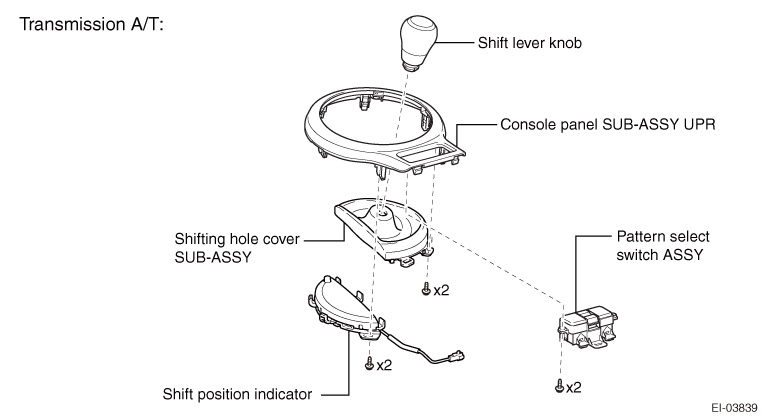

EXPLODED VIEW
REMOVAL
1. Removal of console box cover FR (with smart key system)
(1) Check that the shift lever is in N position.
(2) Apply protective tape to the location shown in the figure.
Captions in illustration
| *1 |
Protective tape |

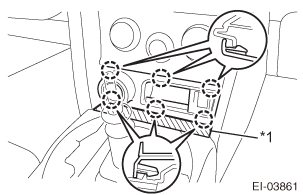

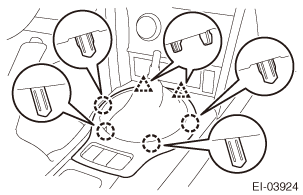

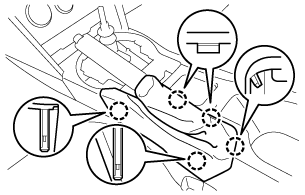

(3) Release the 6 claws and remove the console box cover FR.
NOTE:

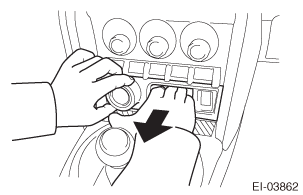

While holding the inside of the pocket and the engine ignition switch, pull out the console box cover FR.
NOTE:

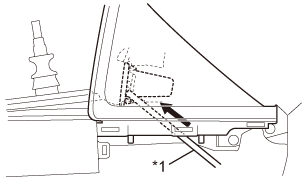

Remove the passenger’s side instrument panel finish panel end and remove the console box cover FR, pushing the back of the cover with a stick (tool handle, etc.).
Captions in illustration
| *1 |
Stick |
CAUTION:
Do not push switches or antennas with a stick (tool handle, etc.).
2. Removal of push button start switch (with smart key system) (Refer to
)
)3. Removal of electrical key antenna (with smart key system) (Refer to )
)4. Removal of console box cover FR (without smart key system)
(1) Check that the shift lever is in N position.
(2) Apply protective tape to the location shown in the figure.
Captions in illustration
| *1 |
Protective tape |

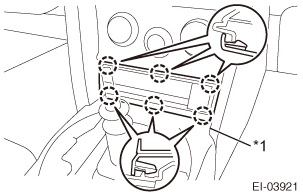

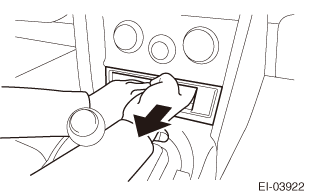

(3) Release the 6 claws and remove the console box cover FR.
NOTE:
·While holding the inside of the pocket, pull out the console box cover FR.
·If it is difficult to remove the cover, refer to the procedure with smart key system.
·If it is difficult to remove the cover, refer to the procedure with smart key system.
5. Removal of shift lever knob (transmission A/T)

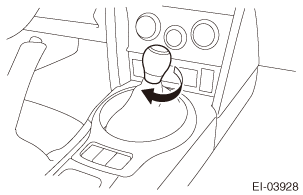

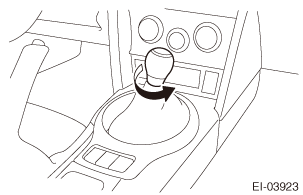

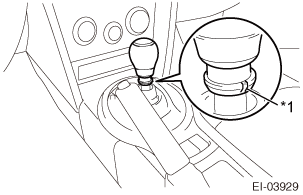

(1) Turn the shift lever knob in the direction of the arrow in the figure and remove it.
6. Removal of console panel SUB-ASSY UPR (transmission A/T)
(1) Release the 2 clips and 4 claws.
(2) Disconnect the connectors and remove the console panel SUB-ASSY UPR.
7. Removal of shift position indicator (transmission A/T)

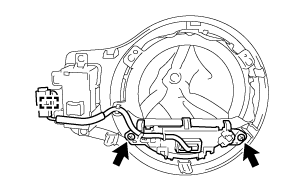

(1) Remove the 2 screws, release the clamp, and remove the shift position indicator.

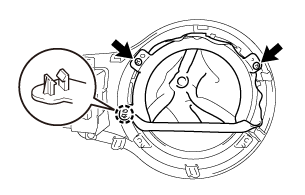

8. Removal of shifting hole cover SUB-ASSY (transmission A/T)
(1) Remove the 2 screws, release the claw, and remove the shifting hole cover SUB-ASSY.
9. Removal of pattern select switch ASSY (transmission A/T) (Refer to )
)
10. Removal of shift lever knob (transmission M/T)

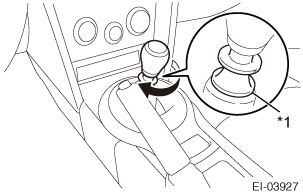

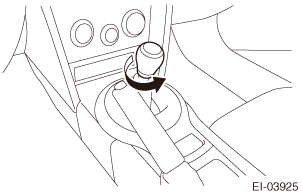

(1) Turn the shift lever knob in the direction of the arrow in the figure and remove it.

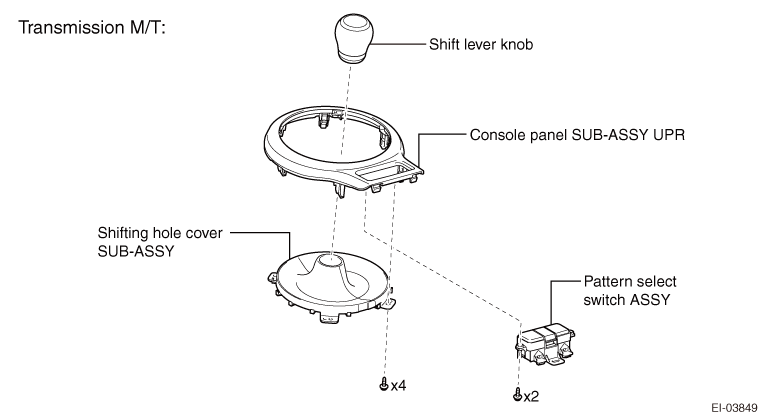

11. Removal of console panel SUB-ASSY UPR (transmission M/T)
(1) Release the 2 clips and 4 claws.
(2) Disconnect the connectors and remove the console panel SUB-ASSY UPR.

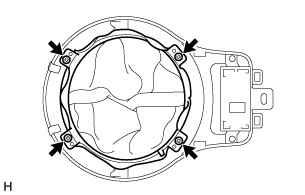

12. Removal of shifting hole cover SUB-ASSY (transmission M/T)
(1) Remove the 4 screws and remove the shifting hole cover SUB-ASSY.
13. Removal of pattern select switch ASSY (transmission M/T) (Refer to )
)

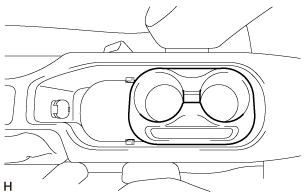

14. Removal of instrument panel cup holder
(1) Remove the instrument panel cup holder.

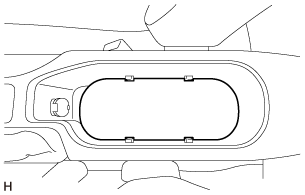

15. Removal of cup holder cushion
(1) Remove the cup holder cushion.
16. Removal of parking brake hole cover

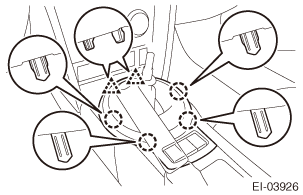

(1) Release the 5 claws and remove the parking brake hole cover.
CAUTION:
If the cover is pulled toward you, the claws may be damaged. Be sure to pull the cover upward and remove it.
17. Removal of instrument panel finish panel end RH

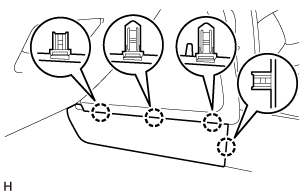

(1) Release the 4 claws and remove the instrument panel finish panel end RH.
18. Removal of instrument panel finish panel end LH
NOTE:
Remove the part in the same manner as RH side.
19. Removal of console box ASSY

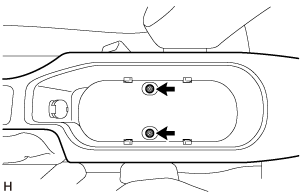

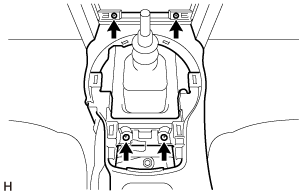

(1) Remove the 4 screws.
(2) Remove the 2 bolts.
(3) Disconnect the connectors and remove the console box ASSY.
WARNING:
The satellite safing sensor of the airbag system is installed under the rear side of the console box ASSY. Before removing the console box ASSY, always be sure to confirm the precautions related to the SRS airbag system. (Refer to )
)DISASSEMBLY
1. Removal of power supply outlet socket ASSY NO.1 (Refer to )
)2. Removal of power supply outlet socket cover NO.2 (Refer to )
)3. Removal of seat heater switch (with seat heater) (Refer to )
)ASSEMBLY
1. Installation of seat heater switch (with seat heater) (Refer to )
)2. Installation of power supply outlet socket cover NO.2 (Refer to )
)3. Installation of power supply outlet socket ASSY NO.1 (Refer to )
)INSTALLATION
1. Installation of console box ASSY
(1) Connect each connector.
(2) With the 4 screws and 2 bolts, install the console box ASSY.
Standard value:
Standard value:
Bolt
Tightening torque=6.5N·m { 66kgf·cm} {4.8ft·lbf}
Tightening torque=6.5N·m { 66kgf·cm} {4.8ft·lbf}
2. Installation of instrument panel finish panel end RH
(1) Engage the 4 claws and install the instrument panel finish panel end RH.
3. Installation of instrument panel finish panel end LH
NOTE:
Install the part in the same manner as RH side.
4. Installation of parking brake hole cover
(1) Engage the 5 claws and install the parking brake hole cover.
5. Installation of cup holder cushion
(1) Install the cup holder cushion.
6. Installation of instrument panel cup holder
(1) Install the instrument panel cup holder.
7. Installation of pattern select switch ASSY (transmission M/T) (Refer to )
)8. Installation of shifting hole cover SUB-ASSY (transmission M/T)
(1) With the 4 screws, install the shifting hole cover SUB-ASSY.
9. Installation of console panel SUB-ASSY UPR (transmission M/T)
(1) Connect each connector.
(2) Engage the 2 clips and 4 claws and install the console panel SUB-ASSY UPR.
10. Installation of shift lever knob (transmission M/T)
11. Installation of pattern select switch ASSY (transmission A/T) (Refer to )
)12. Installation of shifting hole cover SUB-ASSY (transmission A/T)
(1) Install the 2 screws, engage the claw, and install the shifting hole cover SUB-ASSY.
13. Installation of shift position indicator (transmission A/T)
(1) Install the 2 screws, engage the clamp, and install the shift position indicator.
14. Installation of console panel SUB-ASSY UPR (transmission A/T)
(1) Connect each connector.
(2) Engage the 2 clips and 4 claws and install the console panel SUB-ASSY UPR.
15. Installation of shift lever knob (transmission A/T)
16. Installation of console box cover FR (without smart key system)
(1) Engage the 6 claws and install the console box cover FR.
CAUTION:
When inserting the console box cover FR, be careful that the clear waterproof cover attached to the airbag control module is not peeled off.
17. Installation of electrical key antenna (with smart key system) (Refer to )
)18. Installation of push button start switch (with smart key system) (Refer to )
)19. Installation of console box cover FR (with smart key system)
(1) Connect each connector.
(2) Engage the 6 claws and install the console box cover FR.
CAUTION:
When inserting the console box cover FR, be careful that the clear waterproof cover attached to the airbag control module is not peeled off.
