Roof head lining
Components Removal / installation
INSTRUMENT PANEL / BODY INTERIOR
ROOF HEAD LINING

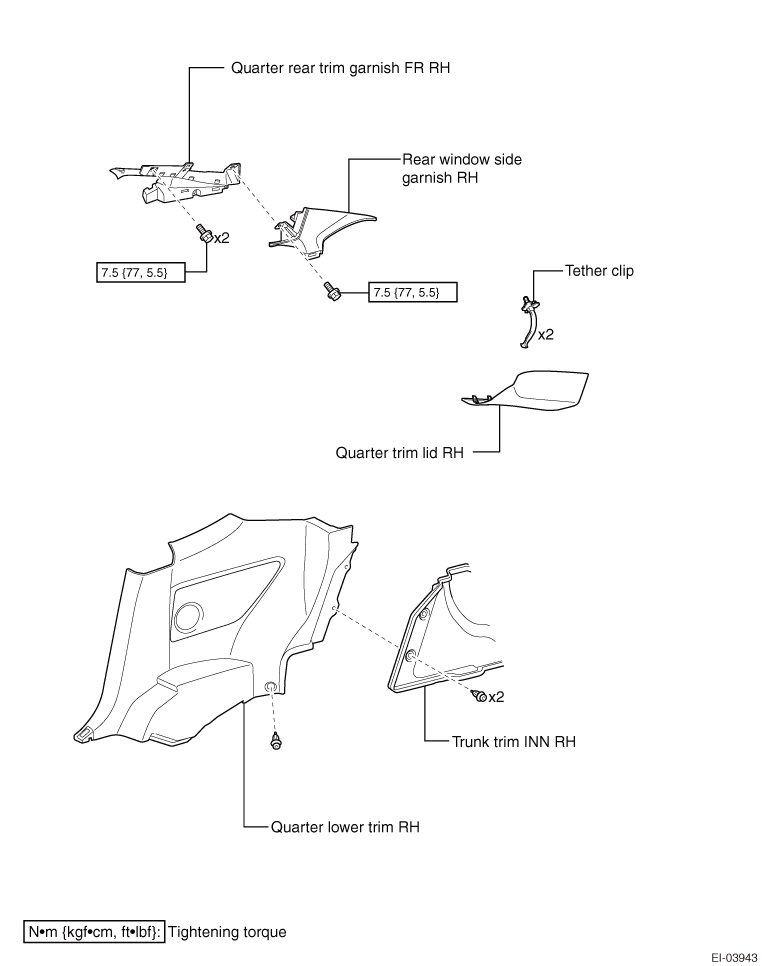

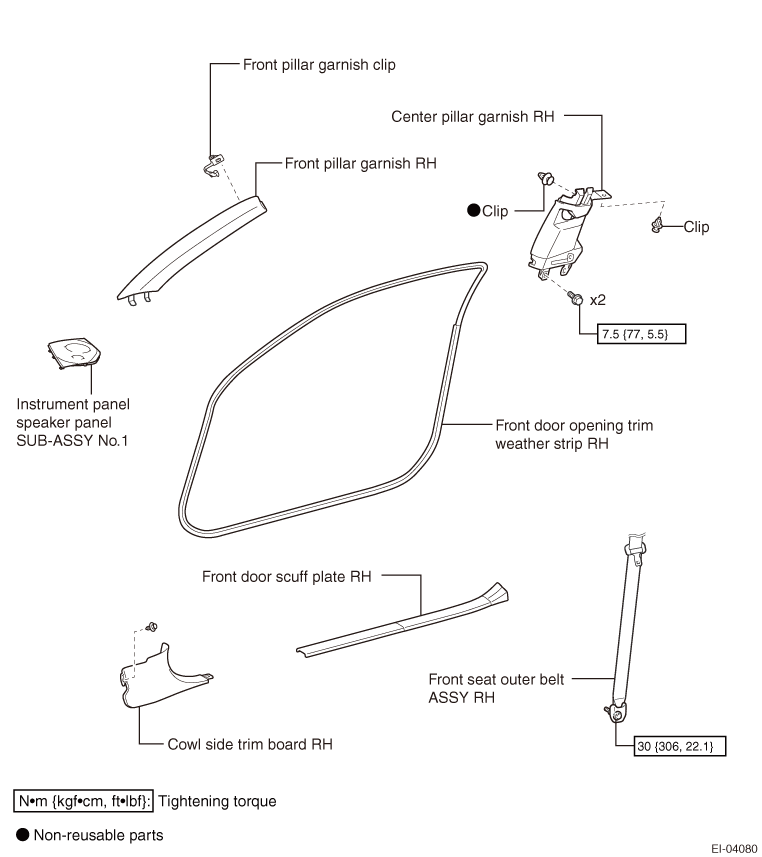

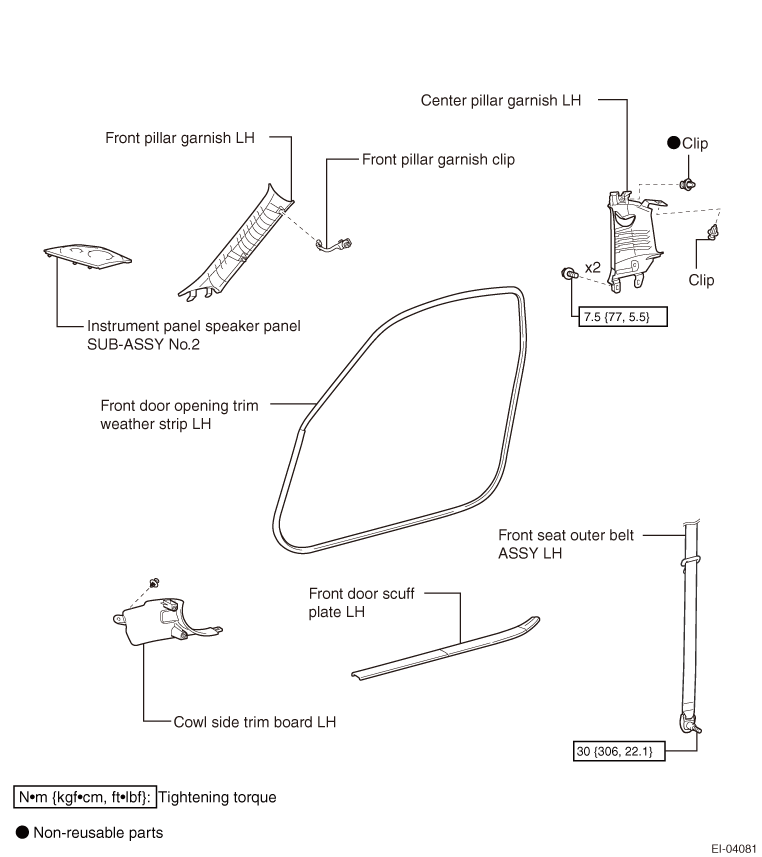

EXPLODED VIEW
REMOVAL
1. Precautions
CAUTION:
After turning the ignition switch to OFF, you may have to wait for a while before disconnecting the battery terminals. Check appropriate precautions for battery terminal disconnection before proceeding. (Refer to
)
)2. Disconnection of the battery ground terminal (Refer to )
)3. Removal of instrument panel speaker panel SUB-ASSY NO.1 (Refer to )
)4. Removal of instrument panel speaker panel SUB-ASSY NO.2 (Refer to )
)5. Removal of front pillar garnish LH (Refer to )
)6. Removal of front pillar garnish RH
NOTE:
Remove the part in the same manner as LH side.
7. Removal of front door scuff plate LH

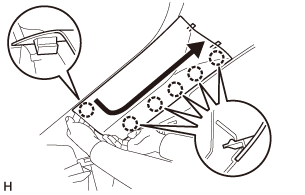

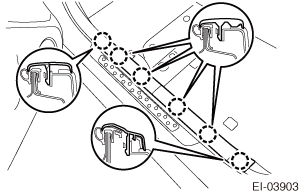

(1) Release the 6 claws and remove the front door scuff plate LH.
8. Removal of front door scuff plate RH
NOTE:
Remove the part in the same manner as LH side.
9. Removal of cowl side trim board LH

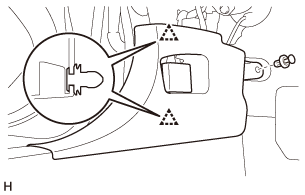

(1) Remove the clip.
(2) Release the 2 clips and remove the cowl side trim board LH.
10. Removal of cowl side trim board RH
NOTE:
Remove the part in the same manner as LH side.
11. Removal of front door opening trim weather strip LH
(1) Remove the front door opening trim weather strip LH.
12. Removal of the front door opening trim weather strip RH
NOTE:
Remove the part in the same manner as LH side.
13. Disconnection of front seat outer belt ASSY LH (Refer to )
)14. Disconnection of front seat outer belt ASSY RH
NOTE:
Remove the part in the same manner as RH side.

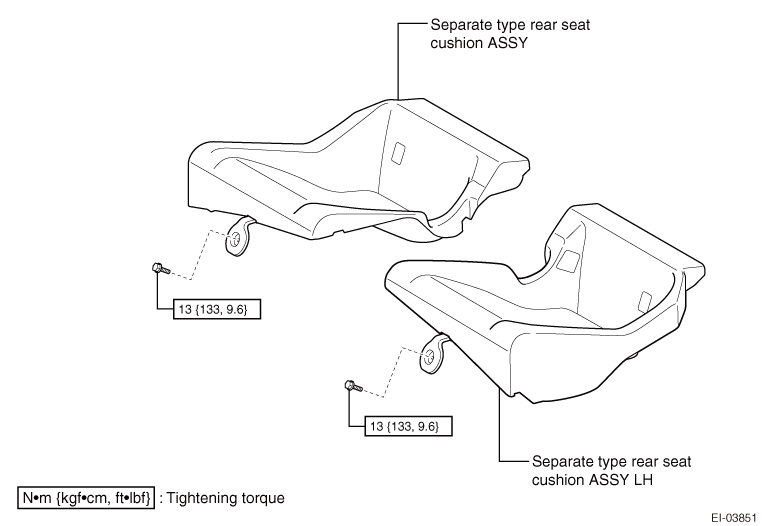

15. Removal of separate type rear seat cushion ASSY (Refer to )
)16. Removal of separate type rear seat cushion ASSY LH (Refer to )
)
17. Disconnection of trunk trim cover INN LH

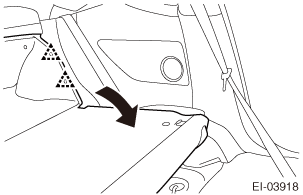

(1) Tilt the rear seat backrest ASSY forward.
(2) Release the 2 clips and disconnect the trunk trim cover INN LH.
18. Disconnection of trunk trim cover INN RH
NOTE:
Repeat the same disconnection steps for the LH side.
19. Removal of quarter lower trim LH
(1) Pull up the rear seat backrest ASSY.
(2) Remove the clip.

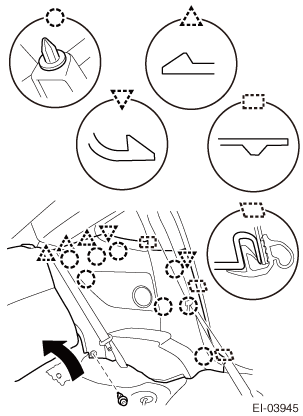

(3) Release the 8 clips and 8 claws, and remove the quarter lower trim LH.
WARNING:
The curtain airbag sensor of the airbag system is installed behind the quarter lower trim. Before removing the quarter lower trim, always be sure to confirm the precautions related to the SRS airbag system. (Refer to )
)20. Removal of quarter lower trim RH
NOTE:
Remove the part in the same manner as LH side.

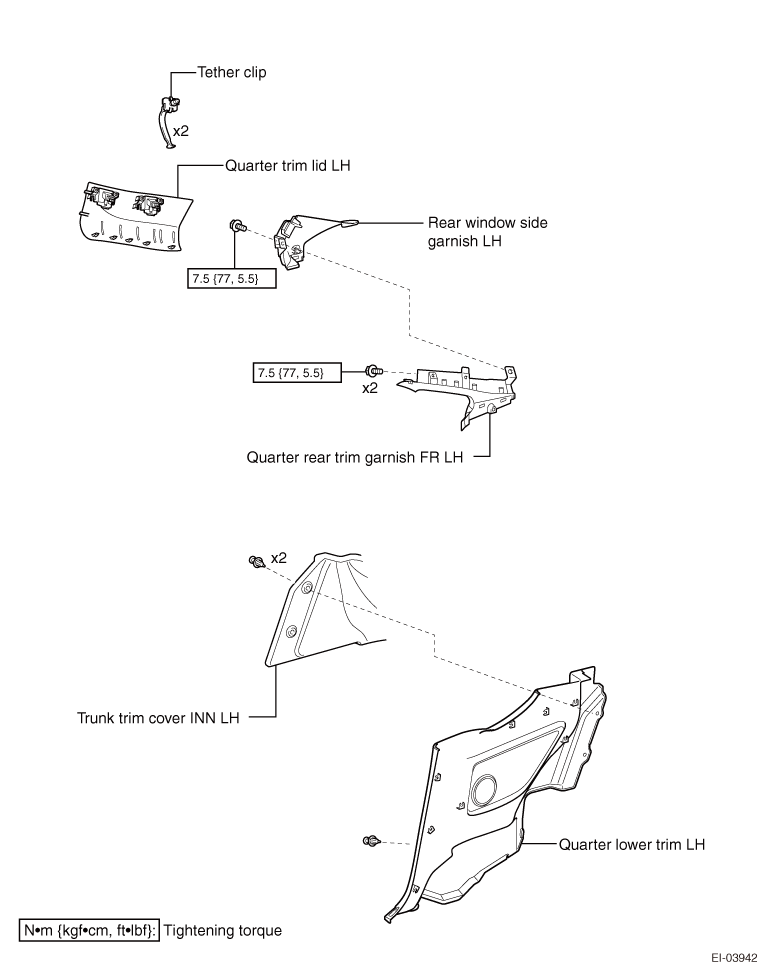

21. Removal of quarter trim lid LH

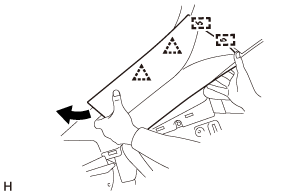

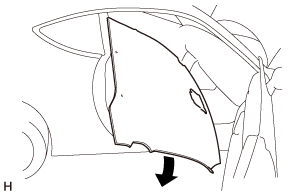

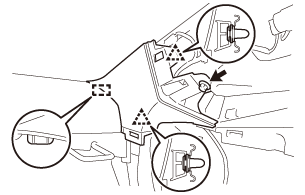

(1) According to the direction of the arrow in the figure, release the 6 claws.
(2) Release the 2 clips and 2 guides.
NOTE:
Hook the tether clips onto the quarter trim lid LH.

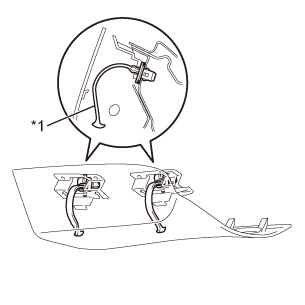

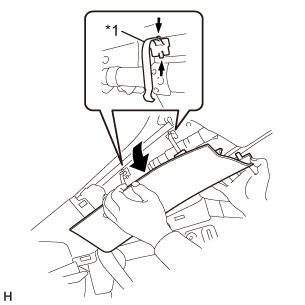

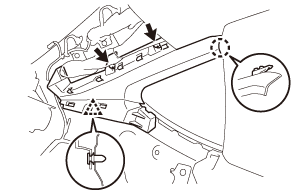

(3) As shown in the figure, push and remove the 2 tether clips in the direction of the arrow and remove the quarter trim lid LH and the 2 tether clips as a unit.
Captions in illustration
| *1 |
Tether clip |
(4) Remove the 2 tether clips from the quarter trim lid LH.
CAUTION:
If it is damaged, be sure to replace the tether clip with a new one.
22. Removal of quarter trim lid RH
NOTE:
Remove the part in the same manner as LH side.
23. Removal of the rear window side garnish LH
(1) Remove the bolt.
(2) Release the 2 clips, remove the guide, and remove the rear window side garnish LH.
24. Removal of rear window side garnish RH
NOTE:
Remove the part in the same manner as LH side.
25. Removal of quarter rear trim garnish FR LH
(1) Remove the 2 bolts.
(2) Release the clip and claw, and remove the quarter rear trim garnish FR LH.
26. Removal of quarter rear trim garnish FR RH
NOTE:
Remove the part in the same manner as LH side.
27. Removal of center pillar garnish LH

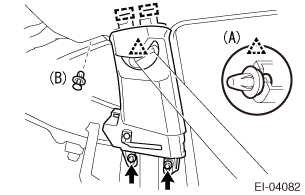

(1) Remove the clip (B) and the 2 bolts.
(2) Release the clip (A) and 2 guides and remove the center pillar garnish LH.
CAUTION:
Do not reuse the upper clip (A) of the center pillar garnish RH.
Once it is removed, the clip looses its affixing capability. Be sure to replace it with a new clip.
28. Removal of center pillar garnish RH
NOTE:
Remove the part in the same manner as LH side.
29. Removal of map light ASSY (Refer to )
)
30. Removal of visor ASSY RH

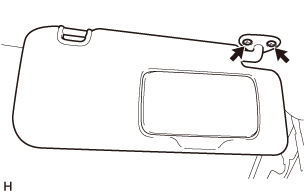

(1) Remove the 2 screws.

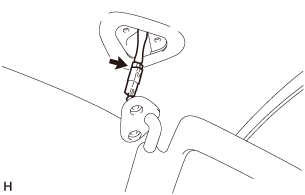

(2) Disconnect the connector and remove the visor ASSY RH (with vanity light).
31. Removal of visor ASSY LH
NOTE:
Remove the part in the same manner as RH side.
32. Removal of visor holder

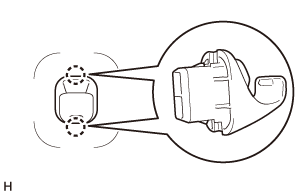

(1) Release the 2 claws and remove the 2 visor holders.

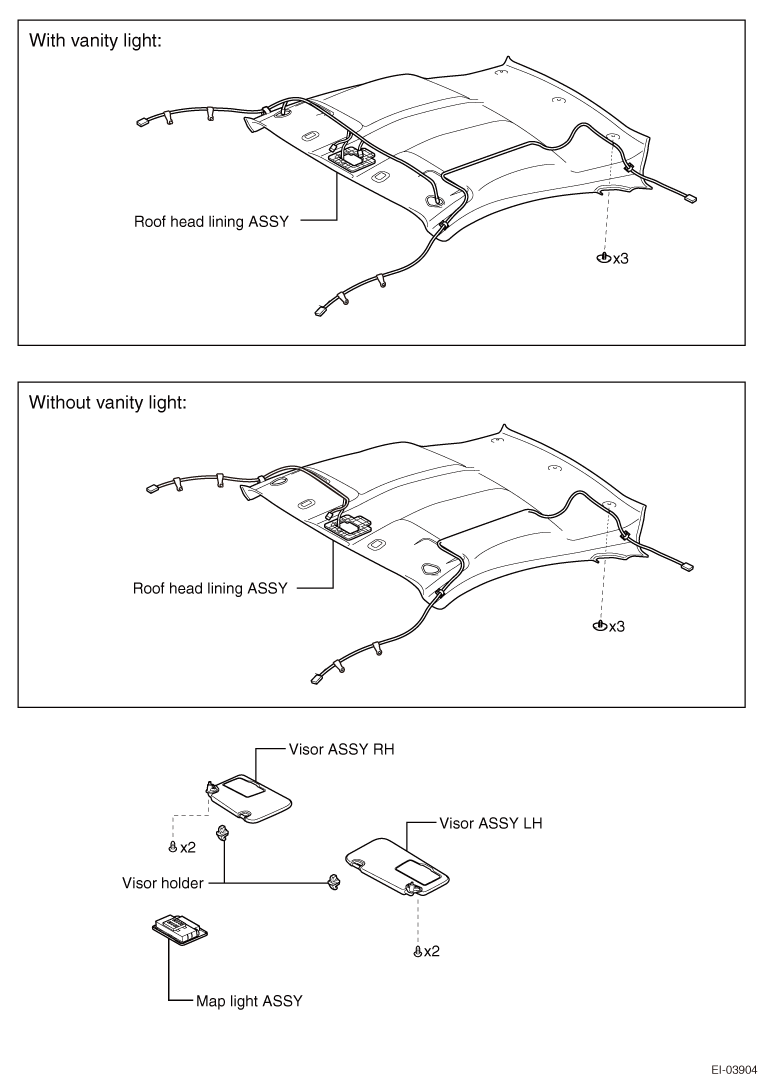

33. Removal of roof head lining ASSY (with vanity light)

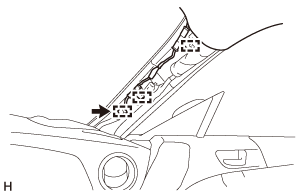

(1) Disconnect the connector of the front pillar RH and the 3 clamps.

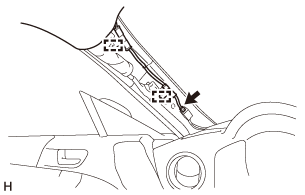

(2) Disconnect the connector and 2 clamps at the front pillar LH.

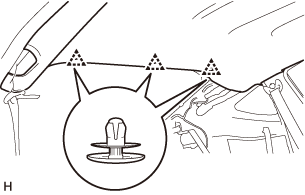

(3) Remove the 3 clips from the rear of the vehicle.

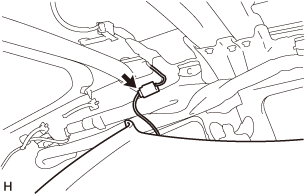

(4) Disconnect the connector of the feeder cord ASSY.

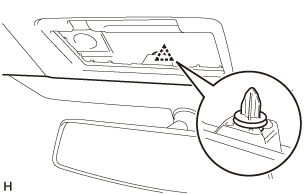

(5) Release the clip at the front of the vehicle and remove the roof head lining ASSY.

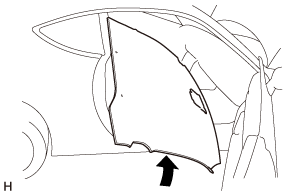

(6) Take out the removed roof head lining ASSY through the passenger’s door so that the ASSY does not interfere with the body interior.
CAUTION:
·To prevent distortion of the roof head lining ASSY, take out the ASSY with at least two persons.
·Do not allow the roof head lining to be stuck, resulting in bent or damaged lining.
·Do not damage the roof head lining ASSY and body interior.
34. Removal of roof head lining ASSY (without vanity light)
NOTE:
Repeat the same removal steps for that with vanity light.
DISASSEMBLY

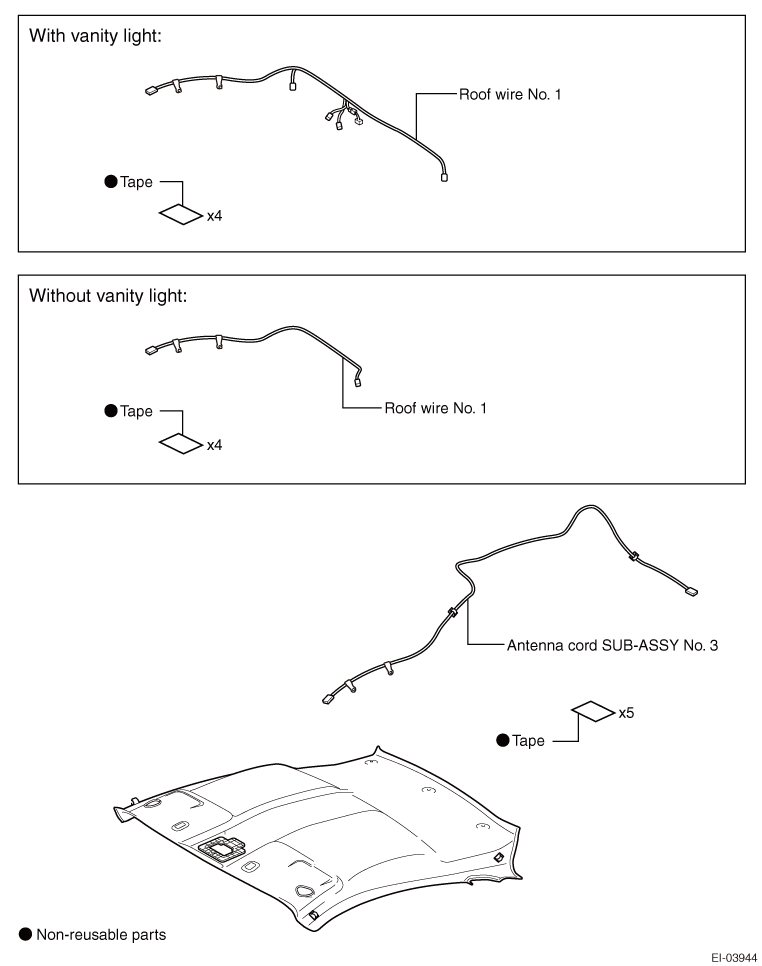

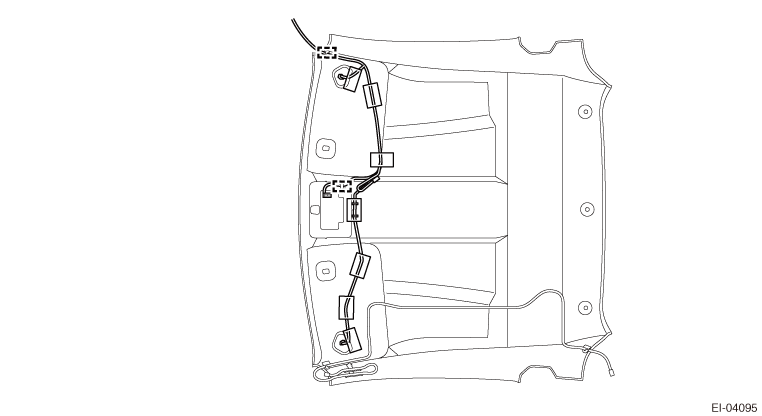

1. Removal of roof wire NO.1 (with vanity light)
2. Removal of roof wire NO.1 (without vanity light)
3. Removal of antenna code SUB-ASSY NO.3 (Refer to )
)ASSEMBLY
1. Installation of antenna code SUB-ASSY NO.3 (Refer to )
)2. Installation of roof wire NO.1

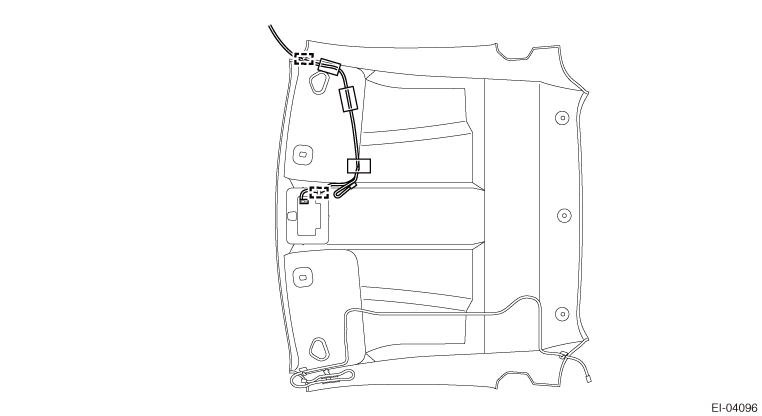

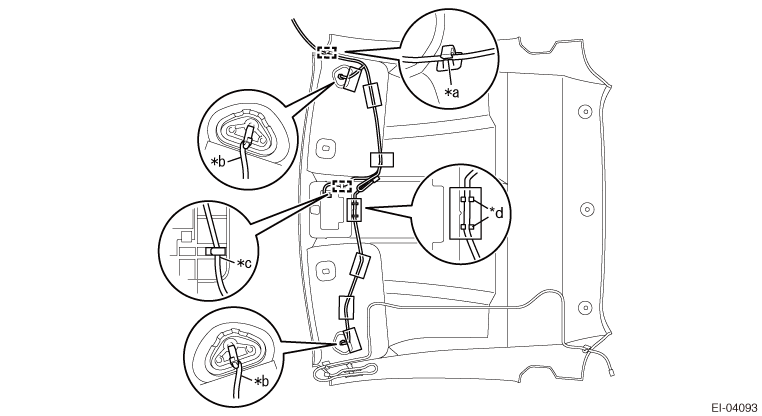

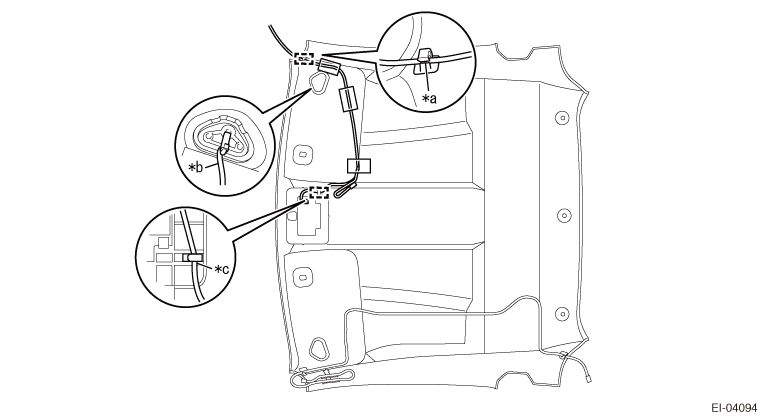

(1) Position roof wire NO.1 as shown in the figure and install the 2 guides.
CAUTION:
Do not allow roof wire NO.1 to be floated or twisted.
Captions in illustration
| *a |
Align the center of the white tape with the trim end to secure it. |
*b |
Align the end of the white tape with the installation opening of the sun visor. |
| *c |
Align the white tape with the clip to secure it. |
*d |
Secure it to the clamp. |
 |
Fixing tape (86359SC000/TAPE) |
- |
- |
(2) Attach the fixing tape and install roof wire NO.1.
NOTE:
Cut the fixing tape into the necessary size (Recommended: 50 mm × 80 mm, 2.0 in × 3.2 in) for use.
3. Installation of roof wire NO.1 (without vanity light)
(1) Position roof wire NO.1 as shown in the figure and install the 2 guides.
CAUTION:
Do not allow roof wire NO.1 to be floated or twisted.
Captions in illustration
| *a |
Align the center of the white tape with the trim end to secure it. |
*b |
Align the end of the white tape with the installation opening of the sun visor. |
| *c |
Align the white tape with the clip to secure it. |
- |
- |
|
|
Fixing tape (86359SC000/TAPE) |
- |
- |
(2) Attach the fixing tape and install roof wire NO.1.
NOTE:
Cut the fixing tape into the necessary size (Recommended: 50 mm × 80 mm, 2.0 in × 3.2 in) for use.
INSTALLATION
1. Installation of roof head lining ASSY (with vanity light)
(1) Bring the roof head lining ASSY into the vehicle through the passenger’s door as shown in the figure so that the ASSY does not interfere with the body interior.
CAUTION:
·To prevent distortion of the roof head lining ASSY, bring in the ASSY with at least two persons.
·Do not allow the roof head lining to be stuck, resulting in bent or damaged lining.
·Do not damage the roof head lining ASSY and body interior.
·Do not allow the roof head lining to be stuck, resulting in bent or damaged lining.
·Do not damage the roof head lining ASSY and body interior.
(2) Engage the clip at the front of the vehicle.
(3) Connect the connector of antenna code SUB-ASSY NO.3.
(4) Install the 3 clips at the rear of the vehicle.
(5) Connect the connector of the front pillar RH and the 3 clamps.
(6) Connect the connector of the front pillar LH and the 2 clamps.
2. Installation of roof head lining ASSY (without vanity light)
NOTE:
Repeat the same installation steps for that with vanity light.
3. Installation of visor holder
(1) Engage the 2 claws and install the 2 visor holders.
4. Installation of visor ASSY RH
(1) Connect the connector.
(2) With the 2 screws, install the visor ASSY RH.
5. Installation of visor ASSY LH
NOTE:
Install the part in the same manner as RH side.
6. Installation of map light ASSY (Refer to )
)7. Installation of center pillar garnish LH
(1) Engage the clip (A) and the 2 guides.
(2) With the clip (B) and 2 bolts, install the center pillar garnish LH.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
CAUTION:
Do not reuse the upper clip (A) of the center pillar garnish RH.
Once it is removed, the clip looses its affixing capability. Be sure to replace it with a new clip.
8. Installation of center pillar garnish RH
NOTE:
Install the part in the same manner as LH side.
9. Installation of quarter rear trim garnish FR LH
(1) Engage the clip and claw.
(2) With the 2 bolts, install the quarter rear trim garnish FR LH.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
10. Installation of quarter rear trim garnish FR RH
NOTE:
Install the part in the same manner as LH side.
11. Installation of rear window side garnish LH
(1) Engage the 2 clips and insert the guide.
(2) With the bolt, install the rear window side garnish LH.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
12. Installation of rear window side garnish RH
NOTE:
Install the part in the same manner as LH side.
13. Installation of quarter trim lid LH
14. Installation of quarter trim lid RH
NOTE:
Install the part in the same manner as LH side.
15. Installation of quarter lower trim LH
(1) Engage the 8 clips and 8 claws and install the quarter lower trim LH.
(2) Install the clip.
16. Installation of quarter lower trim RH
NOTE:
Install the part in the same manner as LH side.
17. Installation of the trunk trim cover INN LH
(1) Tilt the rear seat backrest ASSY forward.
(2) Install the 2 clips and install the trunk trim cover INN LH.
18. Installation of the trunk trim cover INN RH
NOTE:
Install the part in the same manner as LH side.
19. Installation of separate type rear seat cushion ASSY (Refer to )
)20. Installation of separate type rear seat cushion ASSY RH (Refer to )
)21. Connection of front seat outer belt ASSY LH (Refer to )
)22. Connection of front seat outer belt ASSY RH
NOTE:
Install the part in the same manner as LH side.
23. Installation of cowl side trim board LH
(1) Engage the 2 clips and install the cowl side trim board LH.
(2) Install the clip.
24. Installation of cowl side trim board RH
NOTE:
Install the part in the same manner as LH side.
25. Installation of front door scuff plate LH
(1) Engage the 6 claws and install the front door scuff plate LH.
26. Installation of front door scuff plate RH
NOTE:
Install the part in the same manner as LH side.

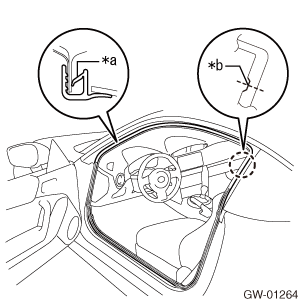

27. Installation of front door opening trim weather strip LH

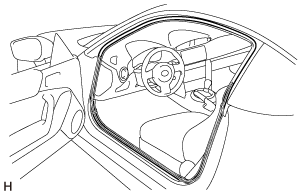

(1) Install the upper section of the front door opening trim weather strip LH.
CAUTION:
After installation, make sure no lifting on any corner.
NOTE:
Install the paint marked part on the center of the body flange cutout. Pushing into the corner makes the installation easy.
Captions in illustration
| *a |
Paint mark |
| *b |
Center of the body flange cutout |
28. Installation of front door opening trim weather strip RH
NOTE:
Install the part in the same manner as LH side.
29. Installation of front pillar garnish LH (Refer to )
)30. Installation of front pillar garnish RH
NOTE:
Install the part in the same manner as LH side.
31. Installation of instrument panel speaker panel SUB-ASSY NO.1 (Refer to )
)32. Installation of instrument panel speaker panel SUB-ASSY NO.2
NOTE:
Install the part in the same manner as RH side.
33. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
34. Settings when removing/installing battery terminals (Refer to )
)
