GLASS & WINDOW
POWER WINDOW SYSTEM
PRECAUTIONS
1. Precautions for Power window system
CAUTION:
·Power window system uses large-scale multiplex communication for vehicle body [LIN]. At first, follow the “How to proceed the troubleshooting” and perform the “Communication function checking” to check that malfunction does not occur in the communication system, and then proceed to the troubleshooting.
·When malfunction occurs in the auto-reverse function of the power window system, disable the AUTO operation. Otherwise, accidental pinching may arise. Check that the diagnostic code is not output, then proceed to the troubleshooting.
·When replacing the power window regulator motor ASSY with a new one or reusing its motor, perform the initialization of the power window system. (Refer to )
·After replacing door glass and/or weather strip, AUTO UP operation sometimes activates auto-reverse function. In this case, the door glass is fully closed by performing the procedure in the following order (*3). AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → (*1) → AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → AUTO UP HOLD (*2).
·*1: If DOWN operation, IG OFF & timer operation OFF, and/or index operation is executed between auto-reverse function and AUTO UP HOLD, return to the beginning of the procedure.
·*2: The upper end position of the glass is relearned by this operation (AUTO UP HOLD). (Refer to )
·*3: The failure of the door glass or regulator may prevent full closing of the door glass.
·Even if the power window system is normal, unexpected operation of the auto-reverse function may occur resulting from the abrupt change of the opening/closing speed of the window. This symptom occurs when the system detects any value out of the learned operation.
·Window opening/closing operation while driving the vehicle on rough roads.
·Window opened/closed operation when door is opened/closed.
·Sudden voltage variation occurs.
·Never disconnect the battery with IG ON. If the battery is disconnected while IG ON, DTC may not be output properly.
FUNCTION INSPECTION
1. Function inspection of window lock switch
(1) Turn the ignition switch to ON.
(2) Verify when the window lock switch of the power window regulator master switch ASSY is pushed, the operation of the passenger's seat power window is disabled.
(3) Verify when window lock switch is pushed once more, the operation of the passenger's seat power window is enabled.
2. Function inspection of manual operation
(1) Inspection of basic function (driver’s seat)
(a) Turn the ignition switch to ON.
(b) Verify when the driver's seat switch on the power window regulator master switch ASSY is operated to UP, the power window (driver's seat door glass) moves up, and when the switch is operated to DOWN, the power window (driver's seat door glass) moves down.
(2) Inspection of basic function (passenger’s seat)
(a) Turn the ignition switch to ON.
(b) Verify when the power window regulator switch ASSY is operated to UP, the power window (passenger's seat door glass) moves up, and when the switch is operated to DOWN, the power window (passenger's seat door glass) moves down.
3. Function inspection of AUTO operation
(1) Inspection of basic function (driver’s seat)
(a) Turn the ignition switch to ON.
(b) Verify when the driver’s seat switch on the power window regulator master switch ASSY is operated to UP in two stages, the driver’s seat door glass operates AUTO UP, and driver’s seat door glass is fully closed.
(c) Verify when the driver’s seat switch on the power window regulator master switch ASSY is operated to DOWN in two stages, the driver’s seat door glass operates AUTO DOWN, and driver’s seat door glass is fully open.
(d) Verify while AUTO DOWN is in operation, when the driver’s seat switch on the power window regulator master switch ASSY is operated to UP, the door glass moves up.
(e) Verify while AUTO UP is in operation, when the driver’s seat switch on the power window regulator master switch ASSY is operated to DOWN, the door glass moves down.
(2) Inspection of basic function (passenger’s seat)
(a) Turn the ignition switch to ON.
(b) Verify when the switch on the power window regulator switch ASSY is operated to UP in two stages, the passenger’s seat door glass operates AUTO UP, and passenger’s seat door glass is fully closed.
(c) Verify when the switch on the power window regulator switch ASSY is operated to DOWN in two stages, the passenger’s seat door glass operates AUTO DOWN, and passenger’s seat door glass is fully open.
(d) Verify while AUTO DOWN is in operation, when the switch on the power window regulator switch ASSY is operated to UP, the door glass of the passenger’s seat moves up.
(e) Verify while AUTO UP is in operation, when the switch on the power window regulator switch ASSY is operated to DOWN, the door glass of the passenger's seat moves down.
4. Function inspection of remote controlled manual operation
(1) Turn the ignition switch to ON.
(2) Verify when the remote control switch for the power window regulator master switch ASSY for passenger's seat is operated to UP, the power window (passenger's seat door glass) moves up.
(3) Verify when the remote control switch for each seat on the power window regulator master switch ASSY is operated to DOWN, the power window (passenger's seat door glass) moves down.
5. Function inspection of remote controlled automatic operation
(1) Turn the ignition switch to ON.
(a) Verify when the remote control switch for passenger's seat on the power window regulator master switch ASSY is operated to UP in two stages, the passenger's seat door glass operates AUTO UP, and passenger's seat door glass is fully closed.
(b) Verify when the remote control switch for passenger's seat on the power window regulator master switch ASSY is operated to DOWN in two stages, the passenger's seat door glass operates AUTO DOWN, and passenger's seat door glass is fully open.

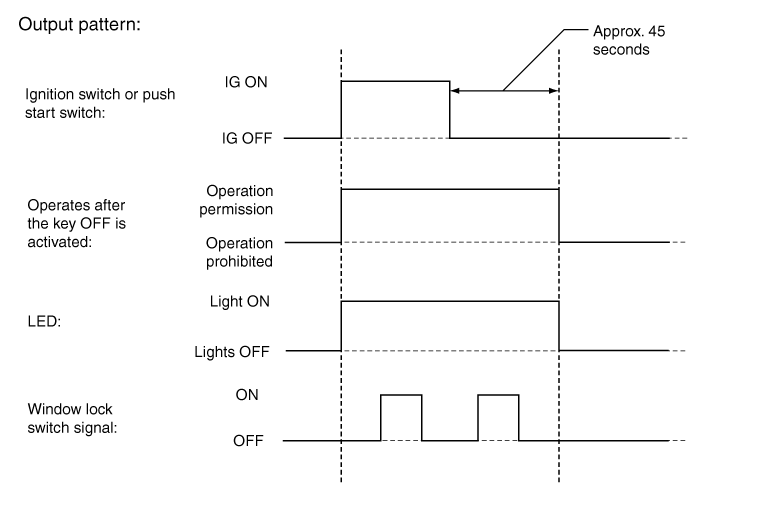

6. Function inspection of after-key-OFF operation
(1) After turning IG from ON to OFF, verify that all seat's power windows are operable by the power window regulator master switch ASSY. Also verify that after the driver’s or passenger’s door is opened, the power window cannot be operated.
(2) After turning IG from ON to OFF, verify that passenger's seat power window is operable by the power window regulator switch ASSY. Also verify that after the driver’s or passenger’s door is opened, the power window cannot be operated.
(3) When approx. 45 seconds have passed after IG was turned from ON to OFF, verify that all power windows cannot be operated by the power window regulator master switch ASSY. However, if the auto-reverse function is in operation, the operation continues until it is completed. (AUTO operation stops when 45 seconds have elapsed.)
7. Inspection of auto-reverse function
(1) Basic function inspection
CAUTION:
Never use your hand or other part of your body to be pinched for checking the function. Work with great care for accidental pinching.
NOTE:
Auto-reverse function is operable with IG ON when AUTO UP or manual UP is in operation.
(a) Fully open all power windows (door glasses).

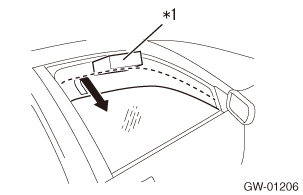

(b) Hold a styrene foam block (approx. 12 cm (4.72in) thick) or equivalent on the position where it is caught when the door glass is fully closed.
Captions in illustration
*1
 Styrene foam block or equivalent
(c) When full close operation of the power window (door glass) is activated with AUTO UP or manual UP operation, verify that the window stops at the position where it contacts with styrene foam block or equivalent, comes into DOWN operation, and stops where it moves down approx. 200 mm (8 in).
NOTE:
If pinching is detected, it moves down approx. 50 mm (2 in) after stopping, and stops. If opening of the window is less than approx. 200 mm (8 in), however, it moves down approx. 200 mm (8 in) or 10 seconds and stops.
(d) During DOWN operation, make sure that the UP operation cannot be activated by the power window regulator master switch ASSY.
8. Inspection of index function
(1) Make sure that when the driver's or passenger's door is opened, the window glass of the opened side moves down approx. 20 mm (0.8 in) automatically from fully closed position.
(2) Make sure that when the driver's or passenger's door is closed, the window glass of the closed side moves up to fully closed position.
NOTE:
If the window glass opens over approx. 20 mm (0.8 in) from the fully closed position, no index control is performed. Even if the window glass is open more than approx. 20 mm (0.8 in) because of looseness of the regulator, however, the window moves up automatically.
9. Inspection of power window regulator master switch ASSY (driver's seat)

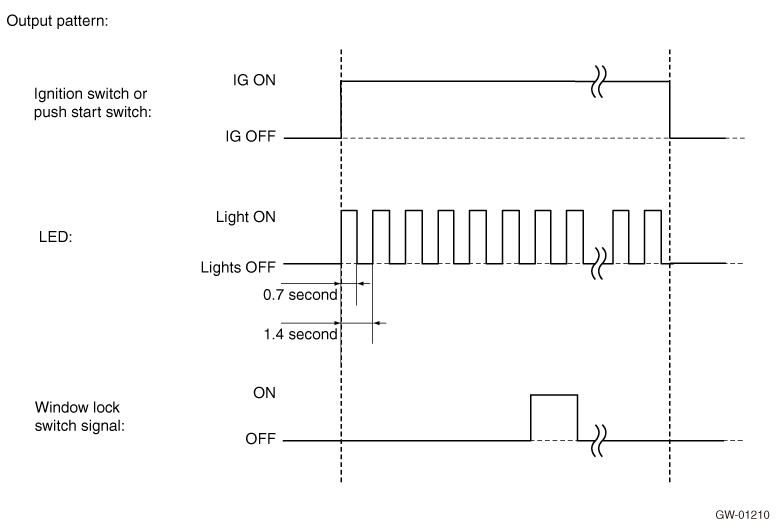

(1) Inspection of operation indicator
(a) Make sure that when performing IG OFF → ON with connector connected, the operation indicator (LED), located on switch part of the power window regulator master switch ASSY, lights up.
10. Inspection of power window regulator switch ASSY (passenger's seat)

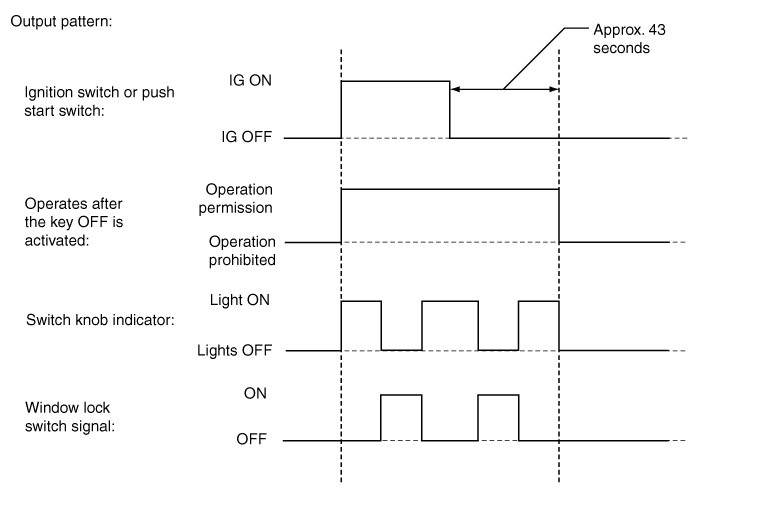

(1) Inspection of operation indicator
(a) Make sure that when performing IG OFF → ON with connector connected, the operation indicator (LED), located on switch part of the power window regulator switch ASSY, lights up.
REGISTRATION SETTINGS
1. Initialization of power window regulator motor
CAUTION:
·When replacing the power window regulator motor ASSY with a new one or reusing its motor, the power window regulator motor must be initialized. If the initialization is not performed, AUTO operation, auto-reverse function, and after-key-OFF operation function does not work properly.
·If the power window regulator motor ASSY is replaced with a new one, DTC B2313 and B2316 are output. After initializing power window (initialization of pulse sensor), erase the diagnostic codes.
·After replacing the glass and/or weather strip, an AUTO UP operation on the worked glass (door glass) sometimes causes detection of value out of learned operation, then activates auto-reverse function. In this case, the door glass is fully closed by performing the procedure in the following order (*3). AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → (*1) → AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → AUTO UP HOLD (*2).
·*1: If DOWN operation, IG OFF & timer operation OFF, and/or index operation is executed between auto-reverse function and AUTO UP HOLD, return to the beginning of the procedure.
·*2: The upper end position of the glass is relearned by this operation (AUTO UP HOLD). (Refer to )
·*3: The failure of the door glass or regulator may prevent full closing of the door glass.
·If the initialization cannot be completed normally, check the large-scale multiplex communication system for vehicle body [LIN]. (Refer to )
NOTE:
After battery replacement, no initialization for power window regulator motor is needed because the nonvolatile memory stores the necessary information.
(1) Initial setting method
(a) Close the door and turn the ignition switch to ON.

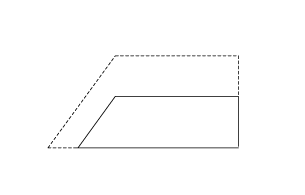

(b) As shown in the figure, move the door glass to middle position.
(c) Operate power window regulator switch (AUTO UP HOLD) and close the door glass completely, and continue the switch operation for 1 second or more. This will reset the position of the door glass, and the initialization is completed.
NOTE:
·The initialization of the passenger's seat is performed with the passenger's side switch.
·Before completion of the initialization, the window of the passenger's seat is not operable through the power window regulator master switch ASSY.
·Until the initialization is complete, AUTO UP, DOWN or reverse operation is disabled.

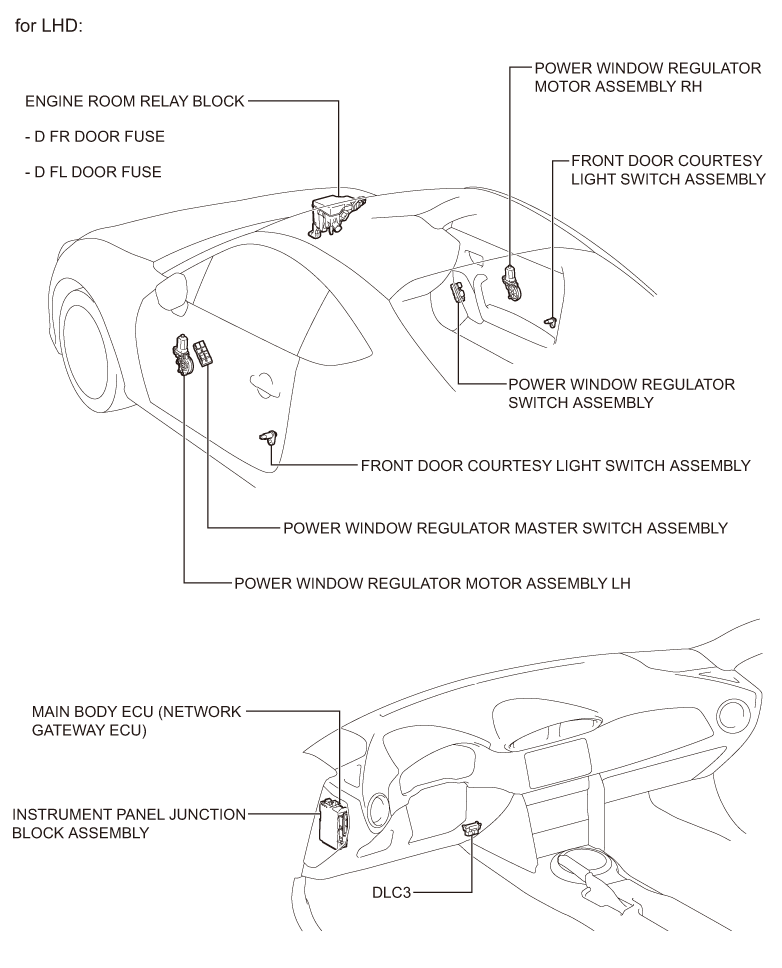

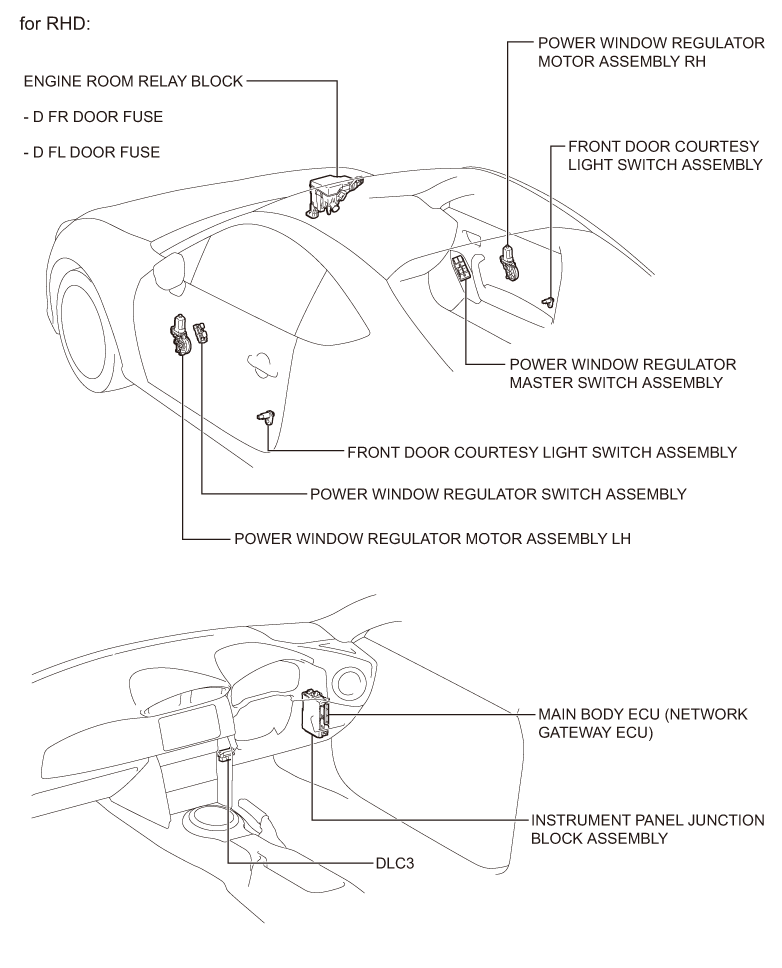

PARTS LOCATION
LIST OF DIAGNOSTIC CODES
Diagnostic codes
 Diagnostic items
 Reference pages
B2311
 [Driver’s seat pulse failure abnormal detection]

B2312
 [Driver’s seat SW ON stuck]

B2313
 [Driver's seat glass position, window slide characteristic data not recorded status detection]

B2314
 [Passenger’s seat pulse failure abnormal detection]

B2315
 [Passenger’s seat SW ON stuck]

B2316
 [Passenger's seat glass position, window slide characteristic data not recorded status detection]

SYMPTOM TABLE
Manual operation
Symptoms
 Inspection items
 Reference pages
Power windows of all seats are inoperable.
 Vehicle wiring harness and connector
 -
Main body ECM (Network gateway computer)

Cannot operate the window from driver’s seat regulator switch.
 Refer to trouble shooting flowchart “Cannot operate the window from driver’s seat regulator switch”.

Cannot operate the window from passenger’s seat regulator switch.
 Refer to trouble shooting flowchart “Cannot operate the window from each seat regulator switch”.

AUTO operation
Symptoms
 Inspection items
 Reference pages
Driver’s door glass AUTO UP/DOWN function does not work (manual operation works).
 Refer to troubleshooting flowchart “Driver’s door glass AUTO UP/DOWN function does not work (manual operation works)”.

Passenger’s door glass AUTO UP/DOWN function does not work (manual operation works).
 Refer to troubleshooting flowchart “Passenger’s door glass AUTO UP/DOWN function does not work (manual operation works)”.

Remote operation
Symptoms
 Inspection items
 Reference pages
Cannot remotely control other doors from the master switch (can be operated by switching on the passenger’s door).
 Function inspection of window lock switch

Refer to trouble shooting flowchart “Cannot remotely control other doors from the master switch”.

Operating condition
Symptoms
 Inspection items
 Reference pages
Door glass does not fully close in AUTO UP operation (auto-reverse function is activated).
 Refer to troubleshooting flowchart “Door glass does not fully close in AUTO UP operation (auto-reverse function is activated)”.

Door glass does not fully open in AUTO DOWN operation (the glass is left).
 Refer to troubleshooting flowchart “Door glass does not fully close in AUTO UP operation (auto-reverse function is activated)”.

Even though the conditions are not met, door glass can be operated after key OFF.
 Refer to troubleshooting flowchart “Even though the conditions are not met, door glass can be operated after key OFF”.

Index function does not operate. (Driver’s seat and passenger’s seat)
 Refer to troubleshooting flowchart “Index function does not operate. (Driver’s seat and passenger’s seat)”.

HOW TO TROUBLESHOOT
1. Bring in the car


Next▼

2. Interview and phenomenon check

(1) Perform the interview and phenomenon check (Refer to )

Next▼

3. Basic inspection

(1) Inspect the battery voltage.
Voltage :  11 to 14 V
(2) According to the parts arrangement drawing and/or circuit figure, check the blown fuse, broken wire harness, short circuit, and/or improper connection that can be inspected visually.
NOTE:
If battery voltage is 11 V or less, recharge or replace the battery before starting the diagnostic program.

Next▼

4. Communication function inspection of large-scale multiplex communication system for vehicle body [LIN]

(1) Inspect communication function of large-scale multiplex communication system for vehicle body [LIN] using SSM3, and make sure that there is no fault in the communication system. (Refer to )
NOTE:
For output diagnostic code, see the list of diagnostic codes
Result
Result
 Go to
Communication function of large-scale multiplex communication system for vehicle body [LIN] is normal.
[No diagnostic code output (LIN communication fault, ECM communication fault/communication breakdown)]
 A
Communication function of large-scale multiplex communication system for vehicle body [LIN] has fault.
[Diagnostic code output (LIN communication fault, ECM communication fault/communication breakdown) exist]
 B
B
>Go to “Large-scale multiplex communication system for vehicle body [LIN]” (Refer to )

A▼

5. DTC check

(1) Using SSM3, check that there is no DTC displayed. (Refer to )
NOTE:
For output diagnostic code, see the list of diagnostic codes, .
Result
Result
 Go to
No DTC output
 A
DTC output B2311 and B2314.
 B
DTC output B2312 and B2315.
 C
DTC output B2313 and B2316.
 D
B
>Go to the troubleshooting flowchart for DTC B2311 and B2314 (Refer to ).
C
>Go to the troubleshooting flowchart for DTC B2312 and B2315 (Refer to ).
D
>Go to the troubleshooting flowchart for DTC B2313 and B2316 (Refer to ).

A▼

6. Symptom table

(1) Check the symptom table. (Refer to )
Result
Result
 Go to
Not applicable to the symptom table.
 A
Applicable to the symptom table.
 B
B
>Go to Step 8.

A▼

7. Perform troubleshooting based on the malfunction symptom with the following methods.

(1) Function check (refer to )
(2) Display of current data/system operation check mode (Refer to).
(3) ECM terminal matrix (Refer to )
(4) Unit inspection

Next▼

8. Adjustment, repair, or replacement

Result
Result
 Go to
Replacement or removal / installation work is done for door window regulator and power window regulator motor ASSY for each seat.
 A
No replacement or removal / installation work is not done for door window regulator and power window regulator motor ASSY for each seat.
 B
B
>Go to Step 10.

A▼

9. Power window regulator motor initialization (pulse sensor initialization)

(1) Perform the glass position reset on the worked area. (Refer to )
NOTE:
If the initialization is not performed, AUTO operation, auto-reverse function, and after-key-OFF operation function does not work.

Next▼

10. Confirmation test


Next▼
Complete

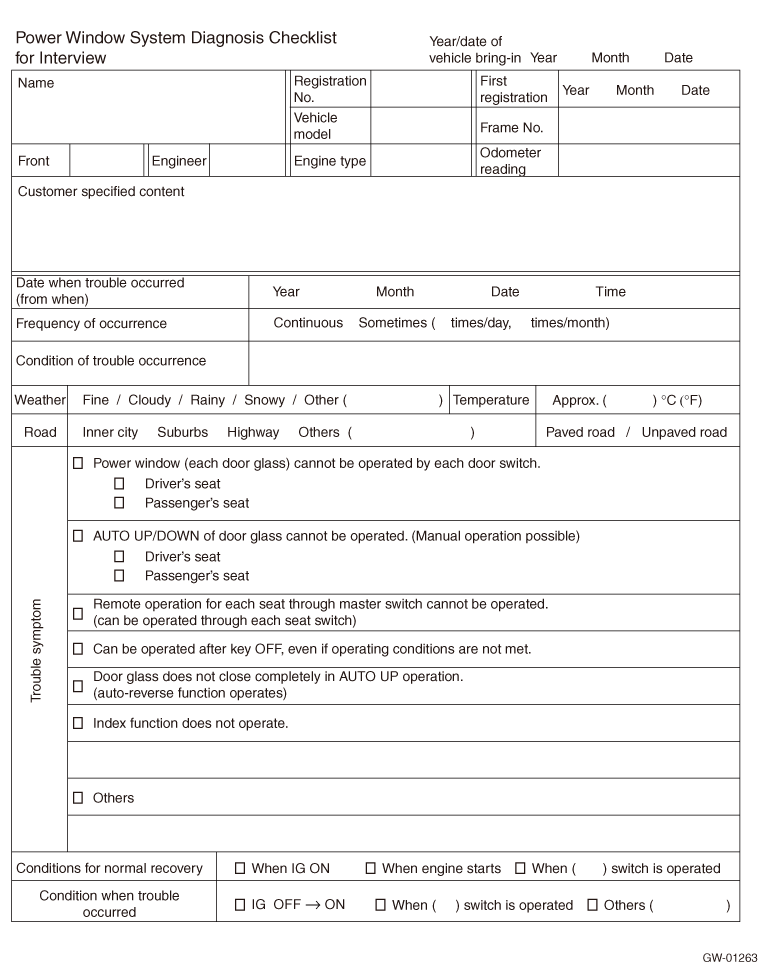

CHECK LIST FOR INTERVIEW
CHECKING / CLEARING DIAGNOSTIC CODES
1. Preparation before inspection
(1) Turn the ignition switch to OFF.
2. Checking diagnostic codes (read from the SSM3)
(1) With IG OFF, connect SSM3 to DLC3.
(2) Turn IG to ON, and turn on the SSM3.
(3) Follow the SSM3 display and operate, and select [Each System Check]→[Power Window]→[DTC Check].
(4) Check the diagnostic codes.
3. Clearing diagnostic code records (Cleared by the SSM3)
(1) With IG OFF, connect SSM3 to DLC3.
(2) Turn IG to ON, and turn on the SSM3.
(3) Follow the SSM3 display and operate, and select [Each System Check]→[Power Window]→[Memory Clear] and delete DTC.
(4) Inspect the diagnosis codes again, and check that the malfunction code was cleared, and that the normal code is displayed.
CAUTION:
·If you can't clear it, start over from IG OFF status.
·Until the cause is identified, do not perform clearing codes with the SSM3.
CIRCUIT FIGURE

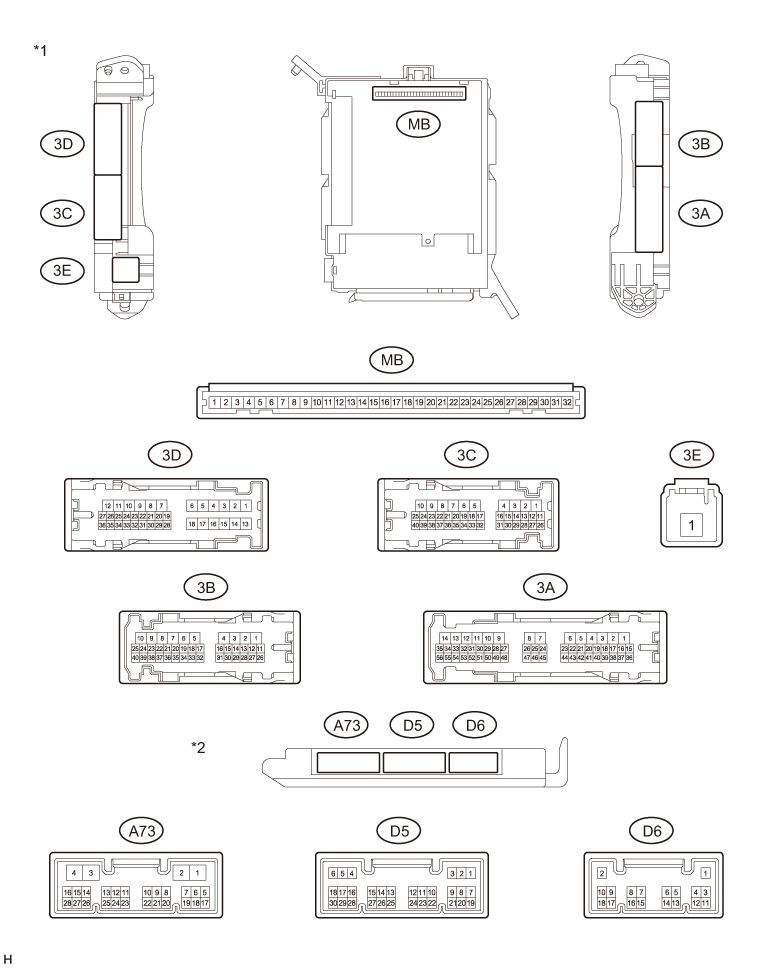

ECM TERMINAL ARRANGEMENT

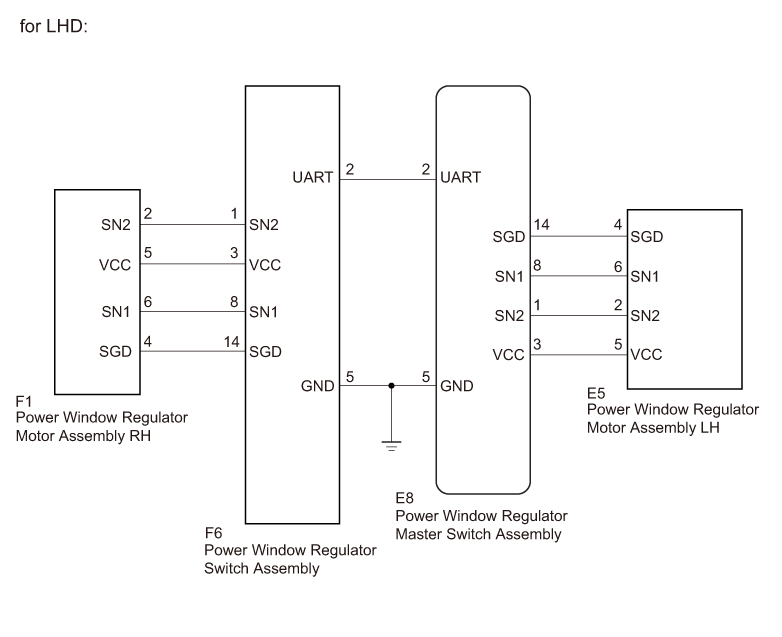

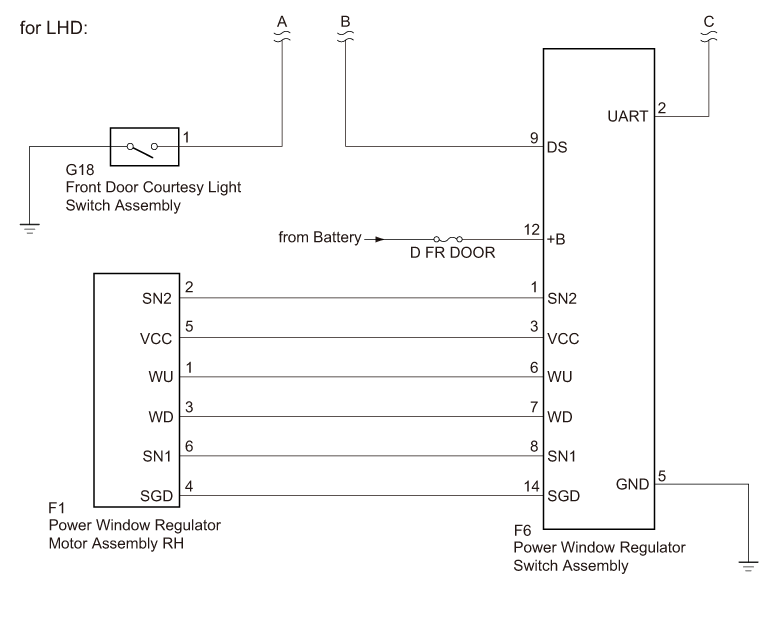

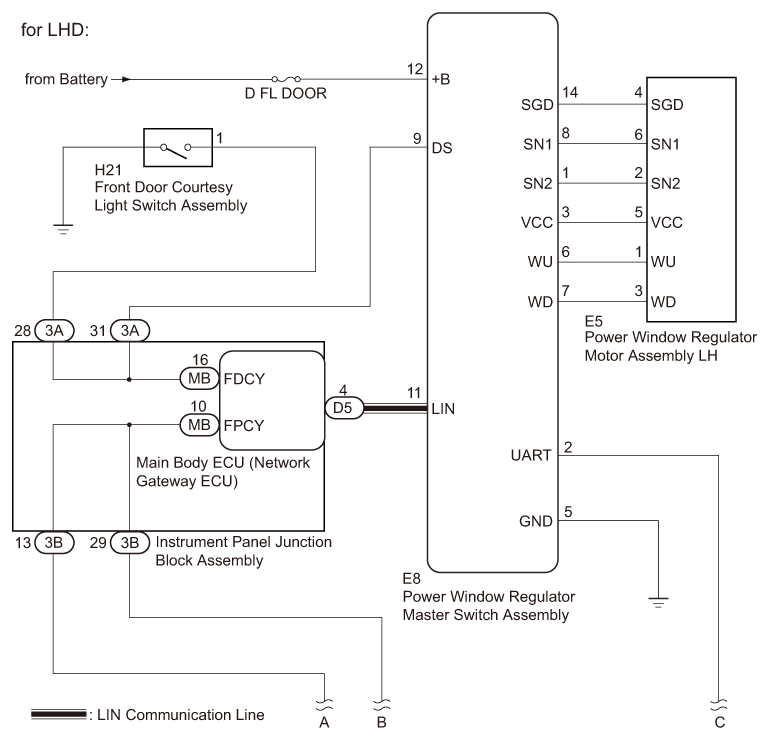

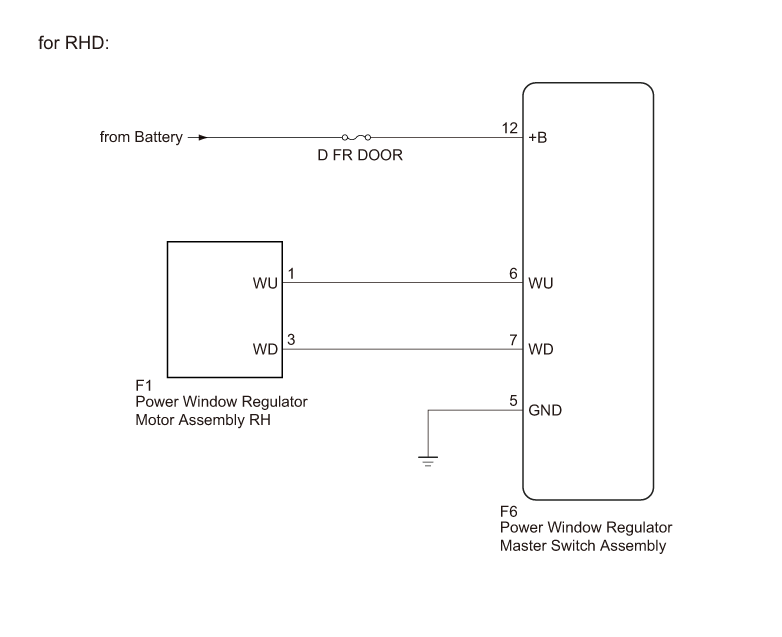

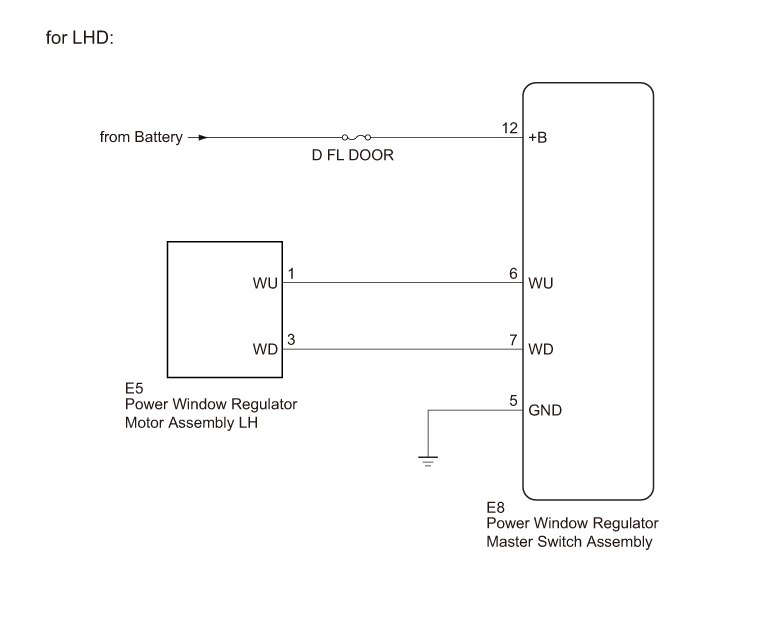

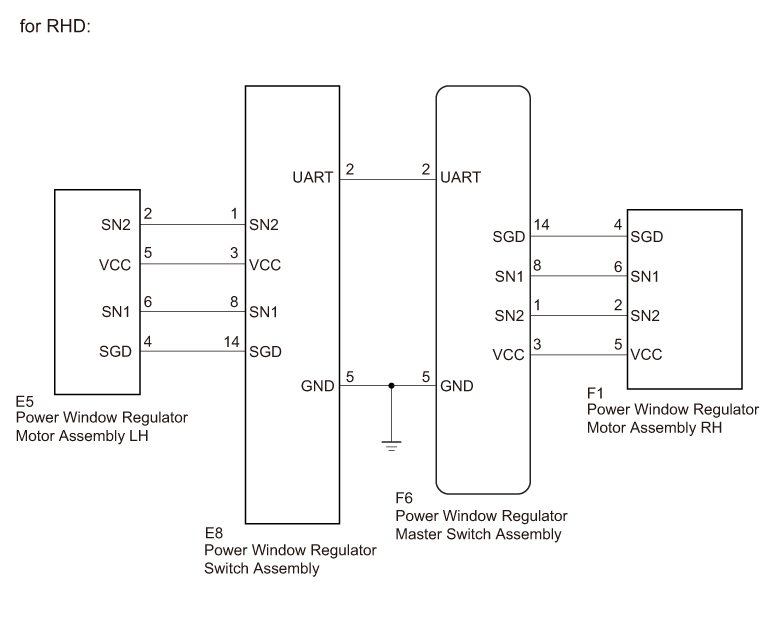

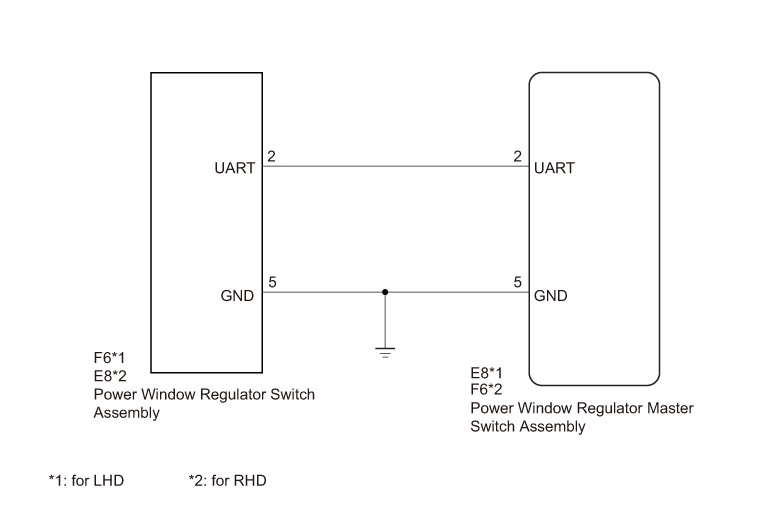

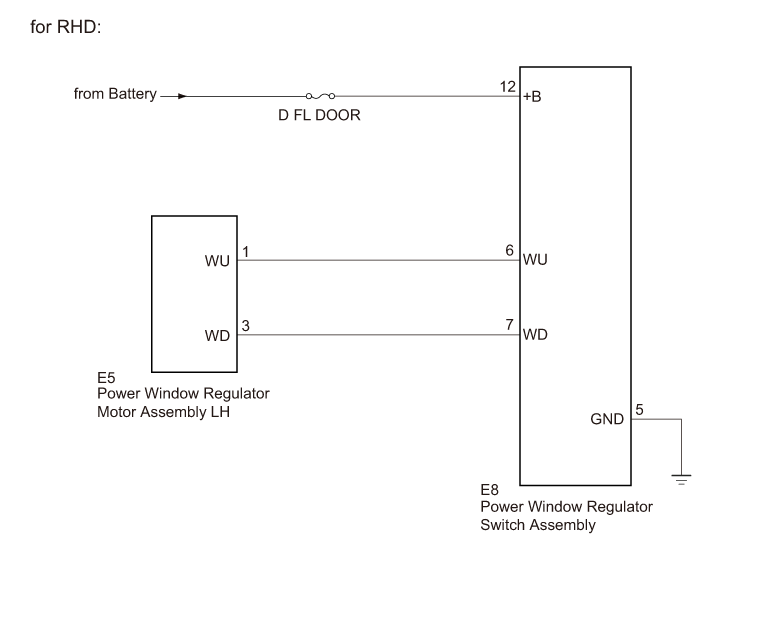

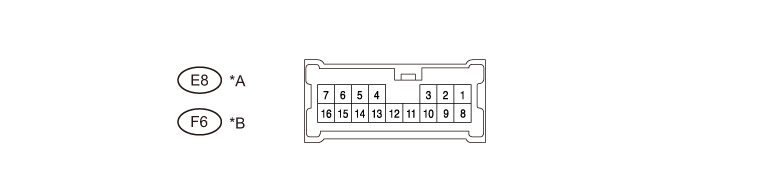

1. POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

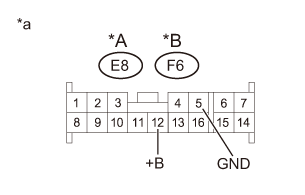

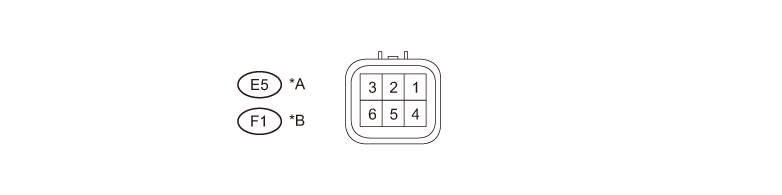

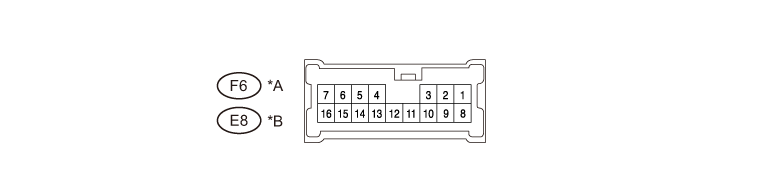

(1) Disconnect the E8*1 or F6*2 power window regulator master switch assembly connector.
*1: for LHD
*2: for RHD
Text in Illustration
*A
 for LHD
 *B
 for RHD
(2) Measure the voltage and resistance according to the value(s) in the table below.
NOTE:
Measure the values on the wire harness side with the connector disconnected.
for LHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
E8-12 (+B) - E8 - 5 (GND)
 Power supply
 Always
 11 to 14 V
E8-5 (GND) - Body ground
 Ground
 Always
 Below 1 Ω
for RHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
F6-12 (+B) - F6-5 (GND)
 Power supply
 Always
 11 to 14 V
F6-5 (GND) - Body ground
 Ground
 Always
 Below 1 Ω
If the result is not as specified, there may be a malfunction in the wire harness.
(3) Reconnect the E8*1 or F6*2 power window regulator master switch assembly connector.
*1: for LHD
*2: for RHD
(4) Measure the voltage according to the value(s) in the table below.
for LHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
E8-6 (WU) - E8-5 (GND)
 Power window motor UP output
 Ignition switch ON, power window regulator master switch OFF
 11 to 14 V
Ignition switch ON, power window regulator master switch UP (Manual operation)
 Below 1 V
E8-6 (WU) - E8-5 (GND)
 Power window motor AUTO UP output
 Ignition switch ON, driver side door power window fully open
 11 to 14 V
Ignition switch ON, driver side door power window moving, power window regulator master switch assembly fully pulled UP (Automatic operation)
 Below 1 V
Ignition switch ON, driver side door power window fully closed
 11 to 14 V
E8-7 (WD) - E8-5 (GND)
 Power window motor DOWN output
 Ignition switch ON, power window regulator master switch OFF
 11 to 14 V
Ignition switch ON, power window regulator master switch DOWN (Manual operation)
 Below 1 V
E8-7 (WD) - E8-5 (GND)
 Power window motor AUTO DOWN output
 Ignition switch ON, driver side door power window fully open
 11 to 14 V
Ignition switch ON, driver side door power window moving, power window regulator master switch assembly fully pushed DOWN (Automatic operation)
 Below 1 V
Ignition switch ON, driver side door power window fully closed
 11 to 14 V
for RHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
F6-6 (WU) - F6-5 (GND)
 Power window motor UP output
 Ignition switch ON, power window regulator master switch OFF
 11 to 14 V
Ignition switch ON, power window regulator master switch UP (Manual operation)
 Below 1 V
F6-6 (WU) - F6-5 (GND)
 Power window motor AUTO UP output
 Ignition switch ON, driver side door power window fully open
 11 to 14 V
Ignition switch ON, driver side door power window moving, power window regulator master switch assembly fully pulled UP (Automatic operation)
 Below 1 V
Ignition switch ON, driver side door power window fully closed
 11 to 14 V
F6-7 (WD) - F6-5 (GND)
 Power window motor DOWN output
 Ignition switch ON, power window regulator master switch OFF
 11 to 14 V
Ignition switch ON, power window regulator master switch DOWN (Manual operation)
 Below 1 V
F6-7 (WD) - F6-5 (GND)
 Power window motor AUTO DOWN output
 Ignition switch ON, driver side door power window fully open
 11 to 14 V
Ignition switch ON, driver side door power window moving, power window regulator master switch assembly fully pushed DOWN (Automatic operation)
 Below 1 V
Ignition switch ON, driver side door power window fully closed
 11 to 14 V
If the result is not as specified, the power window regulator master switch assembly may have a malfunction.

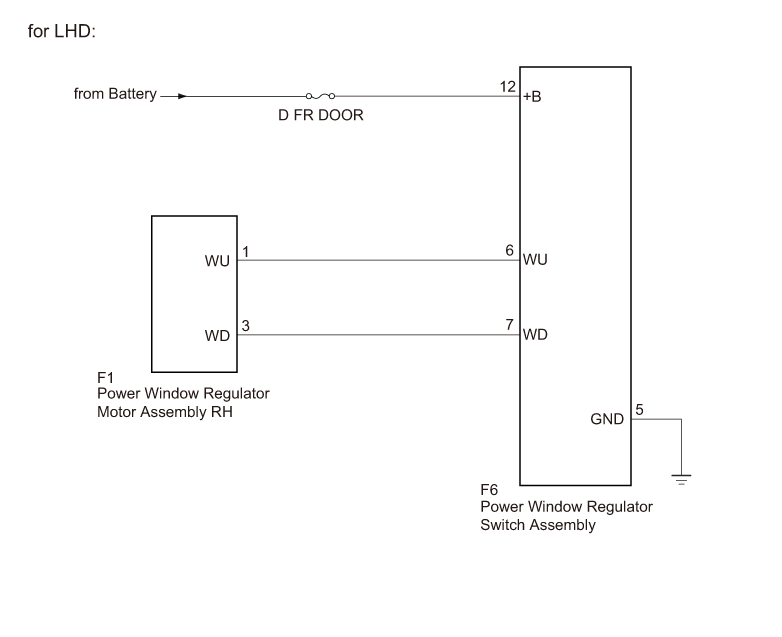

2. CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY
(1) Disconnect the F6*1 or E8*2 power window regulator switch assembly connector.
*1: for LHD
*2: for RHD
Text in Illustration
*A
 for LHD
 *B
 for RHD
(2) Measure the voltage according to the value(s) in the table below.
NOTE:
Measure the values on the wire harness side with the connector disconnected.
for LHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
F6-12 (+B) - F6-5 (GND)
 Power supply
 Always
 11 to 14 V
F6-5 (GND) - Body ground
 Ground
 Always
 Below 1 V
for RHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
E8-12 (+B) - E8-5 (GND)
 Power supply
 Always
 11 to 14 V
E8-5 (GND) - Body ground
 Ground
 Always
 Below 1 V
If the result is not as specified, there may be a malfunction in the wire harness.
(3) Reconnect the F6*1 or E8*2 power window regulator switch assembly connector.
*1: for LHD
*2: for RHD
(4) Measure the voltage according to the value(s) in the table below.
for LHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
F6-6 (WU) - F6-5 (GND)
 Power window motor UP output
 Ignition switch ON, power window regulator switch off
 11 to 14 V
Ignition switch ON, power window regulator switch UP (Manual operation)
 Below 1 V
F6-6 (WU) - F6-5 (GND)
 Power window motor AUTO UP output
 Ignition switch ON, front passenger side door power window fully open
 11 to 14 V
Ignition switch ON, front passenger side door power window moving, power window regulator switch assembly fully pulled UP (Automatic operation)
 Below 1 V
Ignition switch ON, front passenger side door power window fully closed
 11 to 14 V
F6-7 (WD) - F6-5 (GND)
 Power window motor DOWN output
 Ignition switch ON, power window regulator switch off
 11 to 14 V
Ignition switch ON, power window regulator switch DOWN (Manual operation)
 Below 1 V
F6-7 (WD) - F6-5 (GND)
 Power window motor AUTO DOWN output
 Ignition switch ON, front passenger side door power window fully open
 11 to 14 V
Ignition switch ON, front passenger side door power window moving, power window regulator switch assembly fully pulled DOWN (Automatic operation)
 Below 1 V
Ignition switch ON, front passenger side door power window fully closed
 11 to 14 V
for RHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
E8-6 (WU) - E8-5 (GND)
 Power window motor UP output
 Ignition switch ON, power window regulator switch off
 11 to 14 V
Ignition switch ON, power window regulator switch UP (Manual operation)
 Below 1 V
E8-6 (WU) - E8-5 (GND)
 Power window motor AUTO UP output
 Ignition switch ON, front passenger side door power window fully open
 11 to 14 V
Ignition switch ON, front passenger side door power window moving, power window regulator switch assembly fully pulled UP (Automatic operation)
 Below 1 V
Ignition switch ON, front passenger side door power window fully closed
 11 to 14 V
E8-7 (WD) - E8-5 (GND)
 Power window motor DOWN output
 Ignition switch ON, power window regulator switch off
 11 to 14 V
Ignition switch ON, power window regulator switch DOWN (Manual operation)
 Below 1 V
E8-7 (WD) - E8-5 (GND)
 Power window motor AUTO DOWN output
 Ignition switch ON, front passenger side door power window fully open
 11 to 14 V
Ignition switch ON, front passenger side door power window moving, power window regulator switch assembly fully pulled DOWN (Automatic operation)
 Below 1 V
Ignition switch ON, front passenger side door power window fully closed
 11 to 14 V
If the result is not as specified, the power window regulator switch assembly may have a malfunction.
3. CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (for driver side)

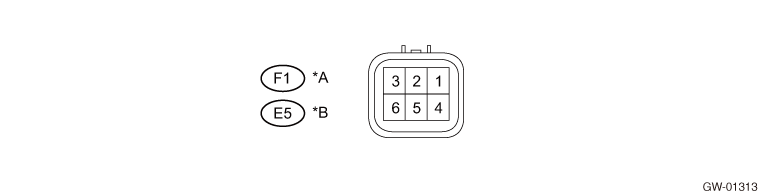

(1) Disconnect the E5*1 or F1*2 power window regulator motor assembly (for driver side) connector.
*1: for LHD
*2: for RHD
Text in Illustration
*A
 for LHD
 *B
 for RHD
(2) Measure the voltage and resistance according to the value(s) in the table below.
NOTE:
Measure the values on the wire harness side with the connector disconnected.
for LHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
E5-5 (VCC) - E5-4 (SGD)
 Power supply
Always
 11 to 14 V
E5-4 (SGD) - Body ground
 Ground
 Always
 Below 1 Ω
for RHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
F1-5 (VCC) - F1-4 (SGD)
 Power supply
Always
 11 to 14 V
F1-4 (SGD) - Body ground
 Ground
 Always
 Below 1 Ω
If the result is not as specified, there may be a malfunction in the wire harness.
(3) Reconnect the E5*1 or F1*2 power window regulator motor assembly (for driver side) connector.
*1: for LHD
*2: for RHD
(4) Measure the voltage according to the value(s) in the table below.
for LHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
E5-1 (WU) - E5-4 (SGD)
 Power window motor UP input
 Ignition switch ON, power window regulator master switch off
 11 to 14 V
Ignition switch ON, power window regulator master switch UP (Manual operation)
 Below 1 V
E5-1 (WU) - E5-4 (SGD)
 Power window motor AUTO UP input
 Ignition switch ON, driver side door power window fully open
 11 to 14 V
Ignition switch ON, driver side door power window moving, power window regulator master switch assembly fully pulled UP (Automatic operation)
 Below 1 V
Ignition switch ON, driver side door power window fully closed
 11 to 14 V
E5-3 (WD) - E5-4 (SGD)
 Power window motor DOWN input
 Ignition switch ON, power window regulator master switch OFF
 11 to 14 V
Ignition switch ON, power window regulator master switch DOWN (Manual operation)
 Below 1 V
E5-3 (WD) - E5-4 (SGD)
 Power window motor AUTO DOWN input
 Ignition switch ON, driver side door power window fully closed
 11 to 14 V
Ignition switch ON, driver side door power window moving, power window regulator master switch assembly fully pulled DOWN (Automatic operation)
 Below 1 V
Ignition switch ON, driver side door power window fully open
 11 to 14 V
for RHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
F1-1 (WU) - F1-4 (SGD)
 Power window motor UP input
 Ignition switch ON, power window regulator master switch off
 11 to 14 V
Ignition switch ON, power window regulator master switch UP (Manual operation)
 Below 1 V
F1-1 (WU) - F1-4 (SGD)
 Power window motor AUTO UP input
 Ignition switch ON, driver side door power window fully open
 11 to 14 V
Ignition switch ON, driver side door power window moving, power window regulator master switch assembly fully pulled UP (Automatic operation)
 Below 1 V
Ignition switch ON, driver side door power window fully closed
 11 to 14 V
F1-3 (WD) - F1-4 (SGD)
 Power window motor DOWN input
 Ignition switch ON, power window regulator master switch OFF
 11 to 14 V
Ignition switch ON, power window regulator master switch DOWN (Manual operation)
 Below 1 V
F1-3 (WD) - F1-4 (SGD)
 Power window motor AUTO DOWN input
 Ignition switch ON, driver side door power window fully closed
 11 to 14 V
Ignition switch ON, driver side door power window moving, power window regulator master switch assembly fully pulled DOWN (Automatic operation)
 Below 1 V
Ignition switch ON, driver side power window fully open
 11 to 14 V
If the result is not as specified, the power window regulator motor assembly (for driver side) may have a malfunction.
4. CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (for passenger side)
(1) Disconnect the F1*1 or E5*2 power window regulator motor assembly (for passenger side) connector.
*1: for LHD
*2: for RHD
Text in Illustration
*A
 for LHD
 *B
 for RHD
(2) Measure the voltage and resistance according to the value(s) in the table below.
NOTE:
Measure the values on the wire harness side with the connector disconnected.
for RHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
E5-5 (VCC) - E5-4 (SGD)
 Power supply
Always
 11 to 14 V
E5-4 (SGD) - Body ground
 Ground
 Always
 Below 1 Ω
for LHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
F1-5 (VCC) - F1-4 (SGD)
 Power supply
Always
 11 to 14 V
F1-4 (SGD) - Body ground
 Ground
 Always
 Below 1 Ω
If the result is not as specified, there may be a malfunction in the wire harness.
(3) Reconnect the F1*1 or E5*2 power window regulator motor assembly (for driver side) connector.
*1: for LHD
*2: for RHD
(4) Measure the voltage according to the value(s) in the table below.
for RHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
E5-1 (WU) - E5-4 (SGD)
 Power window motor UP input
 Ignition switch ON, power window regulator master switch off
 11 to 14 V
Ignition switch ON, power window regulator master switch UP (Manual operation)
 Below 1 V
E5-1 (WU) - E5-4 (SGD)
 Power window motor AUTO UP input
 Ignition switch ON, driver side door power window fully open
 11 to 14 V
Ignition switch ON, driver side door power window moving, power window regulator master switch assembly fully pulled UP (Automatic operation)
 Below 1 V
Ignition switch ON, driver side door power window fully closed
 11 to 14 V
E5-3 (WD) - E5-4 (SGD)
 Power window motor DOWN input
 Ignition switch ON, power window regulator master switch OFF
 11 to 14 V
Ignition switch ON, power window regulator master switch DOWN (Manual operation)
 Below 1 V
E5-3 (WD) - E5-4 (SGD)
 Power window motor AUTO DOWN input
 Ignition switch ON, driver side door power window fully closed
 11 to 14 V
Ignition switch ON, driver side door power window moving, power window regulator master switch assembly fully pulled DOWN (Automatic operation)
 Below 1 V
Ignition switch ON, driver side door power window fully open
 11 to 14 V
for LHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
F1-1 (WU) - F1-4 (SGD)
 Power window motor UP input
 Ignition switch ON, power window regulator master switch off
 11 to 14 V
Ignition switch ON, power window regulator master switch UP (Manual operation)
 Below 1 V
F1-1 (WU) - F1-4 (SGD)
 Power window motor AUTO UP input
 Ignition switch ON, driver side door power window fully open
 11 to 14 V
Ignition switch ON, driver side door power window moving, power window regulator master switch assembly fully pulled UP (Automatic operation)
 Below 1 V
Ignition switch ON, driver side door power window fully closed
 11 to 14 V
F1-3 (WD) - F1-4 (SGD)
 Power window motor DOWN input
 Ignition switch ON, power window regulator master switch OFF
 11 to 14 V
Ignition switch ON, power window regulator master switch DOWN (Manual operation)
 Below 1 V
F1-3 (WD) - F1-4 (SGD)
 Power window motor AUTO DOWN input
 Ignition switch ON, driver side door power window fully closed
 11 to 14 V
Ignition switch ON, driver side door power window moving, power window regulator master switch assembly fully pulled DOWN (Automatic operation)
 Below 1 V
Ignition switch ON, driver side power window fully open
 11 to 14 V
If the result is not as specified, the power window regulator motor assembly (for driver side) may have a malfunction.
5. CHECK MAIN BODY ECU (NETWORK GATEWAY ECU) AND INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
Text in illustration
*1
 Instrument Panel Junction Block Assembly
 *2
 Main Body ECU (Network Gateway ECU)
(1) Remove the main body ECU (network gateway ECU) from the instrument panel junction block assembly.
(2) Measure the resistance and voltage according to the value(s) in the table below.
Tester Connection
 Terminal Description
 Condition
 Specified Condition
MB-1 (BECU) - Body ground
 Battery power supply
 Always
 11 to 14 V
MB-8 (IG) - Body ground
 Ignition switch power supply
 Ignition switch ON
 11 to 14 V
Ignition switch off
 Below 1 V
MB-9 (ACC) - Body ground
 ACC power supply
 Ignition switch ACC
 11 to 14 V
Ignition switch off
 Below 1 V
MB-11 (GND) - Body ground
 Ground
 Always
 Below 1 Ω
MB-32 (+B) - Body ground
 Battery power supply
 Always
 11 to 14 V
If the result is not as specified, there may be a malfunction on the wire harness side.
(3) Disconnect the D5 main body ECU (network gateway ECU) connectors.
(4) Measure the voltage according to the value(s) in the table below.
Terminal No.
 Terminal Description
 Condition
 Specified Condition
D5-22 (ACC)* - Body ground
 ACC power supply
 Ignition switch ACC
 11 to 14 V
Ignition switch off
 Below 1 V
*: w/ Entry and Start System
(5) Reinstall the main body ECU (network gateway ECU).
(6) Measure the voltage of the wire harness side connectors.
for LHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
3B-13 (FPCY) - Body ground
 Front door courtesy light switch RH input
 Front door RH open
 Below 1 V
Front door RH closed
 11 to 14 V
3A-28 (FDCY) - Body ground
 Front door courtesy light switch LH input
 Front door LH open
 Below 1 V
Front door LH closed
 11 to 14 V
D5-4 - Body ground
 LIN communication signal
 Ignition switch ON
 Pulse generation
for RHD
Tester Connection
 Terminal Description
 Condition
 Specified Condition
3B-13 (FPCY) - Body ground
 Front door courtesy light switch LH input
 Front door LH open
 Below 1 V
Front door LH closed
 11 to 14 V
3A-28 (FDCY) - Body ground
 Front door courtesy light switch RH input
 Front door RH open
 Below 1 V
Front door RH closed
 11 to 14 V
D5-4 - Body ground
 LIN communication signal
 Ignition switch ON
 Pulse generation
If the result is not as specified, the main body ECU (network gateway ECU) or instrument panel junction block assembly may have a malfunction.
DISPLAY OF CURRENT DATA/SYSTEM OPERATION CHECK MODE
1. Inspection with SSM3
(1) Display of current data
(a) Use the SSM3 to display the current data and determine functionality, and narrow down the defective part.
SSM3 display: [Each System Check] → [Power Window] → [Current Data Display · Save]
Item Name
 Description/display range
 Normal value
 Remarks
[Drivers seat AUTO SW state]
 Operation signal of switch AUTO for the driver’s seat/
Display range: ON/OFF
 [ON]: AUTO switch is in operation.
[OFF]: In neutral or manual operation
 -
[Drivers seat MANUAL UP SW state]
 Operation signal of switch UP for the driver’s seat/
Display range: ON/OFF
 [ON]: UP switch is in operation.
[OFF]: Neutral
 -
[Drivers seat MANUAL DOWN SW state]
 Operation signal of switch DOWN for the driver’s seat/
Display range: ON/OFF
 [ON]: DOWN switch is in operation.
[OFF]: Neutral
 -
[Drivers seat Courtesy SW state]
 Status of driver’s door courtesy lamp switch/
Display range: ON/OFF
 [ON]: The driver's door is open.
[OFF]: The driver's door is closed.
 -
[Passenger seat AUTO SW state]
 Operation signal of switch AUTO for the passenger’s seat/
Display range: ON/OFF
 [ON]: AUTO switch is in operation.
[OFF]: In neutral or manual operation
 -
[Passenger seat MANUAL UP SW state]
 Operation signal of switch UP for the passenger’s seat/
Display range: ON/OFF
 [ON]: UP switch is in operation.
[OFF]: Neutral
 -
[Passenger seat MANUAL DOWN SW state]
 Operation signal of switch DOWN for the passenger’s seat/
Display range: ON/OFF
 [ON]: DOWN switch is in operation.
[OFF]: Neutral
 -
[Passenger seat Courtesy SW state]
 Status of passenger’s door courtesy lamp switch/
Display range: ON/OFF
 [ON]: The passenger's door is open.
[OFF]: The passenger's door is closed.
 -
[Remote SW AUTO SW state]
 Operational status of switch AUTO for the passenger’s seat/
Display range: ON/OFF
 [ON]: AUTO switch is in operation.
[OFF]: In neutral or manual operation
 -
[Remote SW MANUAL UP SW state]
 Operational status of switch UP for the passenger’s seat/
Display range: ON/OFF
 [ON]: UP switch is in operation.
[OFF]: Neutral
-
[Remote SW MANUAL DOWN SW state]
 Operational status of switch DOWN for the passenger’s seat/
Display range: ON/OFF
 [ON]: DOWN switch is in operation.
[OFF]: Neutral
 -
[Drivers seat AUTO SW Present ON trouble]
 Current stuck status of switch AUTO for the Driver’s seat/
Display range: ON/OFF
 [ON]: Stuck in ON
[OFF]: Normal
 -
[Drivers seat MANUAL UP SW Present ON trouble]
 Current stuck status of switch Up for the driver’s seat/
Display range: ON/OFF
 [ON]: Stuck in ON
[OFF]: Normal
 -
[Drivers seat MANUAL DOWN SW Present ON trouble]
 Current stuck status of switch DOWN for the driver’s seat/
Display range: ON/OFF
 [ON]: Stuck in ON
[OFF]: Normal
 -
[Remote SW AUTO SW Present ON trouble]
 Current stuck status of switch AUTO for the passenger’s seat/
Display range: ON/OFF
 [ON]: Stuck in ON
[OFF]: Normal
 -
[Remote SW MANUAL UP SW Present ON trouble]
 Current stuck status of switch UP for the passenger’s seat/
Display range: ON/OFF
 [ON]: Stuck in ON
[OFF]: Normal
 -
[Remote SW MANUAL DOWN SW Present ON trouble]
 Current stuck status of switch DOWN for the passenger’s seat/
Display range: ON/OFF
 [ON]: Stuck in ON
[OFF]: Normal
 -
[Passenger seat AUTO SW Present ON trouble]
 Current stuck status of switch AUTO for the passenger’s seat/
Display range: ON/OFF
 [ON]: Stuck in ON
[OFF]: Normal
 -
[Passenger seat MANUAL UP SW Present ON trouble]
 Current stuck status of switch UP for the passenger’s seat/
Display range: ON/OFF
 [ON]: Stuck in ON
[OFF]: Normal
 -
[Passenger seat MANUAL DOWN SW Present ON trouble]
 Current stuck status of switch DOWN for the passenger’s seat/
Display range: ON/OFF
 [ON]: Stuck in ON
[OFF]: Normal
 -
[Drivers seat window position counter]
 Position information of driver’s door glass
Display range: -100 to 700
 -
 -
[Passenger seat window position counter]
 Position information of passenger’s door glass/
Display range: -100 to 700
 -
 -
[Drivers seat sensor failure1 Now]
 Current status of D-seat sensor power failure occurrence/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
[Drivers seat sensor failure2 Now]
 Current status of D-seat PLS1 failure occurrence/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
[Drivers seat sensor failure3 Now]
 Current status of D-seat PLS2 failure occurrence/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
[Drivers seat sensor failure4 Now]
 Current status of D-seat pulse direction failure occurrence/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
[Drivers seat sensor failure5 Now]
 Current status of D-seat both pulse stopping failure occurrence/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
[Drivers seat sensor failure6 Now]
 Current status of D-seat opening direction dead band deviation failure occurrence/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
[Drivers seat initial failure Now]
 Current status of occurrence of D-seat glass position and window slide not recorded/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
[Drivers seat ECU failure Now]
 Current status of D-seat EEPROM read failure occurrence/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
[Passenger seat sensor failure1 Now]
 Current status of P-seat sensor power failure occurrence/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
[Passenger seat sensor failure2 Now]
 Current status of P-seat PLS1 failure occurrence/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
[Passenger seat sensor failure3 Now]
 Current status of P-seat PLS2 failure occurrence/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
[Passenger seat sensor failure4 Now]
 Current status of P-seat pulse direction failure occurrence/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
[Passenger seat sensor failure5 Now]
 Current status of P-seat both pulse stopping failure occurrence/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
[Passenger seat sensor failure6 Now]
 Current status of P-seat opening direction dead band deviation failure occurrence/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
[Passenger seat initial failure Now]
 Current status of occurrence of P-seat glass position and window slide not recorded/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
[Passenger seat ECU failure Now]
 Current status of P-seat EEPROM read failure occurrence/
Display range: Yes/No
 [Yes]: Malfunction
[No]: Normal
 -
SSM3 screen: [Each System Check]→ [Integ. unit mode]→ [Current Data Display & Save]
Item Name
 Description/display range
 Normal value
 Remarks
[Ignition]
 IG signal status/
Display range: ON/OFF
 [OFF]: IG OFF
[ON]: IG ON
 -
(2) System Operation Check Mode
(a) Use the SSM3 and the System Operation Inspection Mode to determine functionality and narrow down the defective part.
SSM3 display: [Each System Check] → [Power Window] → [Work Support] → [System Operation Check Mode]
Item Name
 Drive
[Power Window Motor Driver side]
 [UP] / [DOWN] / [Stop]
[Passenger side]
 [UP] / [DOWN] / [Stop]
FAILSAFE LIST
1. Power window fail safe
NOTE:
If any malfunction occurs on the pulse sensor in the power window regulator motor ASSY RH (driver’s seat) and the power window regulator motor ASSY LH (passenger’s seat), the fail safe function is triggered.
(1) If any malfunction occurs on the pulse sensor for the auto-reverse function trigger, or any irregularity exists on window position or learned value, the following power window operations are prohibited.
Power window regulator master switch ASSY
Power window operation
 Conditions
IG ON
 IG OFF
Under permission of after-key-OFF operation
 IG OFF
Under prohibition of after-key-OFF operation
Manual UP (operating switch of own seat)
 ×
 ×
 -
Manual DOWN (operating switch of own seat)
 O
 ×
 -
During AUTO UP HOLD (operating switch of own seat)
 O*
 ×
 -
AUTO UP (operating switch of own seat)
 ×
 ×
 -
AUTO DOWN (operating switch of own seat)
 ×
 ×
 -
Manual UP (remote operation)
 ×
 ×
 -
Manual DOWN (remote operation)
 ×
 ×
 -
During AUTO UP HOLD (remote operation)
 ×
 ×
 -
AUTO UP (remote operation)
 ×
 ×
 -
AUTO DOWN (remote operation)
 ×
 ×
 -
Power window regulator switch ASSY
Power window operation
 Conditions
IG ON
 IG OFF
Under permission of after-key-OFF operation
 IG OFF
Under prohibition of after-key-OFF operation
Manual UP (operating switch of own seat)
 ×
 ×
 -
Manual DOWN (operating switch of own seat)
 O
 ×
 -
During AUTO UP HOLD (operating switch of own seat)
 O*
 ×
 -
AUTO UP (operating switch of own seat)
 ×
 ×
 -
AUTO DOWN (operating switch of own seat)
 ×
 ×
 -
NOTE:
O: Operation permitted
×: Operation prohibited
*: Operating manual UP with AUTO UP HOLD (auto-reverse function is not activated)
If pulse sensor is normal, fully close the window with manual operation (AUTO UP HOLD), and keep this operation for 1 second or more. This will cancel the fail safe and enable the AUTO operation.
(a) SW knob indicator control
NOTE:
In normal operation (the fail safe is not active), knob indicator illuminates as shown in the diagram.
1. Driver’s seat
2. Passenger’s seat
(2) Initial failure
NOTE:
If window position or initialization finished status is failed to be read normally from the EEPROM, the following power window operations are prohibited.
Power window regulator master switch ASSY
Power window operation
 Conditions
IG ON
 IG OFF
Under permission of after-key-OFF operation
 IG OFF
Under prohibition of after-key-OFF operation
Manual UP (operating switch of own seat)
 ×
 ×
 -
Manual DOWN (operating switch of own seat)
 O
 ×
 -
During AUTO UP HOLD (operating switch of own seat)
 O*
 ×
 -
AUTO UP (operating switch of own seat)
 ×
 ×
 -
AUTO DOWN (operating switch of own seat)
 ×
 ×
 -
Manual UP (remote operation)
 ×
 ×
 -
Manual DOWN (remote operation)
 ×
 ×
 -
During AUTO UP HOLD (remote operation)
 ×
 ×
 -
AUTO UP (remote operation)
 ×
 ×
 -
AUTO DOWN (remote operation)
 ×
 ×
 -
Power window regulator switch ASSY
Power window operation
 Conditions
IG ON
 IG OFF
Under permission of after-key-OFF operation
 IG OFF
Under prohibition of after-key-OFF operation
Manual UP (operating switch of own seat)
 ×
 ×
 -
Manual DOWN (operating switch of own seat)
 O
 ×
 -
During AUTO UP HOLD (operating switch of own seat)
 O*
 ×
 -
AUTO UP (operating switch of own seat)
 ×
 ×
 -
AUTO DOWN (operating switch of own seat)
 ×
 ×
 -
NOTE:
O: Operation permitted
×: Operation prohibited
*: Operating manual UP with AUTO UP HOLD (auto-reverse function is not activated)
(a) SW knob indicator control
NOTE:
During the initialization, if fail safe mode is activated because window position or initialization finished status is failed to be read normally from the EEPROM, SW knob indicator illuminates as shown in the diagram.
1. Driver’s seat:
NOTE:
When LIN communication is failed, the indicator blinks in a pattern of 1.4 seconds ON/1.4 seconds OFF.
When LIN failure and other failure occurs simultaneously, the pattern of 0.7 seconds ON/0.7 seconds OFF is performed.
2. Passenger’s seat
(3) If LIN communication has any abnormality (communication fail), the power window operates as follows.
Power window regulator master switch ASSY
Power window operation
 IG ON
Manual UP
 O*
Manual DOWN
 O
During AUTO UP HOLD
 O*
AUTO UP
 O*
AUTO DOWN
 O
Power window regulator switch ASSY
Power window operation
 IG ON
Manual UP
 O*
Manual DOWN
 O
During AUTO UP HOLD
 O*
AUTO UP
 O*
AUTO DOWN
 O
NOTE:
O: Operation permitted
×: Operation prohibited
*: With auto-reverse function enabled
Does not operate remotely.
(4) If LIN communication abnormality and pulse irregularity are detected simultaneously, the power window operates as follows.
Power window regulator master switch ASSY
Power window operation
 Always
Manual UP
 ×
Manual DOWN
 O
During AUTO UP HOLD
 O*1
AUTO UP
 ×
AUTO DOWN
 ×
Power window regulator switch ASSY
Power window operation
 Always
Manual UP
 ×
Manual DOWN
 O
During AUTO UP HOLD
 O*1
AUTO UP
 ×
AUTO DOWN
 ×
NOTE:
O: Operation permitted
×: Operation prohibited
*1: Operating manual UP with AUTO UP HOLD (auto-reverse function is not activated)
Own seat's SW operation: Because LIN communication is in failure, the status of the IG signal is unknown, therefore UP operation without auto-reverse function control is prohibited.
Remote SW operation: Inoperable because LIN communication is failed.
(5) If LIN communication abnormality and opening direction dead band deviation or LIN communication and initial failure are detected simultaneously, the power window operates as follows.
Power window regulator master switch ASSY
Power window operation
 Always
Manual UP
 ×
Manual DOWN
 O
During AUTO UP HOLD
 O*1
AUTO UP
 ×
AUTO DOWN
 ×
NOTE:
O: Operation permitted
×: Operation prohibited
*1: Operating manual UP with AUTO UP HOLD (auto-reverse function is not activated)
Remote control switch operation: Inoperable because LIN communication is failed.
DTCB2311 Driver’s seat pulse failure abnormal detection
DTCB2314 Passenger’s seat pulse failure abnormal detection
Circuit description
Operating the power window regulator master switch ASSY and the power window regulator switch ASSY drives the power window regulator motor ASSY RH (driver's seat) and power window regulator motor ASSY LH (passenger's seat). The power window regulator motor ASSY RH (driver's seat) and power window regulator motor ASSY LH (passenger's seat) have motor function and regulator function.
B2311 or B2314 is generated when any failure is detected inside the power window regulator motor ASSY RH (driver's seat), the power window regulator motor ASSY LH (passenger's seat), the power window regulator master switch ASSY, or power window regulator switch ASSY, as well as when open/short circuit in the wire harness and/or improper connection of connector exists between the power window regulator switch and the power window regulator motor.
CAUTION:
·When replacing the power window regulator motor ASSY with a new one or reusing its motor, perform the initialization of the power window system. (Refer to )
·Before performing the troubleshooting, check the fuse of this circuit.
DTC No.
 Detecting conditions
 Inspection parts
B2311
·Power window regulator motor ASSY RH (driver’s seat) pulse sensor malfunction
·Power window regulator master switch ASSY input circuit malfunction
·Power window regulator ASSY (driver’s seat) malfunction
·Open and/or short circuit in the harness between the power window regulator motor ASSY RH (driver’s seat) and the power window regulator master switch ASSY
·Power window regulator motor ASSY RH (driver’s seat)
·Power window regulator master switch ASSY
·Power window regulator (driver’s seat)
·Wire harness and connector
B2314
·Power window regulator motor ASSY LH (passenger’s seat) pulse sensor malfunction
·Power window regulator switch ASSY input circuit malfunction
·Power window regulator ASSY (passenger’s seat) malfunction
·Open and/or short circuit in the harness between the power window regulator motor ASSY LH (passenger’s seat) and the power window regulator switch ASSY
·Power window regulator motor ASSY LH (passenger’s seat)
·Power window regulator switch ASSY
·Power window regulator (passenger’s seat)
·Wire harness and connector

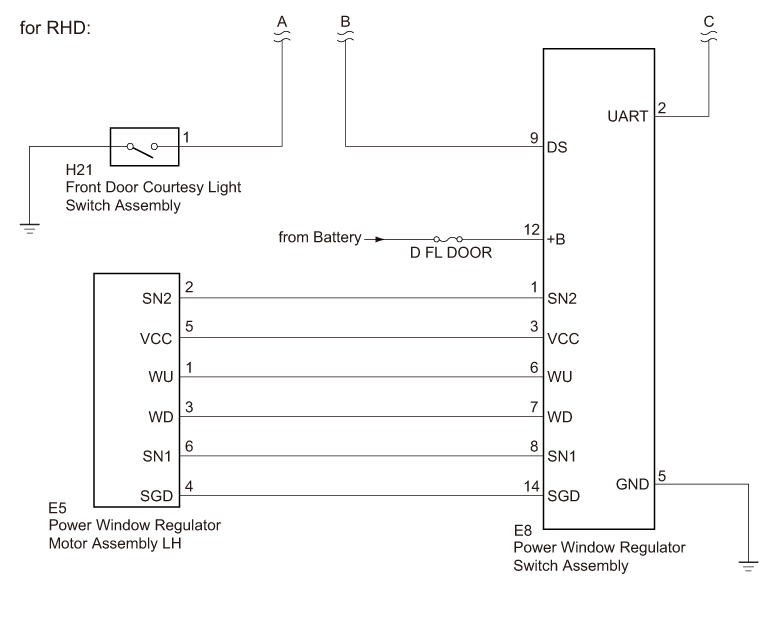

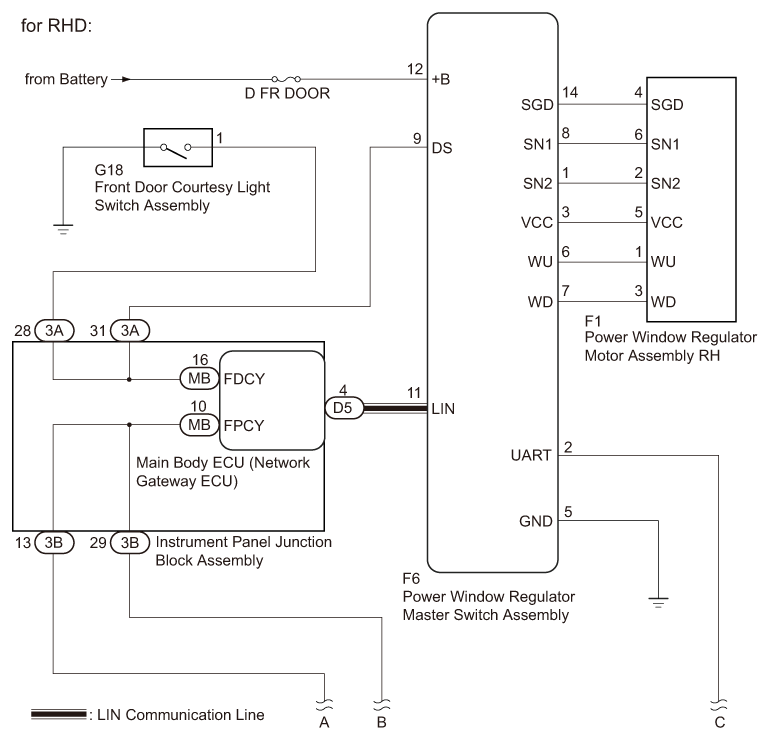

Circuit figure
Inspection steps
3. Inspection of the wire harness and connector (power window regulator master switch ASSY - power window regulator motor ASSY RH (driver’s seat))

(1) Disconnect the connector F6*1 or E8*2 of the power window regulator master switch ASSY.
(2) Disconnect the connector F1*1 or E5*2 of the power window regulator motor ASSY RH (driver’s seat).
(3) Check the resistance between terminals by following the results shown in the data monitor.
Resistance (open circuit check)
[Drivers seat sensor failure1 Now] is faulty.
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
F6-3 (VCC) - F1-5(VCC)*1
 Always
 Less than 1 Ω
F6-14 (SGD) - F1-4(SGD)*1
 Always
 Less than 1 Ω
E8-3 (VCC) - E5-5(VCC)*2
 Always
 Less than 1 Ω
E8-14 (SGD) - E5-4(SGD)*2
 Always
 Less than 1 Ω
[Drivers seat sensor failure2 Now] is faulty.
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
F6-8 (SN1) - F1-6(SN1)*1
 Always
 Less than 1 Ω
F8-8 (SN1) - E5-6(SN1)*2
 Always
 Less than 1 Ω
[Drivers seat sensor failure3 Now] is faulty.
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
F6-1 (SN2) - F1-2(SN2)*1
 Always
 Less than 1 Ω
E8-1 (SN2) - E5-2(SN2)*2
 Always
 Less than 1 Ω
[Drivers seat sensor failure4 Now] is faulty.
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
F6-8 (SN1) - F1-6(SN1)*1
 Always
 Less than 1 Ω
F6-1 (SN2) - F1-2(SN2)*1
 Always
 Less than 1 Ω
E8-8 (SN1) - E5-6(SN1)*2
 Always
 Less than 1 Ω
E8-1 (SN2) - E5-2(SN2)*2
 Always
 Less than 1 Ω
[Drivers seat sensor failure5 Now] is faulty.
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
F6-3 (VCC) - F1-5(VCC)*1
 Always
 Less than 1 Ω
F6-8 (SN1) - F1-6(SN1)*1
 Always
 Less than 1 Ω
F6-1 (SN2) - F1-2(SN2)*1
 Always
 Less than 1 Ω
F6-14 (SGD) - F1-4(SGD)*1
 Always
 Less than 1 Ω
E8-3 (VCC) - E5-5(VCC)*2
 Always
 Less than 1 Ω
E8-8 (SN1) - E5-6(SN1)*2
 Always
 Less than 1 Ω
E8-1 (SN2) - E5-2(SN2)*2
 Always
 Less than 1 Ω
E8-14 (SGD) - E5-4(SGD)*2
 Always
 Less than 1 Ω
[Drivers seat sensor failure6 Now] is faulty.
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
F6-3 (VCC) - F1-5(VCC)*1
 Always
 Less than 1 Ω
F6-8 (SN1) - F1-6(SN1)*1
 Always
 Less than 1 Ω
F6-1 (SN2) - F1-2(SN2)*1
 Always
 Less than 1 Ω
F6-14 (SGD) - F1-4(SGD)*1
 Always
 Less than 1 Ω
E8-3 (VCC) - E5-5(VCC)*2
 Always
 Less than 1 Ω
E8-8 (SN1) - E5-6(SN1)*2
 Always
 Less than 1 Ω
E8-1 (SN2) - E5-2(SN2)*2
 Always
 Less than 1 Ω
E8-14 (SGD) - E5-4(SGD)*2
 Always
 Less than 1 Ω
*1:For RHD
*2:For LHD
NG
>Repair or replacement of wiring harness or connector

OK▼

4. Unit inspection of power window regulator motor ASSY RH (driver’s seat)

(1) Remove the power window regulator motor ASSY RH (driver’s seat). (Refer to )
(2) Perform unit inspection of the power window regulator motor ASSY RH (driver’s seat). (Refer to )
NG
>Replacement of the power window regulator motor ASSY RH (driver’s seat) (Refer to )

OK▼

5. Replacement of the power window regulator master switch ASSY

(1) Replace with the new or normal power window regulator master switch ASSY, and verify normal operation. (Refer to )
Result
Item
 Go to
Motor does not operate.
 A
Motor operates.
 B
B
>Complete

A▼
Replacement of the power window regulator (driver’s seat) (Refer to )

6. SSM3 data monitor check

(1) Using SSM3, check the status of the power window system. (Refer to )
SSM3 display: [Each System Check] → [Power Window] → [Current Data Display · Save]
Item Name
 Description/display range
 Normal value
 Remarks
[Passenger seat sensor failure1 Now]
 Current status of P-seat sensor power failure occurrence/Display range: Yes/No
 [Yes]: Malfunction[No]: Normal

[Passenger seat sensor failure2 Now]
 Current status of P-seat PLS1 failure occurrence/Display range: Yes/No
 [Yes]: Malfunction[No]: Normal

[Passenger seat sensor failure3 Now]
 Current status of P-seat PLS2 failure occurrence/Display range: Yes/No
 [Yes]: Malfunction[No]: Normal

[Passenger seat sensor failure4 Now]
 Current status of P-seat pulse direction failure occurrence/Display range: Yes/No
 [Yes]: Malfunction[No]: Normal

[Passenger seat sensor failure5 Now]
 Current status of P-seat both pulse stopping failure occurrence/Display range: Yes/No
 [Yes]: Malfunction[No]: Normal

[Passenger seat sensor failure6 Now]
 Current status of P-seat opening direction dead band deviation failure occurrence/Display range: Yes/No
 [Yes]: Malfunction[No]: Normal

Criteria :  Failure occurrence status (Yes/No)
No
>Replacement of the power window regulator master switch ASSY (Refer to )

Yes▼

7. Inspection of the wire harness and connector (power window regulator master switch ASSY - power window regulator motor ASSY RH (passenger’s seat))

(1) Disconnect the connector E8 of power window regulator master switch ASSY.
(2) Disconnect the connector E5 of power window regulator motor ASSY RH (passenger’s seat).
(3) Check the resistance between terminals by following the results shown in the data monitor.
Resistance (open circuit check)
[Passenger seat sensor failure1 Now] is faulty.
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
E8-3 (VCC) - E5-5(VCC)*1
 Always
 Less than 1 Ω
E8-14 (SGD) - E5-4(SGD)*1
 Always
 Less than 1 Ω
F6-3 (VCC) - F1-5(VCC)*2
 Always
 Less than 1 Ω
F6-14 (SGD) - F1-4(SGD)*2
 Always
 Less than 1 Ω
[Passenger seat sensor failure2 Now] is faulty.
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
E8-8 (SN1) - E5-6(SN1)*1
 Always
 Less than 1 Ω
F6-8 (SN1) - F1-6(SN1)*2
 Always
 Less than 1 Ω
[Passenger seat sensor failure3 Now] is faulty.
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
E8-1 (SN2) - E5-2(SN2)*1
 Always
 Less than 1 Ω
F6-1 (SN2) - F1-2(SN2)*2
 Always
 Less than 1 Ω
[Passenger seat sensor failure4 Now] is faulty.
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
E8-8 (SN1) - E5-6(SN1)*1
 Always
 Less than 1 Ω
E8-1 (SN2) - E5-2(SN2)*1
 Always
 Less than 1 Ω
F6-8 (SN1) - F1-6(SN1)*2
 Always
 Less than 1 Ω
F6-1 (SN2) - F1-2(SN2)*2
 Always
 Less than 1 Ω
[Passenger seat sensor failure5 Now] is faulty.
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
E8-3 (VCC) - E5-5(VCC)*1
 Always
 Less than 1 Ω
E8-8 (SN1) - E5-6(SN1)*1
 Always
 Less than 1 Ω
E8-1 (SN2) - E5-2(SN2)*1
 Always
 Less than 1 Ω
E8-14 (SGD) - E5-4(SGD)*1
 Always
 Less than 1 Ω
F6-3 (VCC) - F1-5(VCC)*2
 Always
 Less than 1 Ω
F6-8 (SN1) - F1-6(SN1)*2
 Always
 Less than 1 Ω
F6-1 (SN2) - F1-2(SN2)*2
 Always
 Less than 1 Ω
F6-14 (SGD) - F1-4(SGD)*2
 Always
 Less than 1 Ω
[Passenger seat sensor failure6 Now] is faulty.
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
E8-3 (VCC) - E5-5(VCC)*1
 Always
 Less than 1 Ω
E8-8 (SN1) - E5-6(SN1)*1
 Always
 Less than 1 Ω
E8-1 (SN2) - E5-2(SN2)*1
 Always
 Less than 1 Ω
E8-14 (SGD) - E5-4(SGD)*1
 Always
 Less than 1 Ω
F6-3 (VCC) - F1-5(VCC)*2
 Always
 Less than 1 Ω
F6-8 (SN1) - F1-6(SN1)*2
 Always
 Less than 1 Ω
F6-1 (SN2) - F1-2(SN2)*2
 Always
 Less than 1 Ω
F6-14 (SGD) - F1-4(SGD)*2
 Always
 Less than 1 Ω
*1:For RHD
*2:For LHD
NG
>Repair or replacement of wiring harness or connector

OK▼

8. Unit inspection of the power window regulator motor ASSY LH (passenger’s seat)

(1) Remove the power window regulator motor ASSY LH (passenger’s seat). (Refer to )
(2) Perform the unit inspection of the power window regulator motor ASSY LH (passenger’s seat). (Refer to )
NG
>Replacement of the power window regulator motor ASSY LH (passenger’s seat) (Refer to )

OK▼

9. Replacement of the power window regulator switch ASSY

(1) Replace with the new or normal power window regulator switch ASSY, and verify normal operation. (Refer to )
Result
Item
 Go to
Motor does not operate.
 A
Motor operates.
 B
B
>Complete

A▼

DTCB2312 Driver’s seat SW ON stuck
DTCB2315 Passenger’s seat SW ON stuck
Circuit description
Operating the power window regulator master switch ASSY and the power window regulator switch ASSY drives the power window regulator motor ASSY RH (driver's seat) and power window regulator motor ASSY LH (passenger's seat). The power window regulator motor ASSY RH (driver's seat) and power window regulator motor ASSY LH (passenger's seat) have motor function and regulator function.
B2312 and B2315 is generated when ECM determines that the power window regulator master switch ASSY or power window regulator switch ASSY is stuck continuously.
CAUTION:
·When replacing the power window regulator motor ASSY with a new one or reusing its motor, perform the initialization of the power window system. (Refer to )
·After replacing door glass and/or weather strip, AUTO UP operation sometimes activates auto-reverse function. In this case, the door glass is fully closed by performing the procedure in the following order (*3). AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → (*1) → AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → AUTO UP HOLD (*2).
·*1: If DOWN operation, IG OFF & timer operation OFF, and/or index operation is executed between auto-reverse function and AUTO UP HOLD, return to the beginning of the procedure.
·*2: The upper end position of the glass is relearned by this operation (AUTO UP HOLD). (Refer to )
·*3: The failure of the door glass or regulator may prevent full closing of the door glass.
DTC No.
 Detecting conditions
 Inspection parts
B2312
 Power window regulator master switch ASSY is stuck (When the switch-on status has been detected for approx. 20 seconds.).
 Power window regulator master switch ASSY
B2315
 Power window regulator switch ASSY is stuck (When the switch-on status has been detected for approx. 20 seconds.).
·Power window regulator master switch ASSY
·Power window regulator switch ASSY
·Wiring harness or connector
Circuit figure
Inspection steps
3. Inspection of the wire harness and connector (power window regulator master switch ASSY - power window regulator switch ASSY)

(1) Disconnect the connector E8*1 or F6*2 of the power window regulator master switch ASSY.
(2) Disconnect the connector F6*1 or E8*2 of the power window regulator switch ASSY LH.
(3) Measure the resistance between the terminals.
Resistance (open circuit check)
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
E8-2 (UART) - F6-2 (UART)
 Always
 Less than 1 Ω
Resistance (short circuit check)
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
E8-2 (UART) - chassis ground*1
 Always
 10 kΩ or more
F6-2 (UART) - chassis ground*2
 Always
 10 kΩ or more
*1:For LHD
*2:For RHD
NG
>Repair or replacement of wiring harness or connector

OK▼
Replacement of the power window regulator master switch ASSY (Refer to )

DTCB2313 Driver’s seat glass position, window slide characteristic data not recorded status detection
DTCB2316 Passenger’s seat glass position, window slide characteristic data not recorded status detection
Circuit description
Operating the power window regulator master switch ASSY and the power window regulator switch ASSY drives the power window regulator motor ASSY RH (driver's seat) and power window regulator motor ASSY LH (passenger's seat). The power window regulator motor ASSY RH (driver's seat) and power window regulator motor ASSY LH (passenger's seat) have motor function and regulator function.
B2313 or B2316 is generated when the power window regulator motor ASSY RH (driver’s seat) or the power window regulator motor ASSY LH (passenger’s seat) has not been initialized.
DTC No.
 Detecting conditions
 Inspection parts
B2313
Power window regulator master switch ASSY RH (driver’s seat) has not been initialized.
·Power window regulator master switch ASSY RH (driver’s seat)
·Power window regulator master switch ASSY RH (driver’s seat) initialization malfunction
B2316
Power window regulator switch ASSY LH (passenger’s seat) has not been initialized.
·Power window regulator switch ASSY LH (passenger’s seat)
·Power window regulator switch ASSY LH (passenger’s seat) initialization malfunction
Inspection steps
1. DTC check

(1) Using SSM3 and following the screen, check the diagnostic codes. (Refer to )
Criteria :  Other DTCs (DTC2311, 2312, 2314, 2315) are not detected.
NG
>Perform diagnosis depending on other detected DTCs.

OK▼

2. Power window system (initialization)

(1) Perform the initialization of the power window regulator motor ASSY RH (driver’s seat) and power window regulator motor ASSY LH (passenger’s seat). (Refer to )

Next▼

3. Clear diagnostic code

(1) Using SSM3 and following the screen, clear the diagnostic codes. (Refer to )

Next▼

4. DTC check

(1) Using SSM3 and following the screen, check the diagnostic codes. (Refer to )
Result
Result
 Go to
No DTC output
 A
DTC B2313 output
 B
DTC B2316 output
 C
B
>Replacement of the power window regulator motor ASSY RH (driver’s seat) (Refer to )
C
>Replacement of the power window regulator motor ASSY LH (passenger’s seat) (Refer to )

A▼
Complete (due to failed initialization)

Cannot operate the window from driver’s seat regulator switch.
Circuit description
When IG is ON, operating the power window regulator master switch ASSY drives the power window regulator motor ASSY RH (driver’s seat). The power window regulator motor ASSY RH (driver’s seat) has motor function and regulator function.
CAUTION:
·When replacing the power window regulator motor ASSY with a new one or reusing its motor, perform the initialization of the power window system. (Refer to )
·Before performing the troubleshooting, check the fuse of this circuit.
Circuit figure
Inspection steps
1. Performance of the SSM3 [System Operation Check Mode]

(1) Using SSM3, perform the [System Operation Check Mode] by following the display. (Refer to )
Criteria :  [System Operation Check Mode] is performed properly.
SSM3 display: [Each System Check] → [Power Window] → [Work Support] → [System Operation Check Mode]
Item Name
 Drive
[Power Window Motor Driver side]
 UP/DOWN
Result
Item
 Go to
NG
 A
OK
 B
B
>Replacement of the power window regulator master switch ASSY (driver’s seat) (Refer to )

A▼

Cannot operate the window from passenger’s seat regulator switch.
Circuit description
When IG is ON, and power window regulator switch ASSY (passenger’s seat) is operated, the power window regulator motor ASSY LH (passenger’s seat) is driven. The power window regulator motor ASSY LH (passenger’s seat) has motor function and regulator function.
CAUTION:
·When replacing the power window regulator motor ASSY with a new one or reusing its motor, perform the initialization of the power window system. (Refer to )
·Before performing the troubleshooting, check the fuse of this circuit.
Circuit figure
Inspection steps
1. Performance of the SSM3 [System Operation Check Mode]

(1) Using SSM3, perform the [System Operation Check Mode] by following the display. (Refer to )
Criteria :  [System Operation Check Mode] is performed properly.
SSM3 display: [Each System Check] → [Power Window] → [Work Support] → [System Operation Check Mode]
Item Name
 Drive
[Power Window Motor Driver side]
 UP/DOWN
Result
Item
 Go to
NG
 A
OK
 B
B
>Replacement of the power window regulator switch ASSY (Refer to )

A▼

Driver’s door glass AUTO UP/DOWN function does not work (manual operation works).
Circuit description
If AUTO does not function, the fail safe may be working. Or, not performing the initialization of the power window regulator master switch ASSY RH (driver’s seat) after repair also disables AUTO.
CAUTION:
·When replacing the power window regulator motor ASSY with a new one or reusing its motor, perform the initialization of the power window system. (Refer to )
·After replacing door glass and/or weather strip, AUTO UP operation sometimes activates auto-reverse function. In this case, the door glass is fully closed by performing the procedure in the following order (*3). AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → (*1) → AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → AUTO UP HOLD (*2).
·*1: If DOWN operation, IG OFF & timer operation OFF, and/or index operation is executed between auto-reverse function and AUTO UP HOLD, return to the beginning of the procedure.
·*2: The upper end position of the glass is relearned by this operation (AUTO UP HOLD). (Refer to )
·*3: The failure of the door glass or regulator may prevent full closing of the door glass.
NOTE:
If any malfunction occurs on the pulse sensor in the power window regulator motor ASSY RH (driver’s seat), the fail safe function is triggered. When fail safe is active, remote operation from the passenger’s seat and AUTO operation are disabled. (During AUTO UP HOLD operation, only manual UP and manual DOWN operations are possible).
Inspection steps
2. Perform initialization operation.

(1) Initialize the power window regulator master switch ASSY RH (driver’s seat). (Refer to )
(2) Open and close the power window, and ensure it works properly.
Criteria :  It operates properly.
NG
>Replacement of the power window regulator motor ASSY RH (driver’s seat) (Refer to )

OK▼
Complete (due to failed initialization)

3. Replacement of the power window regulator master switch ASSY

(1) Replace with the new or normal power window regulator master switch ASSY, and verify normal operation. (Refer to )
Result
Item
 Go to
Motor operates.
 A
Motor does not operate.
 B
B
>Replacement of the power window regulator motor ASSY RH (driver’s seat) (Refer to )

A▼
Complete (power window regulator master switch ASSY is failed)

Passenger’s door glass AUTO UP/DOWN function does not work (manual operation works).
Circuit description
If AUTO does not function, the fail safe may be working. Or, not performing the initialization of the power window regulator switch ASSY LH (passenger’s seat) after repair also disables AUTO.
CAUTION:
·When replacing the power window regulator motor ASSY with a new one or reusing its motor, perform the initialization of the power window system. (Refer to )
·After replacing door glass and/or weather strip, AUTO UP operation sometimes activates auto-reverse function. In this case, the door glass is fully closed by performing the procedure in the following order (*3). AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → (*1) → AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → AUTO UP HOLD (*2).
·*1: If DOWN operation, IG OFF & timer operation OFF, and/or index operation is executed between auto-reverse function and AUTO UP HOLD, return to the beginning of the procedure.
·*2: The upper end position of the glass is relearned by this operation (AUTO UP HOLD). (Refer to )
·*3: The failure of the door glass or regulator may prevent full closing of the door glass.
NOTE:
If any malfunction occurs on the pulse sensor in the power window regulator motor ASSY LH (passenger’s seat), the fail safe function is triggered. When fail safe is active, AUTO operation is disabled. (During AUTO UP HOLD operation, only manual UP and manual DOWN operations are possible).
Inspection steps
2. Perform initialization operation.

(1) Initialize the power window regulator switch ASSY LH (passenger's seat), and verify normal operation. (Refer to )
Criteria :  It operates properly.
NG
>Replacement of the power window regulator motor ASSY LH (passenger’s seat) (Refer to )

OK▼
Complete (due to failed initialization)

3. Replacement of the power window regulator switch ASSY

(1) Replace with the new or normal power window regulator switch ASSY, and verify normal operation. (Refer to )
Result
Item
 Go to
Motor operates.
 A
Motor does not operate.
 B
B
>Replacement of the power window regulator motor ASSY LH (passenger’s seat) (Refer to )

A▼
Complete (failed power window regulator switch ASSY)

Door glass does not fully close in AUTO UP operation (auto-reverse function is activated).
Circuit description
If the door glass or power window regulator motor does not operate smoothly, auto-reverse function is activated automatically. Consequently, the AUTO UP function cannot fully close the windows.
CAUTION:
·When replacing the power window regulator motor ASSY with a new one or reusing its motor, perform the initialization of the power window system. (Refer to )
·After replacing door glass and/or weather strip, AUTO UP operation sometimes activates auto-reverse function. In this case, the door glass is fully closed by performing the procedure in the following order (*3). AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → (*1) → AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → AUTO UP HOLD (*2).
·*1: If DOWN operation, IG OFF & timer operation OFF, and/or index operation is executed between auto-reverse function and AUTO UP HOLD, return to the beginning of the procedure.
·*2: The upper end position of the glass is relearned by this operation (AUTO UP HOLD). (Refer to )
·*3: The failure of the door glass or regulator may prevent full closing of the door glass.
Inspection steps
1. Power window system (initialization)

(1) Initialize the power window regulator motor ASSY RH (driver’s seat) and power window regulator motor ASSY LH (passenger’s seat), and verify normal operation. (Refer to )
Criteria :  It operates properly.
NG
> Go to Step 2.

OK▼
Complete (due to failed initialization)

2. Installation of door glass slide resistance (driver’s door glass)

(1) Remove the door glass mounting bolts, and check if the door glass can be lifted with hands smoothly without being caught.
NOTE:
·The door glass is not in abnormal contact with the glass run.
·Glass run has no deformation or foreign matter inside.
NG
>Install the glass properly (remove foreign matter which causes installation failure, fix the installation, or reinstall)

OK▼
Replacement of the power window regulator motor ASSY (driver’s or passenger’s seat) (Refer to )

Cannot remotely control other doors from the master switch (each door can be operated by its door switch).
Circuit description
Power window regulator master switch ASSY transmits the remote control switch signal of the other seat to the passenger’s seat power window regulator switch ASSY (When IG is ON). The passenger's seat power window regulator switch ASSY, which receives the signal, operates according to the remote control switch signal of the other seat.
CAUTION:
·When replacing the power window regulator motor ASSY with a new one or reusing its motor, perform the initialization of the power window system. (Refer to )
·After replacing door glass and/or weather strip, AUTO UP operation sometimes activates auto-reverse function. In this case, the door glass is fully closed by performing the procedure in the following order (*3). AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → (*1) → AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → AUTO UP HOLD (*2).
·*1: If DOWN operation, IG OFF & timer operation OFF, and/or index operation is executed between auto-reverse function and AUTO UP HOLD, return to the beginning of the procedure.
·*2: The upper end position of the glass is relearned by this operation (AUTO UP HOLD). (Refer to )
·*3: The failure of the door glass or regulator may prevent full closing of the door glass.
Inspection steps
1. Inspection of power window regulator master switch ASSY (window lock switch)

(1) Verify when the window lock switch on the power window regulator master switch ASSY is pushed, the power windows for seats other than driver’s will be inoperable.
(2) Verify when window lock switch is pushed once more, power window of each seat other than driver’s will be operable.
Criteria :  Power window of each seat is operable
NG
>Replacement of the power window regulator master switch ASSY (Refer to )

OK▼

3. Inspection of the wire harness and connector (power window regulator master switch ASSY - power window regulator switch ASSY)

(1) Disconnect the connector E8 of power window regulator master switch ASSY.
(2) Disconnect the connector F6 of power window regulator switch ASSY.
(3) Measure the resistance between the terminals.
Resistance (open circuit check)
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
E8-2 (UART) - F6-2 (UART)
 Always
 Less than 1 Ω
Resistance (short circuit check)
Inspection terminals (Terminal symbol)
 Inspection conditions
 Standard value
E8-2 (UART) - chassis ground
 Always
 10 kΩ or more
NG
>Repair or replacement of wiring harness or connector

OK▼
Replacement of the power window regulator switch ASSY LH (Refer to )

Even though the conditions are not met, door glass can be operated after key OFF.
Circuit description
After IG ON → OFF, if the driver’s or passenger’s door has not been opened within approx. 45 seconds, the power window regulator master switch ASSY and the power window regulator switch ASSY can operate own seat’s door glass (after-key-OFF operation function). After approx. 45 seconds have passed, or when the driver's or passenger's door is opened, the after-key-OFF operation function will be stopped.
CAUTION:
·When replacing the power window regulator motor ASSY with a new one or reusing its motor, perform the initialization of the power window system. (Refer to )
·After replacing door glass and/or weather strip, AUTO UP operation sometimes activates auto-reverse function. In this case, the door glass is fully closed by performing the procedure in the following order (*3). AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → (*1) → AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → AUTO UP HOLD (*2).
·*1: If DOWN operation, IG OFF & timer operation OFF, and/or index operation is executed between auto-reverse function and AUTO UP HOLD, return to the beginning of the procedure.
·*2: The upper end position of the glass is relearned by this operation (AUTO UP HOLD). (Refer to )
·*3: The failure of the door glass or regulator may prevent full closing of the door glass.
Inspection steps
3. Operation inspection after IG OFF

(1) After IG OFF, open and close the door, and then check the operation.
Result
Result
 Go to
When the driver’s door has been opened and closed after IG OFF, operation is possible.
 A
When the passenger’s door has been opened and closed after IG OFF, operation is possible.
 B
A
>Replacement of the power window regulator master switch ASSY (Refer to )
B
> Go to Step 5.

A▼

4. Replacement of the power window regulator master switch ASSY

(1) Replace with the new or normal power window regulator master switch ASSY, and verify normal operation. (Refer to )
Criteria :  No fault is found.
NG
>Replacement of the power window regulator switch ASSY (Refer to )

OK▼
Complete (power window regulator master switch ASSY is failed)

5. Replacement of the power window regulator switch ASSY

(1) Replace with the new or normal power window regulator switch ASSY, and verify normal operation. (Refer to )
Criteria :  No fault is found.
NG
>Replacement of the power window regulator master switch ASSY (Refer to )

OK▼
Complete (failed power window regulator switch ASSY)

Index function does not operate (Driver’s seat and passenger’s seat)
CAUTION:
·When replacing the power window regulator motor ASSY with a new one or reusing its motor, perform the initialization of the power window system. (Refer to )
·After replacing door glass and/or weather strip, AUTO UP operation sometimes activates auto-reverse function. In this case, the door glass is fully closed by performing the procedure in the following order (*3). AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → (*1) → AUTO U0 HOLD → (the auto-reverse function (glass reverse operation)) → AUTO UP HOLD (*2).
·*1: If DOWN operation, IG OFF & timer operation OFF, and/or index operation is executed between auto-reverse function and AUTO UP HOLD, return to the beginning of the procedure.
·*2: The upper end position of the glass is relearned by this operation (AUTO UP HOLD). (Refer to )
·*3: The failure of the door glass or regulator may prevent full closing of the door glass.
Inspection steps
CAUTION:
Before performing the diagnosis, refer to the precautions.
1. SSM3 data reading

(1) Using SSM3, follow the screen and read [Current Data Display]. (Refer to )
Criteria :  The normal value of [Current Data Display] is displayed properly.
SSM3 display: [Each System Check] → [Power Window] → [Current Data Display · Save]
Item Name
 Description/display range
 Normal value
 Remarks
[Drivers seat Courtesy SW state]
 Status of driver’s door courtesy lamp switch/
Display range: [ON] - [OFF]
 [ON]: The driver's door is open.
[OFF]: The driver's door is closed.
 -
[Passenger seat Courtesy SW state]
 Status of passenger’s door courtesy lamp switch/
Display range: [ON] - [OFF]
 [ON]: The passenger's door is open.
[OFF]: The passenger's door is closed.

NG
>Inspection of courtesy lamp switch system (Refer to )

OK▼

2. Reinitialization of the power window master switch/power window switch

(1) Reinitialize the power window master switch/power window switch.
Criteria :  No fault is found.
NG
>Go to Step 3.

OK▼
Complete

3. SSM3 data reading

(1) Using SSM3, follow the screen and read [Current Data Display]. (Refer to )
(2) When the glass is in top position and the courtesy SW status changes from OFF to ON, check the window position counter.
Criteria :  Pulse fluctuates (approx. 46 pulses).
SSM3 display: [Each System Check] → [Power Window] → [Current Data Display · Save]
Item Name
 Description/display range
 Normal value
 Remarks
[Drivers seat Courtesy SW state]
 Status of driver’s door courtesy lamp switch/
Display range: [ON] - [OFF]
 [ON]: The driver's door is open.
[OFF]: The driver's door is closed.
 -
[Passenger seat Courtesy SW state]
 Status of passenger’s door courtesy lamp switch/
Display range: [ON] - [OFF]
 [ON]: The passenger's door is open.
[OFF]: The passenger's door is closed.
 -
[Drivers seat window position counter]
 Position information of driver’s door glass
Display range: -100 to 700
 -
 -
[Passenger seat window position counter]
 Position information of passenger’s door glass/
Display range: -100 to 700
 -
 -
NG
>Go to Step 5.

OK▼

4. Unit inspection of the power window regulator motor ASSY

(1) Remove the power window regulator motor ASSY. (Refer to )
(2) Perform unit inspection of the power window regulator motor ASSY.
NG
>Replacement of the power window regulator motor ASSY (If the function does not operate after the replacement, replace the power window master switch)

OK▼
Replacement of the power window regulator (Refer to )

5. Replacement of the power window regulator switch ASSY

(1) Replace with the new or normal power window regulator master switch ASSY, and verify normal operation. (Refer to )
Result
Item
 Go to
Motor does not operate.
 A
Motor operates.
 B
B
>Complete

A▼

6. Unit inspection of power window regulator motor ASSY

(1) Remove the power window regulator motor ASSY. (Refer to )
(2) Perform unit inspection of the power window regulator motor ASSY.
NG
>Replacement of the power window regulator motor ASSY

OK▼
Replacement of the power window regulator (Refer to )
