Power window regulator master switch ASSY
Components Removal / installation
GLASS & WINDOW
POWER WINDOW REGULATOR MASTER SWITCH ASSY

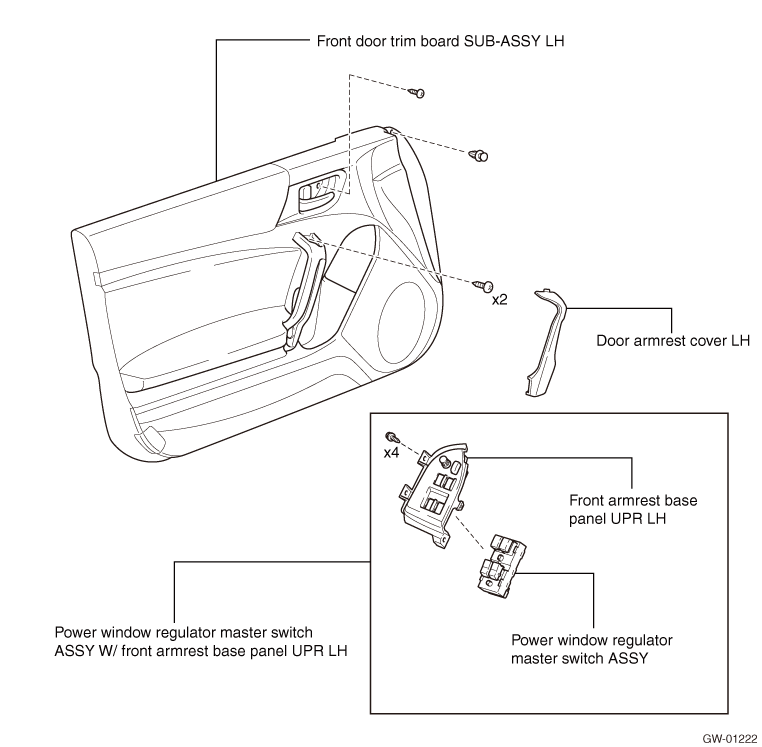

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)2. Removal of the door armrest cover LH (Refer to )
)3. Removal of the front door trim board SUB-ASSY LH (Refer to )
)4. Removal of power window regulator master switch ASSY W/front armrest base panel UPR LH (driver’s side door) (Refer to )
)
INSTALLATION
1. Installation of power window regulator master switch ASSY

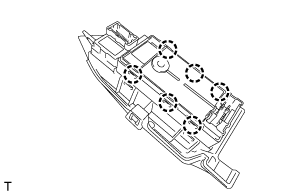

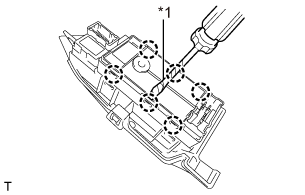

(1) Engage the 6 claws and install the power window regulator master switch ASSY to the front armrest base panel UPR LH.
2. Installation of the power window regulator master switch ASSY W/ front armrest base panel UPR LH (Refer to )
)3. Installation of the front door trim board SUB-ASSY LH (Refer to )
)4. Installation of the door armrest cover LH (Refer to )
)5. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
6. Settings when removing/installing battery terminals (Refer to )
)
